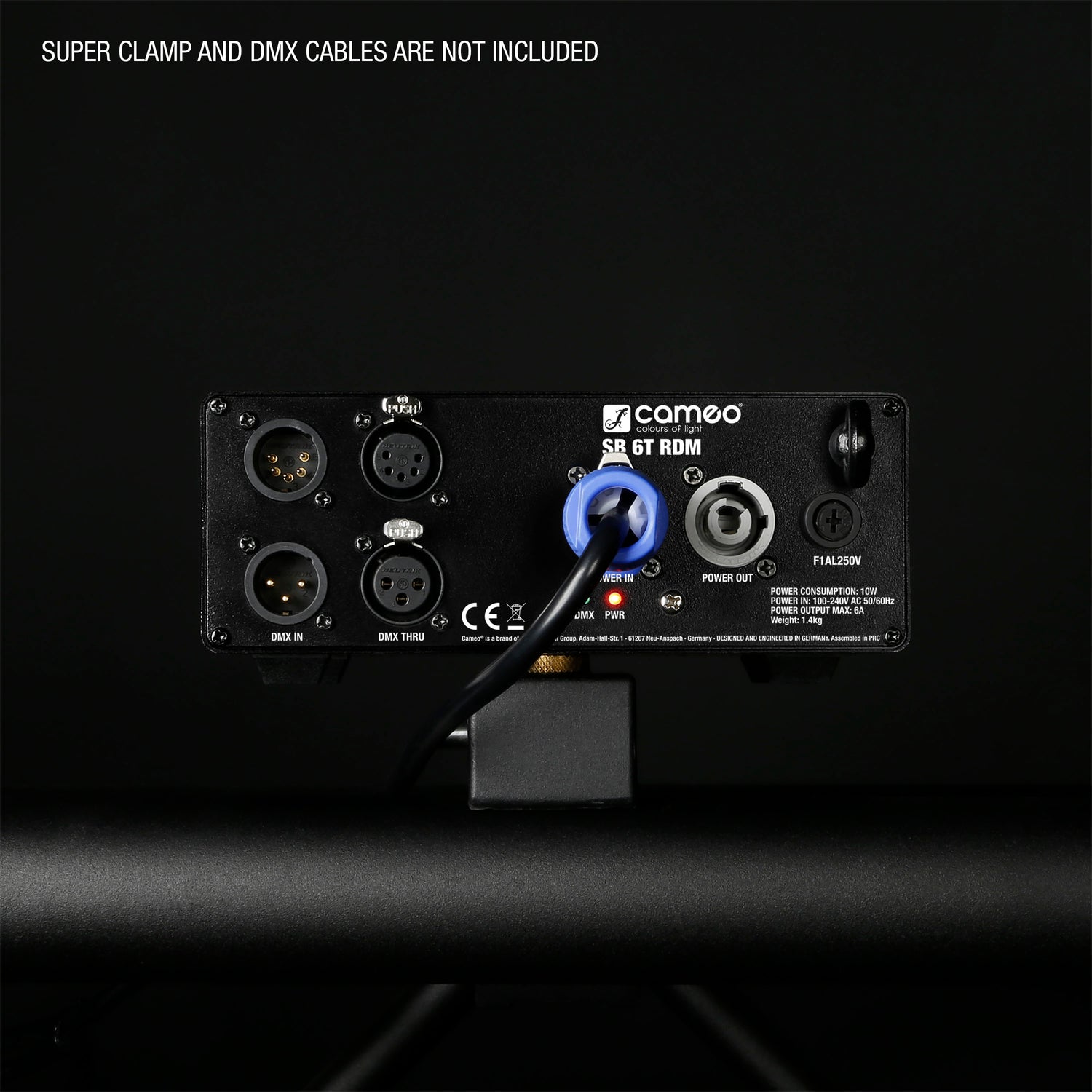

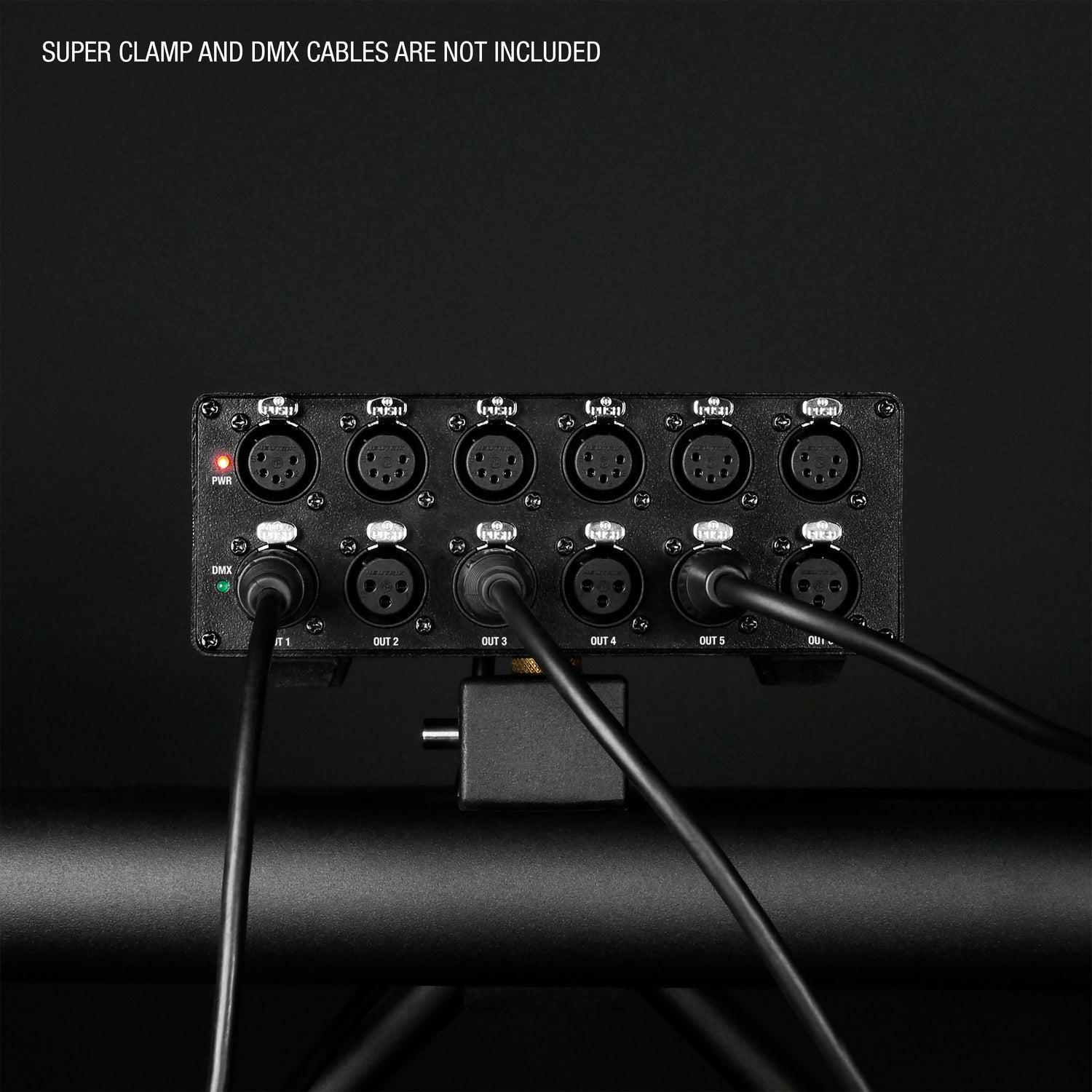

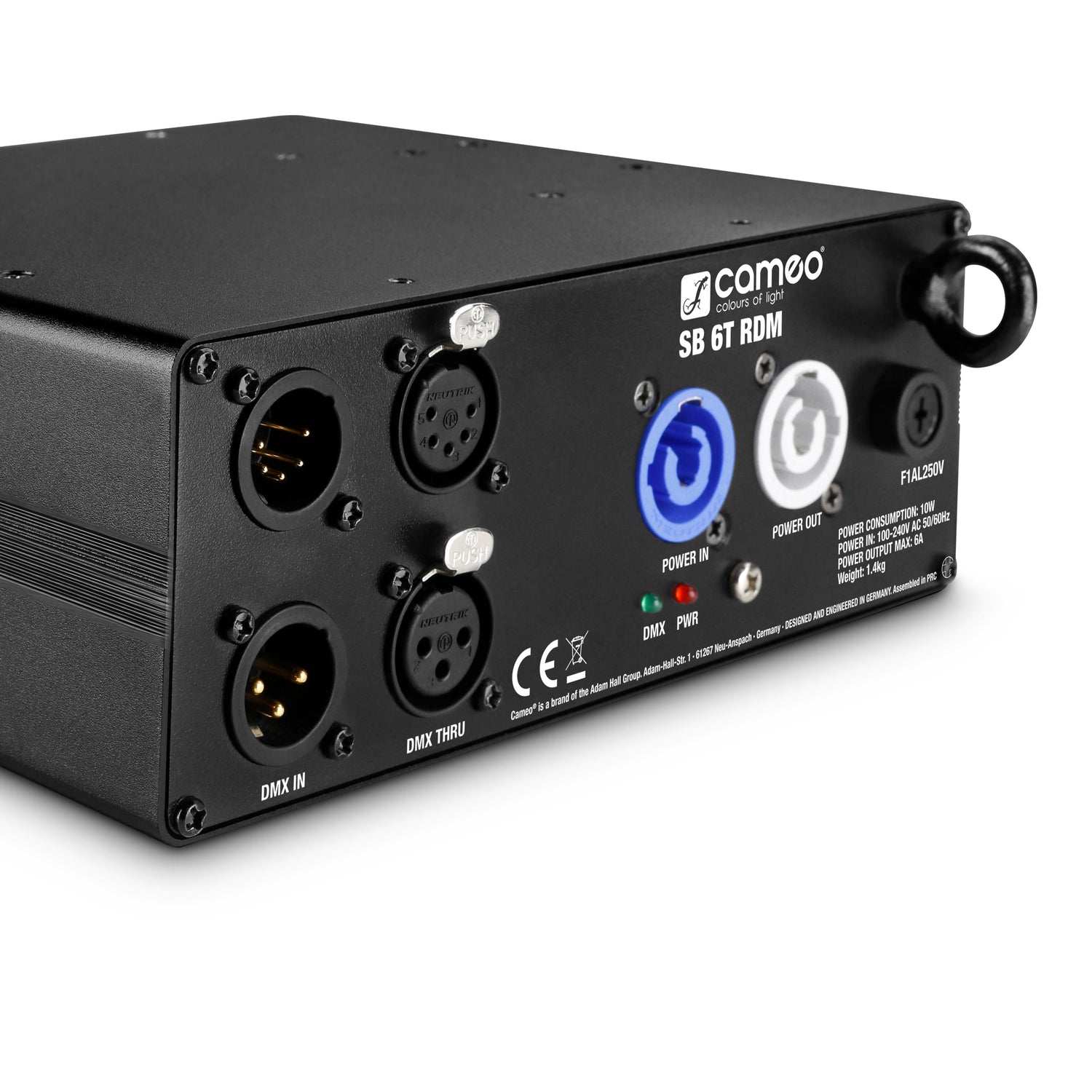

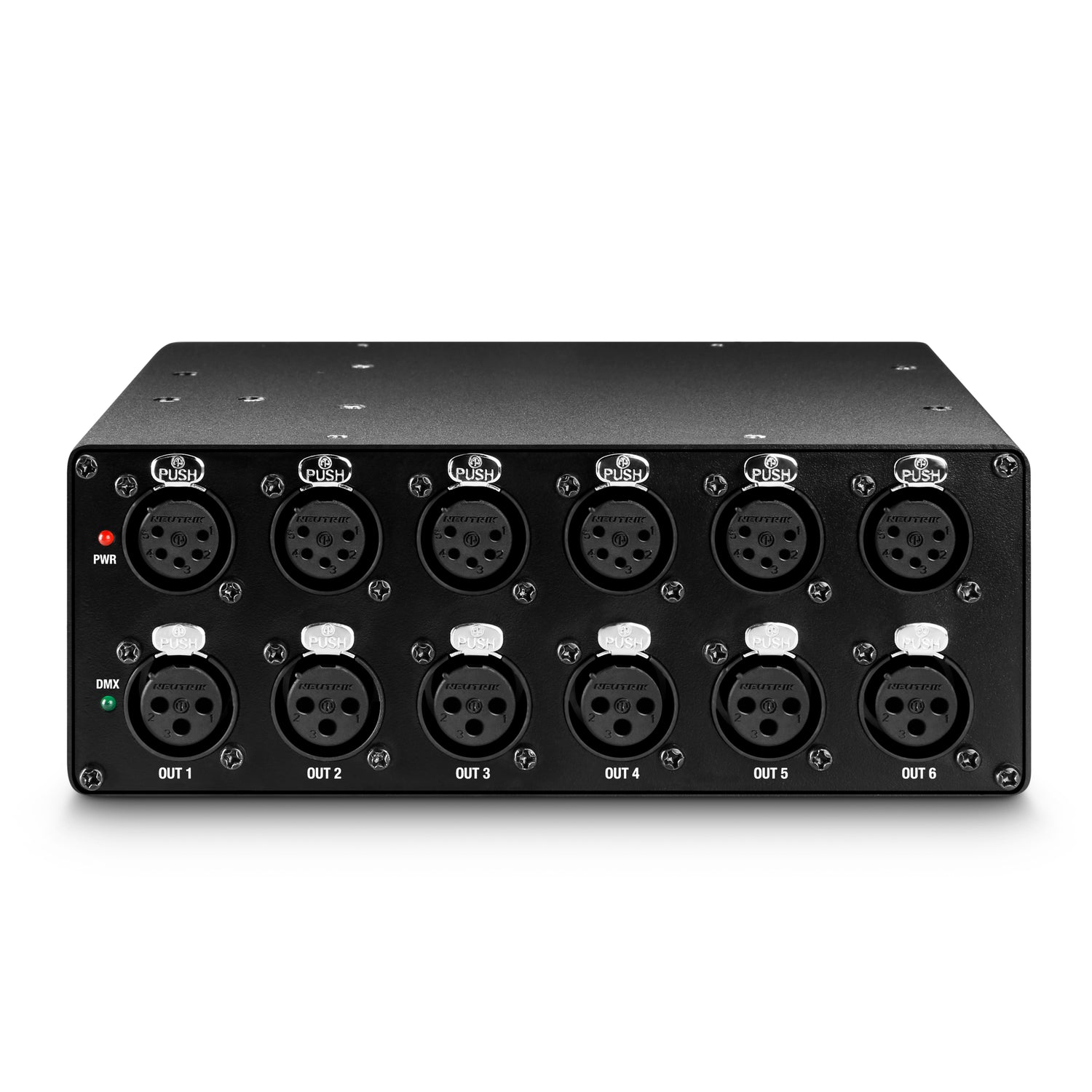

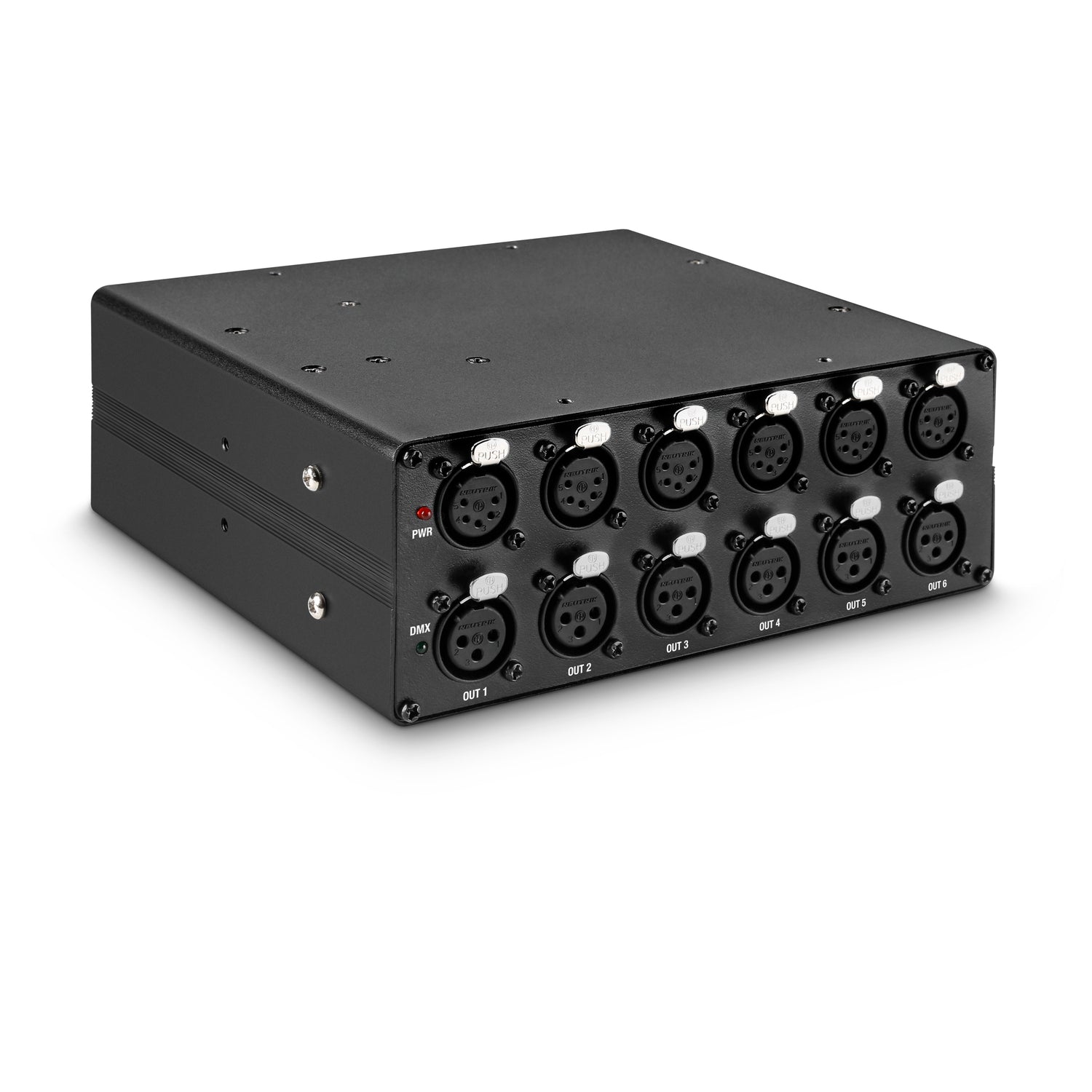

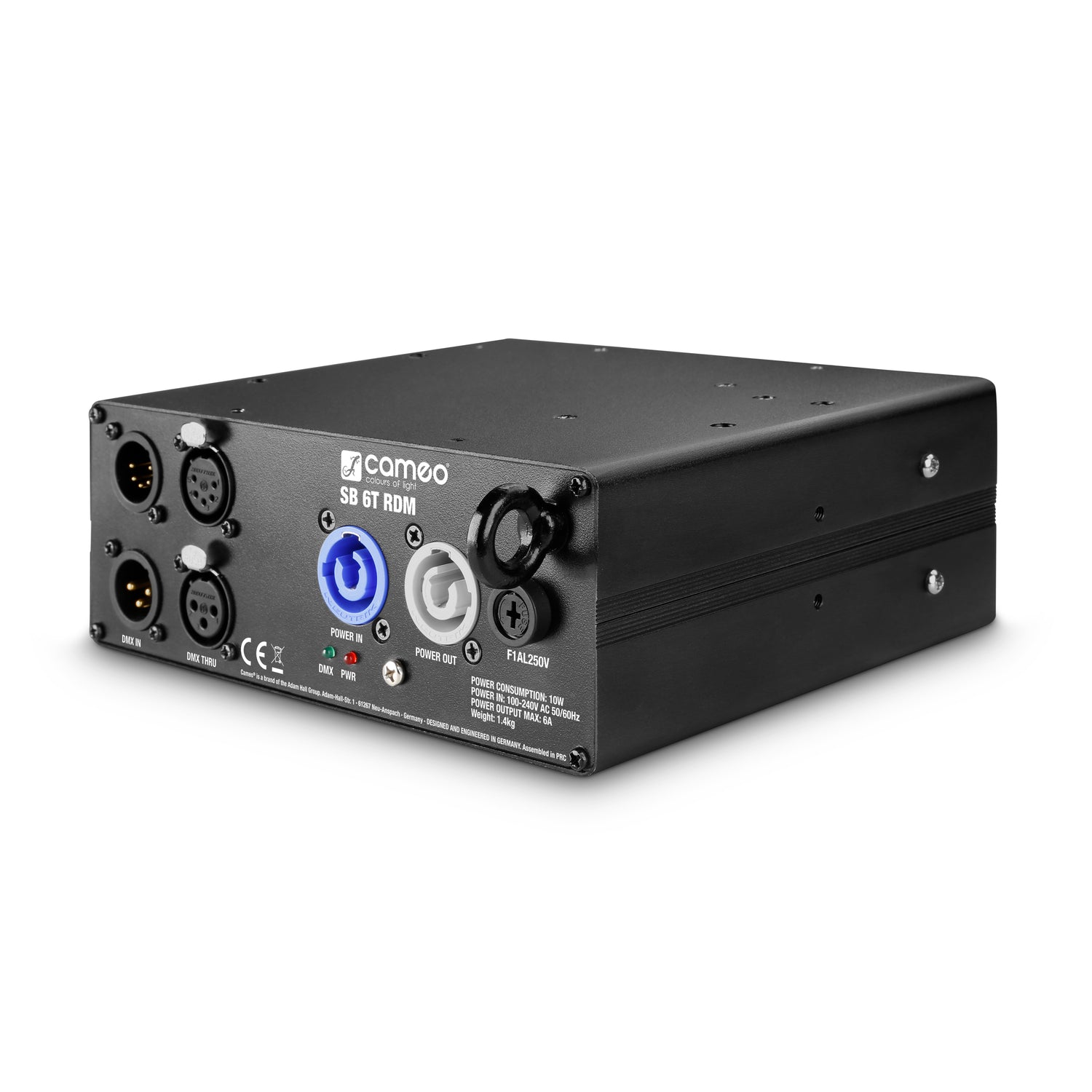

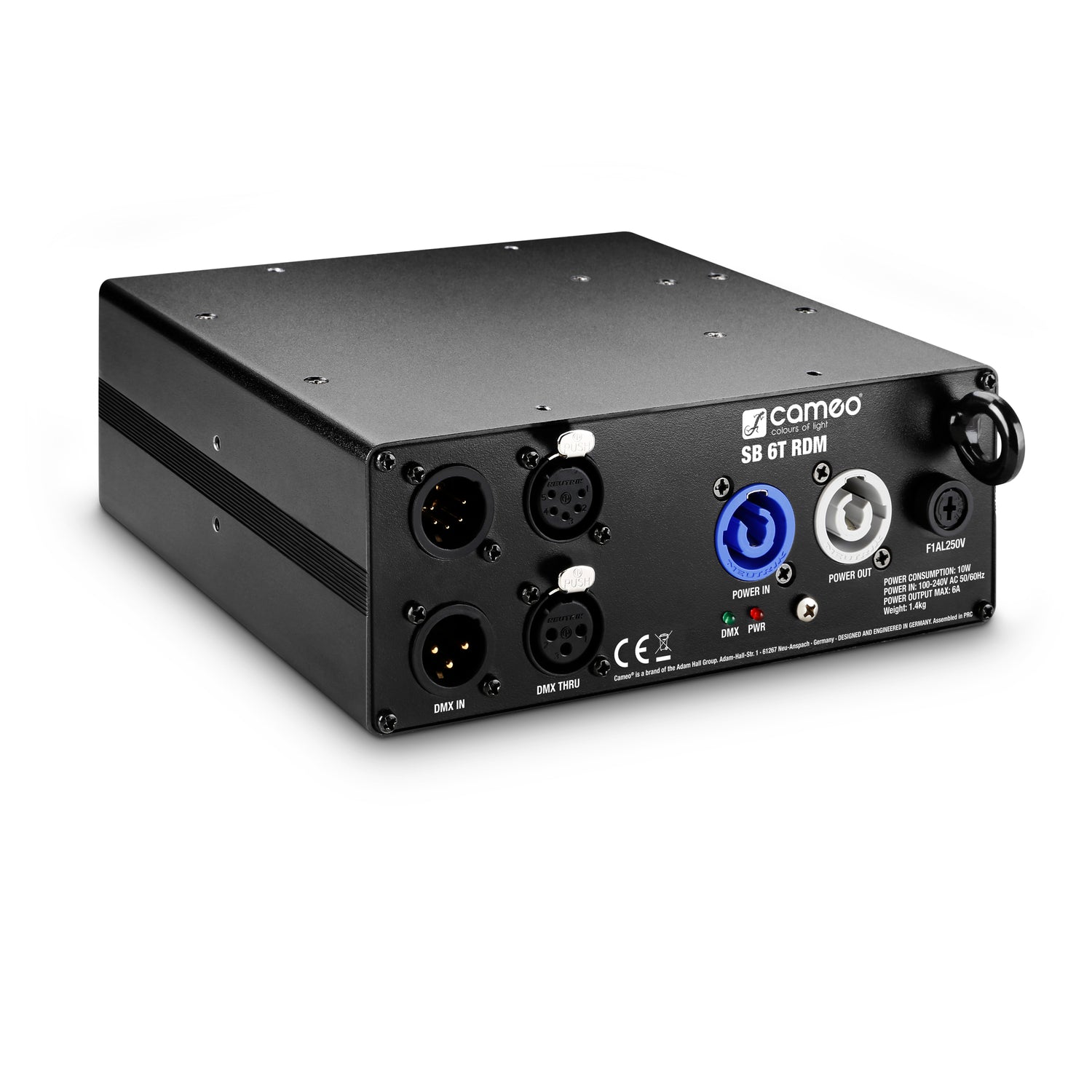

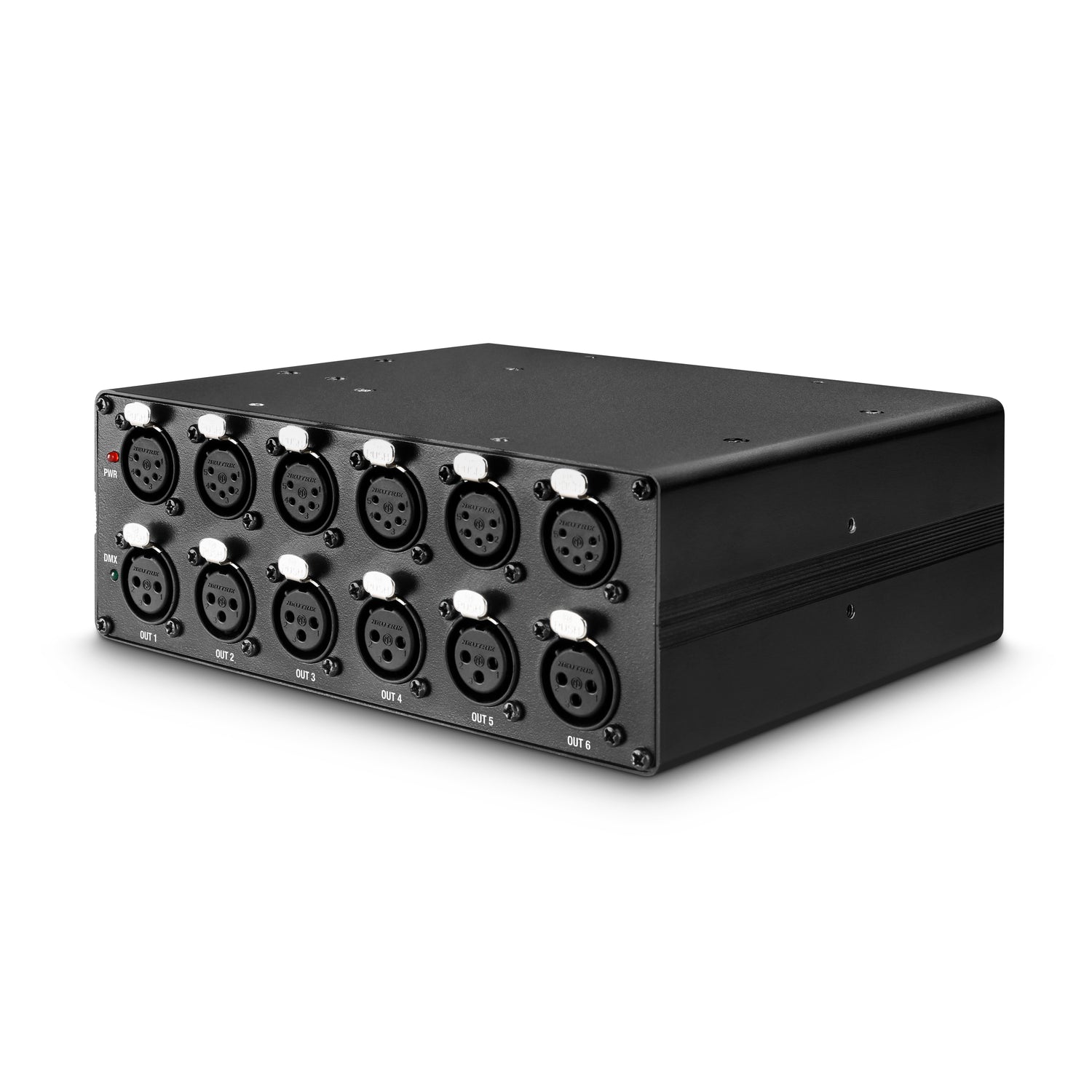

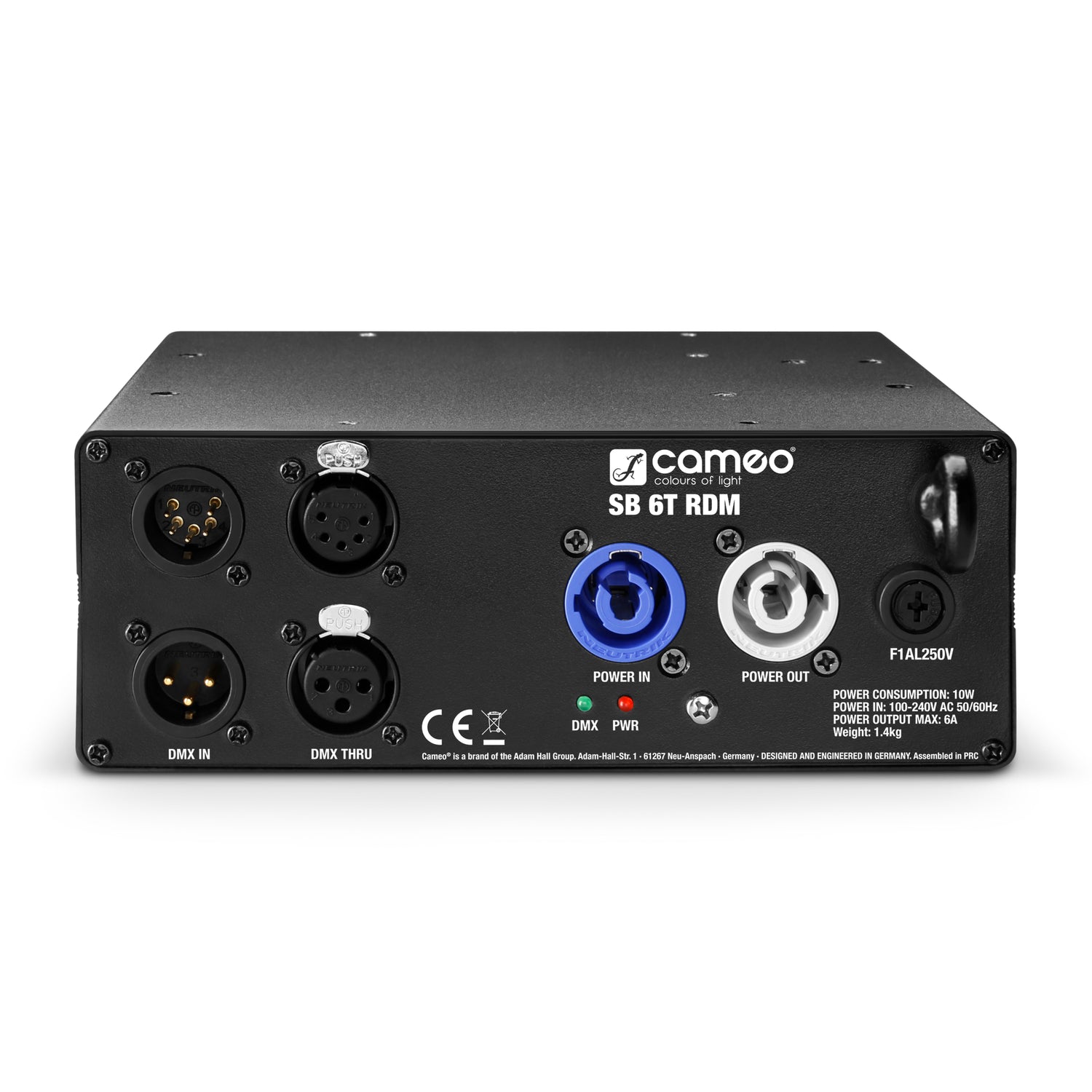

Developed for professional applications and with support for two-way communication, the Cameo SB 6T RDM is a 6-output DMX/RDM splitter with two inputs and two parallel thru outputs. It sends the incoming DMX/RDM signal to six separate output ports that are electronically and optically isolated. Each output channel has its own driver, which amplifies the DMX/RDM signal back to its original level. All inputs and outputs are equipped with both 3-pin and 5-pin Neutrik® connectors for maximum flexibility and reliability. LEDs on the front and rear panel indicate power and DMX status, and three M10 female threaded inserts make it easy to mount on truss. The Cameo SB 6T RDM is supplied with a powerCON power cable.
- Professional 6-output DMX/RDM splitter/booster
- 6 optically and electronically isolated 3 and 5-pin XLR outputs
- Compact housing
- Original Neutrik® connectors for maximum reliability

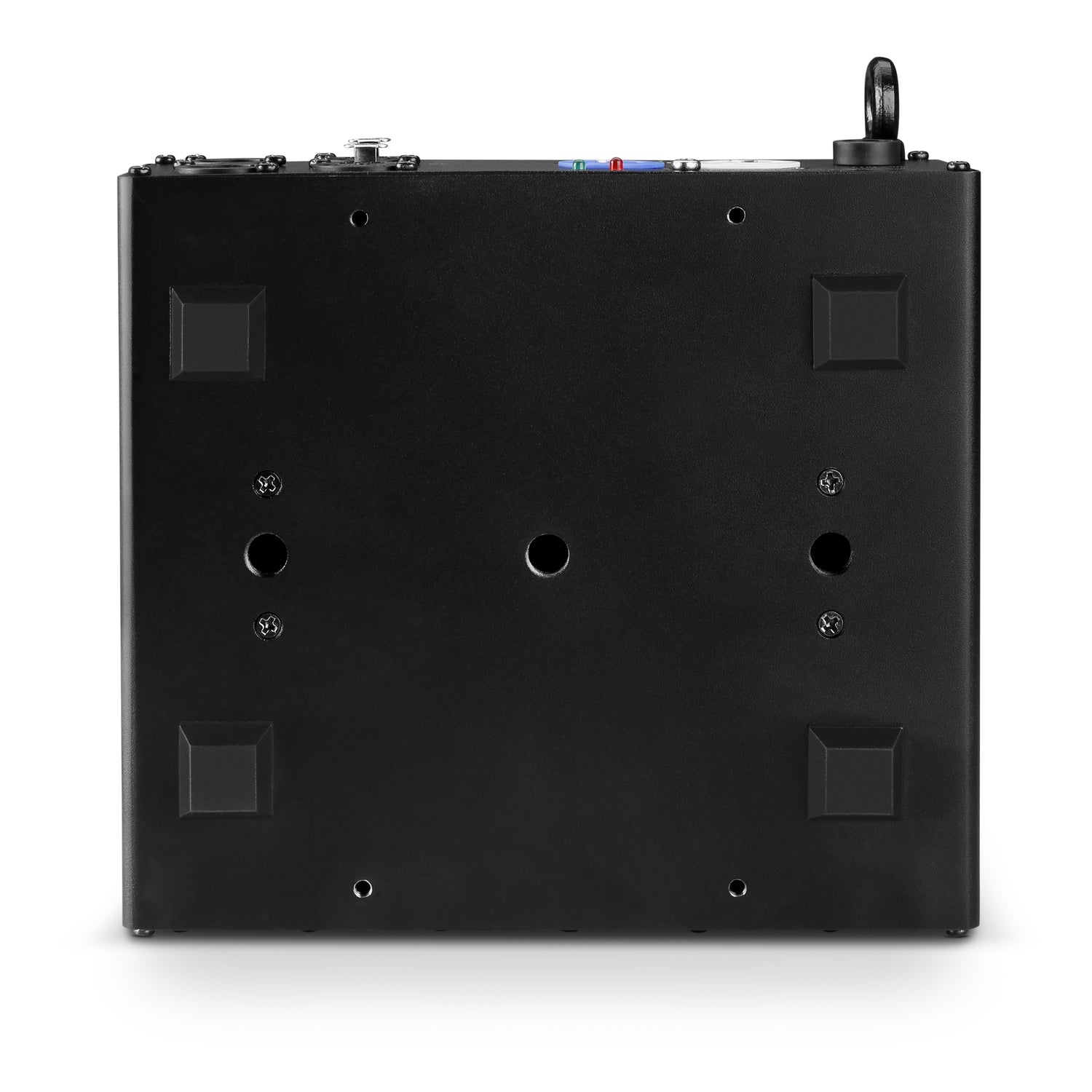

- 3 x M10 threaded inserts for a variety of truss mounting options
- Power and DMX status indicators on front and rear panel
- Optional 2 U 19" rackmount frames available for one or two SB 6T RDM
| Product type | Other Lighting Accessories |
| Type | DMX splitter / booster |
| DMX inputs | 2 (parallel) |
| DMX input connectors | XLR 3-pin male |
| DMX input connectors | XLR 5-pin male |
| DMX Thru Outputs | 2 (parallel) |
| DMX Thru Output Connectors | XLR 3-pin female |
| DMX Thru Output Connectors | XLR 5-pin female |
| DMX outputs | 6 |
| DMX output connectors | XLR 3-pin male |
| DMX output connectors | XLR 5-pin male |
| Indicators | 2 x Signal LED |
| Indicators | 2 x power LED |
| Mains connector | Neutrik® powerCON |
| Power supply | 100 V AC - 240 V AC, 50 - 60 Hz |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Max. current | 6 A |
| Power consumption | 10 W |
| Fuse | F1AL / 250V |
| Width | 185 mm |
| Height | 77 mm |
| Depth | 170 mm |
| Weight | 1,3 kg |
| Accessories (included) | Power supply |
