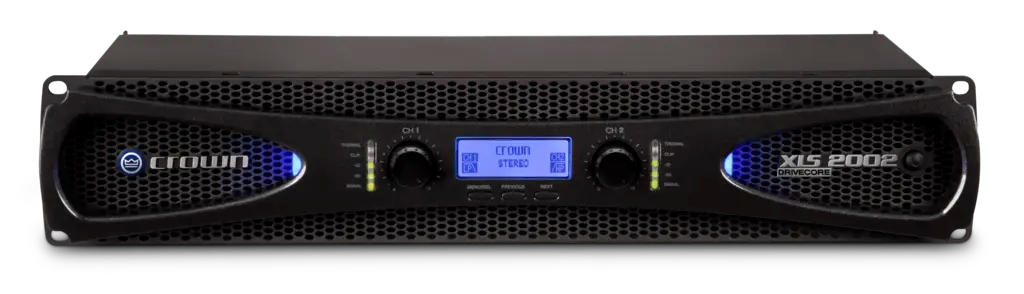

Crown XLS2002
€676,95
Unit price
/
Not available
Description
Description
Crown XLS DriveCore 2 - powerful and flexible 2-channel PA amplifier
The Crown XLS 2 series sets a high standard for amplifiers for both portable PA solutions and fixed installations. With the ultra-lightweight Class D architecture based on Crown’s own DriveCore technology, the XLS 2 delivers plenty of power with low weight and high efficiency, making setup and transport significantly easier.
The series offers multiple inputs (XLR, 1/4" and RCA) for maximum connectivity flexibility and Link Out, so you can easily pass the signal on to the next amplifier in the chain. The new generation features an updated design, larger LCD display and expanded DSP control, including a band-pass filter per channel, adjustable input sensitivity (0,775 Vrms or 1,4 Vrms), a Peakx limiter for high output without overloading the speakers, and a PureBand crossover for better control.
With active fan cooling, operation remains stable even under prolonged load, and the weight is under approx. 5 kg per unit, making the series suitable for touring use as well as installations. XLS 2 builds on the well-known and reliable XLS DriveCore platform and delivers clean, controlled performance for many types of applications.
Technical specifications
Technical specifications
Tekniske specifikationer
Generelt
| Modelserie | XLS DriveCore 2 (XLS 1002, XLS 1502, XLS 2002, XLS 2502) |
| Forstærker type | Touring |
Lydspecifikation
| Forstærkerkanaler | 2 |
| 70/100 V | Nej |
| Power pr. kanal (4 Ohm) | 650 W (XLS 2002), se power matrix for øvrige modeller |
| Indbygget DSP | Ja (udvidede DSP-funktioner, band-pass filter pr. kanal, PureBand™ crossover, justerbar dimmer-speed, selectable input sensitivity 0,775 Vrms/1,4 Vrms, display-sleep, menu-lås, system reset, Peakx™ limiter) |
| Frekvensrespons (ved 1 W, 20 Hz - 20 kHz) | +0 dB, -1 dB (alle modeller) |
| Signal/støj-forhold (A-vægtet, v. fuld 8 Ohm effekt) | > 97 dB (XLS 1002), > 103 dB (XLS 1502/2002/2502) Ved 0,775 Vrms følsomhed er SNR 6 dB lavere |
| THD | < 0,5 % (alle modeller) |
| Intermodulationsforvrængning (60 Hz og 7 kHz, 4:1, fra fuld udgang til -30 dB) | < 0,3 % |
| Dæmpningsfaktor (8 Ohm, 10 Hz - 400 Hz) | > 200 |
| Krydstale (under nom. 8 Ohm effekt) | > 85 dB ved 1 kHz, > 55 dB ved 20 kHz |
Tilslutninger
| Audio indgange | XLR, 1/4" (TRS), RCA |
| Audio udgange | Speaker binding post, Speakon (spk. cable), Link Out |
| Bluetooth | Nej |
| Ethernet | Nej |
| Wi-Fi | Nej |
Energi og køling
| Forstærkerklasse | Class-D (Crown DriveCore) |
| Køling | Aktiv luftkøling (blæser) |
Fysiske data
| Installation | 19" rack, 2U |
| Dimensioner (B x H x D) |
XLS 1002: 482,6 x 88,9 x 196 mm XLS 1502: 482,6 x 88,9 x 196 mm XLS 2002: 482,6 x 88,9 x 272 mm XLS 2502: 482,6 x 88,9 x 272 mm |
| Nettovægt |
XLS 1002: 3,9 kg XLS 1502: 3,9 kg XLS 2002: 4,9 kg XLS 2502: 4,9 kg |
| Forpakningsstørrelse | 560 x 380 x 150 mm |
| Forpakningsvægt | 6,10 kg |
Yderligere funktioner
- Opdateret design og større LCD-display
- Udvidet DSP-kontrol med band-pass filter pr. kanal
- Mulighed for at slukke display og LED-indikatorer (undtagen clip og termisk) for mere diskret drift
- Valgbar indgangsfølsomhed: 1,4 Vrms eller 0,775 Vrms
- Display sleep-timer og sikkerhedslås af menu
- System reset til fabriksindstillinger
- Remote power trigger
- Peakx™ limiter til beskyttelse af højttalere ved høj udgang
- PureBand™ crossover for bedre performance og kontrol
- Mulighed for Link Out til nem signal-videreføring
Power matrix
| Model | 2 Ohm dual | 4 Ohm dual | 8 Ohm dual | 4 Ohm bridge | 8 Ohm bridge |
|---|---|---|---|---|---|
| XLS 1002 | 550 W | 350 W | 215 W | 1100 W | 700 W |
| XLS 1502 | 775 W | 525 W | 300 W | 1550 W | 1050 W |
| XLS 2002 | 1050 W | 650 W | 375 W | 2100 W | 1300 W |
| XLS 2502 | 1200 W | 775 W | 440 W | 2400 W | 1550 W |
Bemærk
- Specifikationer kan ændres uden varsel.
