Loudspeaker Management System

DSP Manager 2 is a 64Bit standalone software developed to manage loudspeaker systems for studios, concerts, venues, conferences or any other kind of event that requires loudspeaker management or that requires audio routing to different loudspeaker systems.

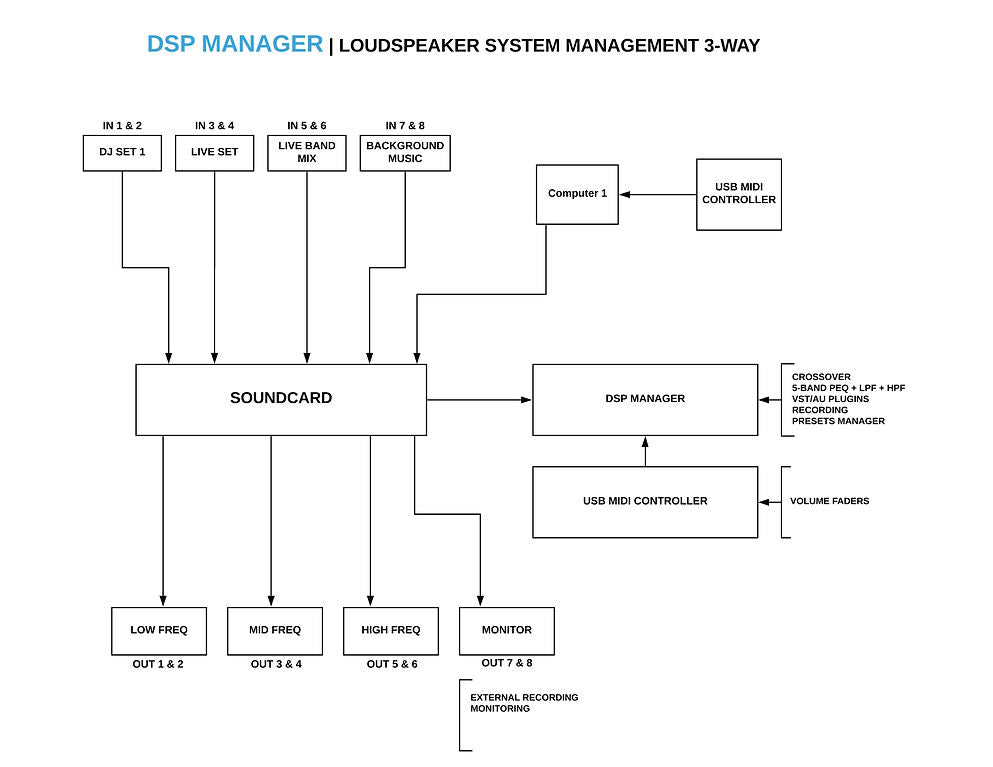

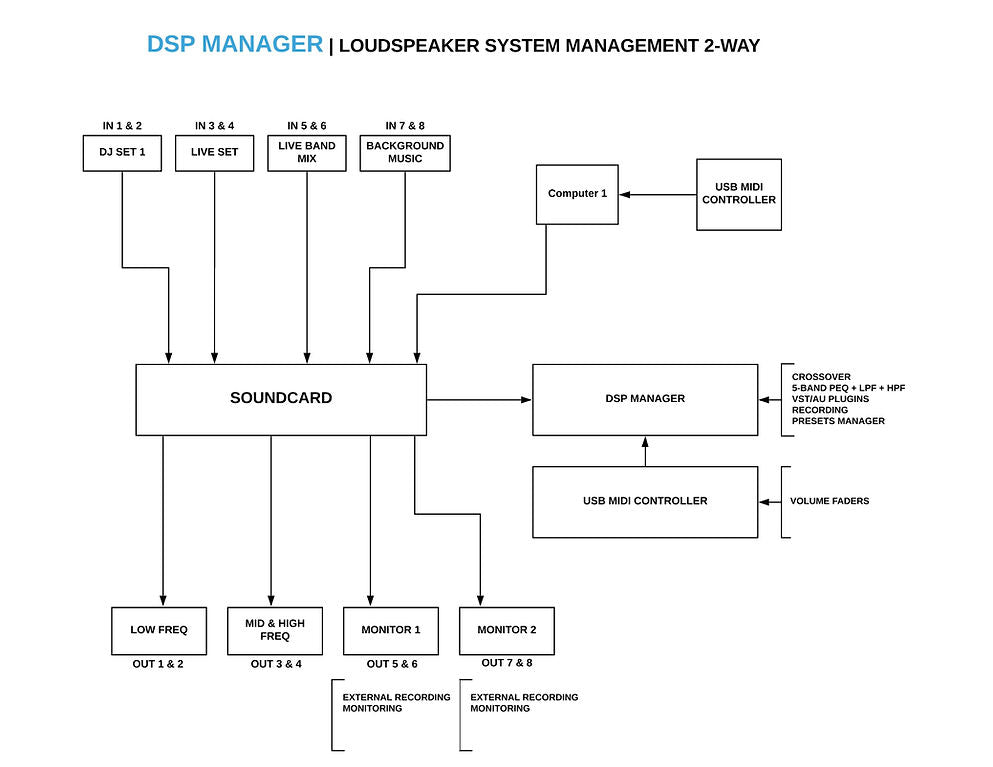

DSP Manager allows managing complex loudspeakers systems (2-way and 3-way) using a computer, soundcard, midi controller and processing audio through vst/au plugins instead of a DSP hardware unit featuring crossover filters.

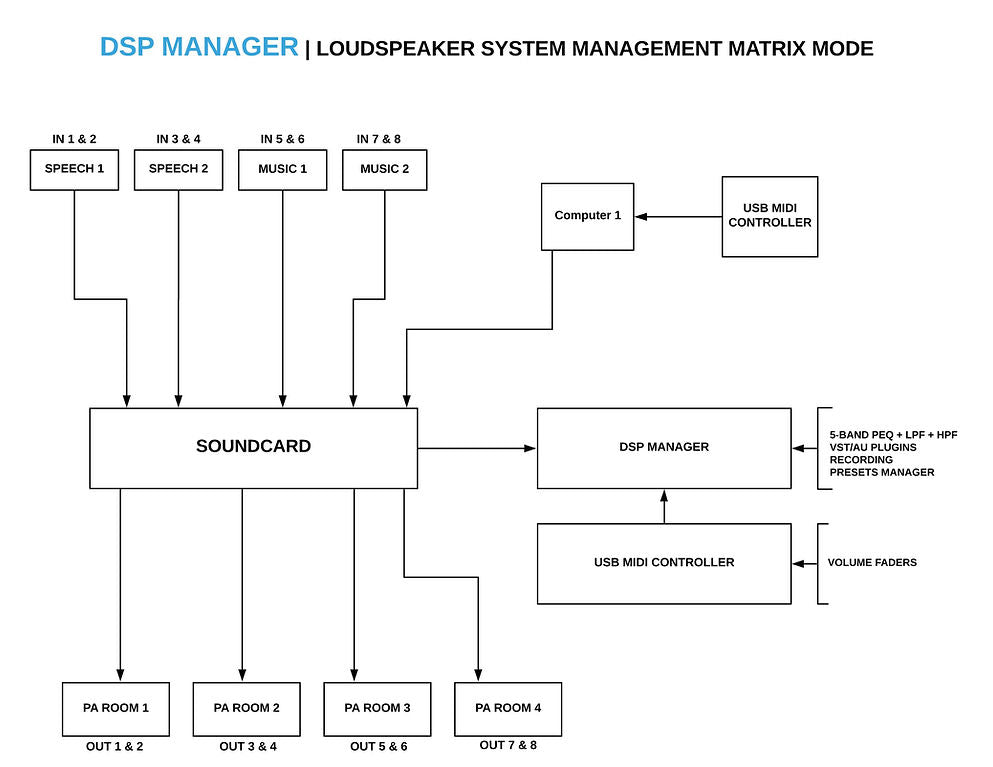

Matrix mode Matrix mode allows routing audio inputs to different audio outputs. A useful mode when you need different audio source on different loudspeaker systems or rooms.

• Processing Modes: 2 Way crossover, 3 Way crossover & Matrix modes. 4th Order Linkwitz-Riley & 3rd order Butterworth crossover filters.
• Matrix Mode: Matrix mode allows routing audio inputs to different audio outputs. A useful mode when you need different audio source on different loudspeaker systems or rooms.

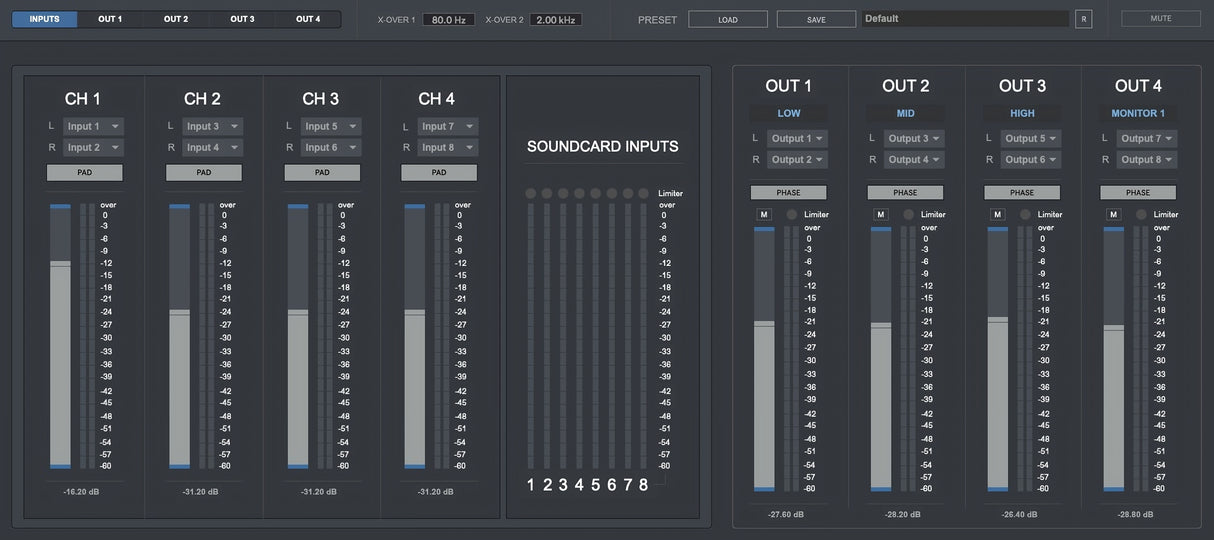

• Outputs: Up to 4 stereo audio outputs channels. Each output channel includes 5-Band Parametric EQ, LPF, HPF, delays, 4 vst/au plugin sections & a built-in brickwall limiter to avoid clipping and distortion.
