The microphones can be quickly moved between different instruments during concerts or recordings. Once mounted, the lightweight design makes them discreet and non-intrusive for the musician.
A balanced XLR connection allows direct connection to the microphone input of a mixing console or a full-range amplification system. (Note: These contact microphones require 22–48V phantom power, except for the passive DYN UNI model.) The torsion-resistant, Kevlar-reinforced cable is designed to withstand daily use while delivering optimal performance.
All microphones in the SCHERTLER DYN P48 series are equipped with an integrated Class-A preamp and advanced filtering technology, enabling each microphone to reproduce the instrument’s best tonal characteristics.

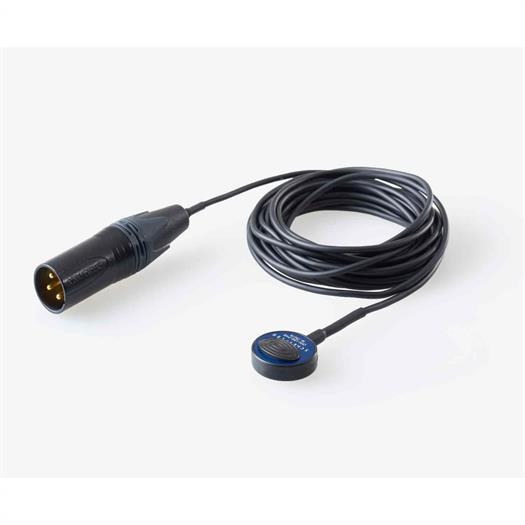

DYN UNI P48 has a linear frequency response, making it suitable for use with a wide range of instruments. Supplied with a padded bag and special adhesive compound.
Tekniske specifikationer:
Transducer type Electro-dynamic moving coil active contact microphone
Mechanical decoupling Butterworth 2nd order, Q = 0.6
Frequency Response (@ ±3dB) - filtered* 20 to 16 kHz
Sensitivity ca. -30 dBu
Dynamic range 139 dB
Output impedance (@ 1 kHz) 4.7 kΩ
Operating voltage 22 to 48 VDC
Built in preamp Yes all Class-A
External preamp No
Contacts All hard gold plated 0.5 mm
For fixed installations No
Removable Yes
Connection XLR balanced
Cable Length 4 m
Dimensions: 20x12x5 cm
