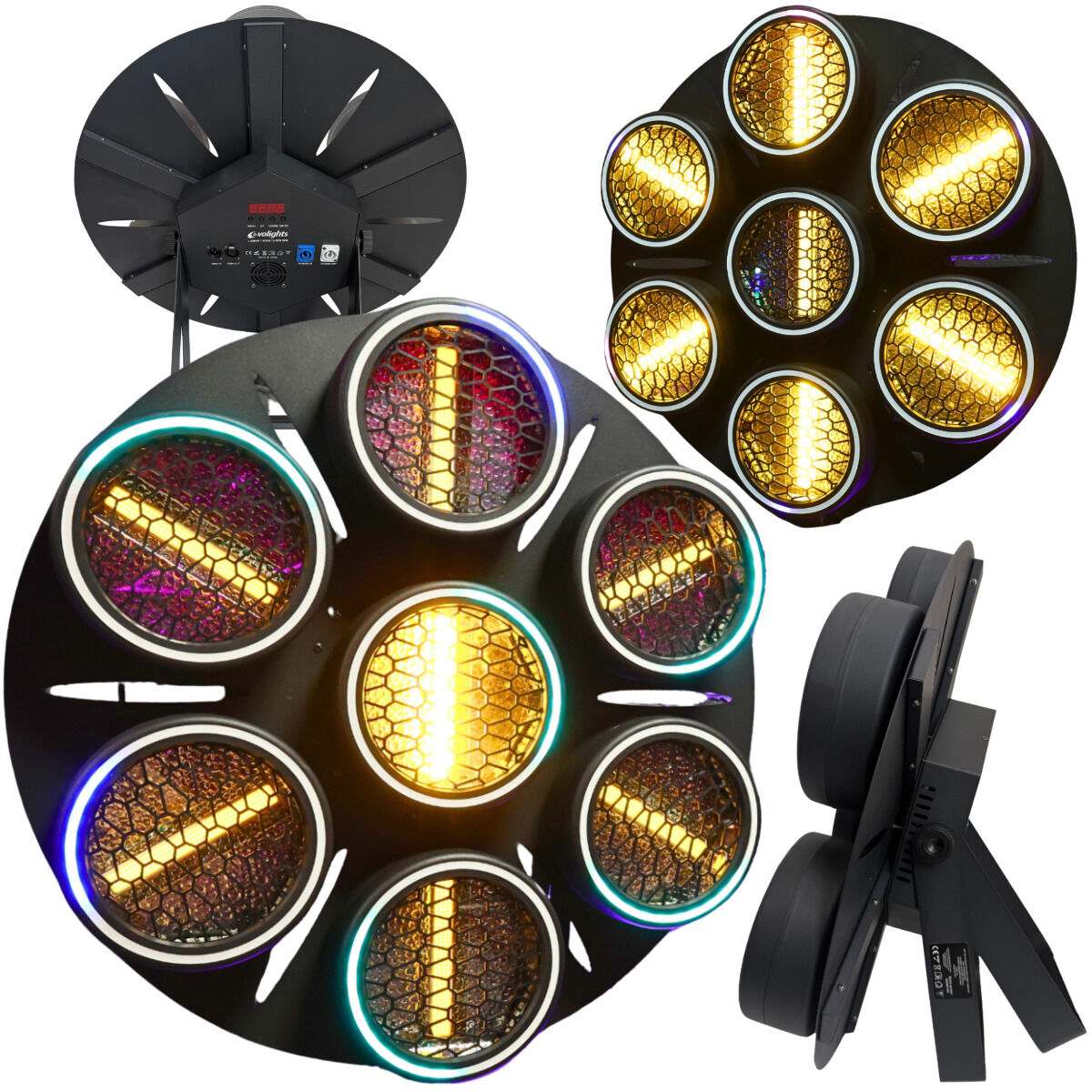

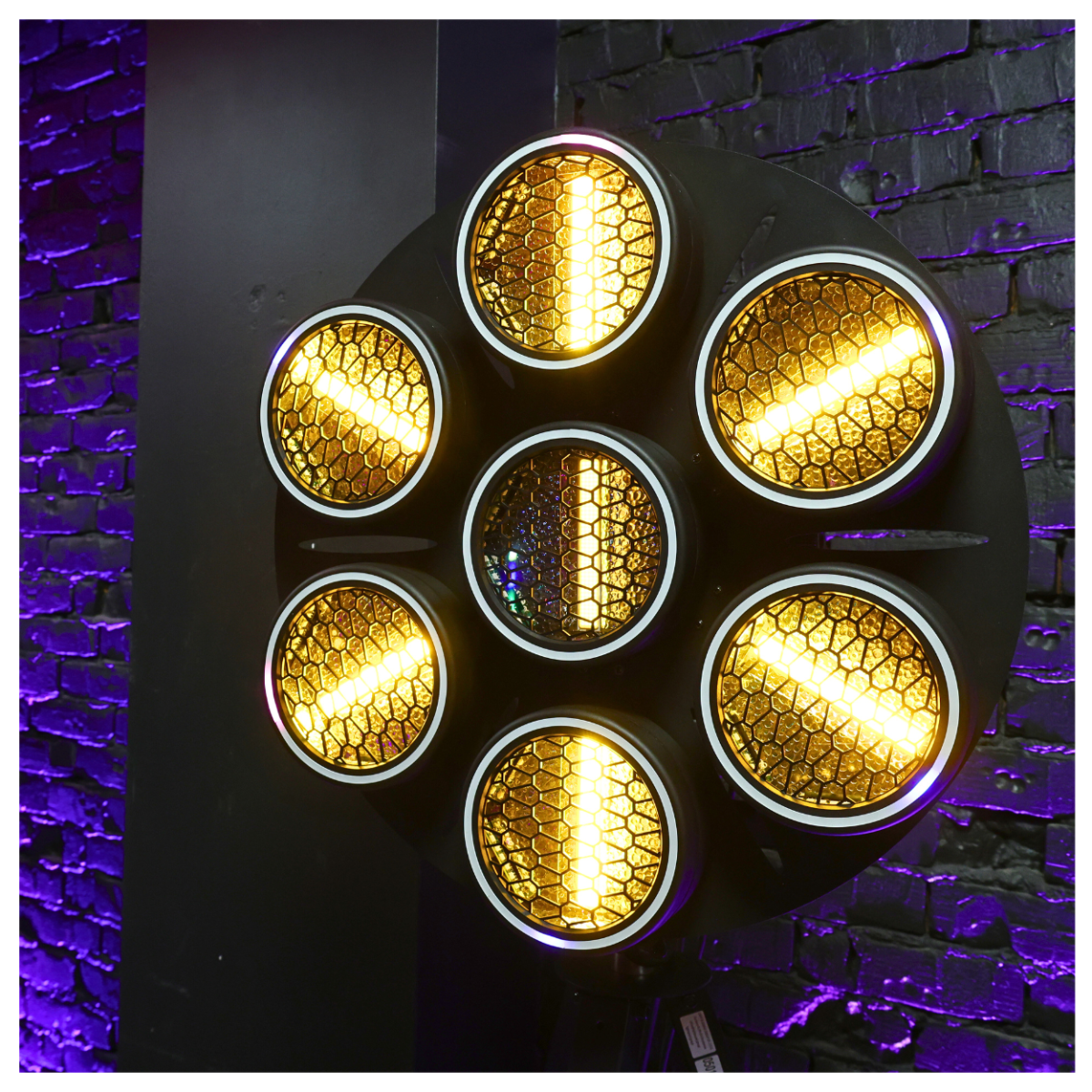

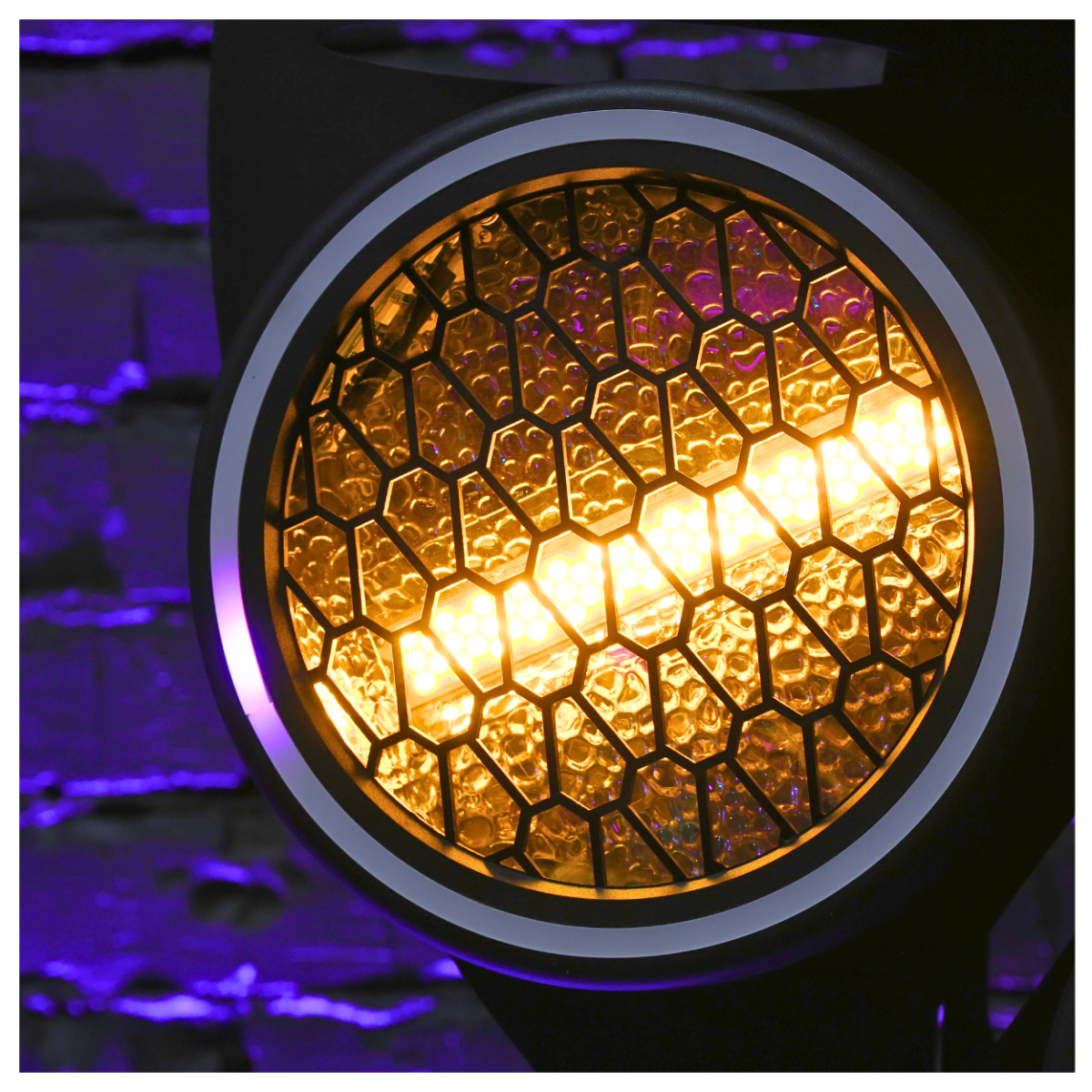

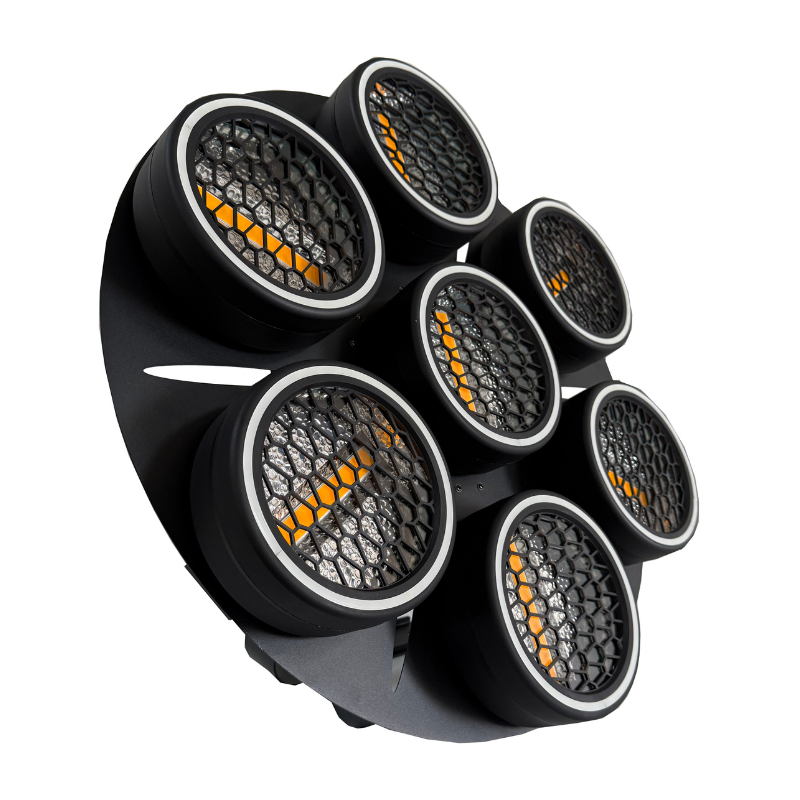

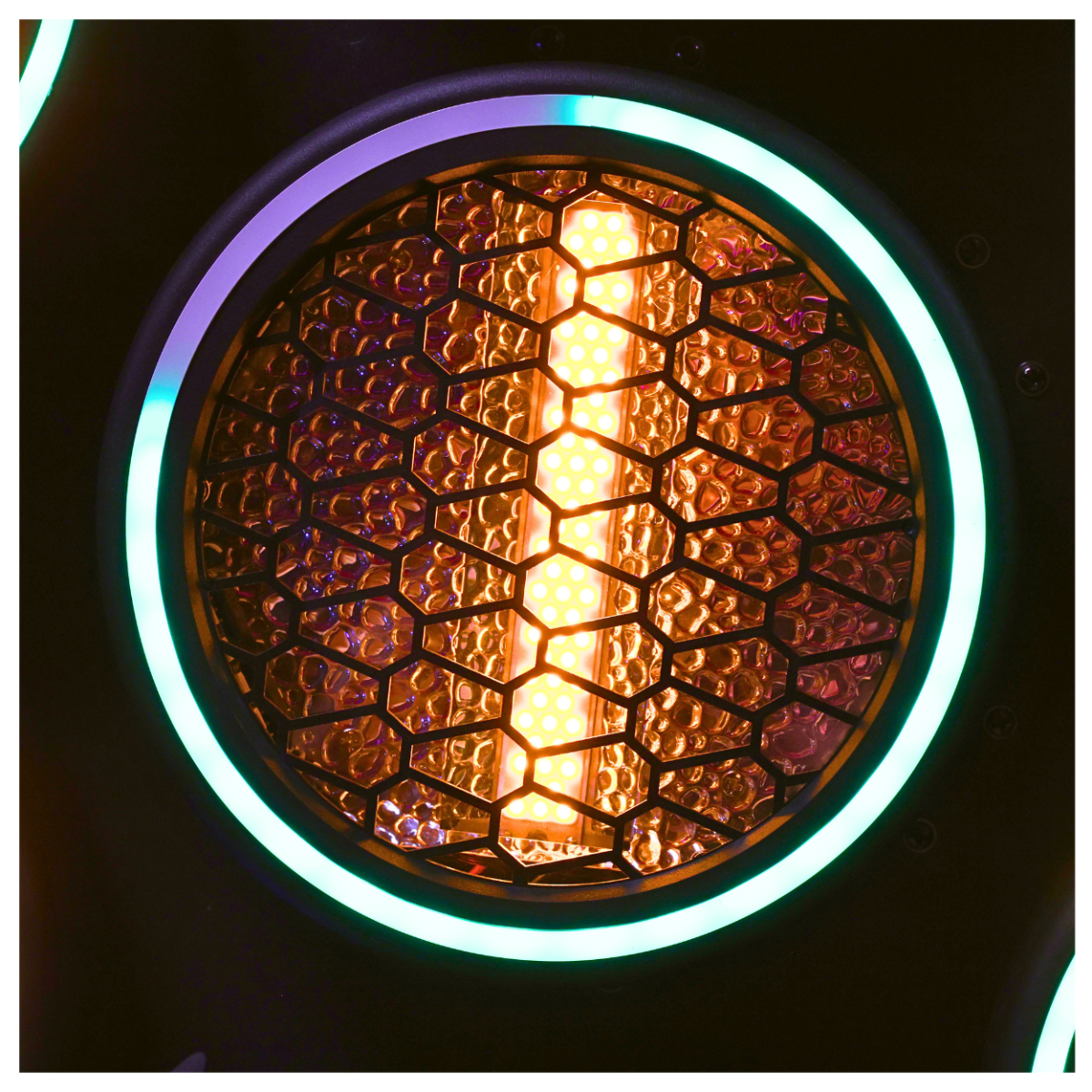

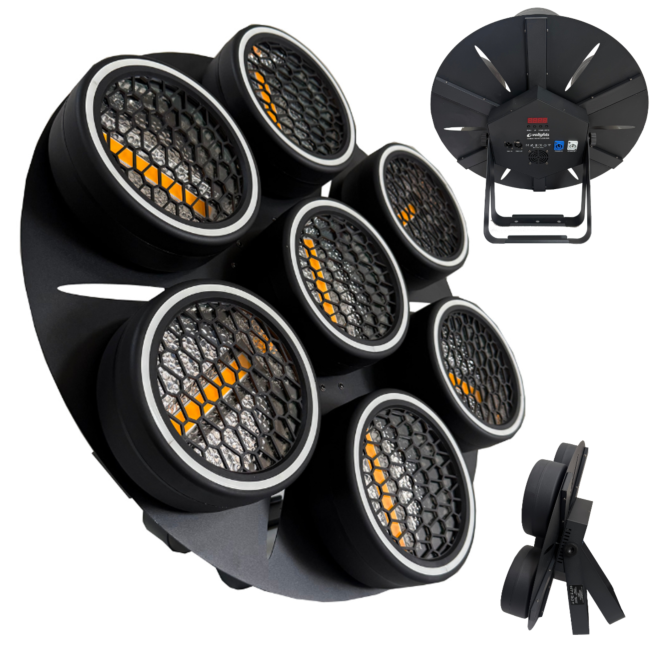

Evolights Lumen 7 Ring is a professional stage projector that combines a classic vintage look with modern LED technology. The fixture is equipped with 7 powerful 30W Warm White LEDs, delivering a warm color temperature of 1800–2000K and a wide spread of 120°, making it ideal for atmospheric stage lighting.

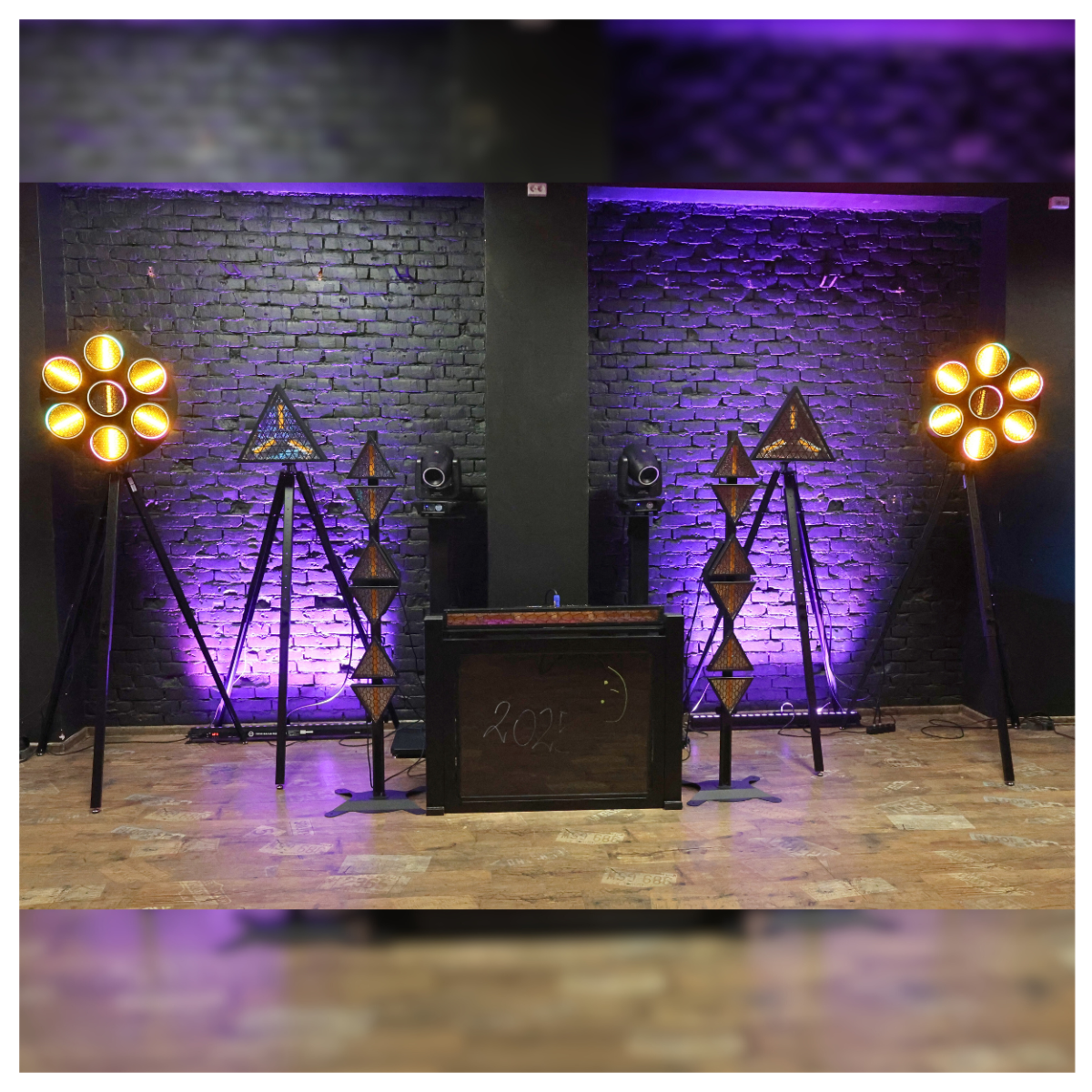

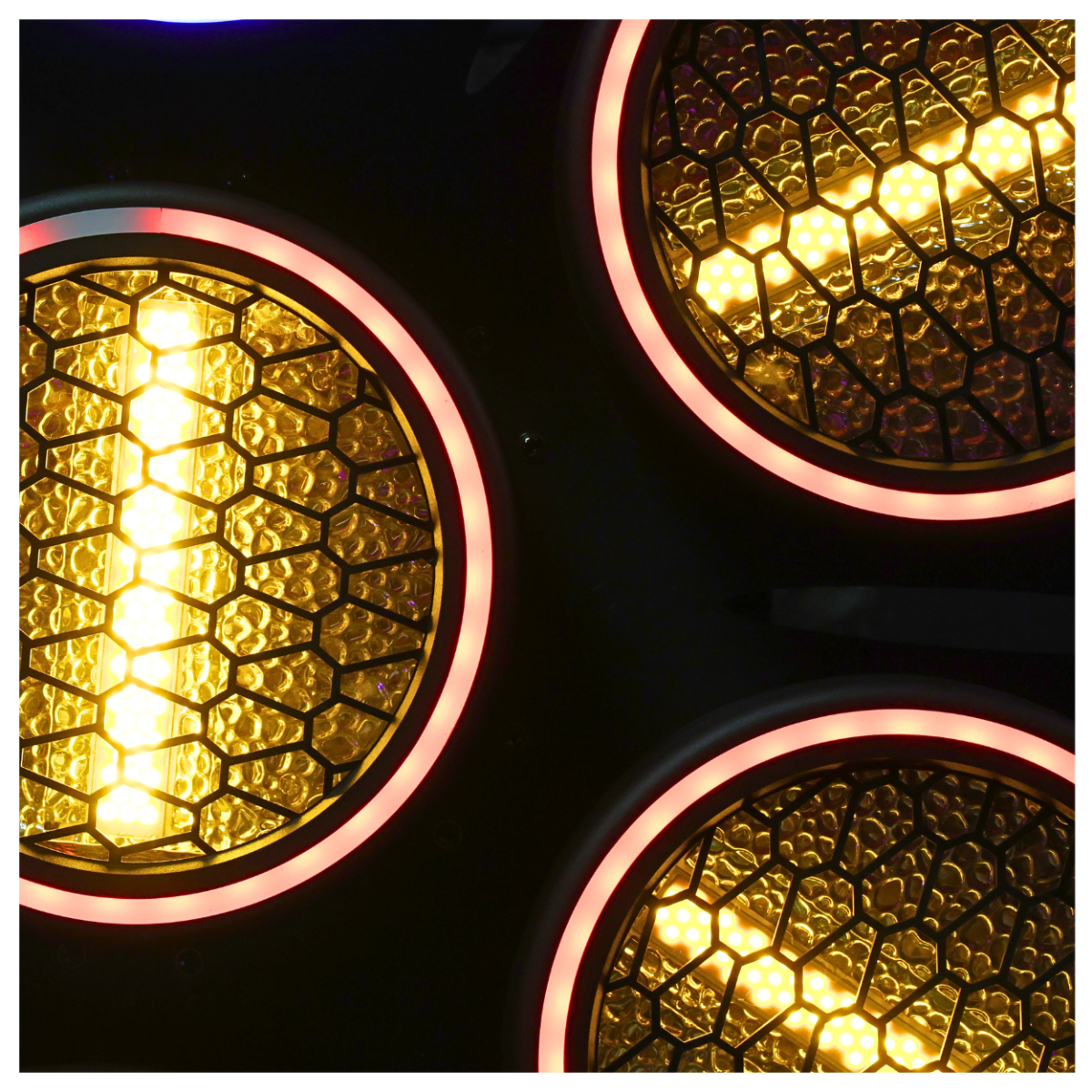

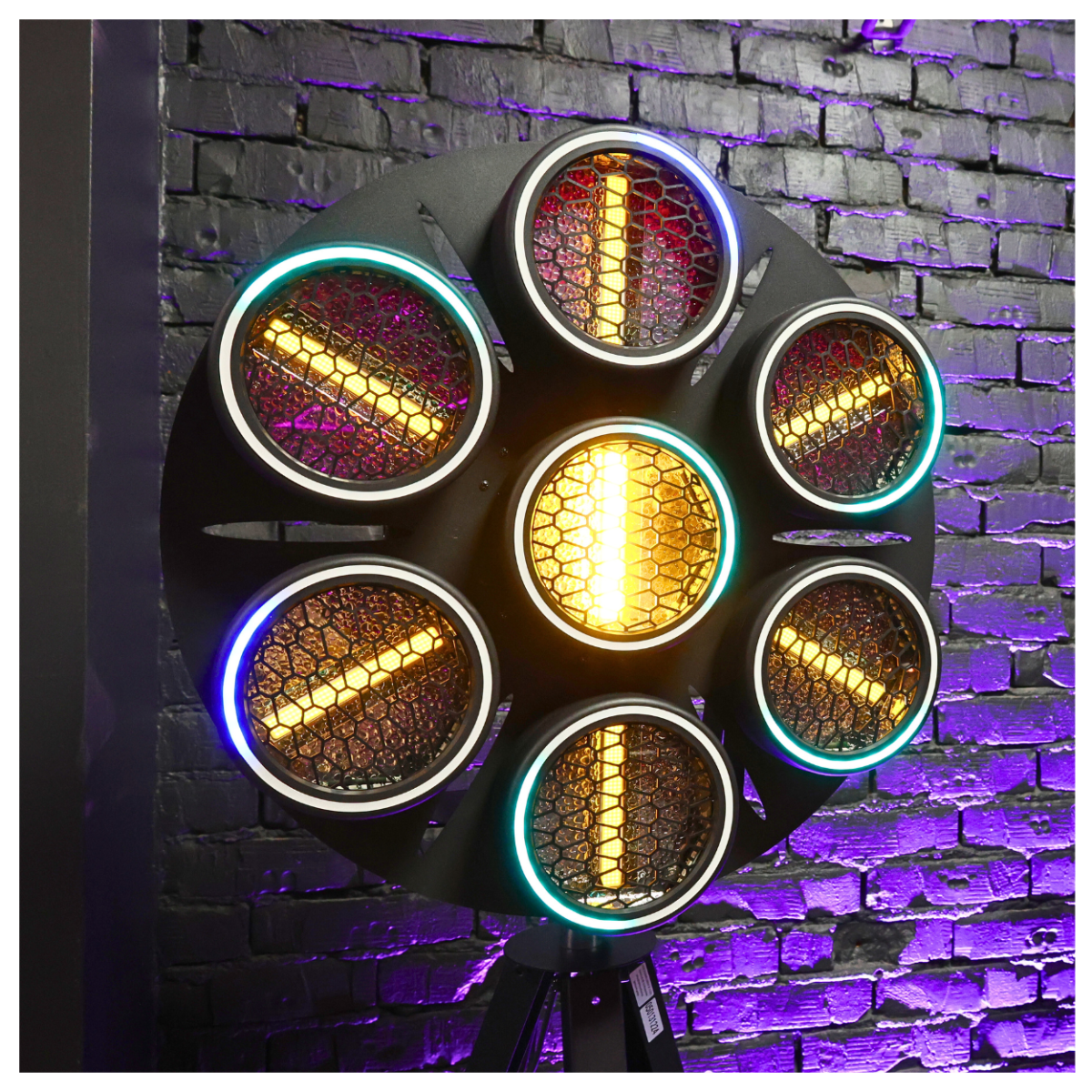

In addition to the warm white light, the lamp contains 224 RGB LEDs for background effects and 31 RGB LEDs for ring effects, creating dynamic visual elements and giving the stage a distinctive expression. The combination of warm white and RGB effects makes the projector suitable for theaters, concerts, events, TV productions, and photo shoots.
Lumen 7 Ring offers a wide range of programs and control options. The fixture includes 10 auto programs with adjustable speed, 9 sound mode programs, and 22 dynamic RGB effects for both ring and background lighting. Additionally, there are 21 WW/RGB effects, providing great flexibility in designing the lighting setup. A linear dimmer from 0–100% offers precise control over brightness, while the strobe function with adjustable speed up to 20 Hz allows for creating dynamic effects.
Operation is simple via the built-in LED display and four intuitive buttons. The lamp supports multiple operating modes, including Auto, Sound, DMX, and Master/Slave. DMX control can be used in both 17- and 56-channel modes, allowing for advanced programming in professional setups.
The housing is made of robust iron and aluminum with black powder coating, ensuring high durability. An IP20 rating makes the fixture suitable for indoor use. The active cooling with a quiet fan ensures stable operation even during longer events.

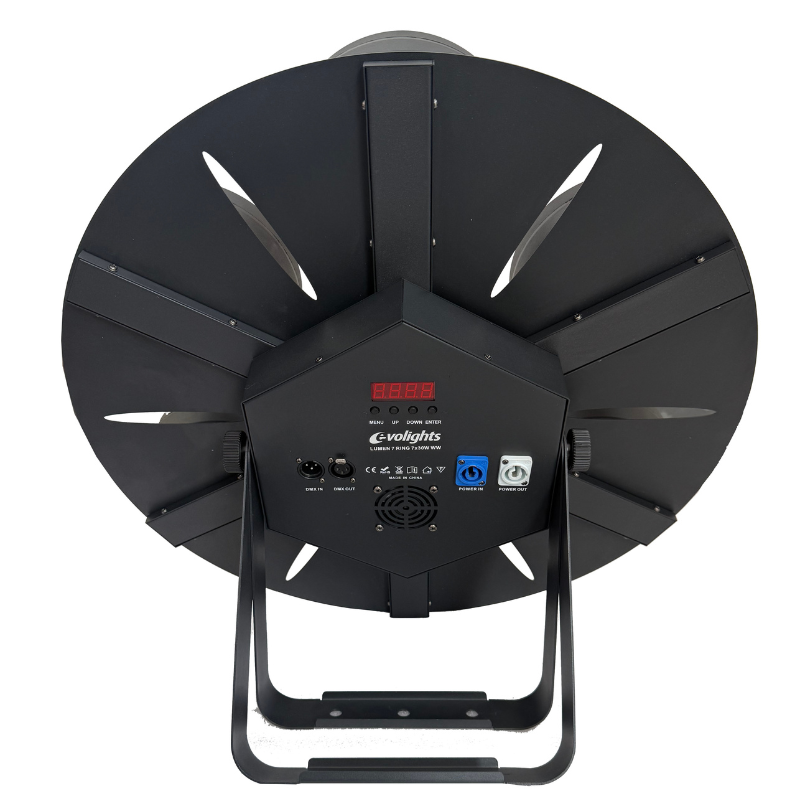

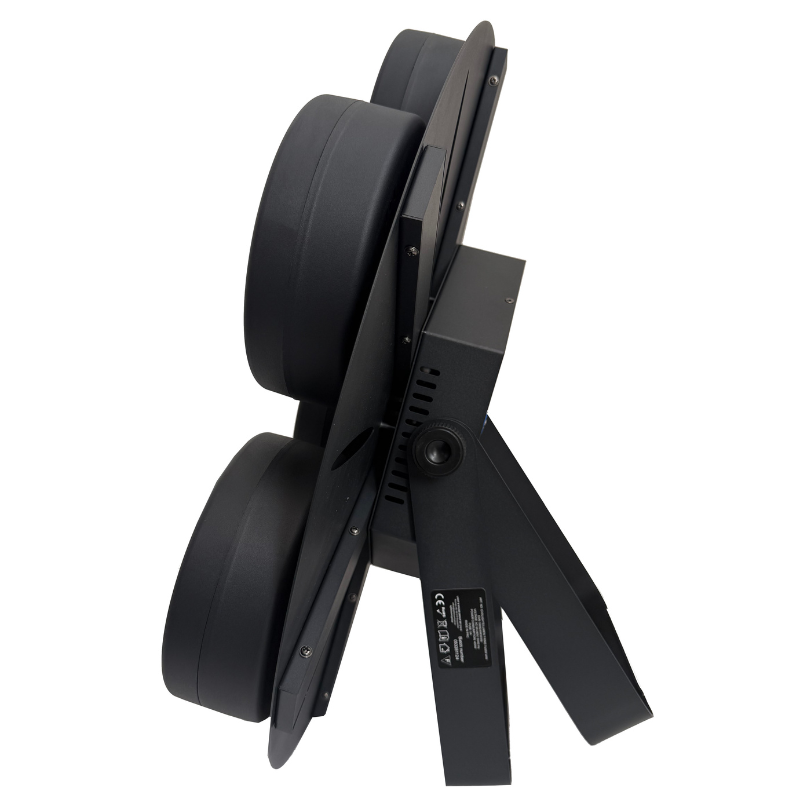

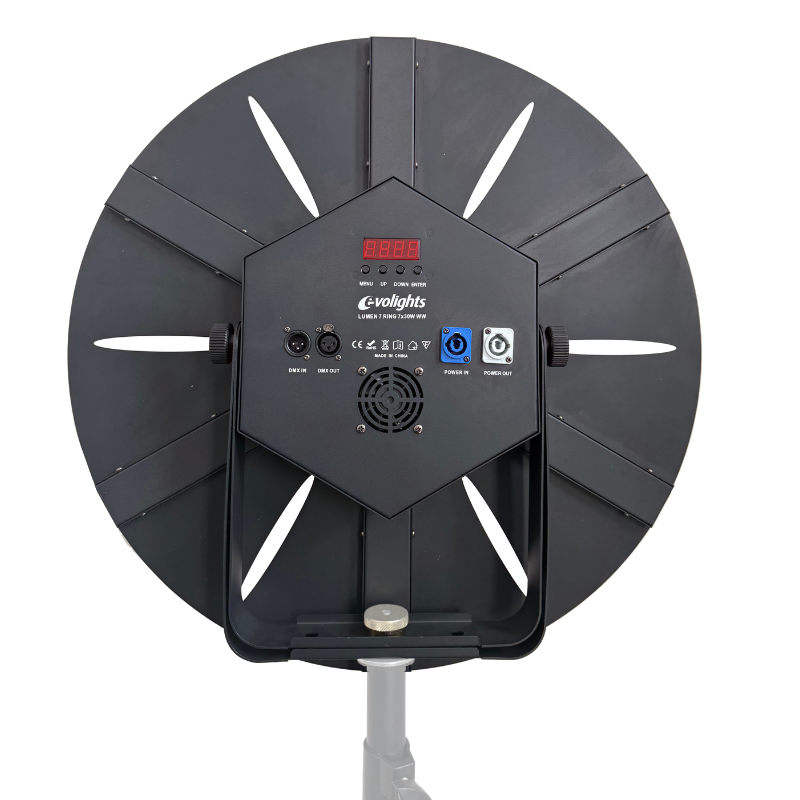

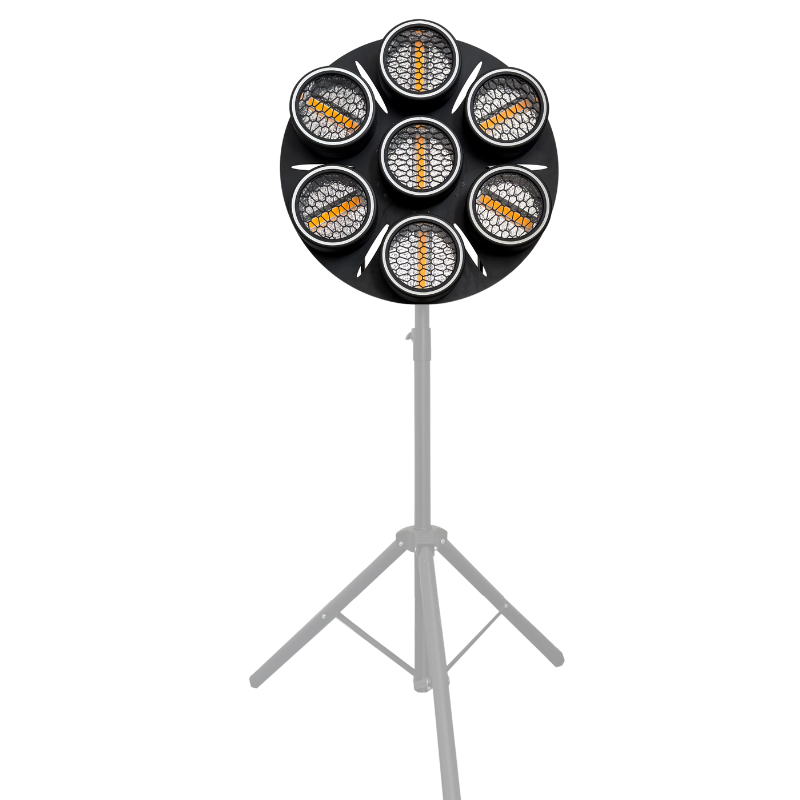

Installation is quick and flexible thanks to the mounting bracket and stand adapter. The unit is equipped with XLR 3-pin DMX in/out and powerCON in/out, making integration into existing lighting setups easy and allowing for power linking between multiple units.
Evolights Lumen 7 Ring is an ideal choice for professional lighting designers, event organizers, and stage technicians who want a combination of classic stage look and modern LED effects.
- Strømforsyning: AC 90–240V, 50/60 Hz
- Strømforbrug: 400W
- Sikring: 5A
- Lyskilde: 7 x 30W Warm White LED + 224 x 0.5W RGB LED (baggrundseffekt) + 31 x 0.2W RGB LED (ringeffekt)
- Spredningsvinkel: 120°
- Farvetemperatur: 1800–2000K
- Dimmer: Lineær 0–100%
- Strobe: 0–20 Hz med justerbar hastighed
- Auto programmer: 10
- Sound mode programmer: 9
- Dynamiske RGB effekter: 22 (ring) + 22 (baggrund)
- WW / RGB effekter: 21
- Farvevalg til ringeffekter: 7 farver
- Kontrol: Auto, DMX, manuel
- DMX kanaler: 17 / 56
- DMX stik: XLR 3-pin in/out
- Strømstik: powerCON in/out
- Køling: Aktiv (støjsvag ventilator)
- Monteringsbøjle: Ja
- Stand adapter: Ja
- Display: LED display med 4 knapper
- Display rotation: Ja
- IP rating: IP20
- Materiale: Jern, aluminium, plast
- Finish: Sort pulverlakering
- Dimensioner: 62 x 62 x 14.6 cm
- Emballage dimensioner: 69 x 68 x 22 cm
- Nettovægt: 10.5 kg
- Bruttovægt: 12.5 kg
