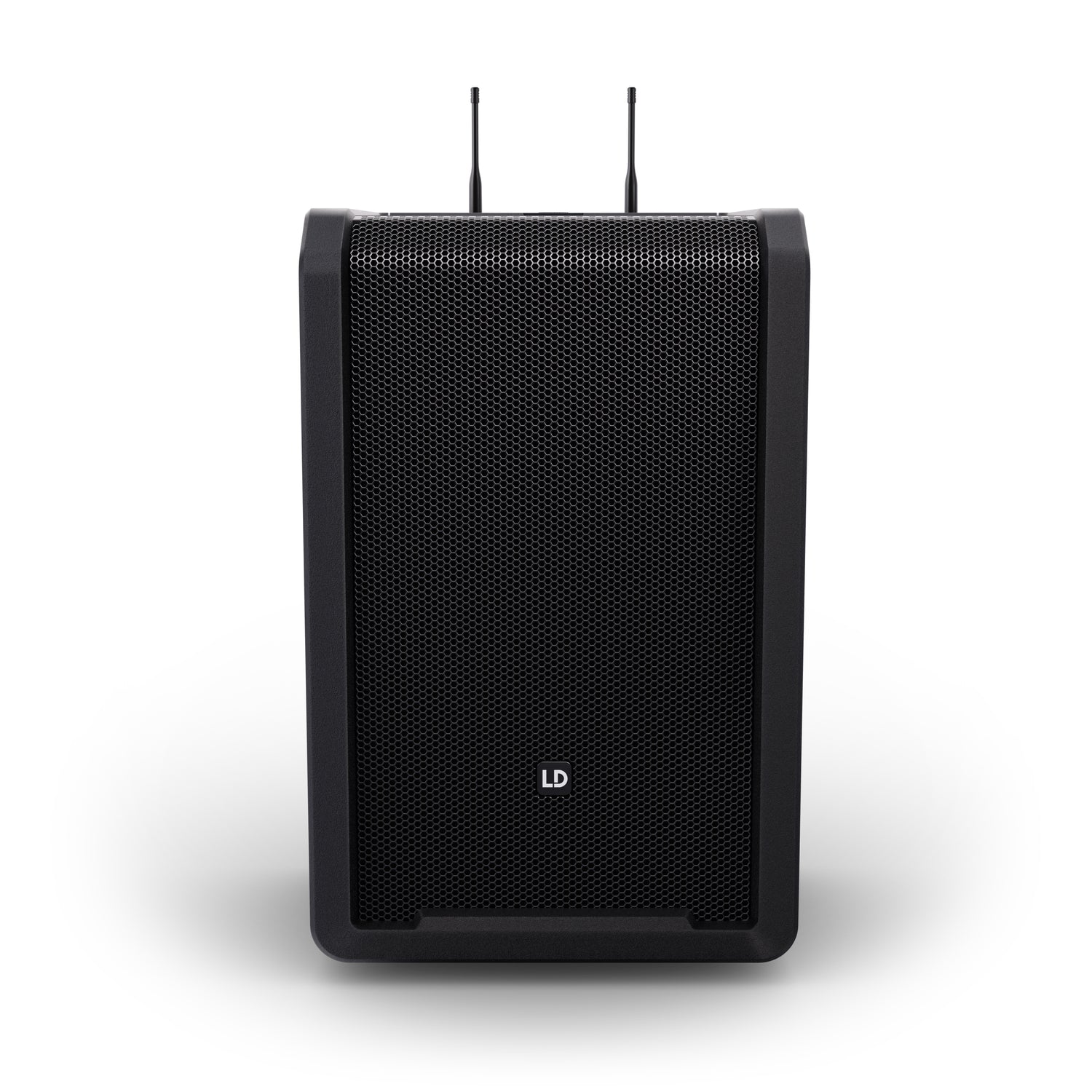

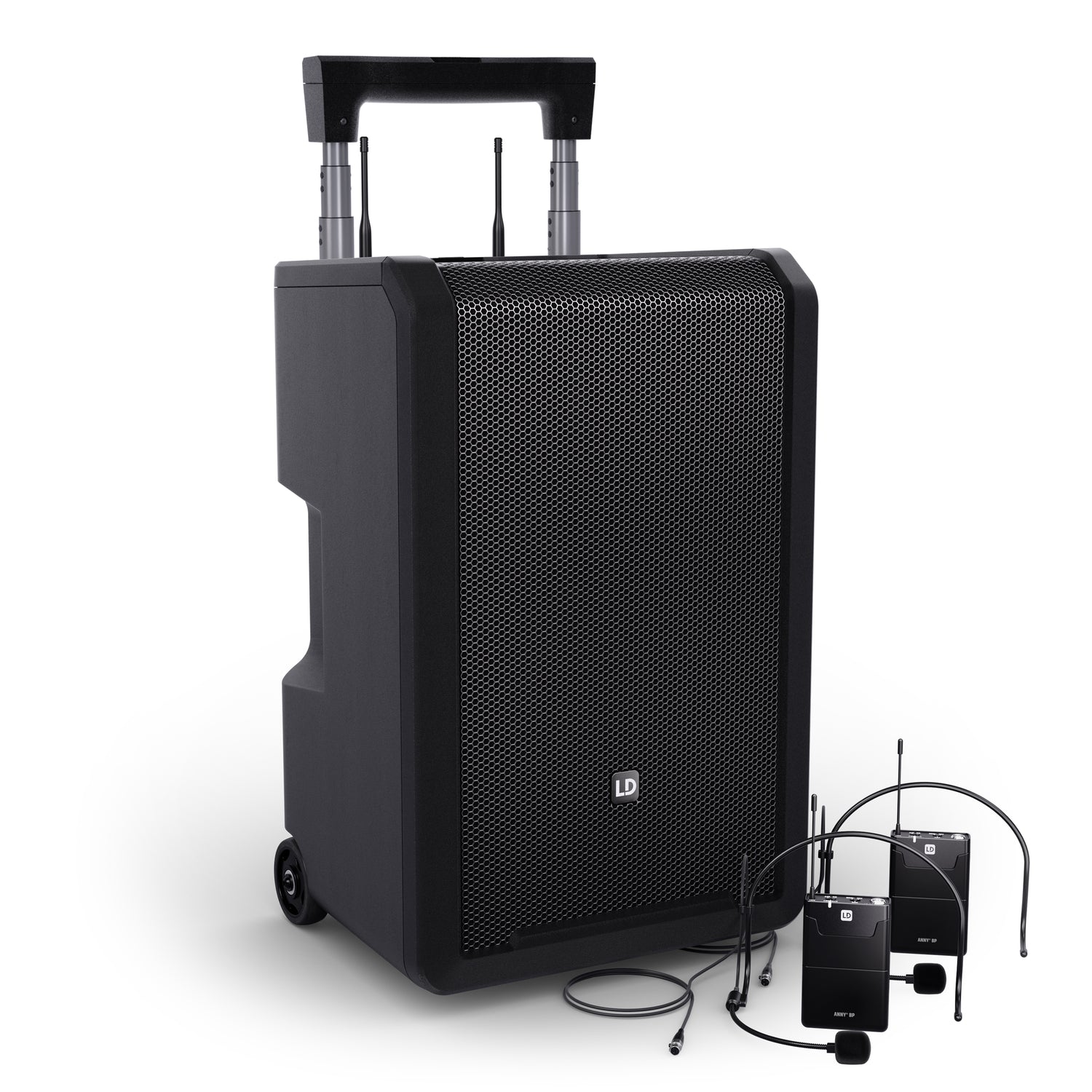

LD Systems ANNY® 10 BPH 2 B8 - 10" portable battery-powered Bluetooth® PA system with mixer and 2x headset microphones (incl. bodypacks)
Description
Description
ANNY – your battery-powered sound solution for truly anywhere: whether it’s in the city, in the garden, for get-togethers, at sports events, for school and dance functions, in bars, at parties – wherever you are, ANNY lets you deliver professional sound and create unforgettable moments.

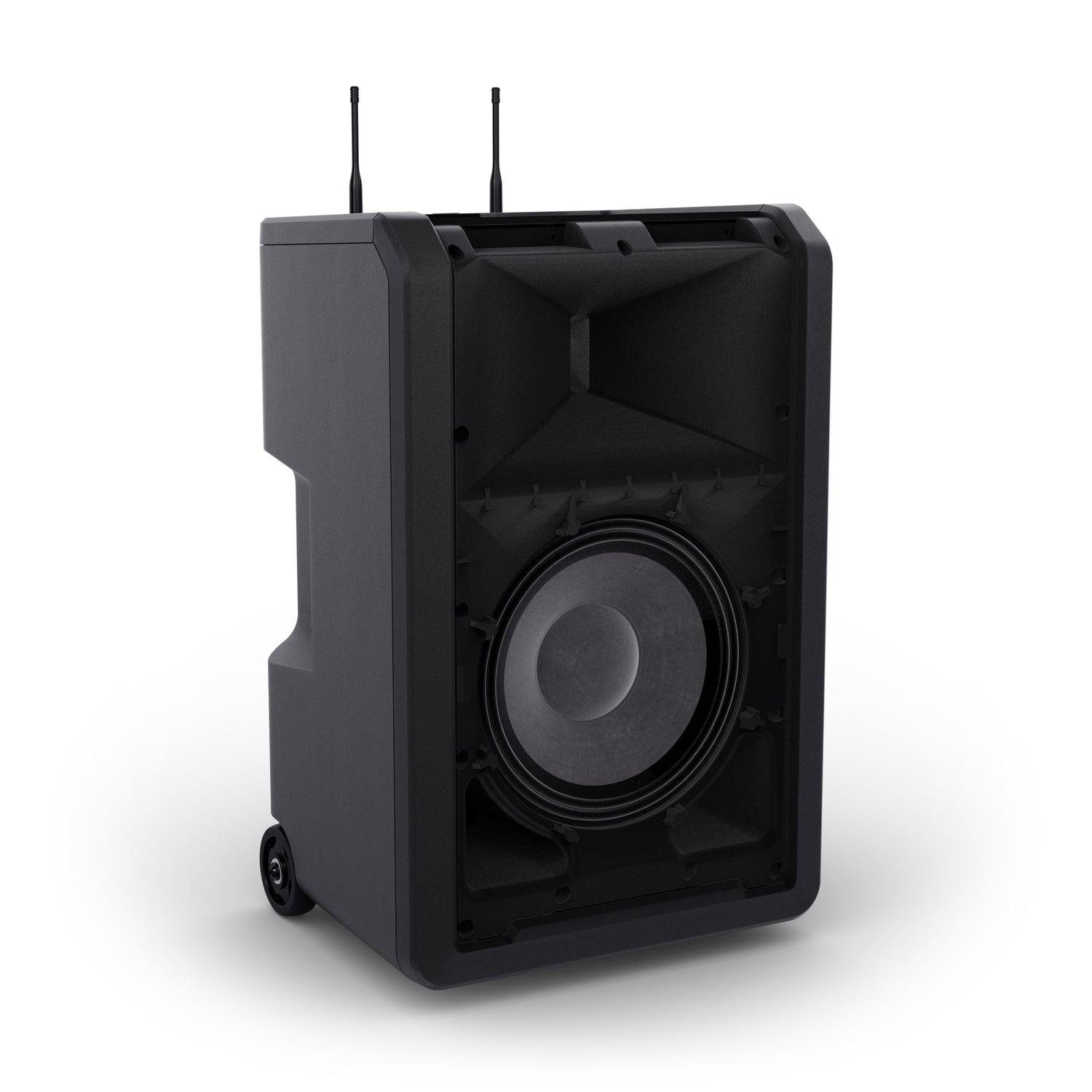

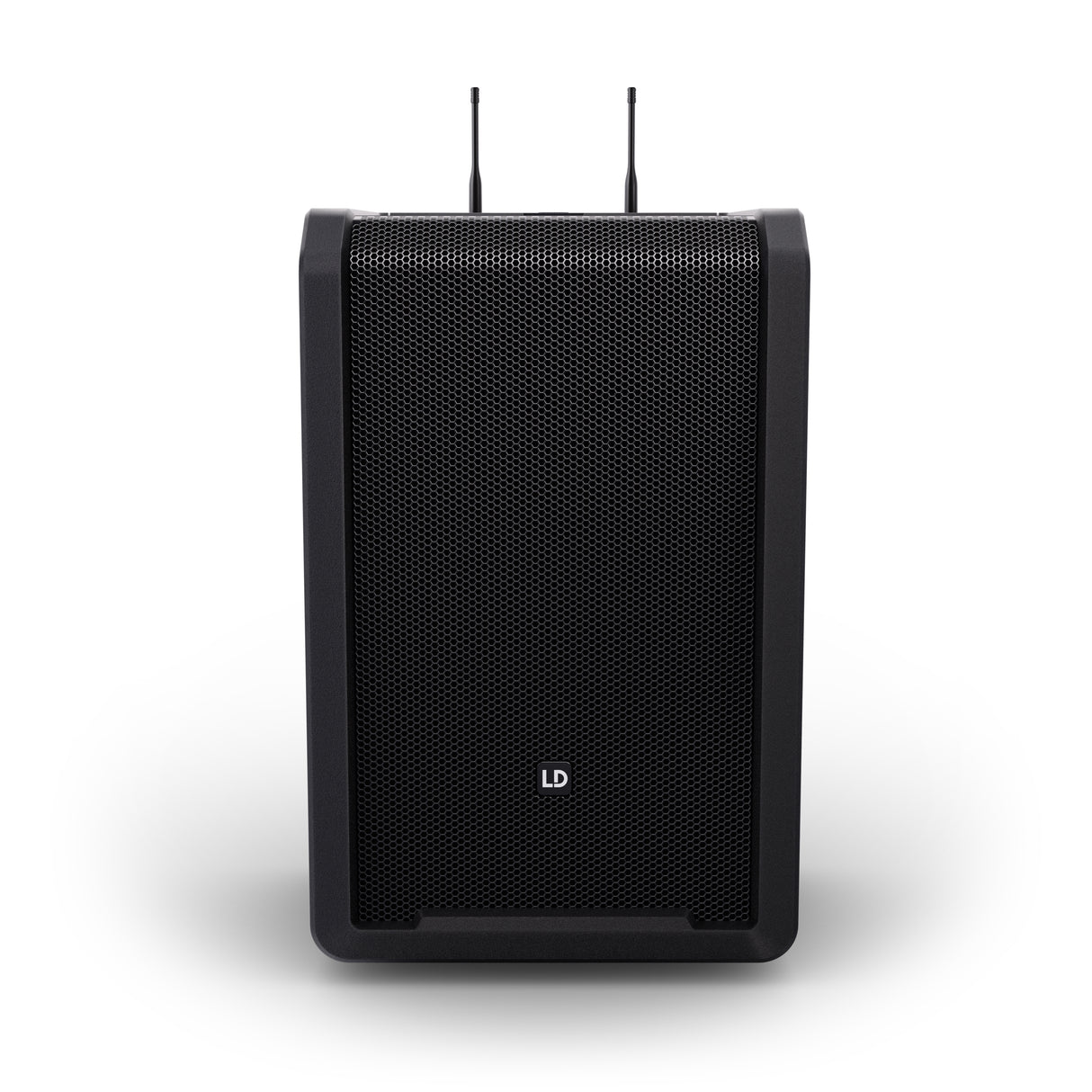

Equipped with a 10" woofer, 1" tweeter, wheels and a telescopic handle, ANNY 10 offers an ideal combination of portability and audio performance.

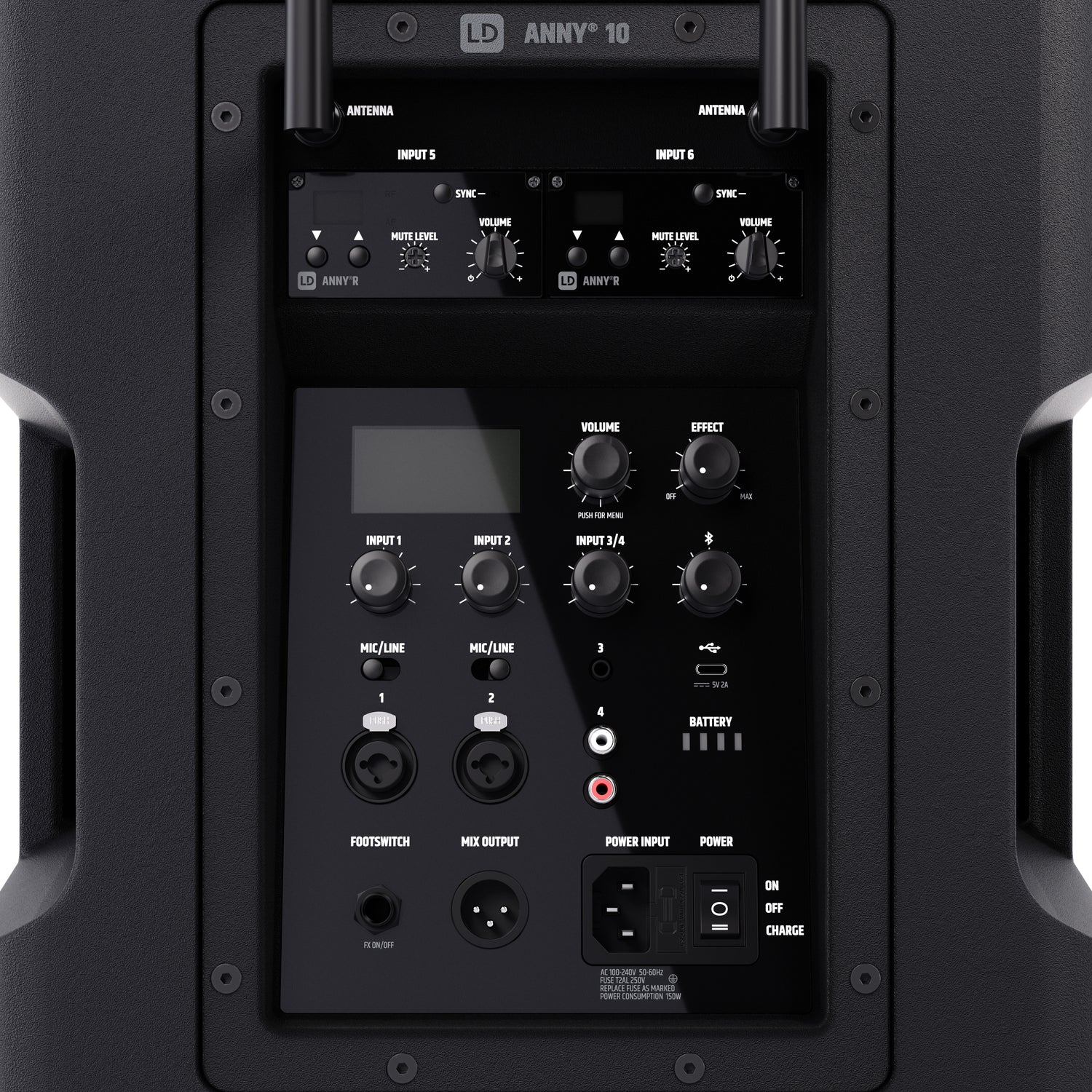

With an integrated 6-channel mixer, 3-band EQ, 5 application presets (MUSIC, LIVE, VOCAL, ECO, FLAT) and effects such as reverb & delay, it combines comprehensive features and excellent sound quality in a compact, rugged design. ANNY 10 impresses with its versatile connectivity: two mic/line combo inputs, one stereo channel with 3.5 mm jack (AUX) and RCA inputs, plus Bluetooth 5.0 with AAC codec.
This range of inputs enables a wide variety of setups combining speech and music. The footswitch input lets you switch the reverb & delay effects easily and hands-free with an external footswitch while you play or sing.
To guarantee clear, intelligible announcements in any situation, you can use the "Priority" function. Simply select your microphone in the priority settings and the music will be automatically attenuated when you use the mic.

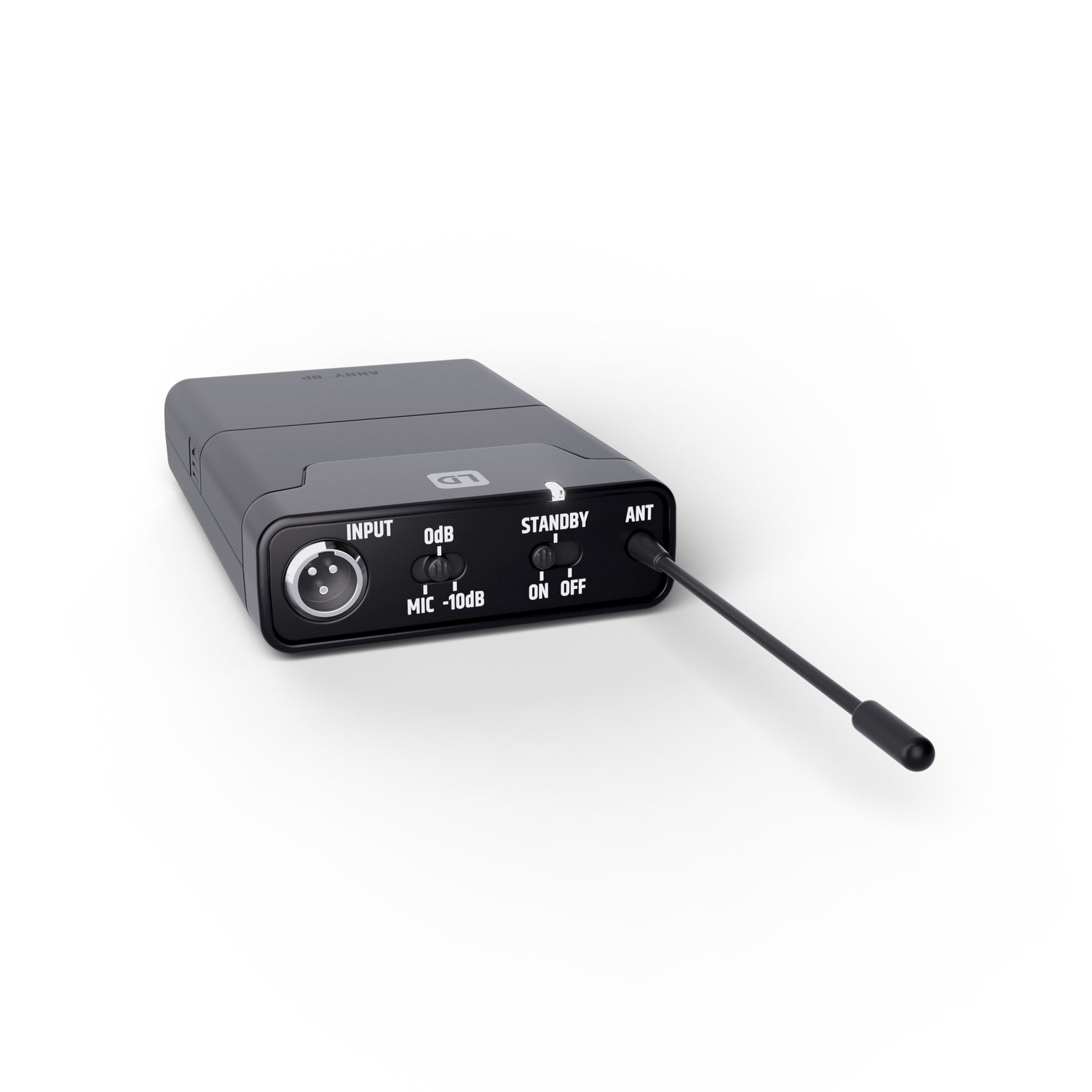

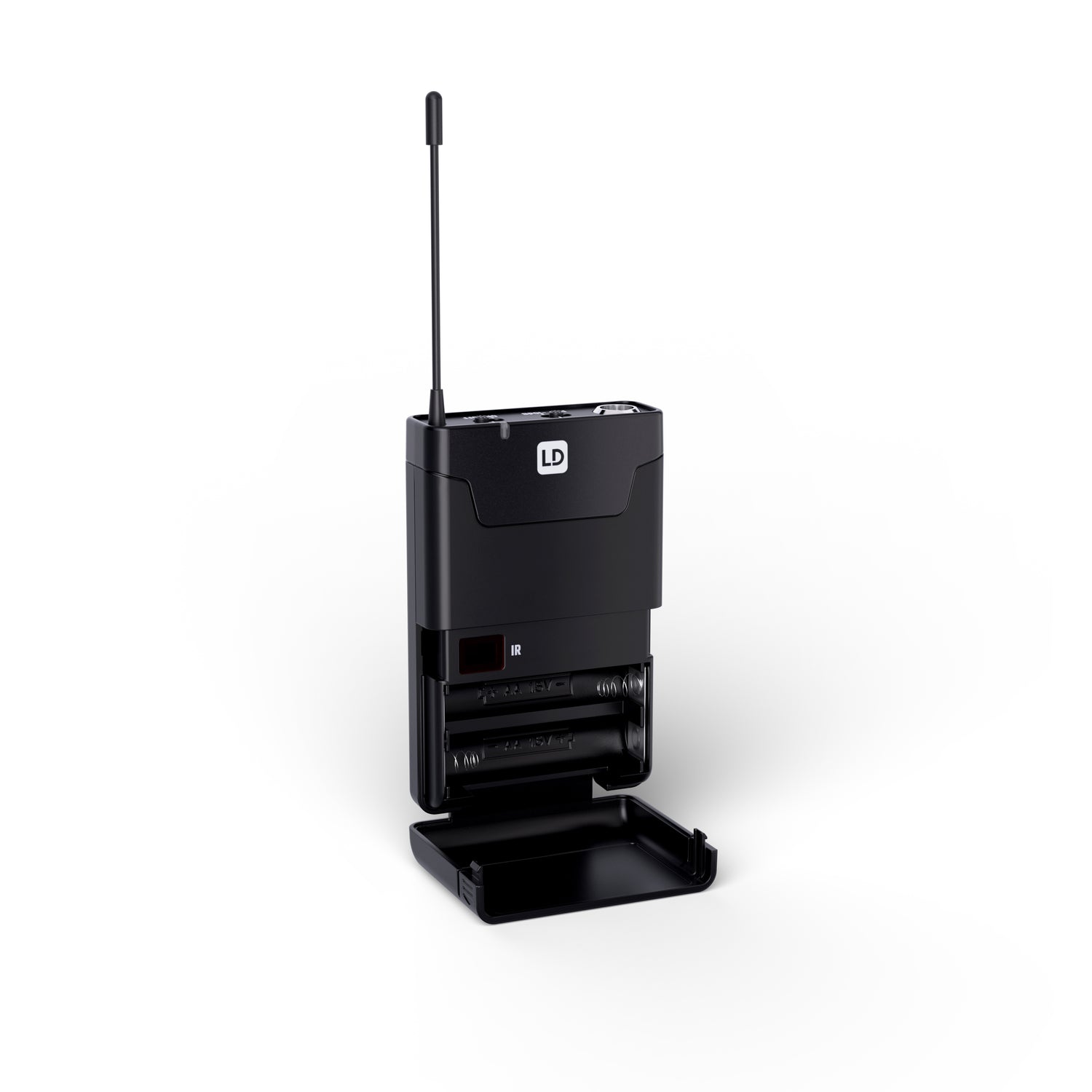

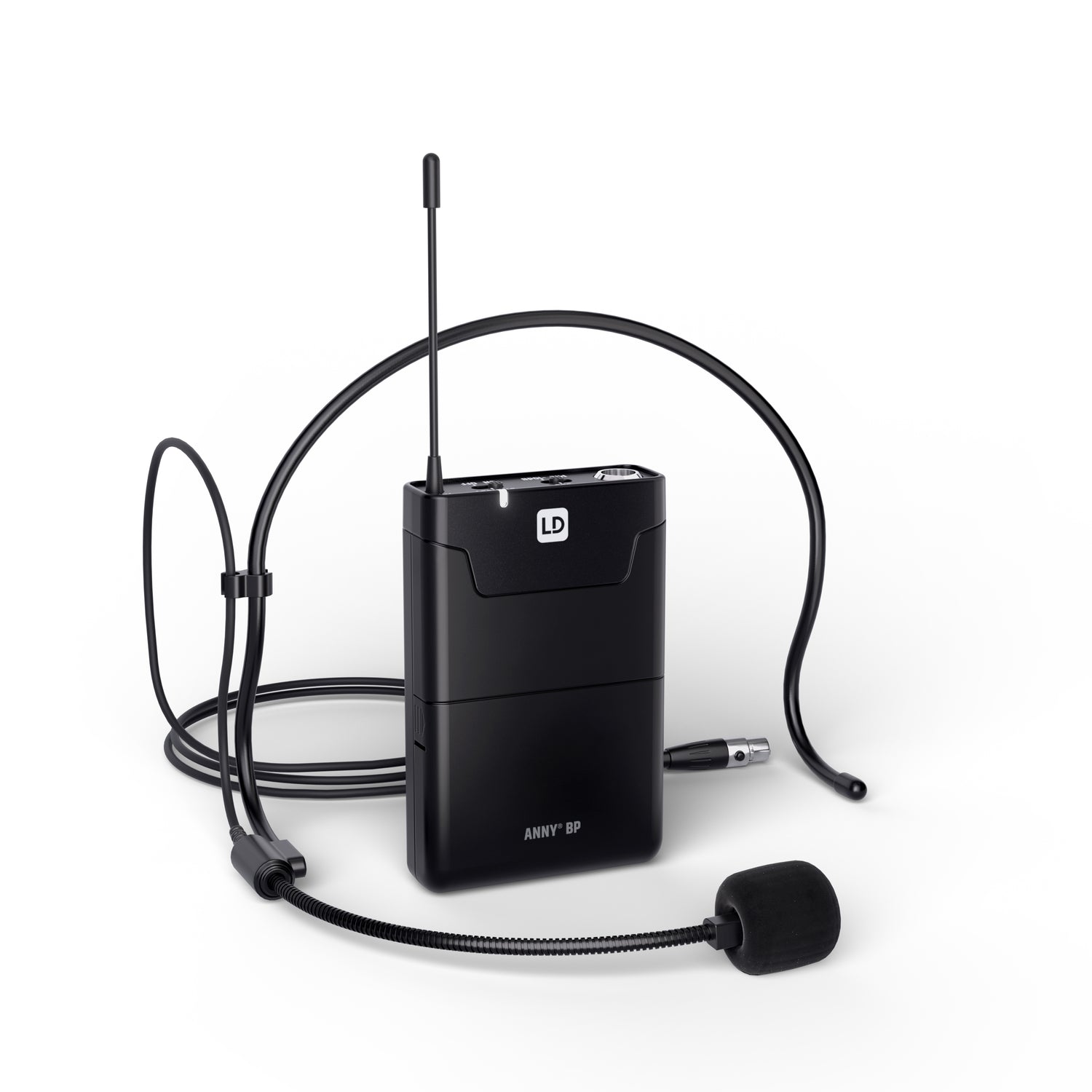

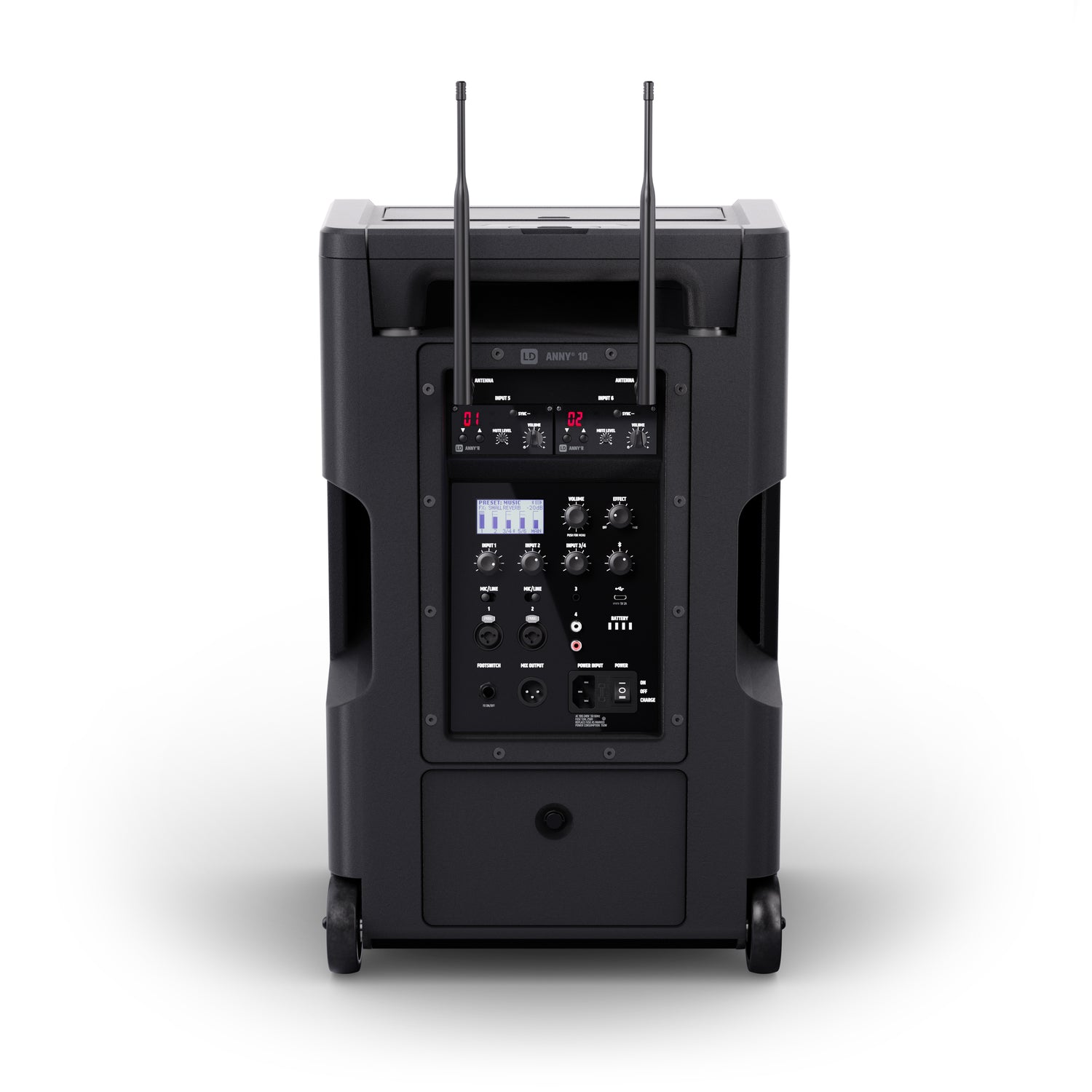

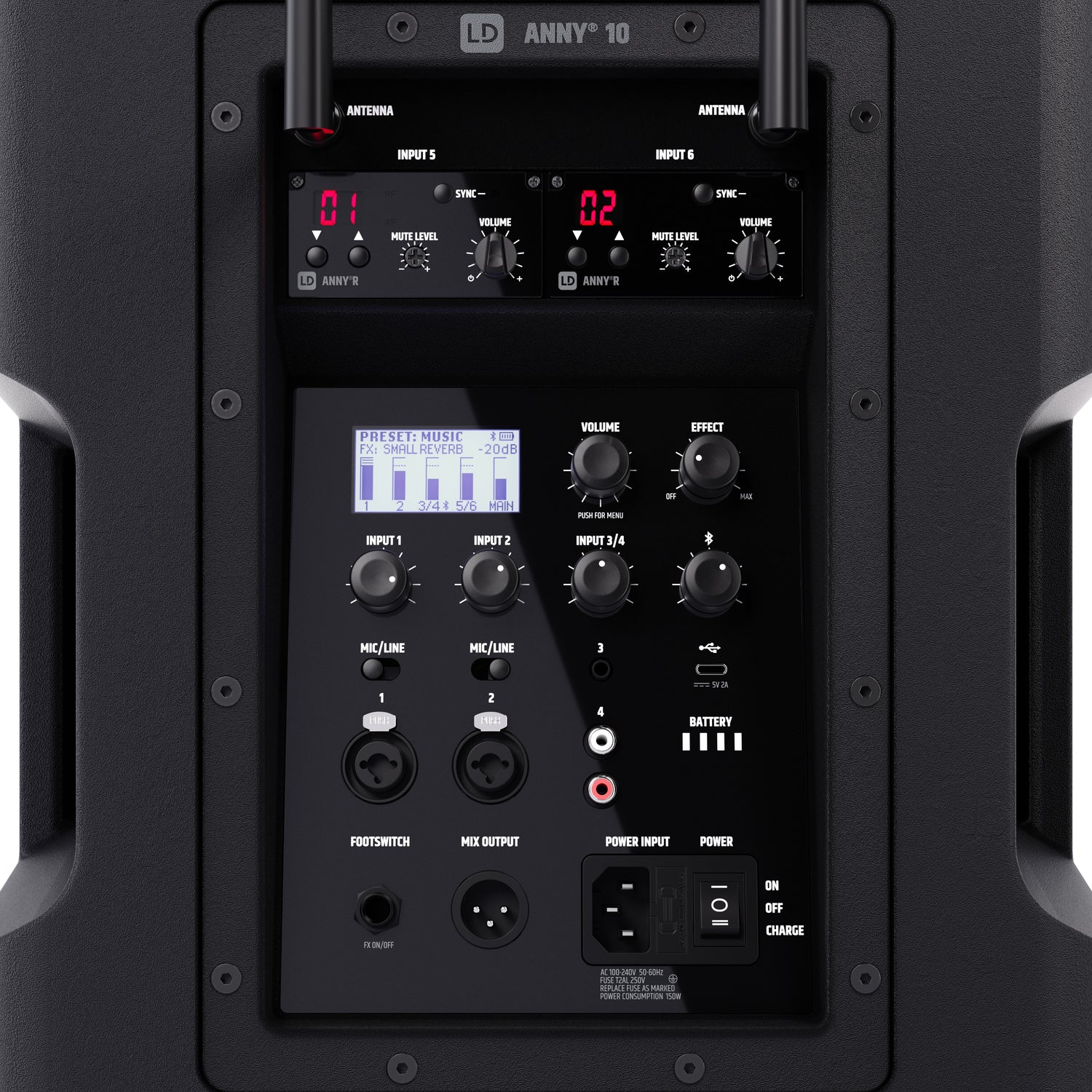

The ANNY 10 BPH 2 variant already comes equipped with two headset microphones incl. bodypack transmitters – just insert the included AA batteries and you’re ready to go. The volume can be adjusted separately on the corresponding receiver module on the rear of ANNY. This expands your connectivity with two additional input channels, giving you even more combination options.

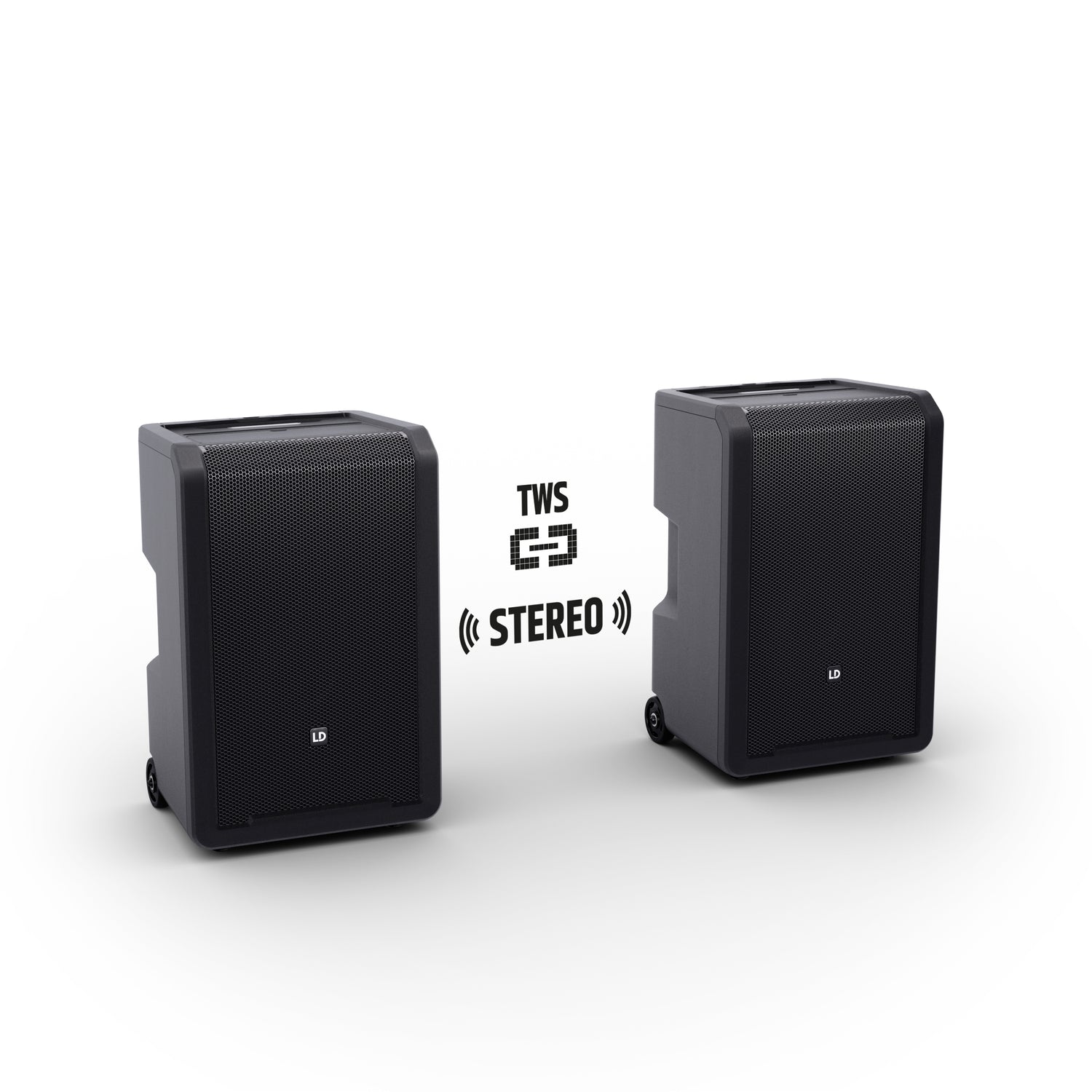

As an additional boost to versatility, True Wireless Stereo (TWS) allows you to pair two ANNY 10 speakers so you can enjoy your music in stereo – a quick upgrade that creates a powerful sound solution for larger parties and events.

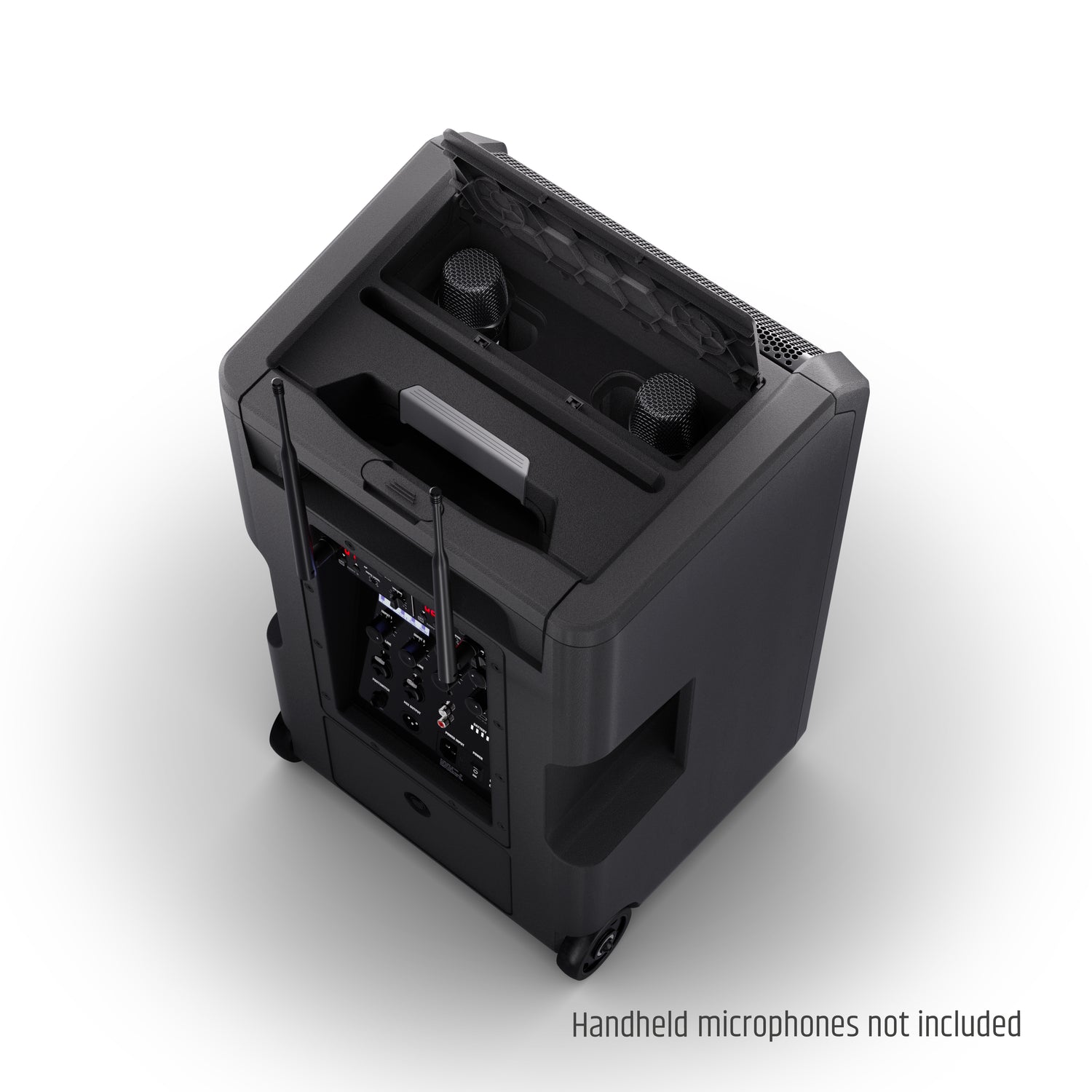

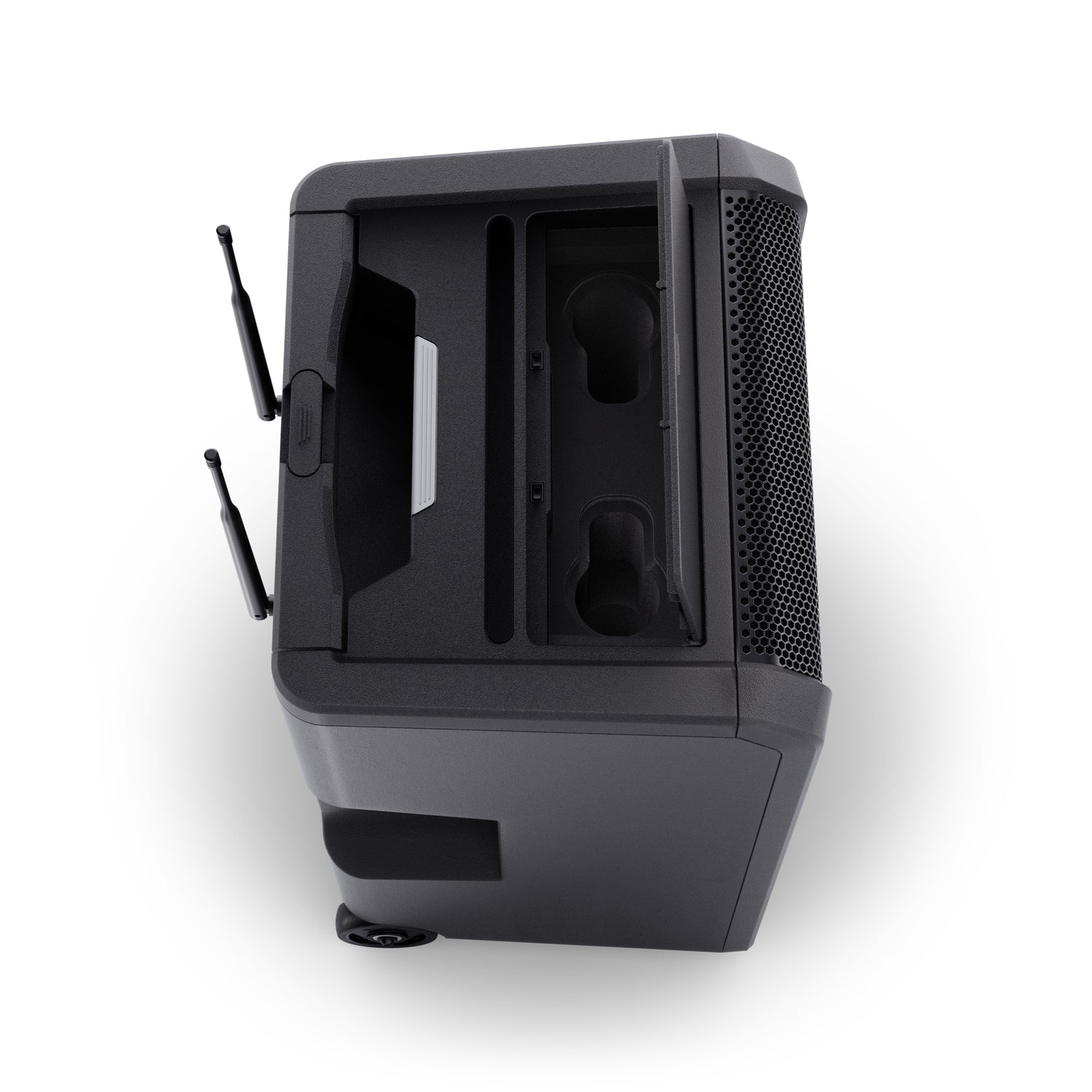

No need to worry – you can turn your ANNY all the way up, because the built-in DynX® DSP (Gen. 2) delivers distortion-free, clean and powerful sound even at maximum volume. Thanks to the energy-saving ECO preset, ANNY can run especially long for background music or speech-only applications. At medium volume, this mode enables continuous operation for up to 25 hours. For your party at maximum volume in the MUSIC preset, the battery lasts for an impressive up to 5 hours at full capacity. You can extend the operating time even further using the optionally available backup batteries; simply swap the empty batteries for fully charged ones in seconds and you’re ready to continue. To make sure your phone or tablet is always ready to use, you can place it in the integrated holder and charge it via the USB-C port on the rear of ANNY.

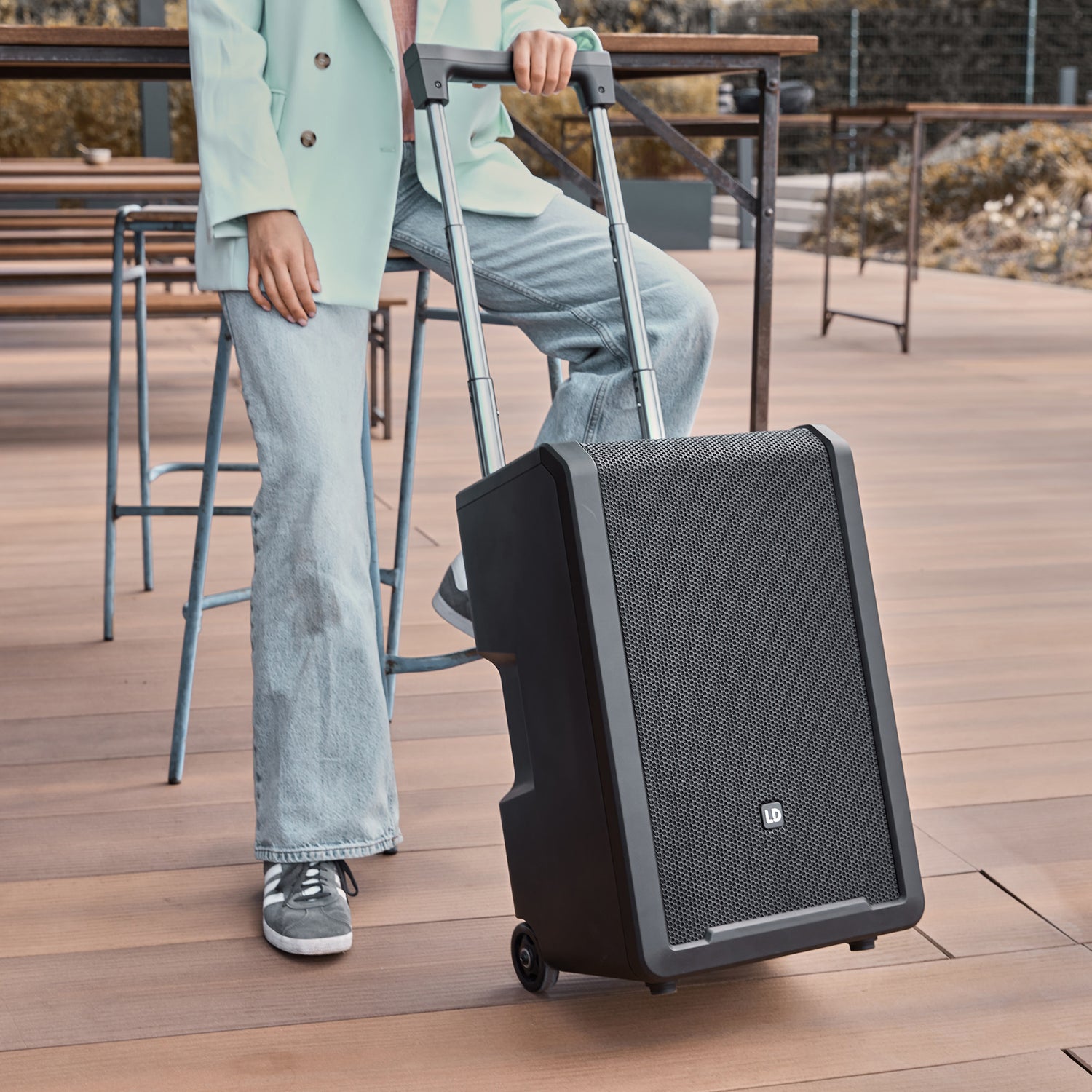

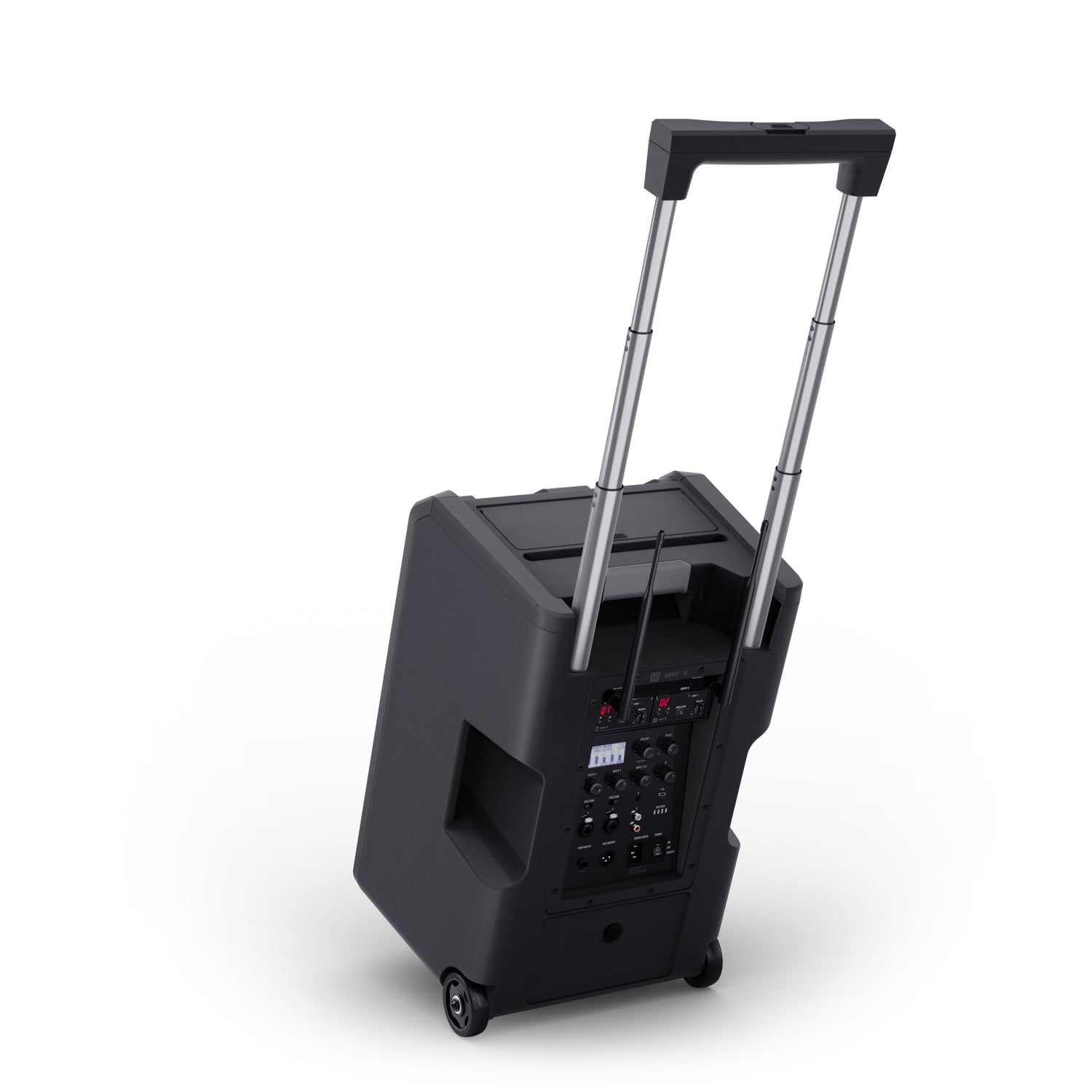

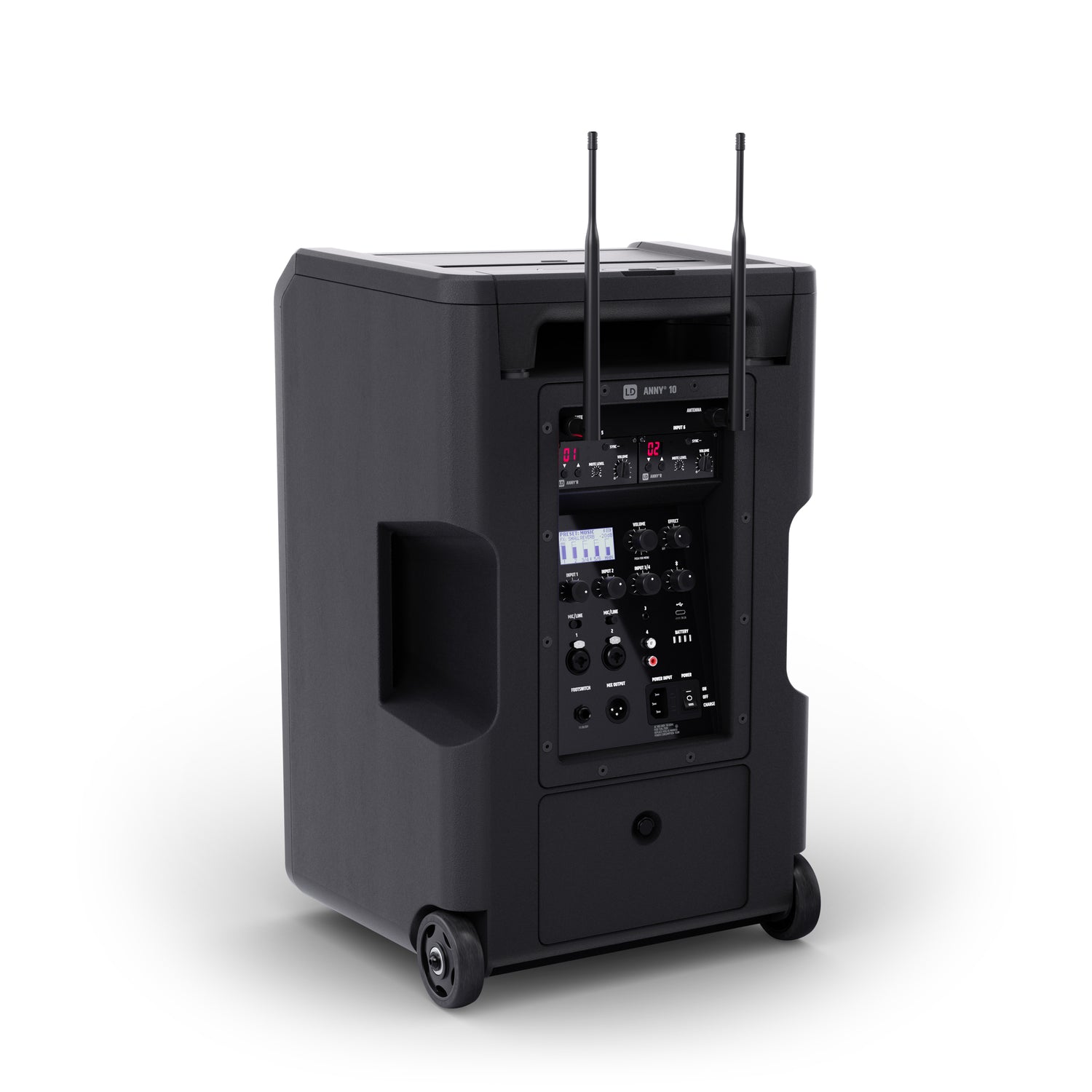

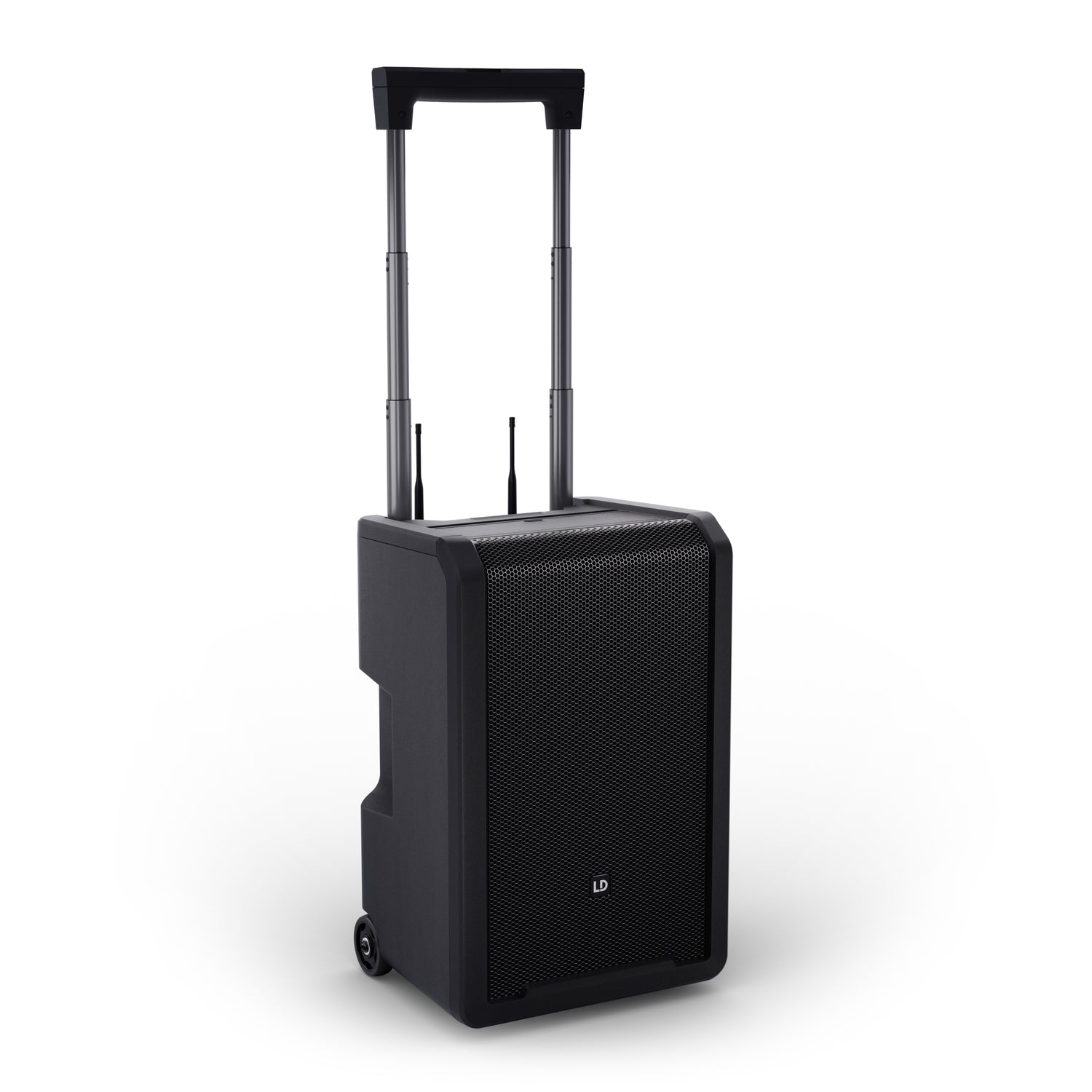

If you travel a lot with your ANNY 10, you’ll appreciate the integrated wheels and telescopic handle, which let you pull the speaker like a trolley. Thanks to the rugged cabinet and the two handles, ANNY 10 is extremely durable and suitable for use both on the floor and on a speaker stand. A perfectly fitting, water-repellent transport bag with extra storage space is available as an accessory, protecting against the elements while also serving as a practical storage solution.
So get started and create unforgettable moments. With ANNY by your side, you’ll create a great atmosphere and first-class sound – wherever you are.
Technical specifications
Technical specifications
- Portable active 2-way full-range loudspeaker
- Built-in 6-channel mixer with 3-band EQ, reverb and delay
- Long battery life: up to 25h (ECO mode) / 5h (max. volume)
- 2x headset microphone with bodypack transmitter incl. AA batteries
- Bluetooth® 5.0 and stereo streaming (TWS) with two ANNYs
- Clear and distortion-free sound at maximum volume through DynX® DSP (Gen. 2)
- 2x microphone/line inputs for versatile connection options
- 1x stereo channel with 3.5mm jack (AUX) or RCA
- Priority/ducking mode to emphasise the microphone signal
- Wheels and telescopic handle for easy transport

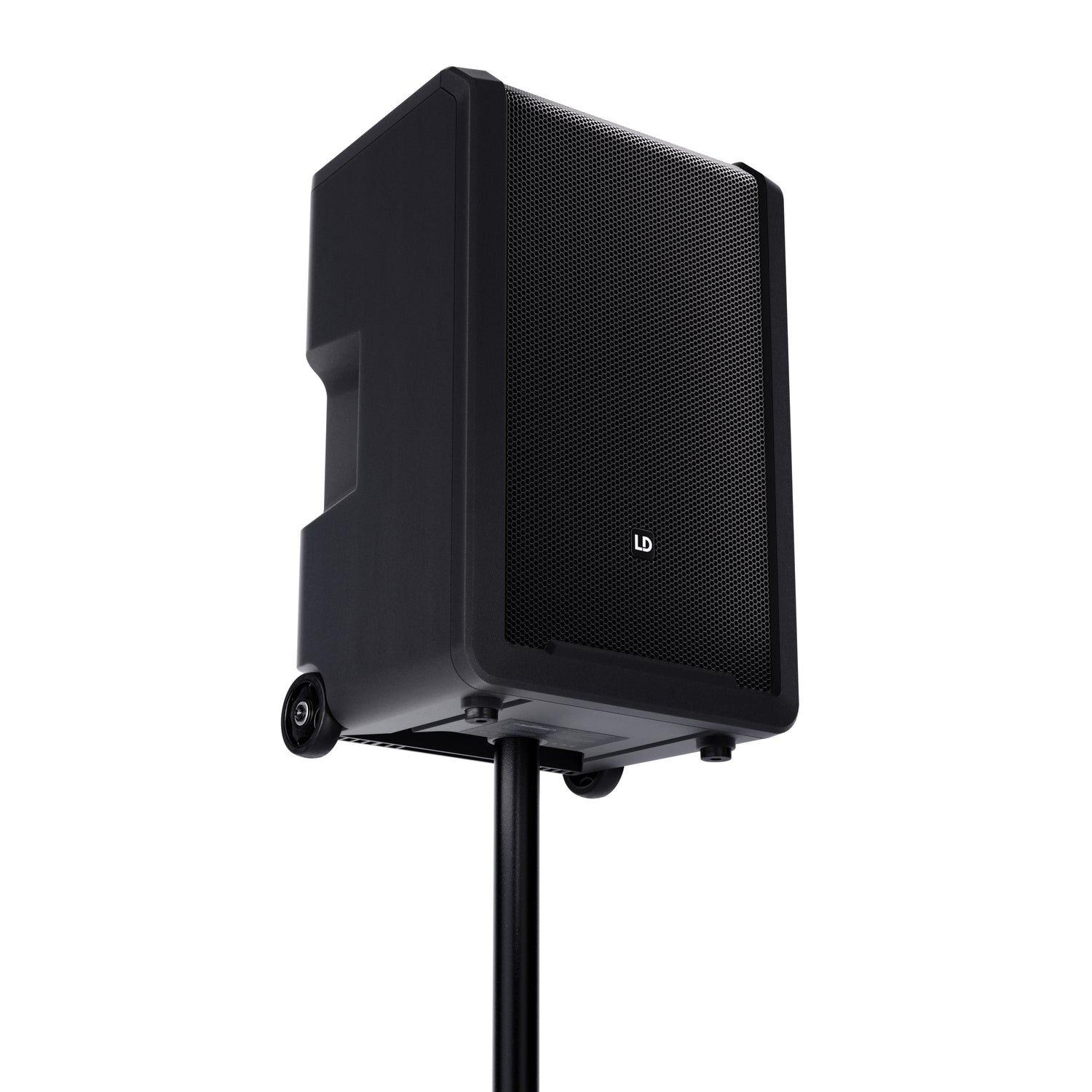

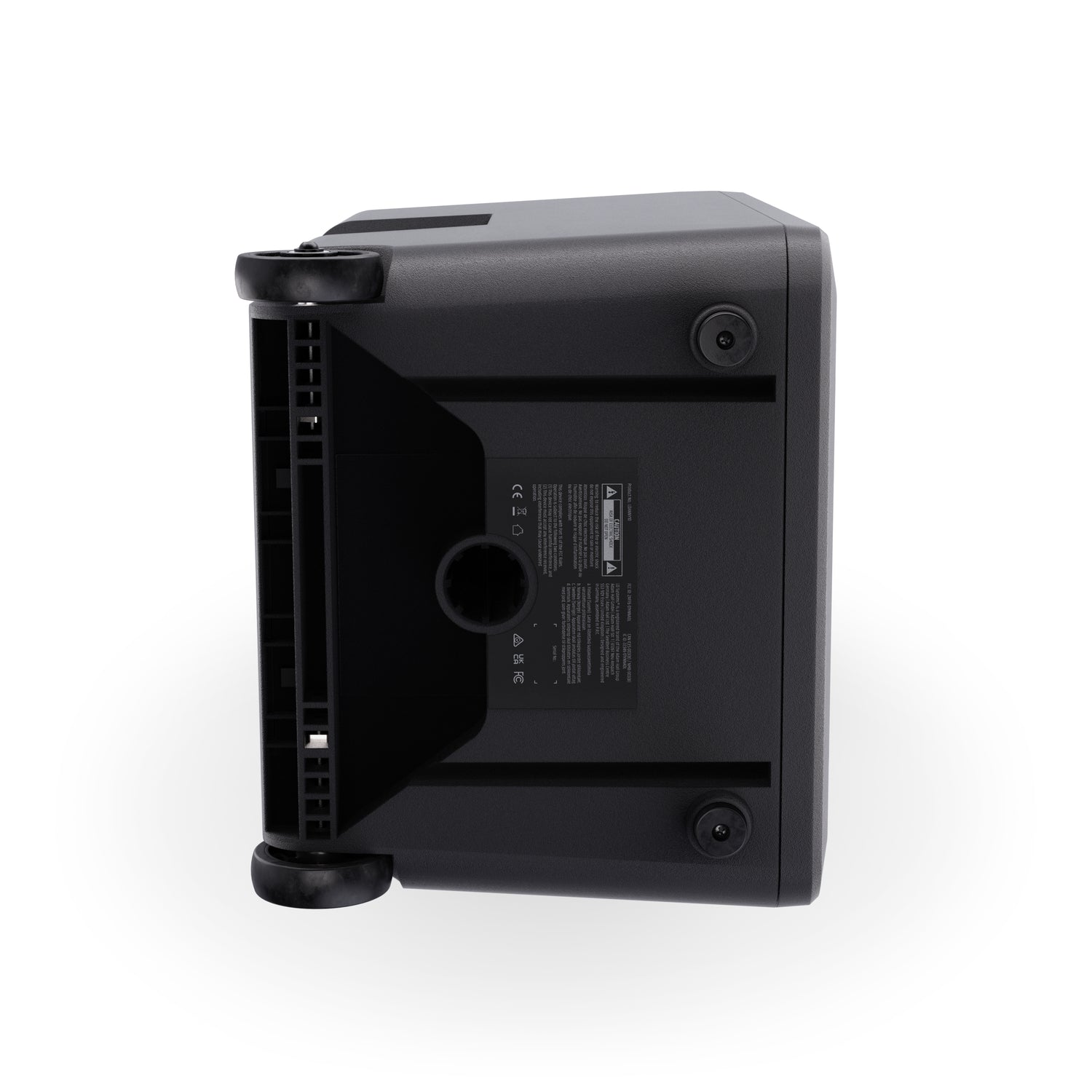

- 35-mm flange for use with a speaker stand
- USB-C port for charging a tablet or smartphone
- Footswitch input for hands-free effect control
- Integrated holder for tablet or smartphone
General
| Scope of delivery | 1x ANNY 10, 2x Receiver, 2x Bodypack, 2x Headset |
| Wireless frequencies | 823 - 832 MHz / 863 - 865 MHz |
| Beam angle | 120° (hor.) / 60° (vert.) |
| Colour | Black |
| Weight | 18.53 kg |
General
| Type | Active |
| Peak output power | 160 W |
| RMS output power | 80 W |
| Amp class | Class D |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) | 118 dB |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 111 dB |
| Frequency response (-10 dB, rel. Avg) | 45 - 20,000 Hz |
| Crossover frequency | 1,800 Hz |
| Beam angle | 120° (hor.) / 60° (vert.) |
| Number of inputs | 5 |
| Input connector types | 3.5 mm Jack TRS female |
| Input connector types | RCA female |
| Input connector types | XLR combo socket |
| Number of outputs | 1 |
| Output connector types | XLR 3-pole male |
| Protection features | Overheating |
| Protection features | Short circuit |
| Colour | Black |
Bluetooth®
| Bluetooth® version | Bluetooth® 5.0 |
| Features | Audio Streaming (A2DP) |
| Features | TrueWireless™ Stereo |
| Bluetooth® range | ≤10 m (Class 2) |
| Supported audio codecs | AAC |
| Supported audio codecs | SBC |
| Receiver (client) | Yes |
Inputs
| Number of mic/line inputs | 2 |
| Mic/Line-in connector type | XLR combo socket |
| Number of line inputs | 2 |
| Line-In connector type | RCA female |
| Number of music inputs | 1 |
| Music inputs connector types | 3.5 mm Jack TRS female |
Outputs
| Output signal type | Balanced |
| Number of line outputs | 1 |
| Line outputs connector type | XLR 3-pole male |
Signal processing
| Mixer | Yes |
| Audio processing | 3 band EQ (High, Mid, Low) |
| Audio processing | Delay Line |
| Audio processing | Presets |
Bass driver
| Size | 10 " |
| Outer diameter | 254 mm |
| Magnet | Ferrite |
| Voice coil | 2 " |
Tweeter
| Driver size | 1 " |
| Magnet | Ferrite |
| Voice coil | 1 mm |
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
| Power supply type | Switched-mode power supply (SMPS) |
| Rated power | 150 W |
| Mains connector | IEC C14 plug male |
| Mains fuse | T2AL/250 V |
Accumulator data
| Cell technology | Lead-acid |
| Exchangeable | Yes (during operation) |
| Operating voltage | 12 V |
| Battery capacity | 5,000 mAh |
| Battery life | 5 h (MUSIC) - 25 h (ECO) |
| Charging time (100 %) | 7 h |
| Charging time (80 %) | 3.5 h |
Housing
| Design | Bass reflex |
| Number of handles | 3 |
| Flange | 36 mm (0°/5°) |
| Chassis material | Polypropylene |
| Front grille material | Aluminium |
Environmental
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 361 mm |
| Height | 566 mm |
| Depth | 300 mm |
| Weight | 18 |
Other properties
| Included accessories | Mains cable |
General
| Wireless frequencies | 823 - 832 MHz / 863 - 865 MHz |
| Frequency response (-3 dB, rel. Avg) | 45 - 20,000 Hz |
| Colour | Black |
Radio transmission
| Channels | 12 |
| Transmitting power | 10 mW |
| Antennas | 1 (fixed) |
Inputs
| Input connector types | Mini XLR male |
Signal processing
| Min. Signal-to-noise ratio (SNR) | 100 dB |
Battery operation
| Batteries | 2 x 1.5 V AA/LR6 @ max.8 h |
Dimensions & weight
| Width | 64 mm |
| Height | 100 mm |
| Depth | 21 mm |
| Weight | 9 g |
General
| Material | Steel sheet |
| Coating | Powder coated |
| Wireless frequencies | 823 - 832 MHz / 863 - 865 MHz |
| Frequency response (-3 dB, rel. Avg) | 50 - 17,000 Hz |
| Colour | Black |
Radio transmission
| Channels | 12 |
| Antenna connector | BNC female |
| Antennas | BNC female |
Dimensions & weight
| Width | 72.8 mm |
| Height | 39.6 mm |
| Depth | 118.5 mm |
| Weight | 8 g |
General
| Directivity | Cardioid |
| Capsule type | Condenser |
| Nominal impedance | 680 Ω |
| Sensitivity (transfer factor) | 6.31 mV/Pa |
| Phantom power | 5 V |
| Output connector type | Mini XLR female |
| Cable length | 1 m |
| Material | ABS |
| Frequency response (-6 dB, rel. Avg) | 100 - 12,000 Hz |
| Colour | Black |
Dimensions & weight
| Weight | 49 g |
