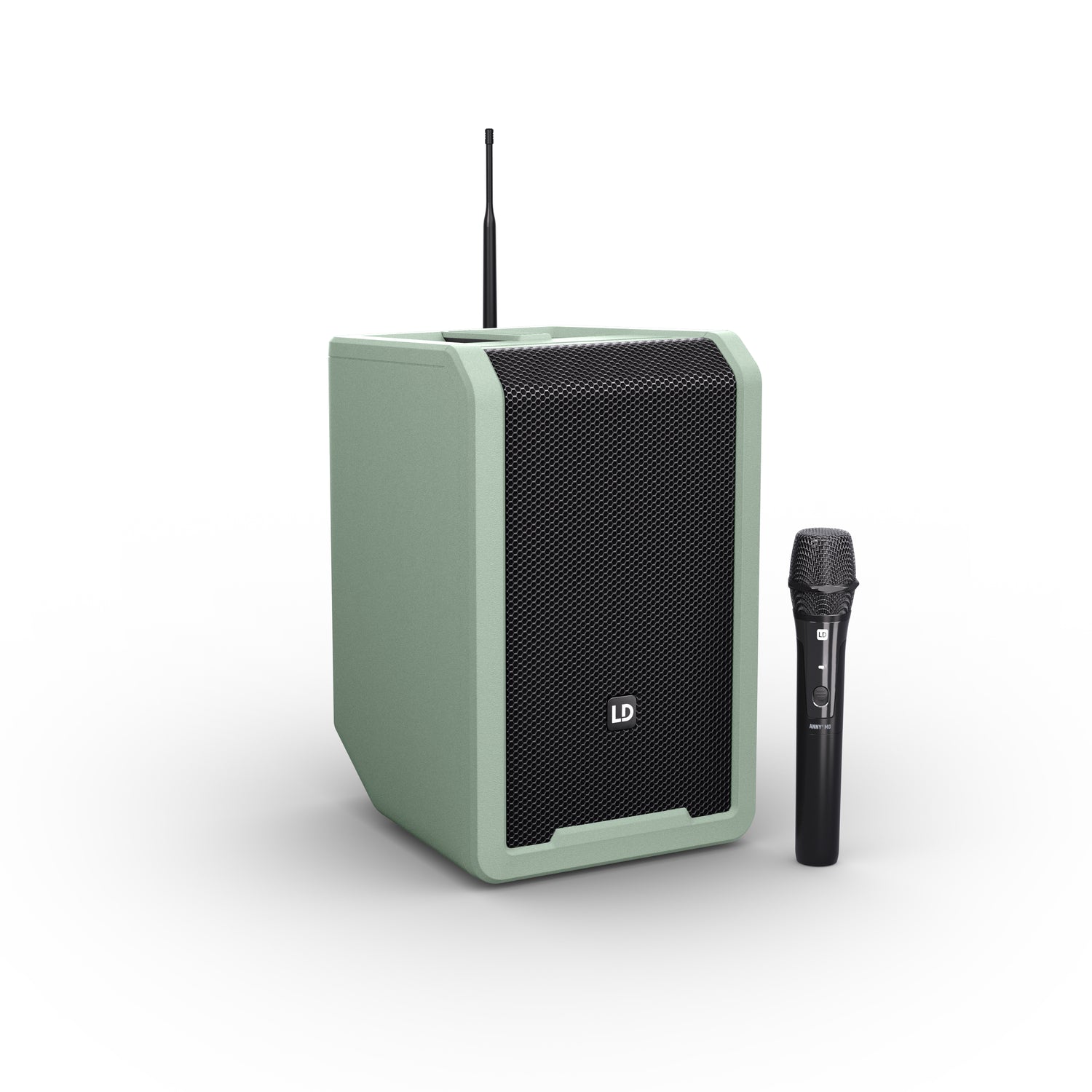

LD Systems ANNY® 8 HHD B6 GN - Portable battery-powered Bluetooth® PA speaker with mixer and 1x wireless handheld microphone, Adventure Green
Description
Description
ANNY – your battery-powered sound solution for absolutely anywhere: whether you’re in the city, in the garden, at gatherings, at sports events, at school and dance events, in bars, at parties – wherever you are, ANNY lets you deliver professional sound and create unforgettable moments.

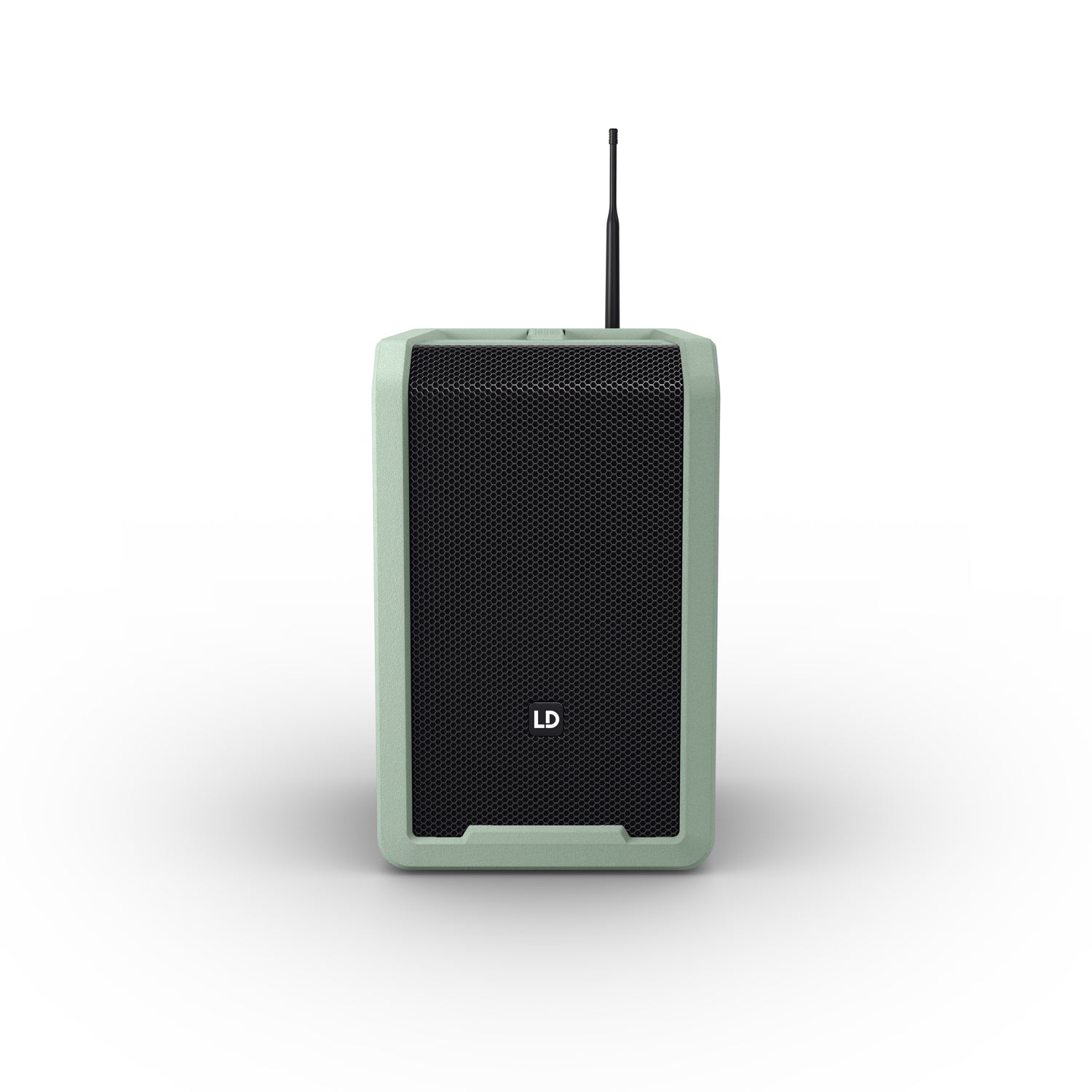

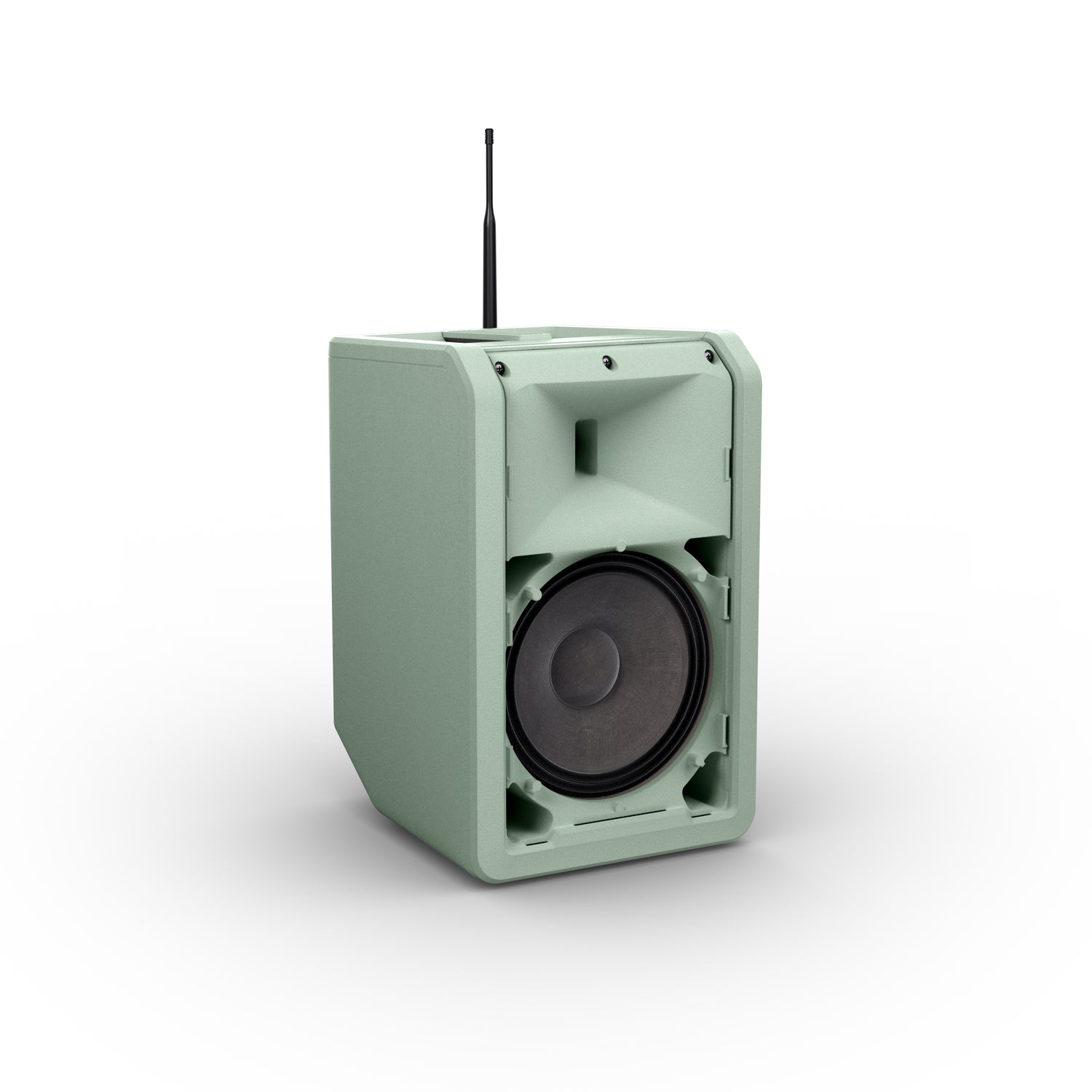

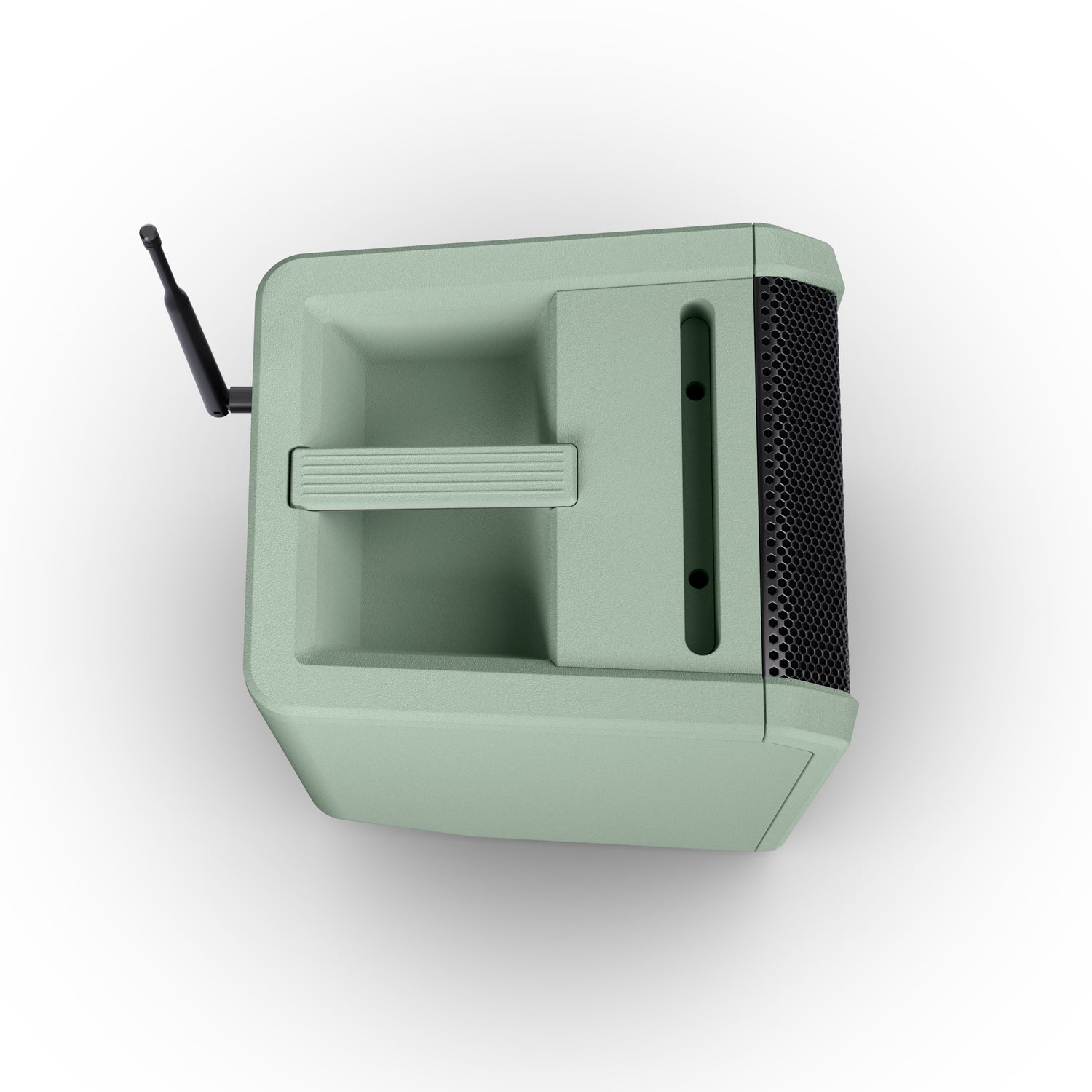

As the lightest and most compact model in the ANNY® series, ANNY® 8 is equipped with an 8" woofer and a 1" tweeter. Thanks to the balanced weight and the practical carry handle, it’s easy to transport. ANNY® 8 therefore offers an ideal combination of compact size, mobility and impressive sound performance.

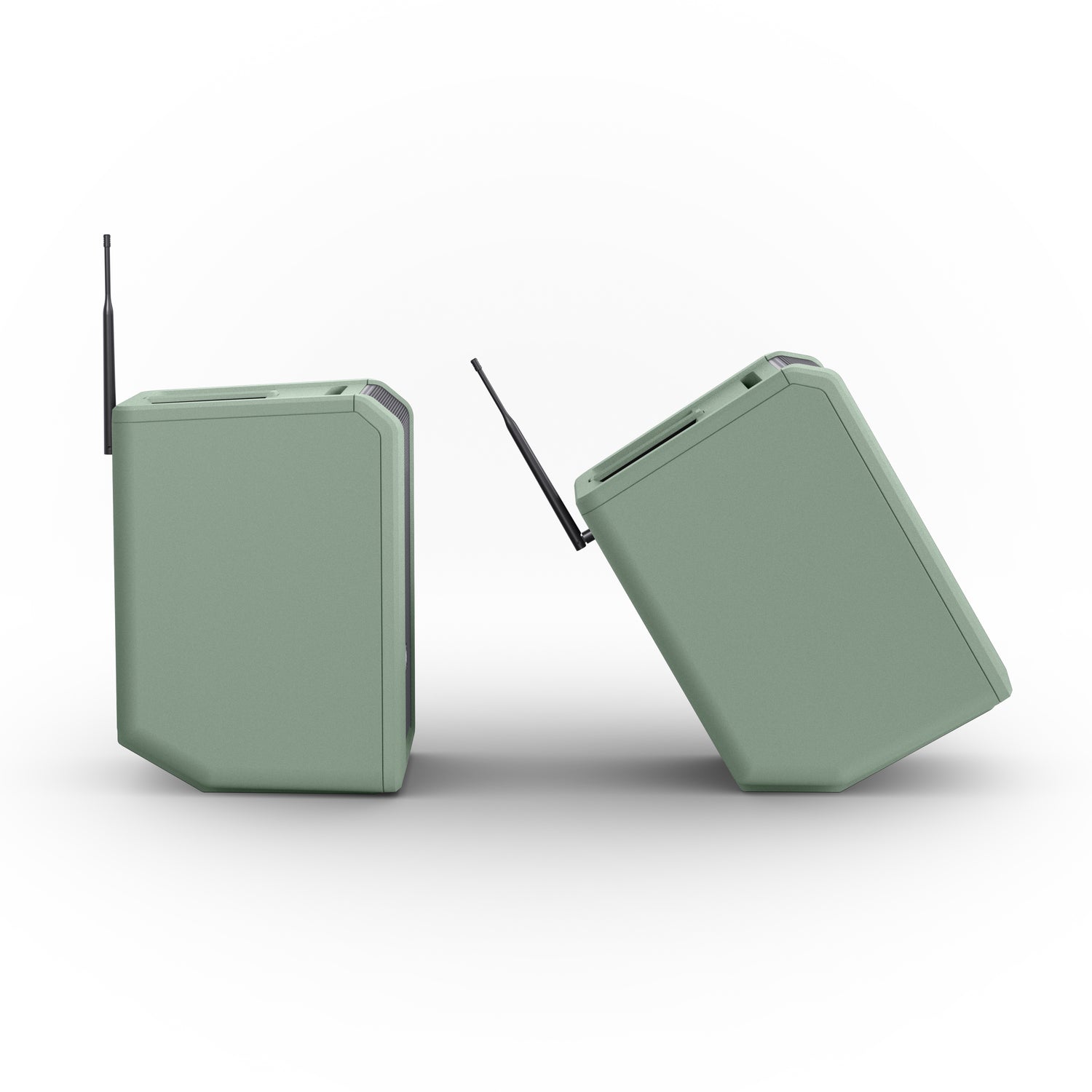

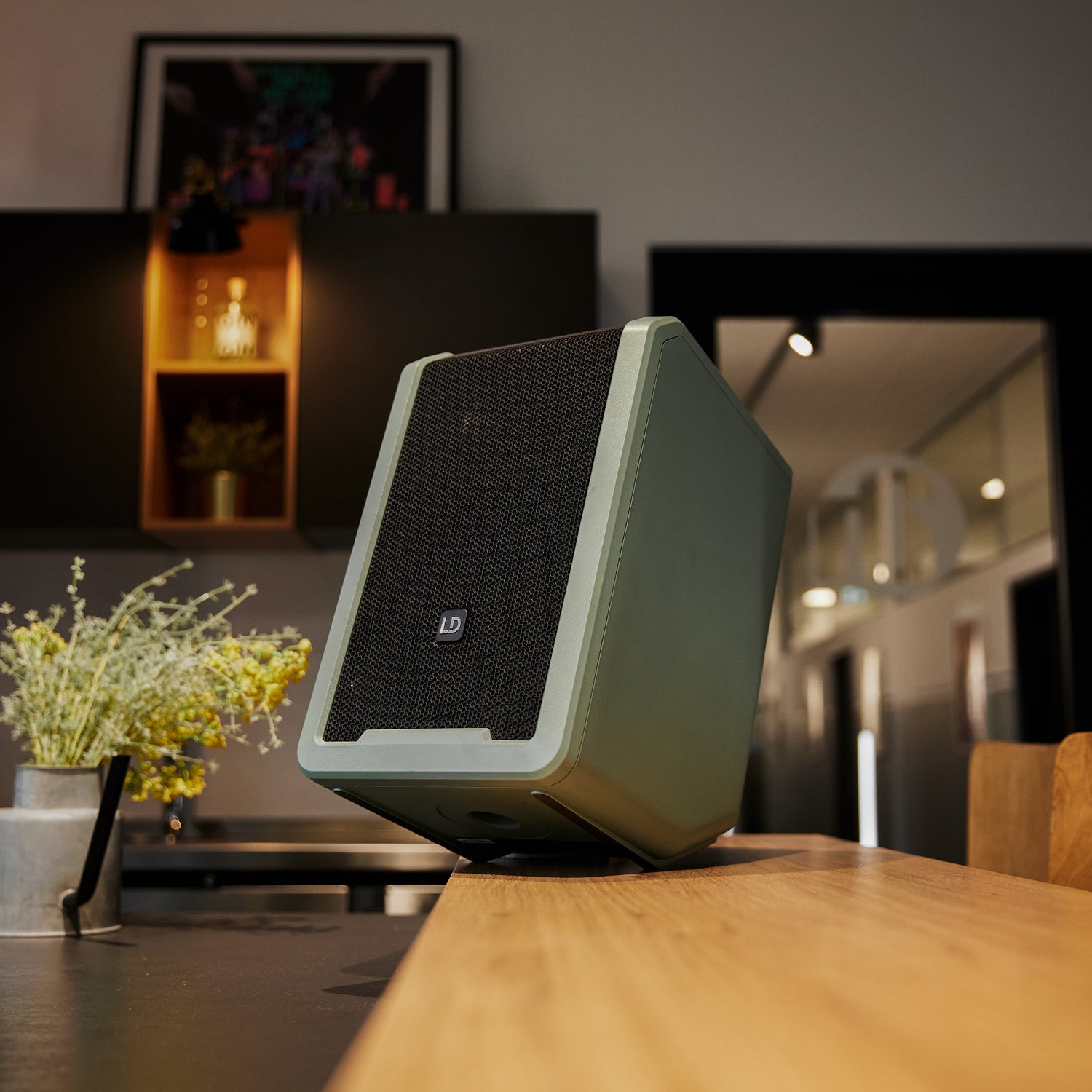

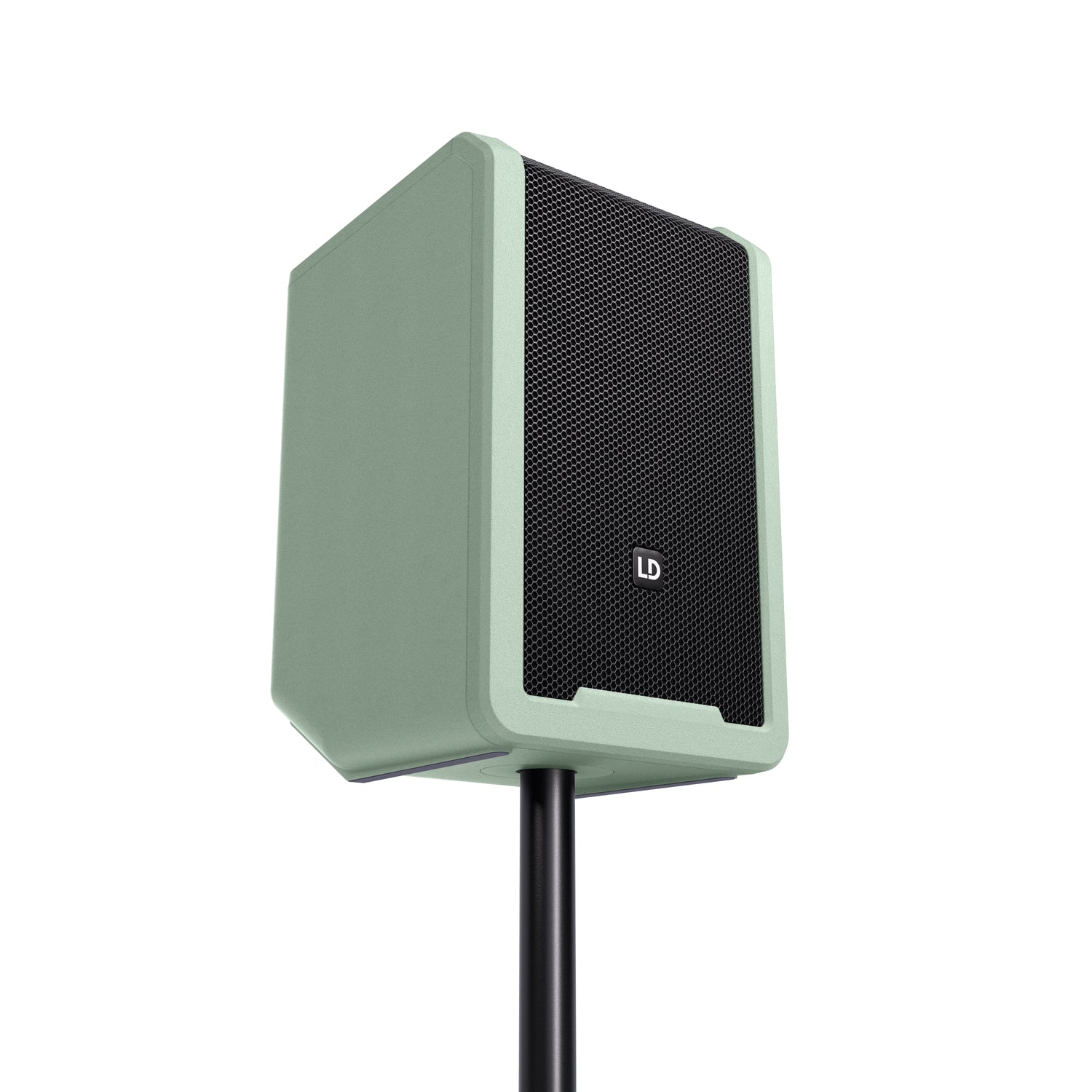

The Tilt-Back cabinet allows you to tilt your ANNY® 8 when it’s placed on the ground, optimising sound dispersion or enabling it to be used as a monitor. To reach a larger audience, ANNY® 8 can also be mounted on a speaker stand.

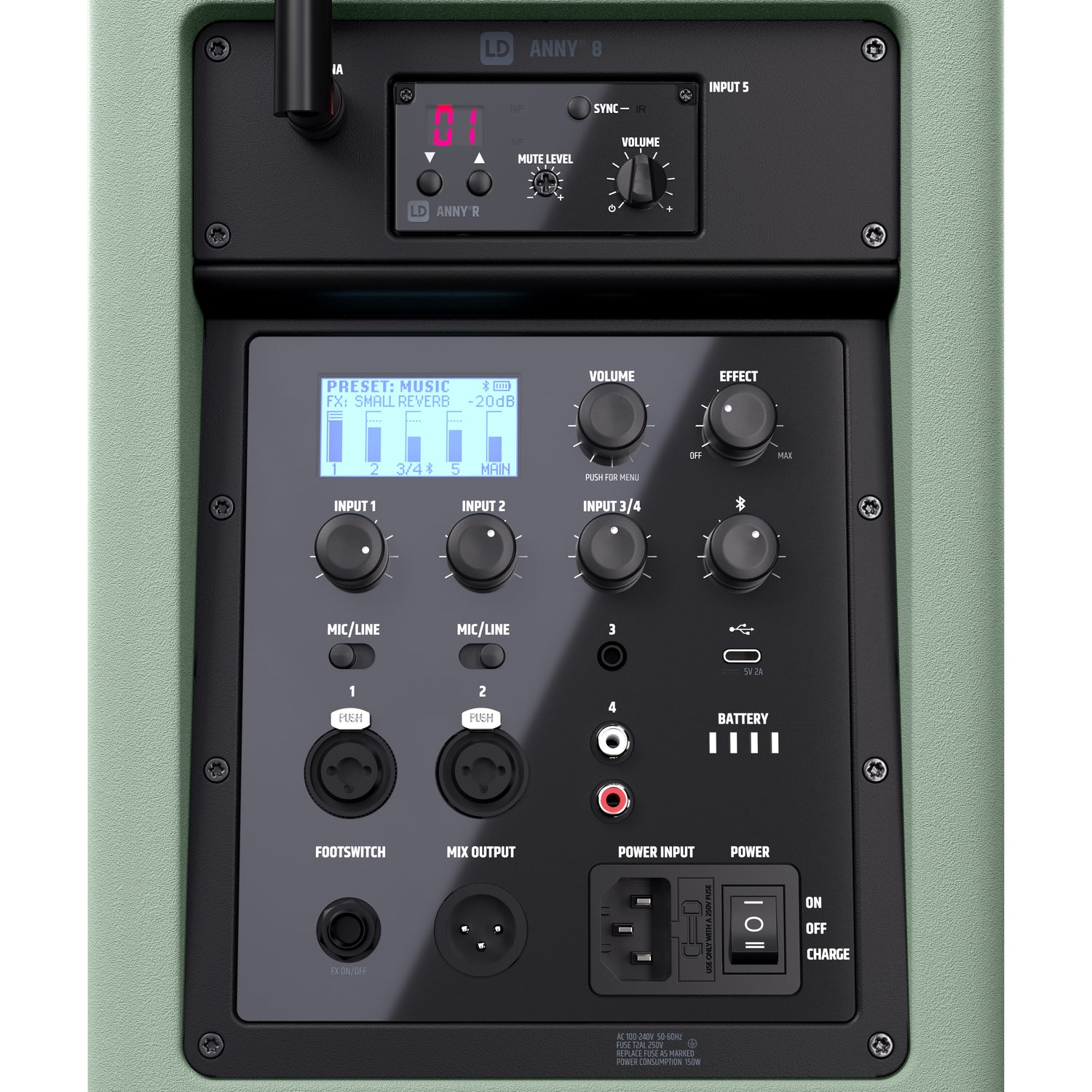

With an integrated 5-channel mixer, 3-band EQ, 5 application presets (MUSIC, LIVE, VOCAL, ECO, FLAT) and effects such as reverb & delay, it combines extensive features and excellent sound quality in a compact, timeless design. ANNY® 8 impresses with its versatile connectivity: two mic/line combo inputs, one stereo channel with 3.5 mm jack (AUX) and RCA inputs, as well as Bluetooth 5.0 with AAC codec.
This selection of inputs enables a wide range of setups combining speech and music. The footswitch input makes it easy to switch reverb and delay effects hands-free with an external footswitch while you play or sing.
To guarantee clear, intelligible announcements in any situation, you can use the “Priority” function. Simply select your microphone in the priority settings and the music will automatically be reduced when you use the microphone.

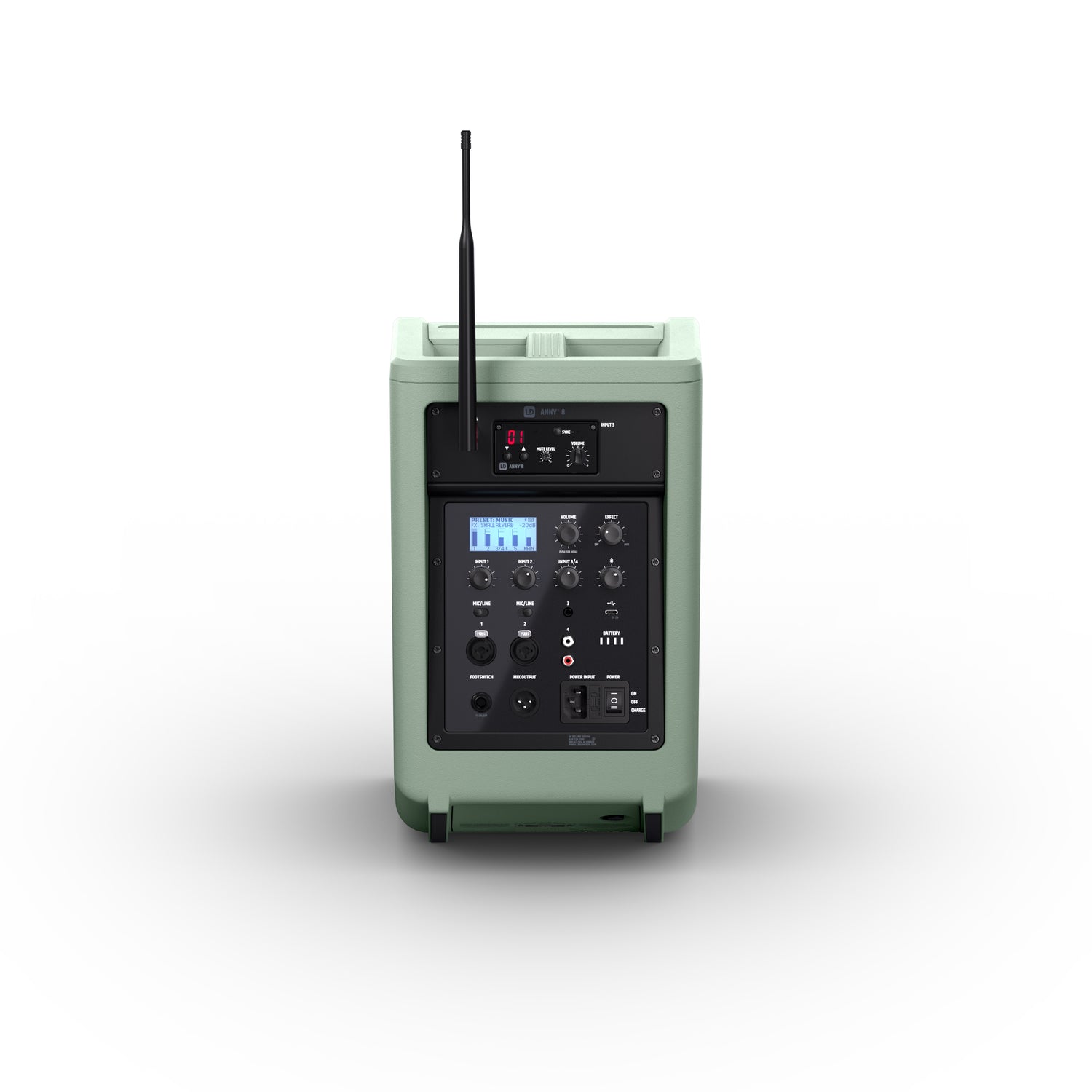

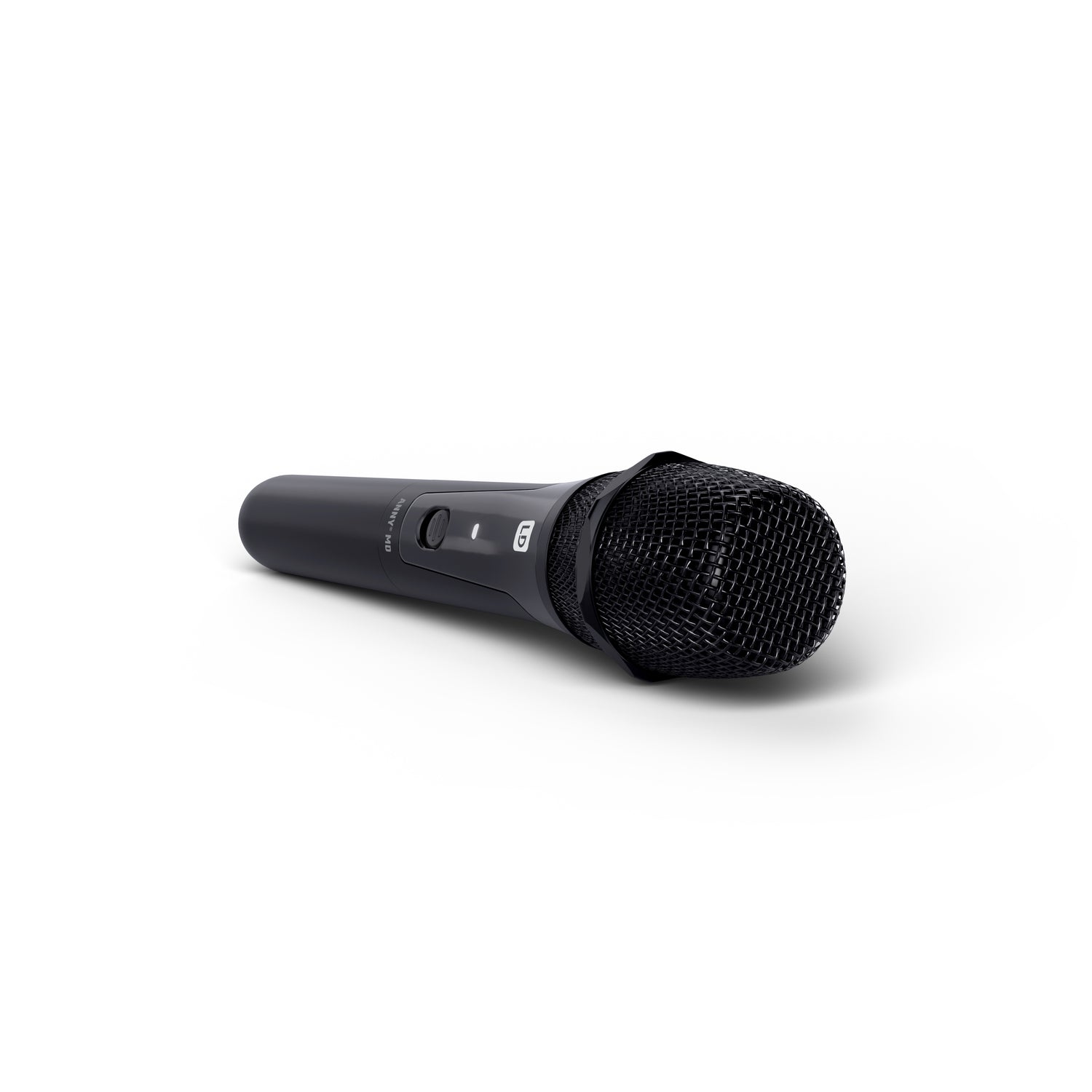

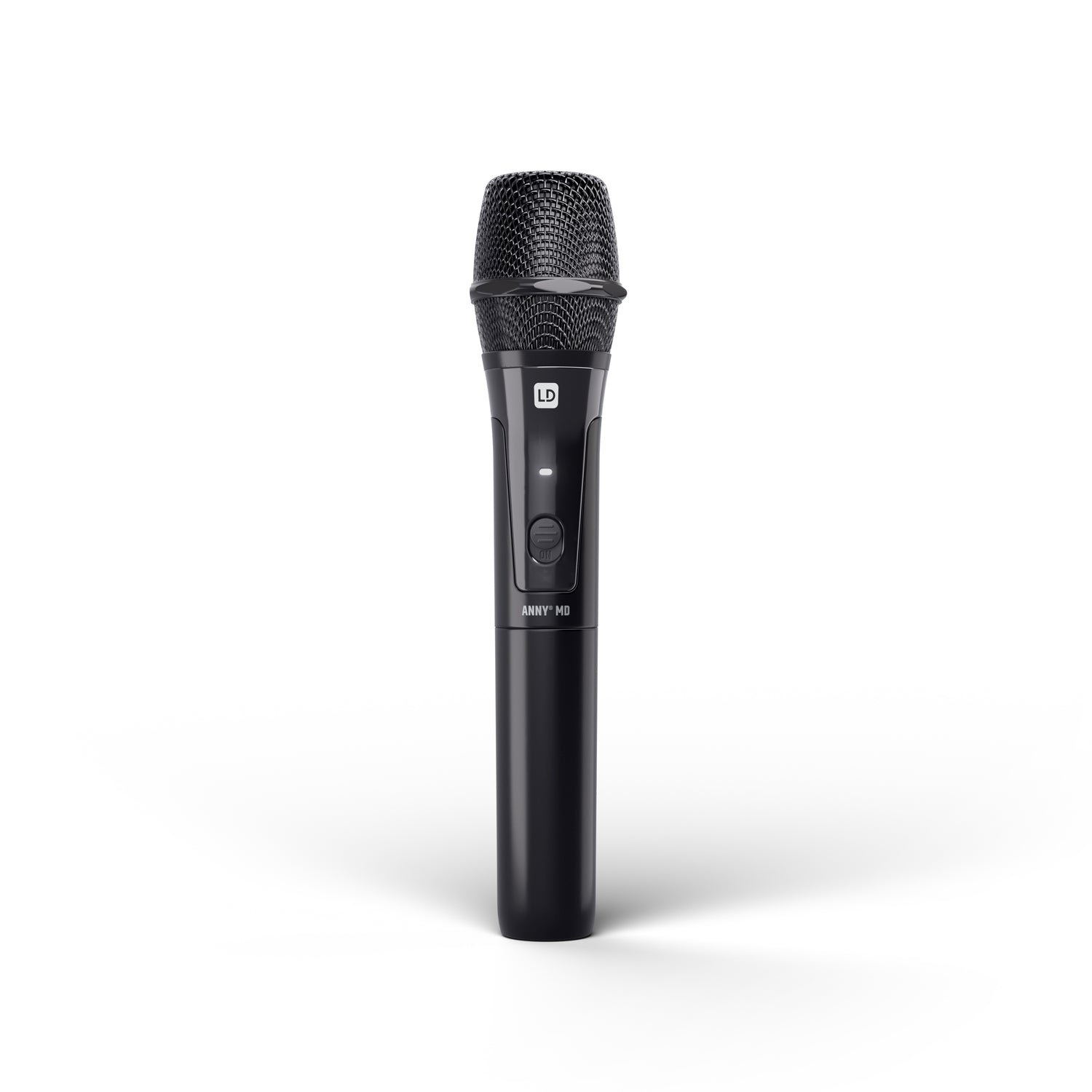

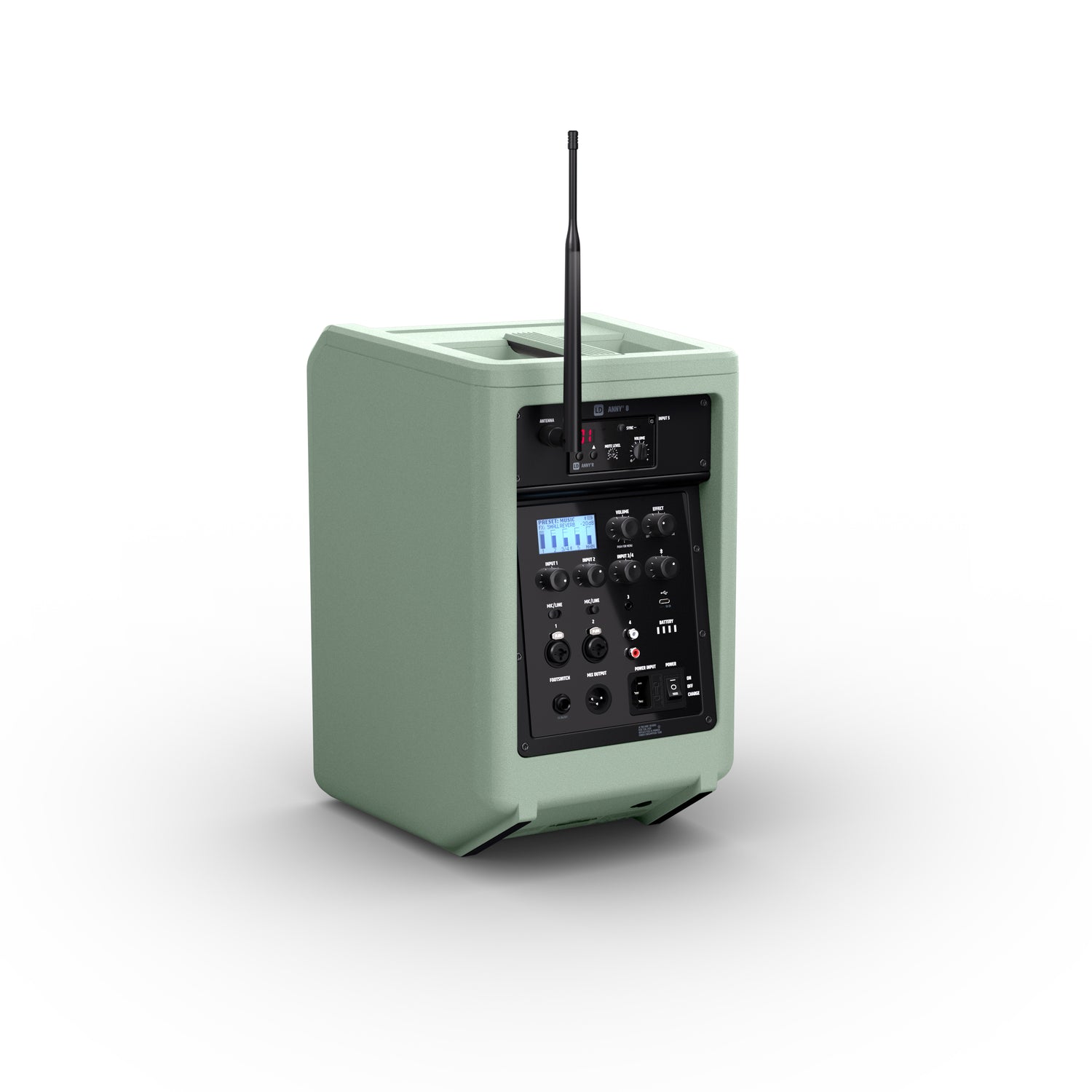

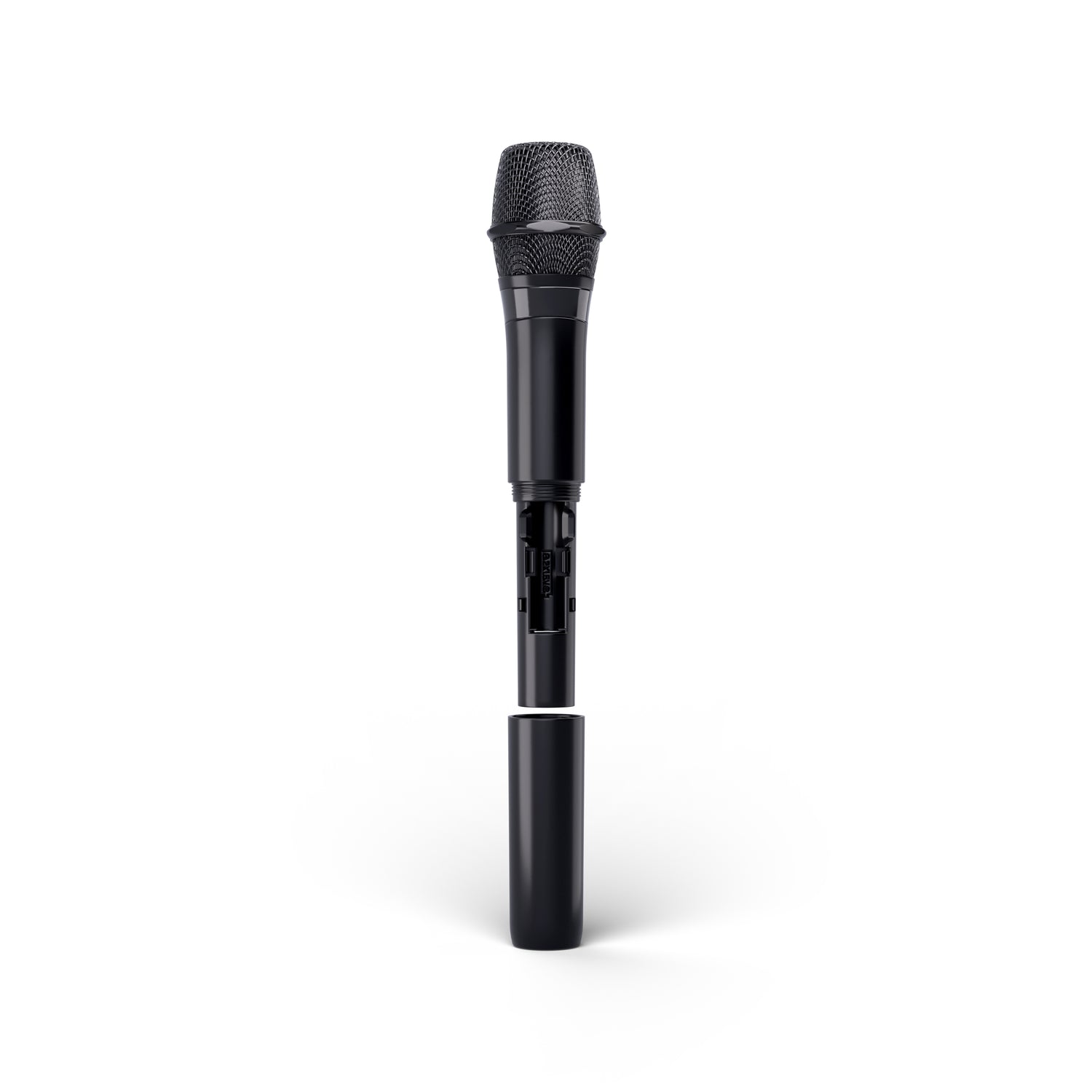

The ANNY® 8 HHD variant already comes equipped with a wireless microphone – simply insert the included AA batteries and you’re ready to go. The volume can be adjusted separately on the corresponding receiver module on the back of ANNY. This expands your connectivity with an additional input channel, giving you even more combination options.

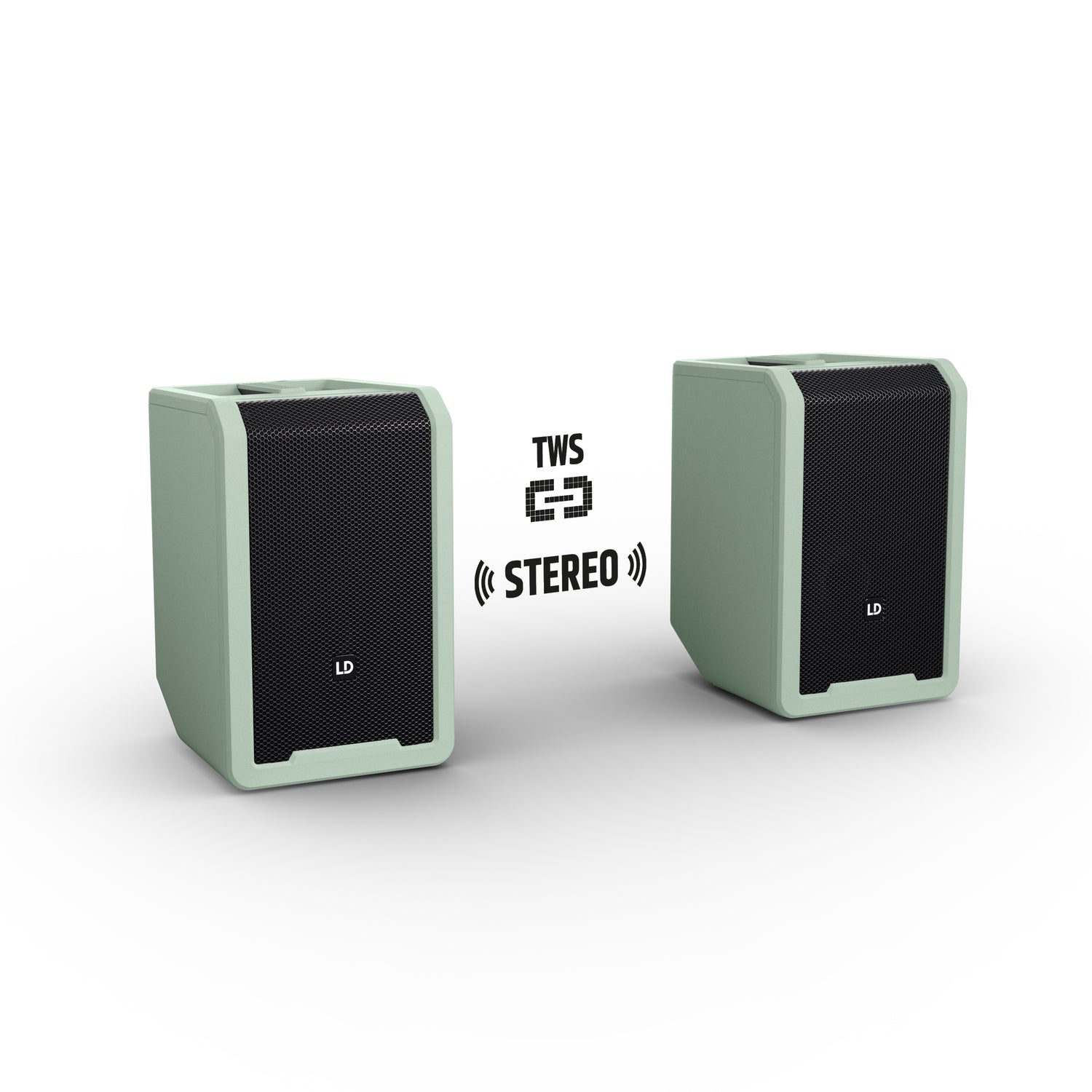

As an additional expansion of versatility, True Wireless Stereo (TWS) lets you connect two ANNY® 8 speakers and enjoy your music in stereo – a quick upgrade that creates an impressive sound solution for parties and events.
No need to worry – you can turn your ANNY all the way up, because the built-in DynX® DSP (Gen. 2) delivers distortion-free, clean and powerful sound even at maximum volume.

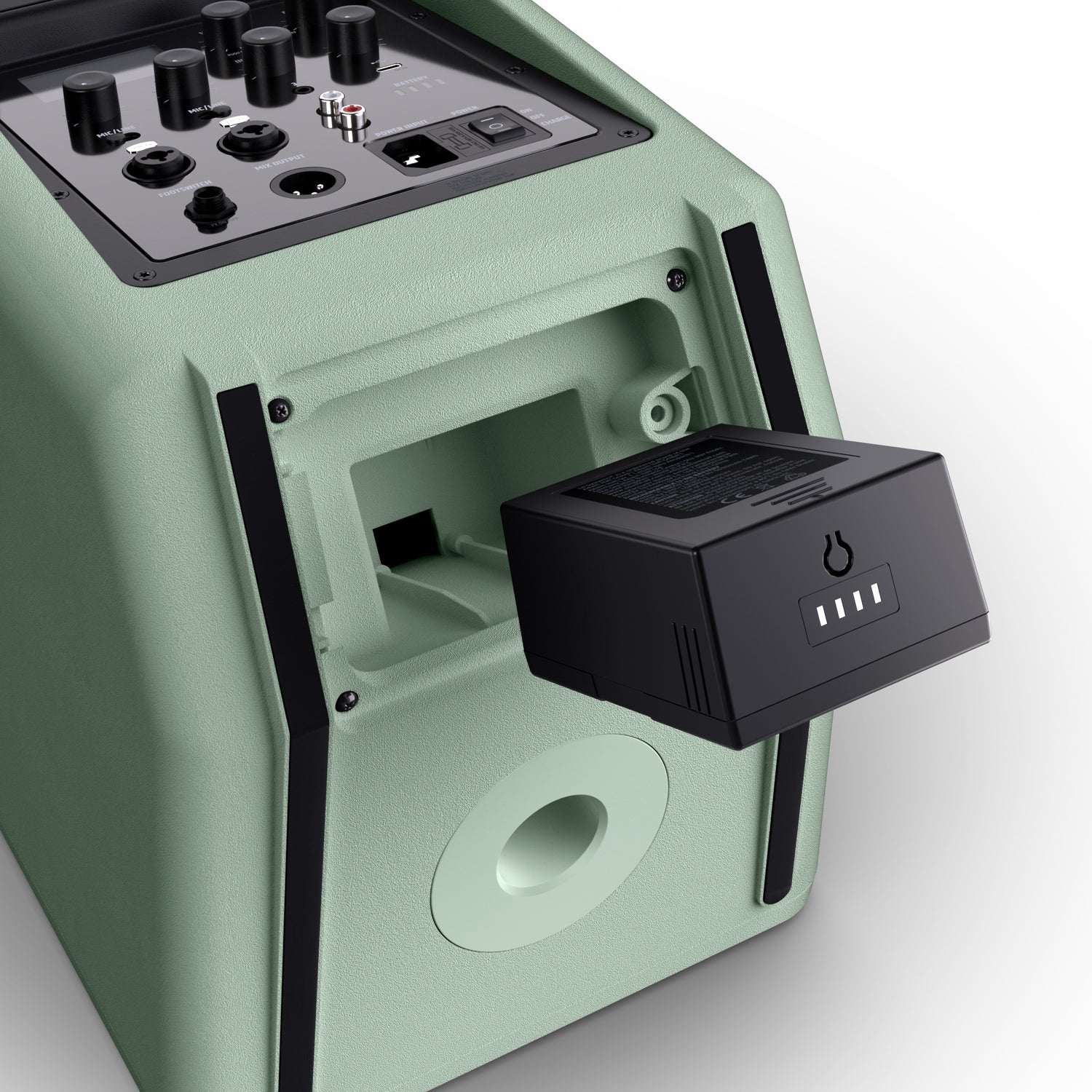

Thanks to the energy-saving ECO preset, ANNY can last extra long for background music or speech-only applications. At medium volume, this mode enables continuous operation for up to 11 hours. For your party at maximum volume in the MUSIC preset, the battery lasts up to an impressive 3.5 hours at full capacity. You can extend the operating time further with the optionally available backup battery; simply replace the empty battery with a fully charged one and you’re ready to continue.

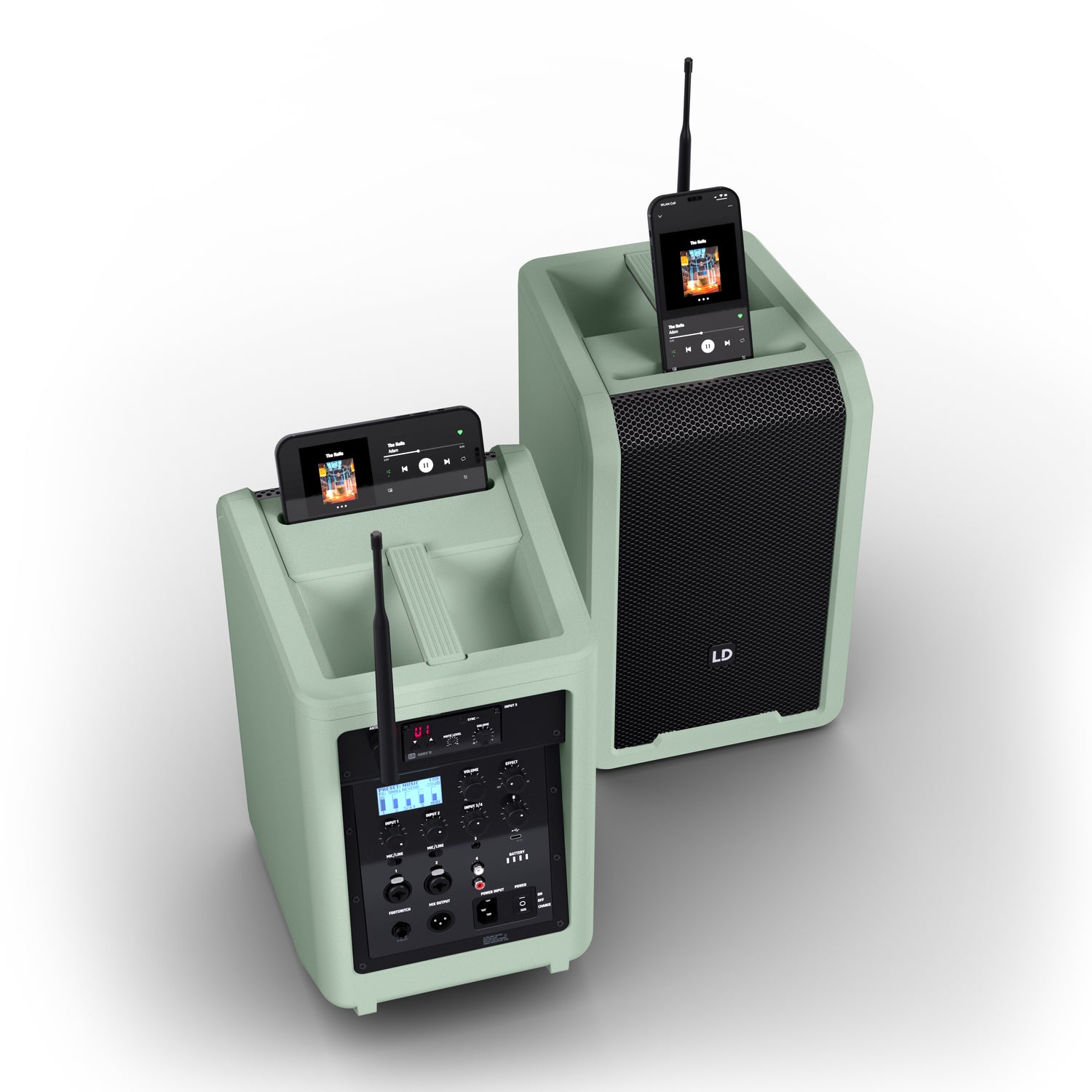

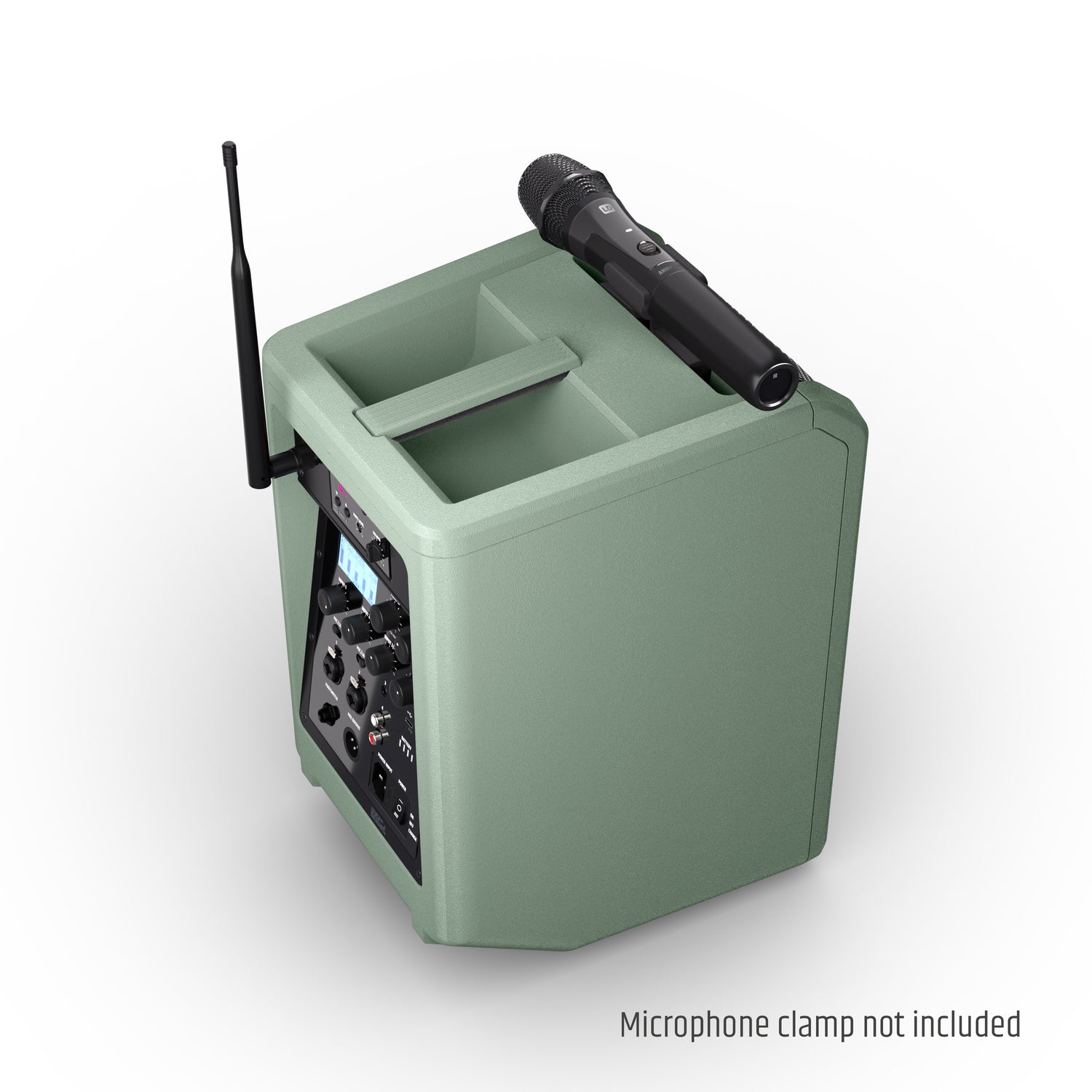

To make sure your mobile phone or tablet is always ready to use, you can place it in the integrated holder and charge it via the USB-C port on the back of ANNY.
If you travel a lot with your ANNY® 8, you’ll appreciate the optional ANNY® 8 BACKPACK as the ideal protective backpack with versatile carrying options: shoulder strap, backpack straps and carry handle. The water-repellent backpack provides extra storage space and protects your ANNY® 8 from the elements.
So go ahead and create unforgettable moments. With ANNY by your side, you’ll create an amazing atmosphere and premium sound – wherever you are.
Technical specifications
Technical specifications
- 8" Portable active 2-way full-range loudspeaker
- Built-in 5-channel mixer with 3-band EQ, reverb and delay
- Long battery life: up to 11h (ECO mode) / 3.5h (max. volume)
- 1x wireless handheld microphone incl. AA batteries
- Bluetooth® 5.0 and stereo streaming (TWS) with two ANNYs
- Clear and distortion-free sound at maximum volume through DynX® DSP (Gen. 2)
- 2x microphone/line inputs for versatile connection options
- 1x stereo channel with 3.5mm jack (AUX) or Cinch
- Priority/ducking mode to emphasise the microphone signal
- Tilt-Back cabinet for optimum sound dispersion

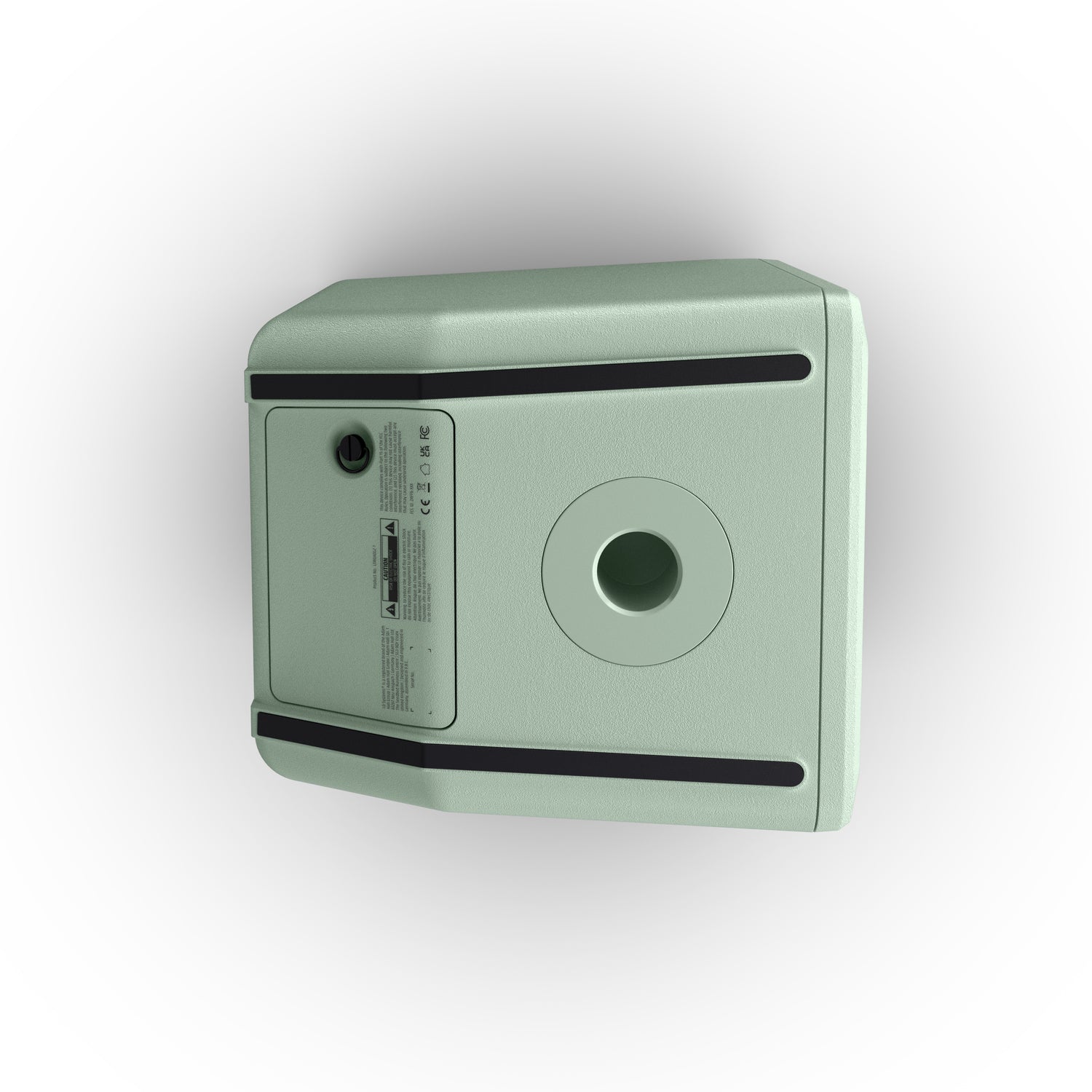

- 35-mm flange for use with a speaker stand
- USB-C port for charging a tablet or smartphone
- Footswitch input for hands-free effect control
- Integrated holder for tablet or smartphone
General
| Scope of delivery | 1x ANNY 8, 1x Receiver, 1x Handheld Microphone |
| Wireless frequencies | 655 - 679 MHz |
| Colour | Green |
| Weight | 9.27 kg |
General
| Type | Active |
| Peak output power | 160 W |
| RMS output power | 80 W |
| Amp class | Class D |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) | 117 dB |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 110 dB |
| Frequency response (-10 dB, rel. Avg) | 53 - 20,000 Hz |
| Speaker system | 2-way system |
| Crossover frequency | 1,800 Hz |
| Beam angle | 120° (hor.) / 60° (vert.) |
| Number of inputs | 5 |
| Input connector types | 3.5 mm Jack TRS female |
| Input connector types | RCA female |
| Input connector types | XLR combo socket |
| Number of outputs | 1 |
| Output connector types | XLR 3-pole male |
| Protection features | Overheating |
| Protection features | Short circuit |
| Colour | Green |
Bluetooth®
| Bluetooth® version | Bluetooth® 5.0 |
| Features | App control |
| Features | Audio Streaming (A2DP) |
| Features | TrueWireless™ Mirroring |
| Features | TrueWireless™ Stereo |
| Bluetooth® range | ≤10 m (Class 2) |
| Supported audio codecs | AAC |
| Supported audio codecs | SBC |
| Receiver (client) | Yes |
Signal processing
| Mixer | Yes |
| Audio processing | 3 band EQ (High, Mid, Low) |
| Audio processing | Delay Line |
| Audio processing | Presets |
| Audio processing | Reverb |
Bass driver
| Size | 8 " |
| Magnet | Ferrite |
| Voice coil | 1 " |
Tweeter
| Driver size | 1 " |
| Outlet diameter | 25 mm |
| Magnet | Ferrite |
| Voice coil | 1 " |
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
| Rated power | 150 W |
| Mains fuse | T2AL/250 V |
Accumulator data
| Cell technology | Lithium-ion |
| Exchangeable | Yes |
| Operating voltage | 14.8 V |
| Battery capacity | 5,000 mAh |
| Battery life | 3.5 h - 11 h |
| Charging time (100 %) | 5 h |
| Charging time (80 %) | 3 h |
Housing
| Design | Bass reflex |
| Number of handles | 1 |
| Flange | 36 mm |
| Chassis material | ABS |
| Front grille material | Aluminium |
Environmental
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 249 mm |
| Height | 390 mm |
| Depth | 282 mm |
| Weight | 8.8 kg |
Other properties
| Included accessories | Mains cable |
General
| Directivity | Cardioid |
| Material | Steel |
| Wireless frequencies | 655 - 679 MHz |
| Frequency response (-3 dB, rel. Avg) | 60 - 20,000 Hz |
| Colour | Black |
Radio transmission
| Channels | 12 |
| Transmitting power | 10 mW |
| Frequency synchronization via IR | Yes |
Signal processing
| Min. Signal-to-noise ratio (SNR) | 104 dB |
Battery operation
| Batteries | 2 x 1.5 V AA/LR6 @ max.8 h |
Dimensions & weight
| Length | 250.4 mm |
| Diameter | 32.5 mm |
| Weight | 200 g |
General
| Material | Steel sheet |
| Coating | Powder coated |
| Wireless frequencies | 655 - 679 MHz |
| Frequency response (-3 dB, rel. Avg) | 50 - 17,000 Hz |
| Colour | Black |
Radio transmission
| Channels | 12 |
| Antenna connector | BNC female |
| Antennas | BNC female |
Dimensions & weight
| Width | 72.8 mm |
| Height | 39.6 mm |
| Depth | 118.5 mm |
| Weight | 8 g |
