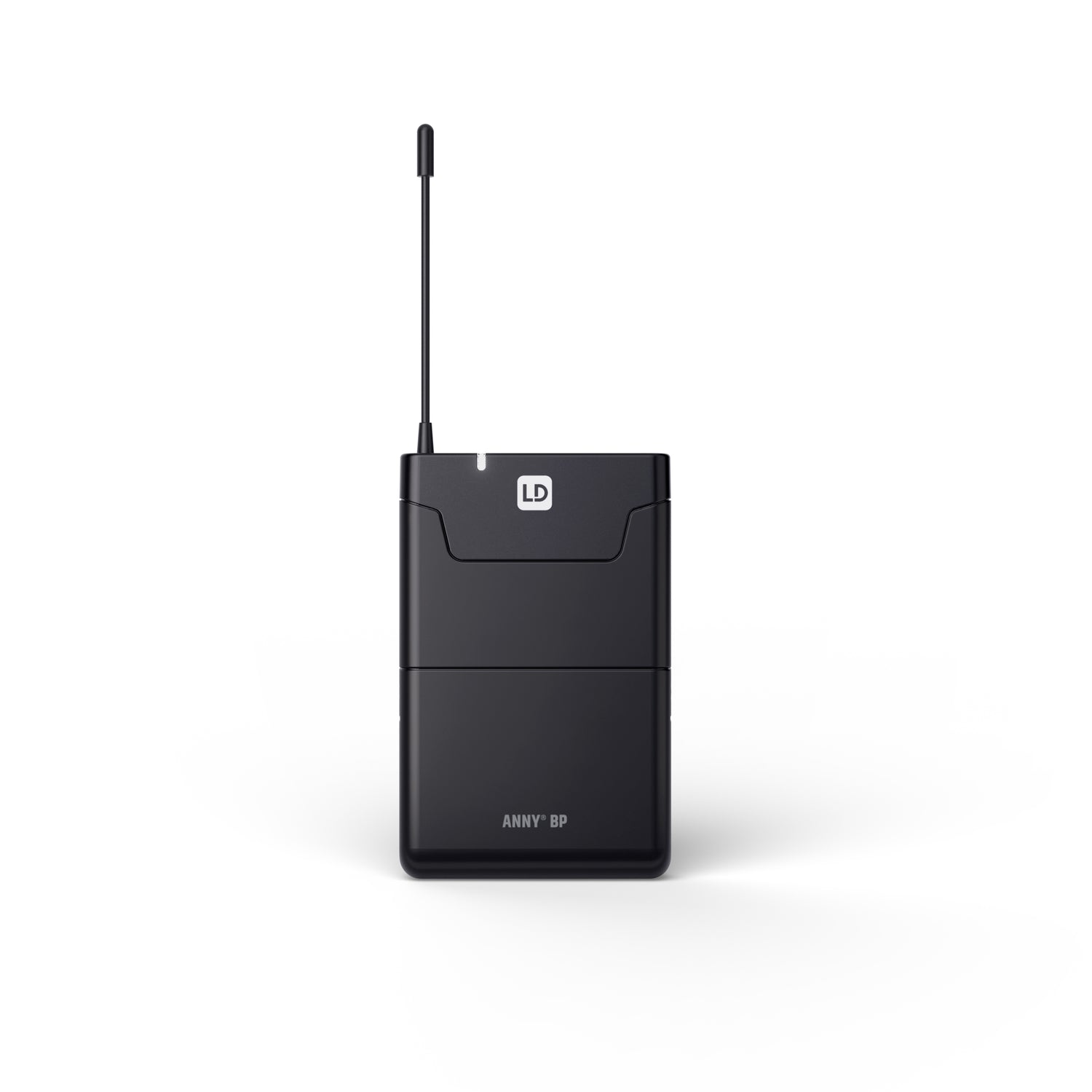

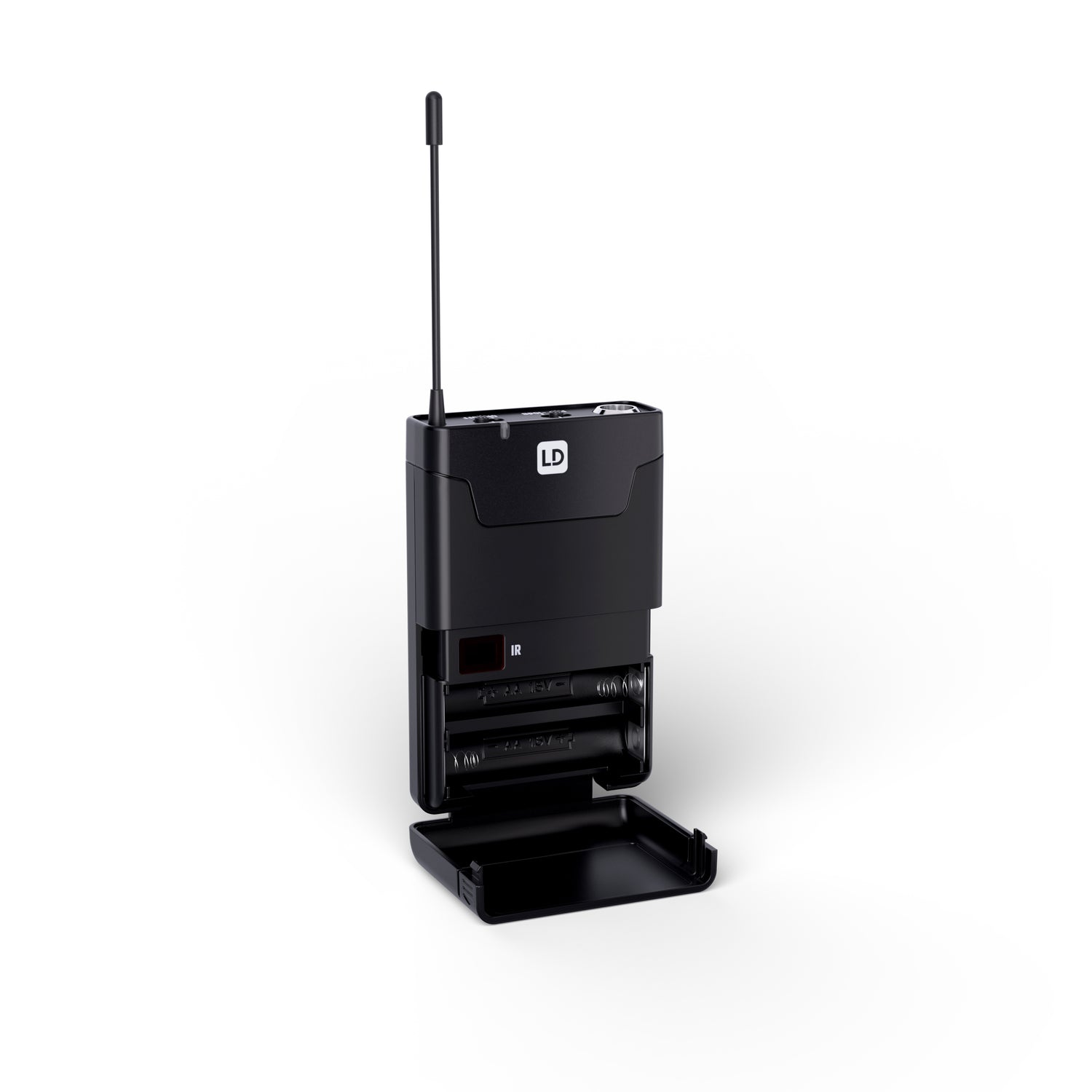

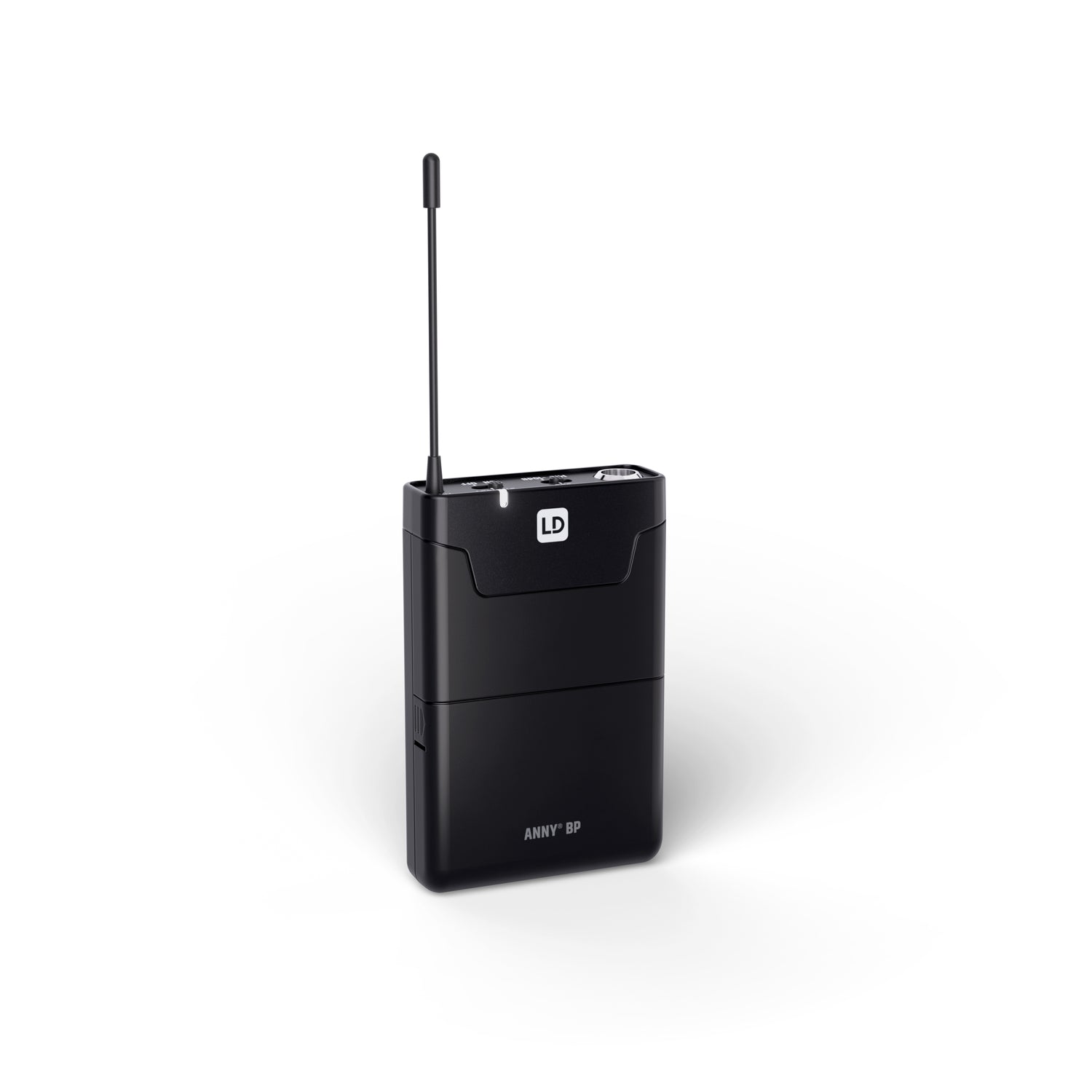

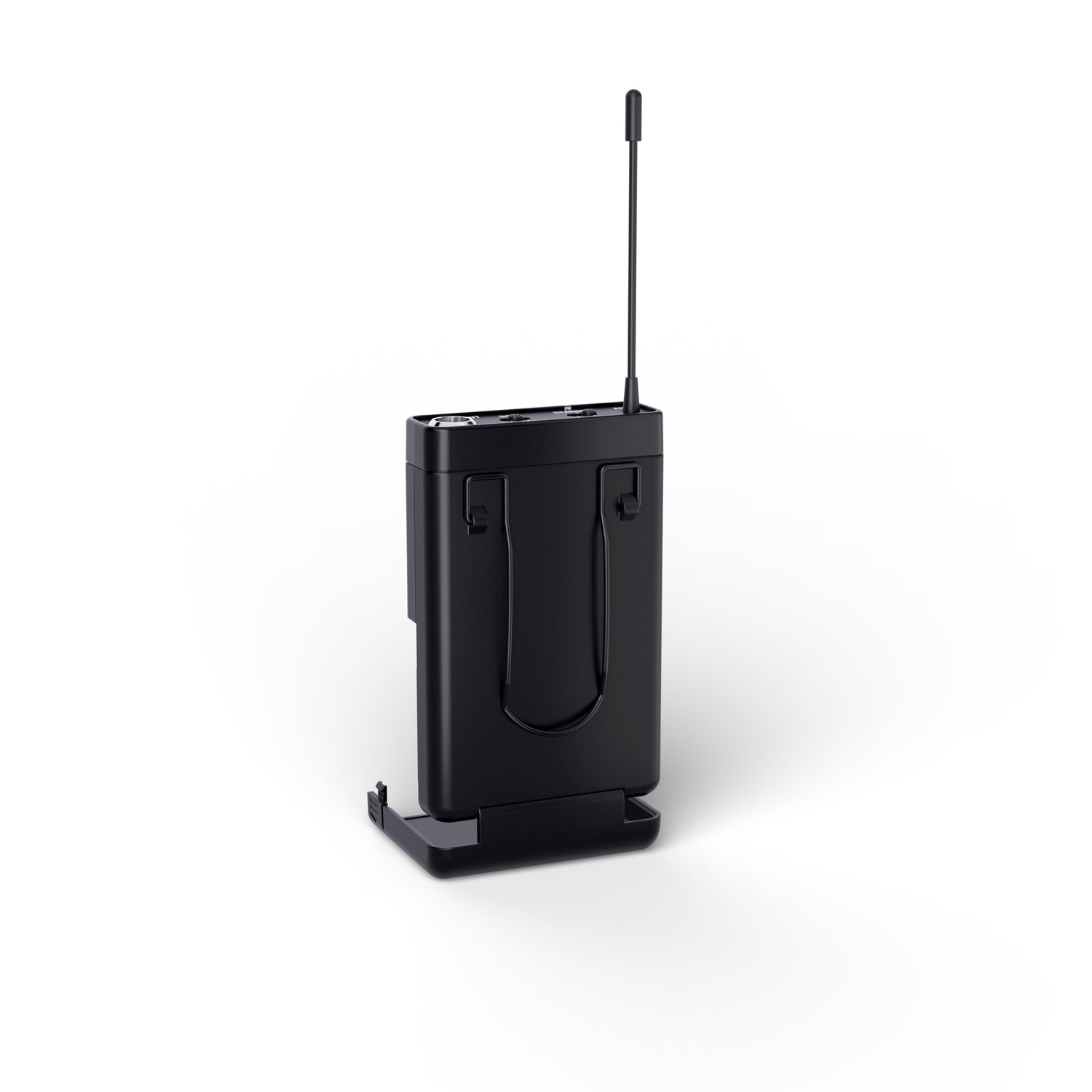

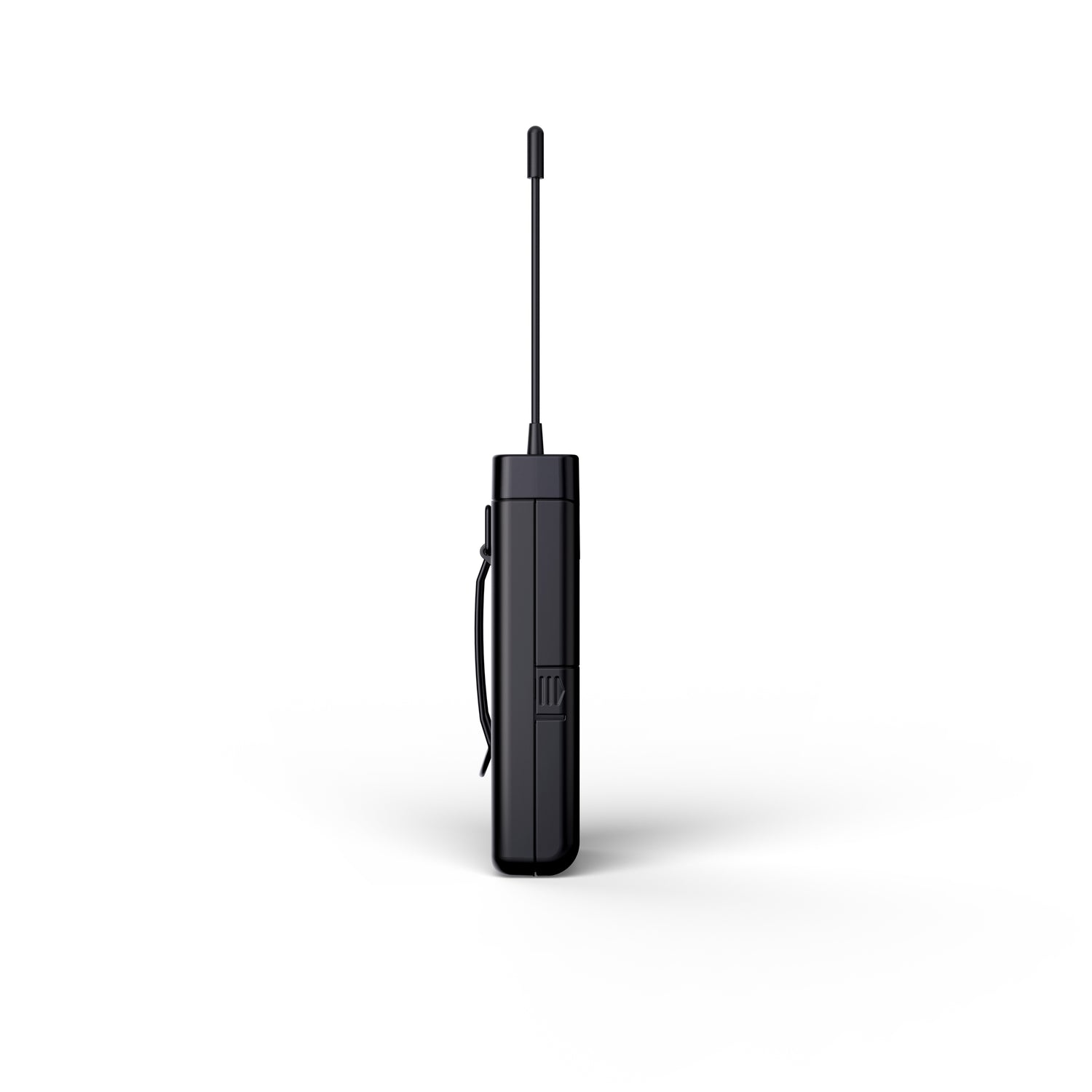

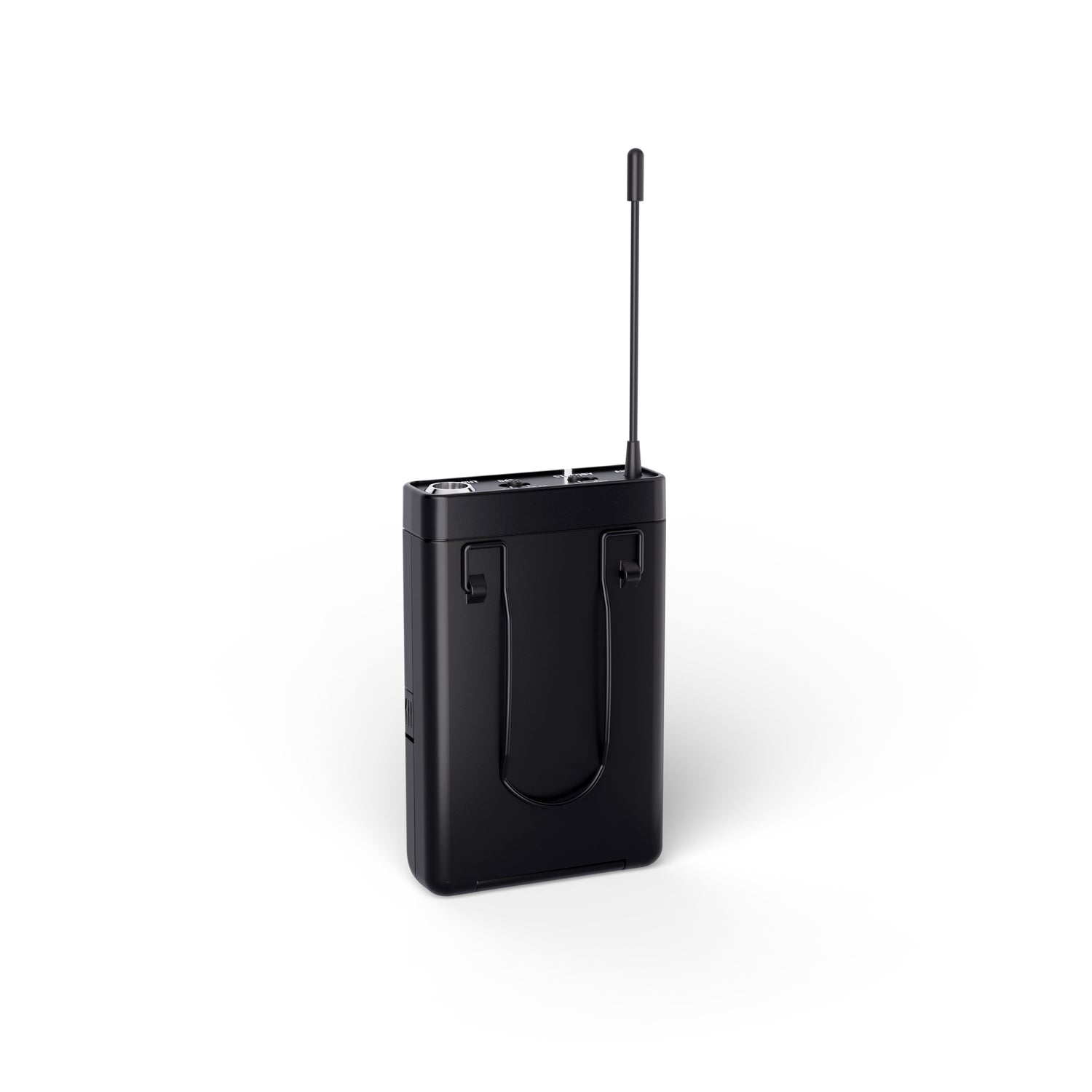

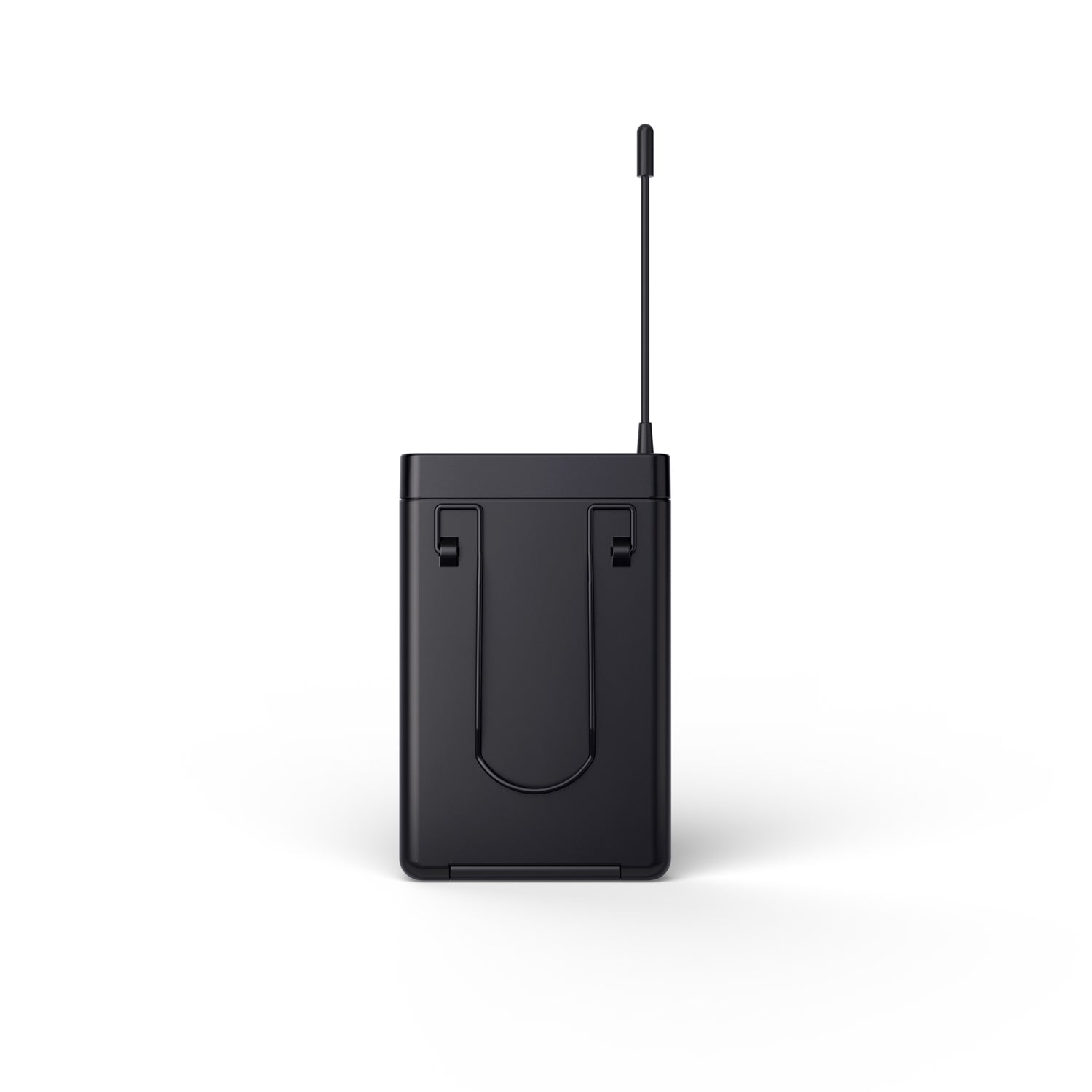

LD Systems ANNY® BP B6 - Bodypack transmitter for ANNY®
The ANNY® bodypack transmitter with the B6 frequency band operates in the 655-679 MHz frequency range. Equipped with a mini-XLR input and an input level switch, it can be used with both active and passive microphones and instruments. With an output power of 10 mW, the bodypack transmitter enables audio transmission up to 80 metres. The bodypack transmitter is easily and conveniently synchronised with the ANNY® receiver via infrared. Powered by two AA batteries (included), the ANNY BP can operate for up to eight hours without changing batteries. A built-in status LED lights up white when it is on and red when the battery is low. The power switch also has a standby function for temporary muting, ideal for breaks in use without having to switch the unit off completely.
- Bodypack transmitter incl. 2x AA batteries
- Up to 80 metres range
- Mini XLR input
- 8 hours operating time

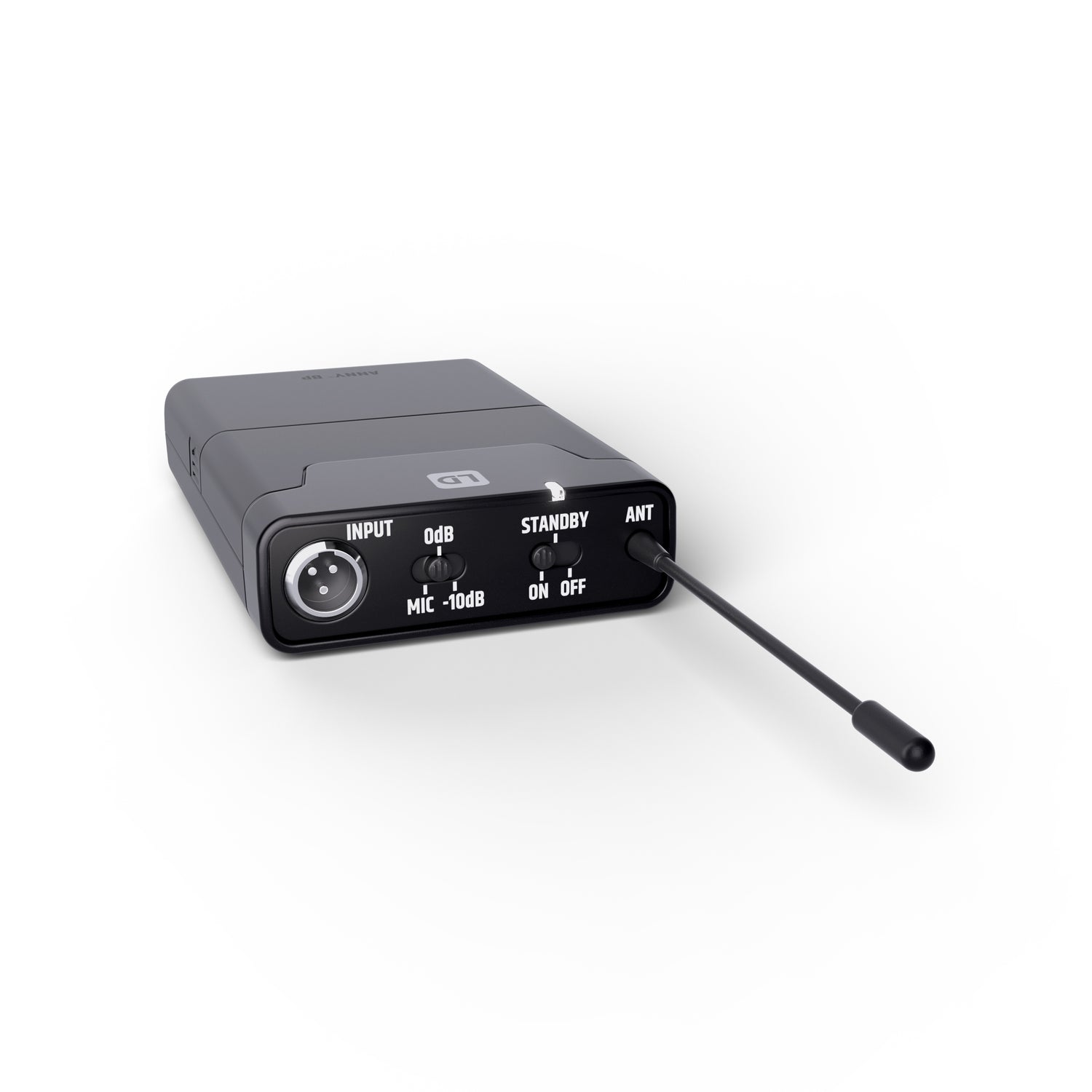

- Input level switch (MIC, 0dB, -10dB)
- Standby mode
- Integrated status LED
General
| Wireless frequencies | 655 - 679 MHz |
| Frequency response (-3 dB, rel. Avg) | 45 - 20,000 Hz |
| Colour | Black |
Radio transmission
| Channels | 12 |
| Transmitting power | 10 mW |
| Antennas | 1 (fixed) |
Inputs
| Input connector types | Mini XLR male |
Signal processing
| Min. Signal-to-noise ratio (SNR) | 100 dB |
Battery operation
| Batteries | 2 x 1.5 V AA/LR6 @ max.8 h |
Dimensions & weight
| Width | 64 mm |
| Height | 100 mm |
| Depth | 21 mm |
| Weight | 9 g |
