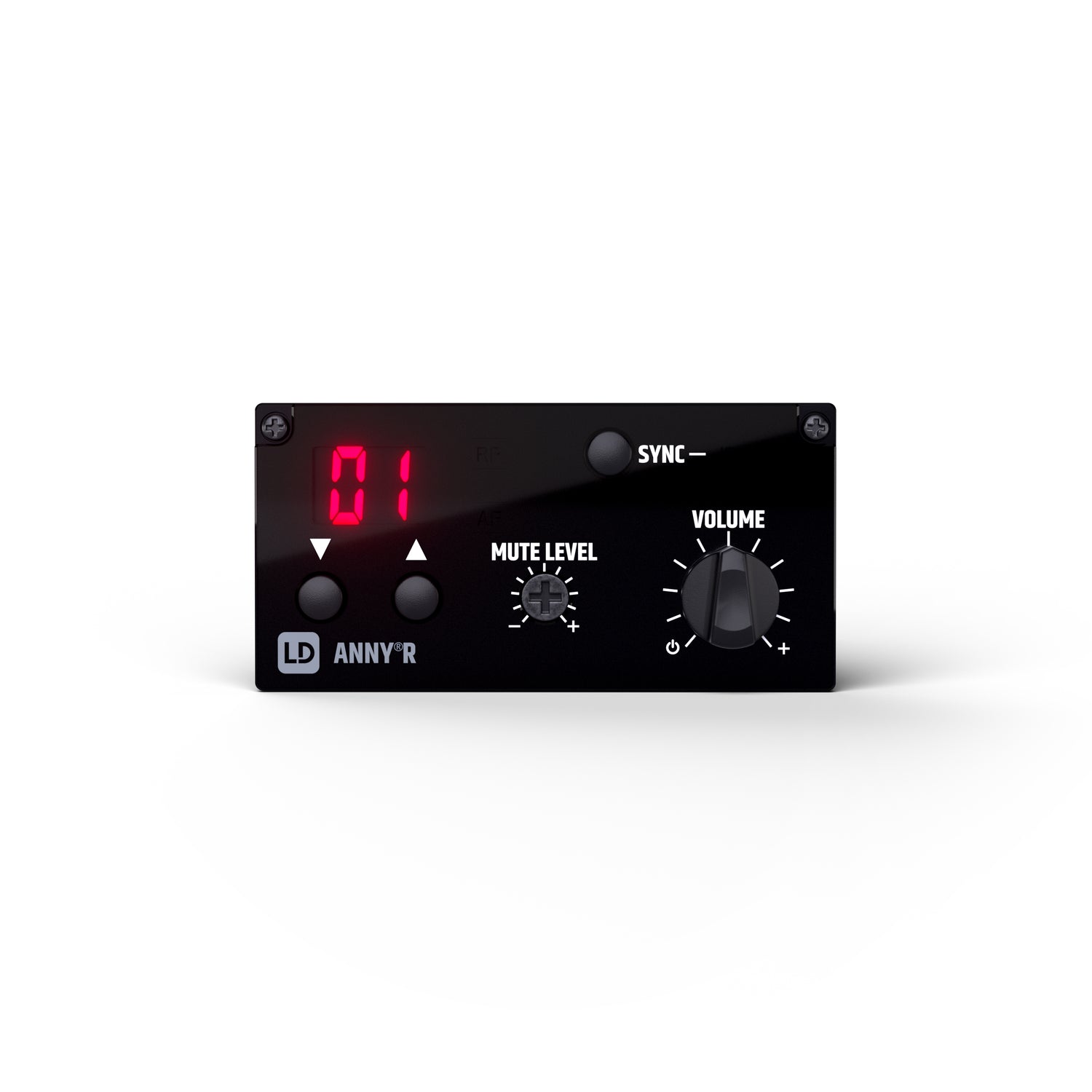

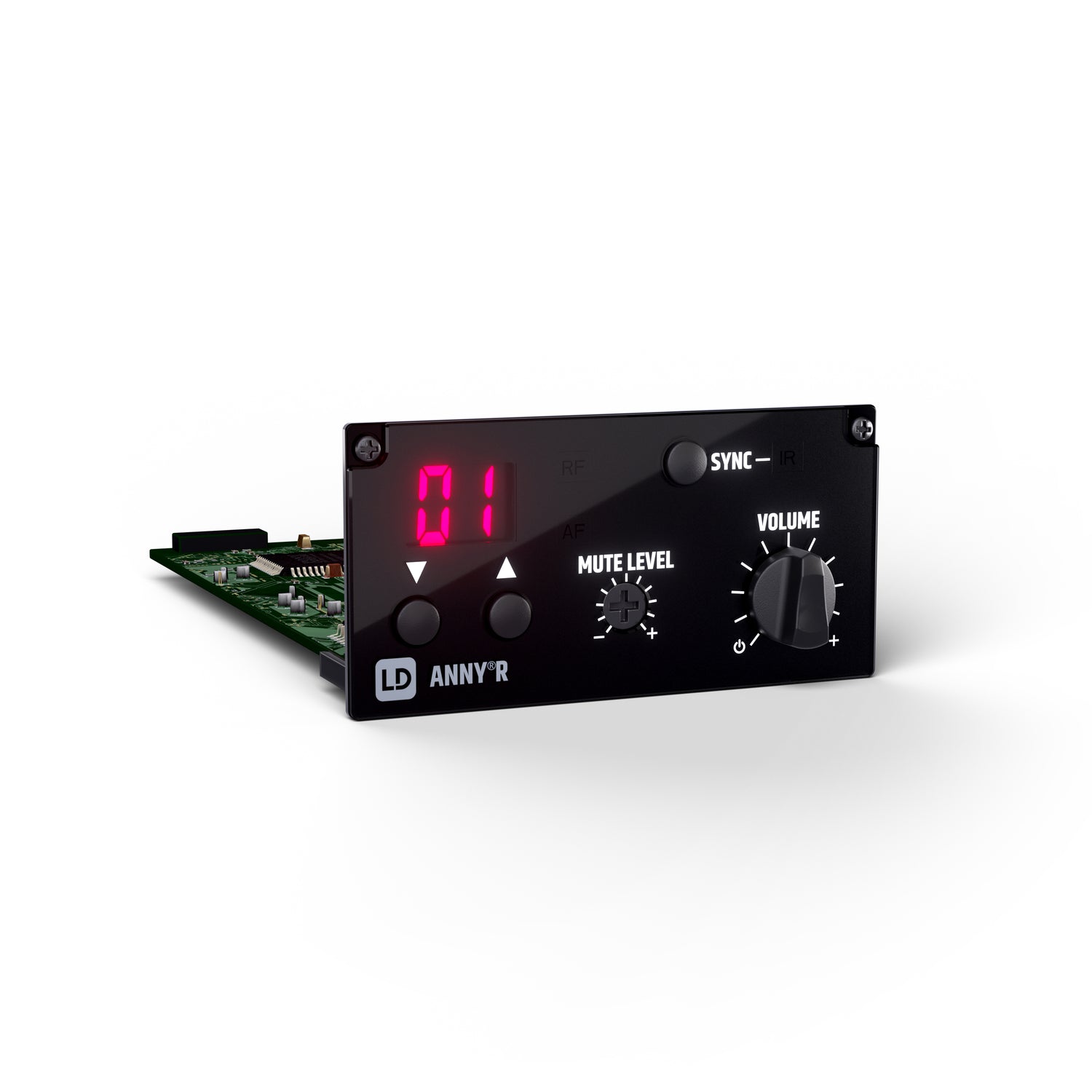

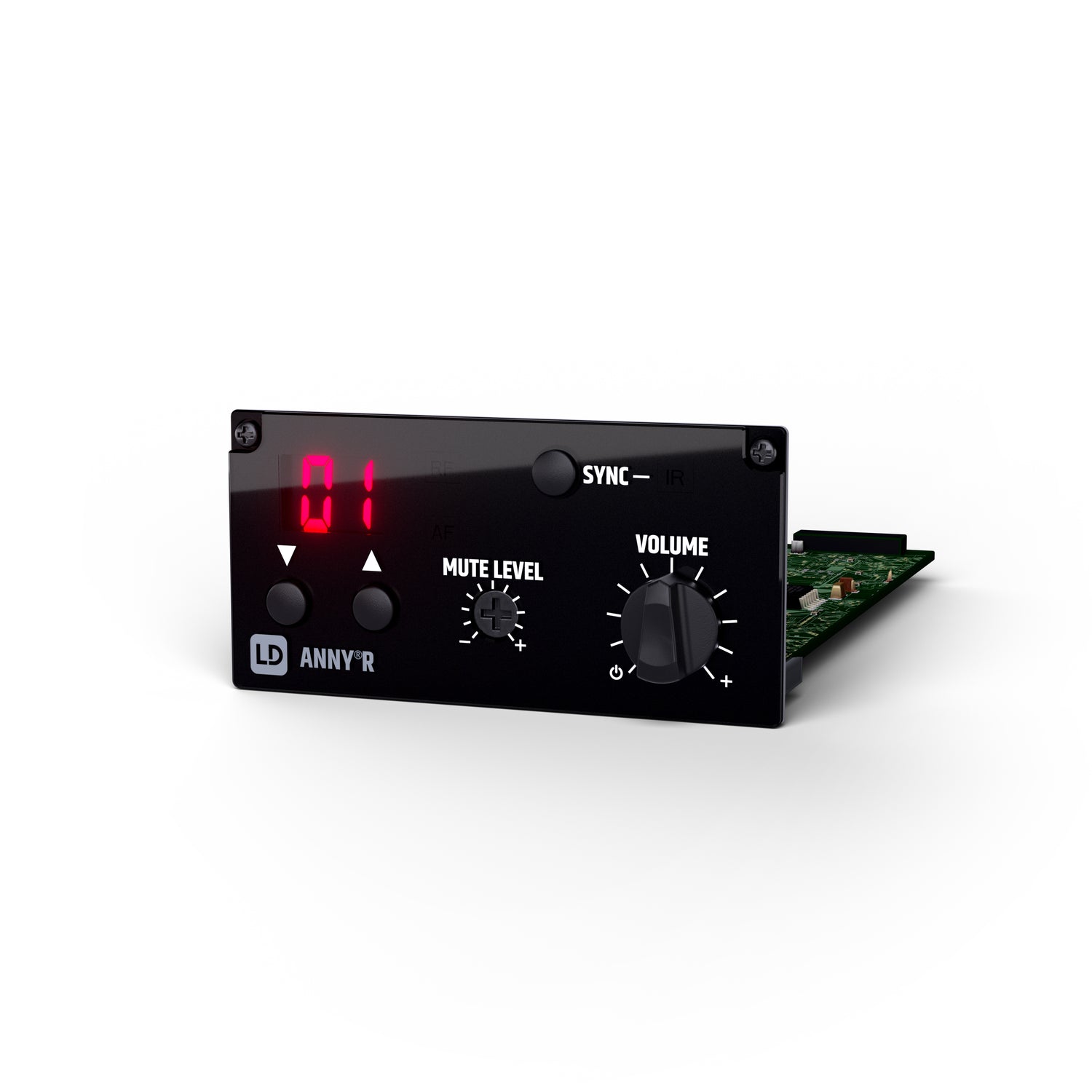

LD Systems ANNY® R B5 – Receiver module for ANNY®
This ANNY® receiver module makes it possible to retrofit an ANNY® wireless microphone by installing it in a free receiver module slot in the ANNY® speaker. It receives in frequency band B5 in the frequency range 584 - 608 MHz. A volume control on the module allows you to set the volume as required, while a squelch control effectively eliminates noise and interference caused by weak signals. Radio signals can be received up to 80 metres using the supplied antenna with TNC connector. The receiver is easily and conveniently synchronised via infrared with the matching ANNY® bodypack transmitter or wireless handheld microphone.
- Radio system with FM technology incl. separate antenna
- Can be retrofitted to all ANNY® loudspeakers
- Reception range up to 80 m
- Separate volume control
- 12 selectable radio channels
- Mute level control (squelch)
General
| Material | Steel sheet |
| Coating | Powder coated |
| Wireless frequencies | 584 - 608 MHz |
| Frequency response (-3 dB, rel. Avg) | 50 - 17,000 Hz |
| Colour | Black |
Radio transmission
| Channels | 12 |
| Antenna connector | BNC female |
| Antennas | BNC female |
Dimensions & weight
| Width | 72.8 mm |
| Height | 39.6 mm |
| Depth | 118.5 mm |
| Weight | 8 g |
