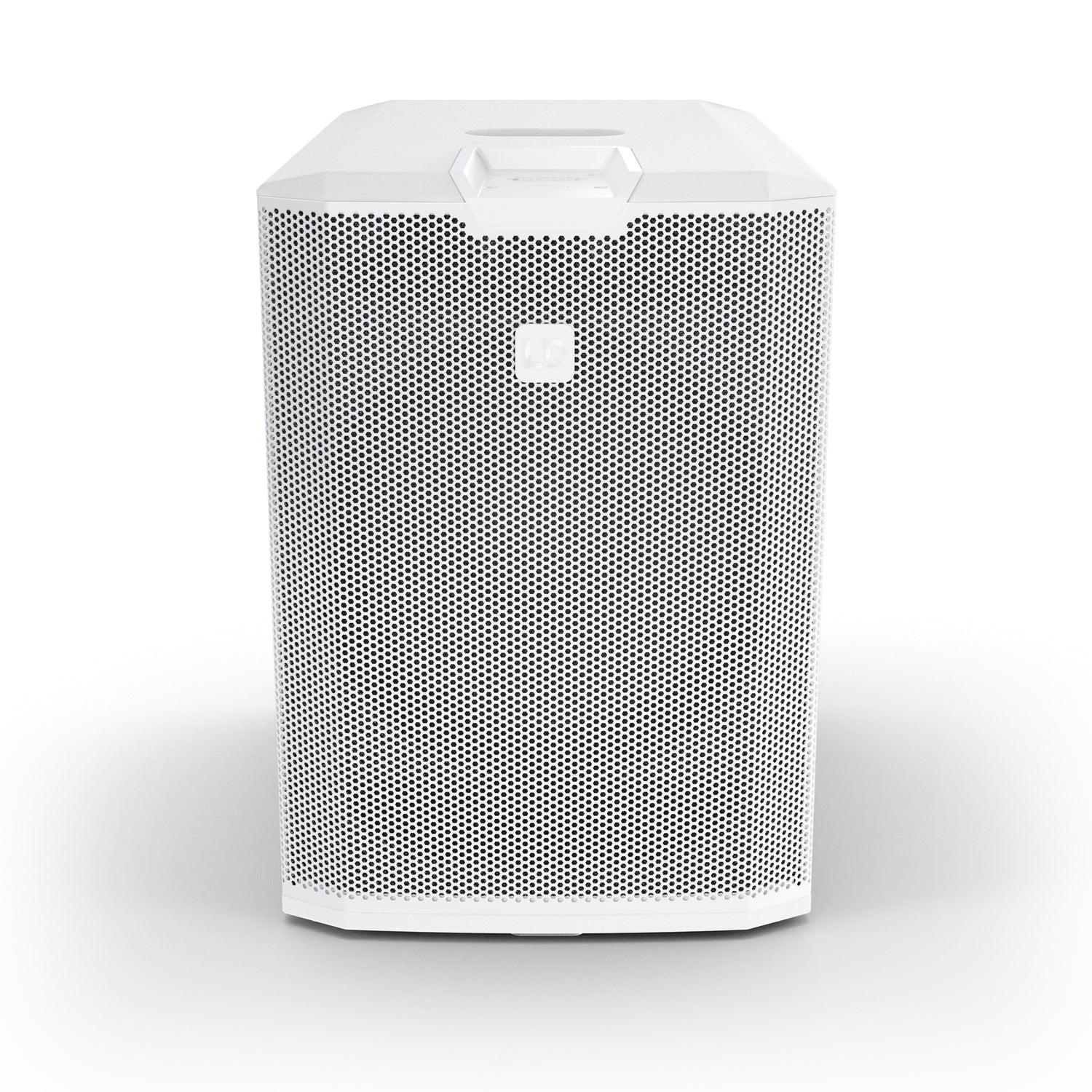

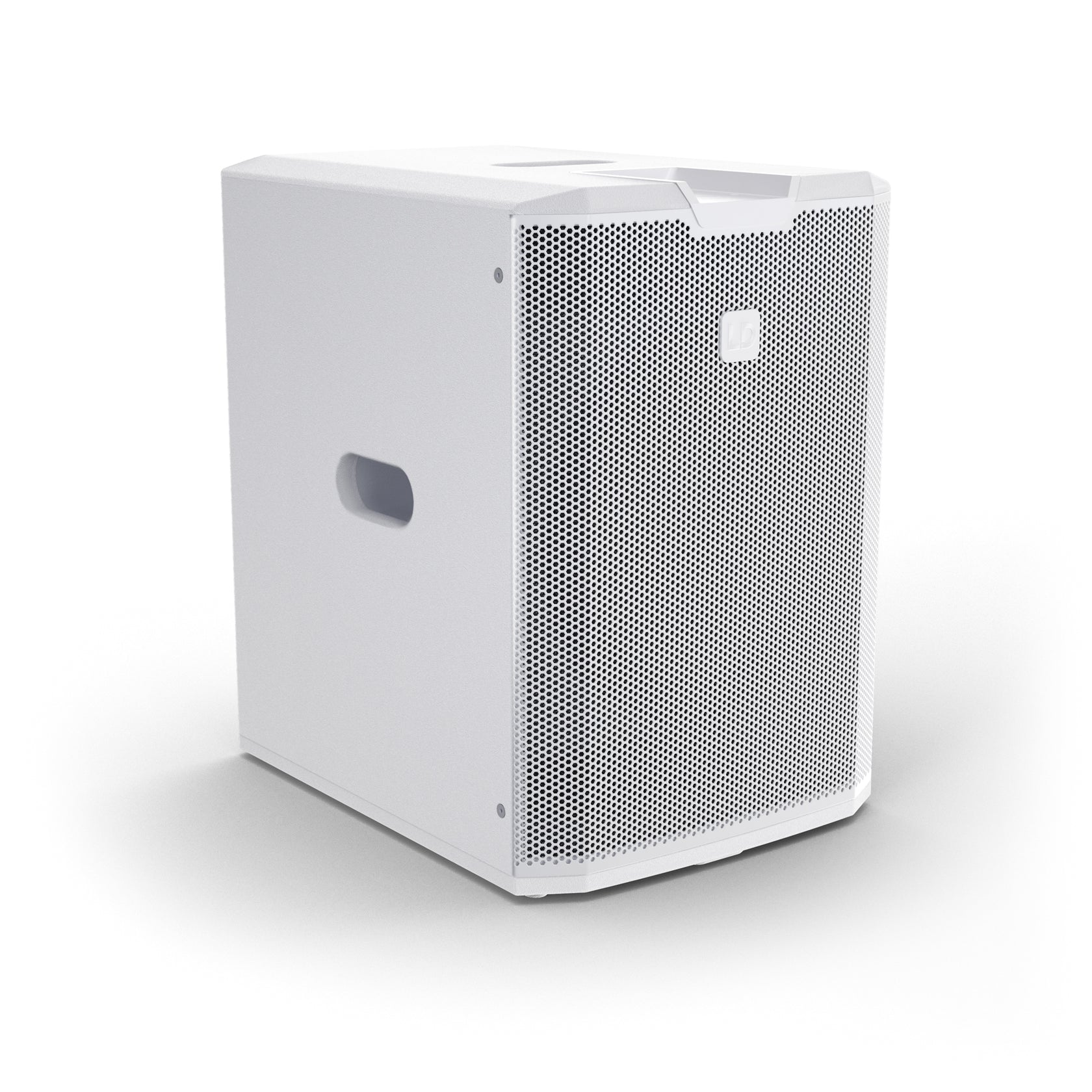

LD Systems MAUI 28 G3 SUB W - Active 12" subwoofer for MAUI 28 G3, white
With the MAUI 28 G3 SUB W subwoofer, you extend the cardioid characteristics of our professional column speaker series all the way down into the bass range.
What does that mean?Simply place the SUB next to your MAUI® 28 G3 W with the front facing backwards, activate the Cardioid preset, and you’ll get a more attenuated and controlled low-end at the rear, while maintaining punch at the front. Low-end frequencies behind the system are reduced by -15 dB. For extra bass, you can place the SUB in the same direction as your MAUI® 28 G3 W and deactivate the Cardioid preset.
Setting up the SUB together with your MAUI® 28 G3 W is quick and easy. Thanks to the automatic setup detection system, the SUB immediately switches to FOLLOWER mode as long as no column is mounted.
It is also recommended to use a protective cover and a wheel board to make transport easier and keep the SUB free from tour damage for as long as possible.
MAUI® 28 G3 SUB W has the same design and construction as the MAUI® 28 G3 W subwoofer and is the perfect addition for gaining control over your low-end.
- Powered 12" subwoofer with flow-optimised bass-reflex ports
- 12" custom-designed woofer with deep bass down to 37 Hz
- Preset for cardioid subwoofer configuration
- DynX® DSP (Gen.2) technology for distortion-free sound at maximum volume
- Automatic set-up detection (MAIN / FOLLOWER)
- Rugged subwoofer housing made out of polyurea-coated birch plywood
- Shockproof front grille for ultimate speaker protection
- Four ergonomic handles for easy handling
General
| Directivity | Cardioid |
| Peak output power | 2,060 W |
| RMS output power | 1,030 W |
| Amp class | Class D |
| Max. SPL peak | 127 dB |
| Frequency response (-10 dB, rel. Avg) | 37 - 20,000 Hz |
| Number of inputs | 2 |
| Input connector types | XLR combo socket |
| Number of outputs | 3 |
| Output connector types | XLR combo socket |
| Protection features | Direct current |
| Protection features | Multiband Limiter |
| Protection features | Overheating |
| Protection features | Short circuit |
| Colour | White |
Bluetooth®
| Bluetooth® version | Bluetooth® 4.2 |
| Features | Audio Streaming (A2DP) |
| Features | TrueWireless™ Mirroring |
| Features | TrueWireless™ Stereo |
| Supported audio codecs | AAC |
| Supported audio codecs | SBC |
Outputs
| Number of speaker outputs | 1 |
| Speaker output connection type | XLR 3-pole male |
| Number of line outputs | 2 |
| Line outputs connector type | XLR 3-pole female |
Signal processing
| Mixer | Yes |
| Mixer channels | 3 |
| Audio processing | 3 band EQ (High, Mid, Low) |
| Audio processing | Presets |
| AD/DA converter bit depth | 24 Bit |
| AD/DA converter sampling rate | 48 kHz |
Bass driver
| Size | 12 " |
| Magnet | Ferrite |
| Voice coil | 3 " |
Mains operation
| Operation voltage | 100 V AC - 120 V AC / 50 - 60 Hz |
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz |
| Rated power | 400 W |
| Mains connector | Mains socket indoor power in male & powerCON® |
| Mains fuse | T5AL/250 V |
Housing
| Design | Bass reflex |
| Number of handles | 4 |
| Chassis material | Birch multiplex |
| Material thickness | 15 mm |
| Front grille material | Aluminium |
Cooling
| Cooling system | Convection cooling |
Environmental
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 370 mm |
| Height | 527 mm |
| Depth | 472 mm |
| Weight | 22.8 kg |
Other properties
| Included accessories | Mains cable |
