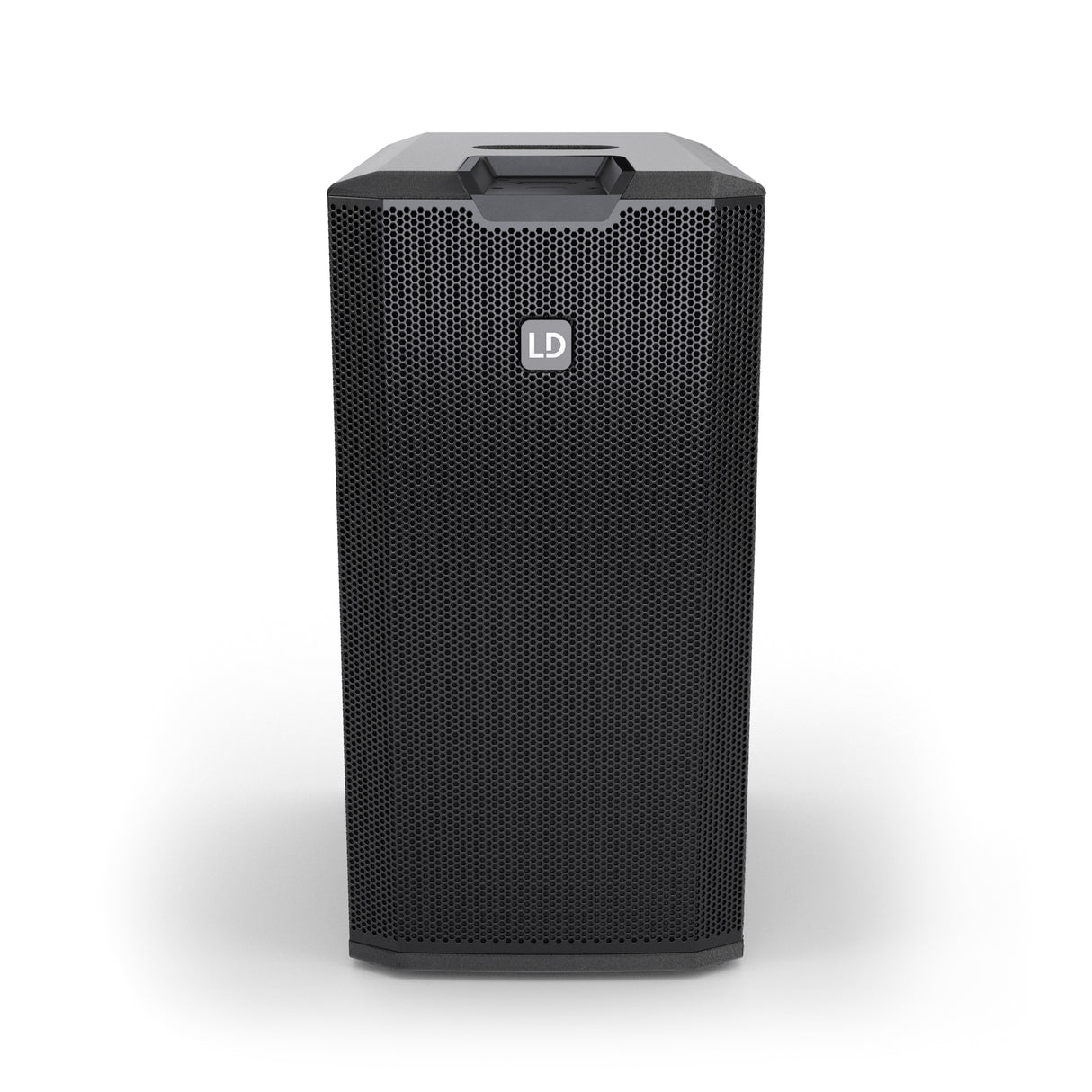

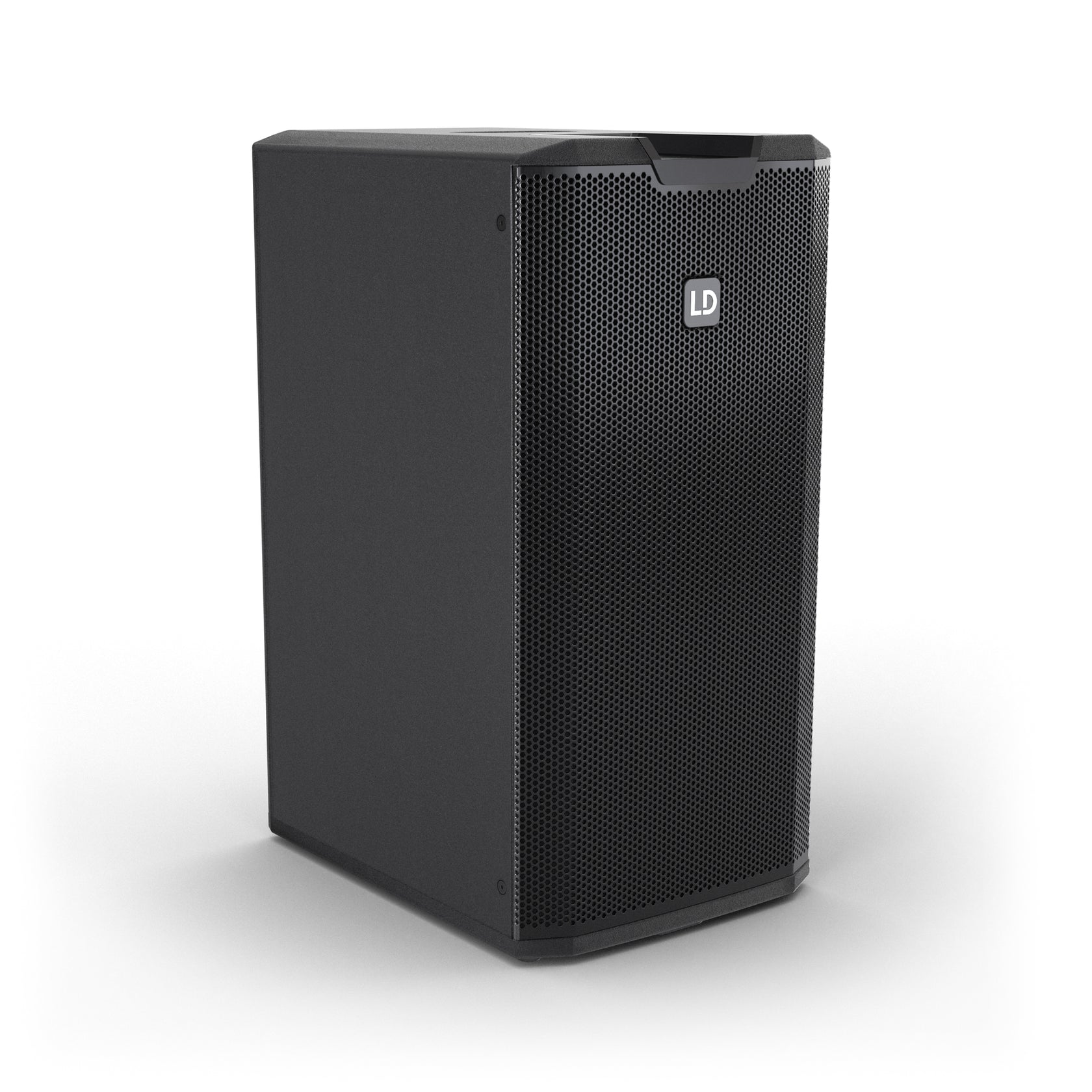

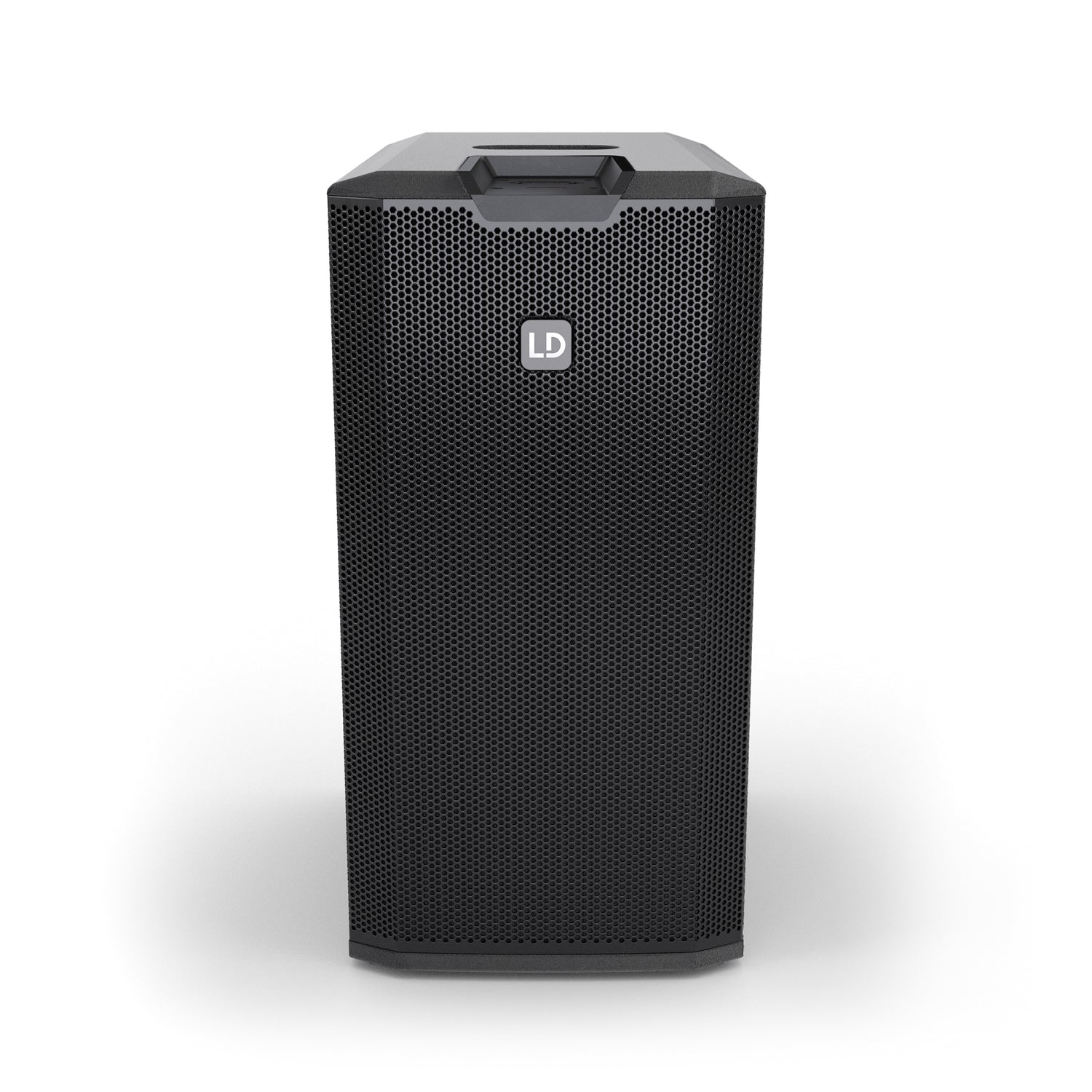

LD Systems MAUI® 11 G3 SUB - Active 2 x 8" subwoofer for MAUI 11 G3
Description
Description
With the MAUI 11 G3 SUB subwoofer, you extend the cardioid characteristics of our professional column speaker series right down into the bass range.
What does that mean?Simply place the SUB next to your MAUI® 11 G3 with the front facing backwards, switch on the Cardioid preset, and you get a more attenuated and controlled low-end at the rear, while maintaining punch at the front. Low-end frequencies behind the system are reduced by -15 dB. For extra bass, place the SUB in the same direction as your MAUI® 11 G3 and switch off the Cardioid preset.
Setting up the SUB together with your MAUI® 11 G3 is straightforward and quick. Thanks to the automatic system setup detection, the SUB immediately switches to FOLLOWER mode as long as no column is connected.
It is also recommended to use a protective cover and wheel board to make transport easy and to keep the SUB free from touring damage for as long as possible.
MAUI® 11 G3 SUB has the same design construction as the MAUI® 11 G3 subwoofer and will be the perfect addition to get your low-end under control.
Technical specifications
Technical specifications
- Powered 2 x 8" subwoofer with flow-optimised bass-reflex ports
- 2 x 8" custom-designed woofer with deep bass down to 39 Hz
- Preset for cardioid subwoofer configuration
- DynX® DSP (Gen. 2) technology for distortion-free sound at maximum volume
- Automatic Setup Detection (MAIN / FOLLOWER)
- Rugged subwoofer housing made out of polyurea-coated birch plywood
- Shockproof front grille for ultimate speaker protection
- Two ergonomic handles for easy handling
General
| Peak output power | 1,460 W |
| RMS output power | 730 W |
| Amp class | Class D |
| SysLink® | Yes |
| Max. SPL peak | 125 dB |
| Frequency response (-10 dB, rel. Avg) | 39 - 200 Hz |
| Number of inputs | 2 |
| Input connector types | XLR combo socket |
| Number of outputs | 3 |
| Output connector types | XLR 3-pole male |
| Protection features | Direct current |
| Protection features | Multiband Limiter |
| Protection features | Overheating |
| Protection features | Short circuit |
| Colour | Black |
Bluetooth®
| Bluetooth® version | Bluetooth® 4.2 |
| Features | App control |
| Features | Audio Streaming (A2DP) |
| Features | TrueWireless™ Mirroring |
| Features | TrueWireless™ Stereo |
| Supported audio codecs | AAC |
| Supported audio codecs | SBC |
Outputs
| Number of speaker outputs | 1 |
| Speaker output connection type | XLR 3-pole male |
Amplifier
| Number of satellite outputs | 1 |
Bass driver
| Size | 8 " |
| Quantity | 2 |
| Magnet | Ferrite |
| Voice coil | 2 " |
Mains operation
| Operation voltage | 110 V AC - 120 V AC / 50 - 60 Hz |
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz |
| Power supply type | Switched-mode power supply (SMPS) |
| Mains connector | Mains socket indoor power in male & powerCON® |
| Mains fuse | T3.15AL/250 V |
Housing
| Design | Bass reflex |
| Number of handles | 1 |
| Chassis material | Birch multiplex |
| Material thickness | 15 mm |
| Front grille material | Aluminium |
Cooling
| Cooling system | Convection cooling |
Environmental
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 305 mm |
| Height | 607 mm |
| Depth | 403 mm |
| Weight | 20.5 kg |
Other properties
| Included accessories | Mains cable |
