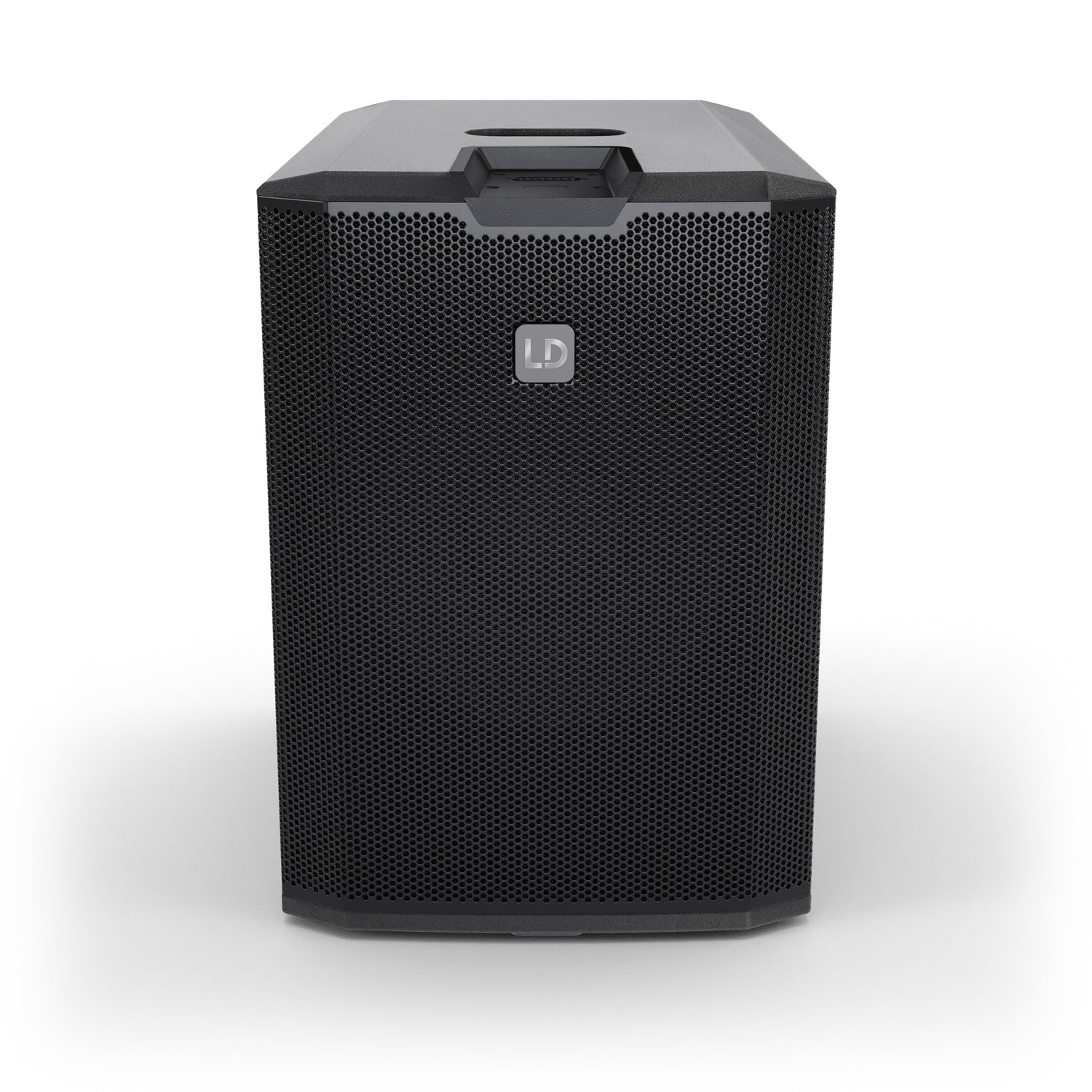

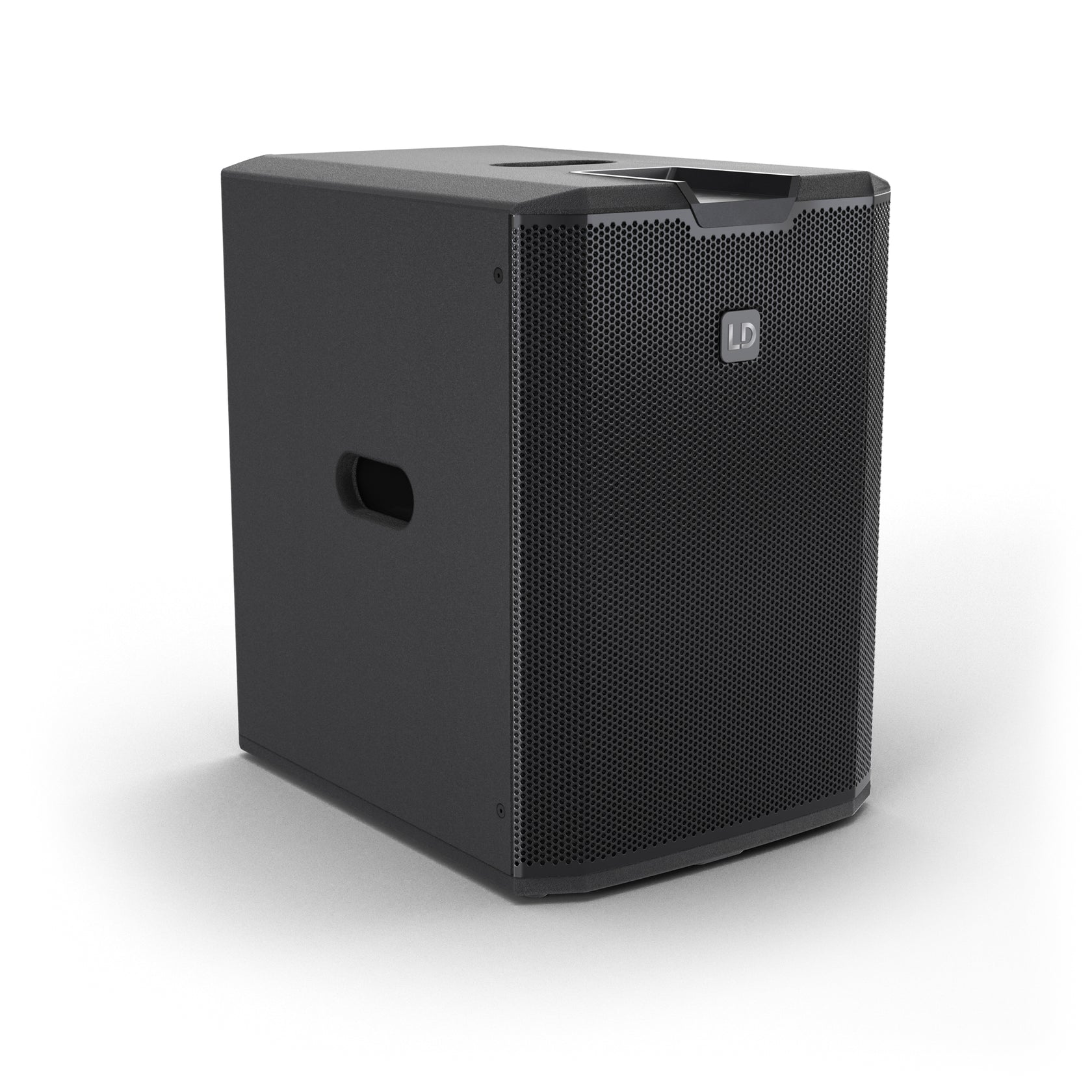

LD Systems MAUI® 28 G3 SUB - Active 12" subwoofer for MAUI 28 G3
With the MAUI 28 G3 SUB subwoofer, you can extend the cardioid characteristics of our professional column speaker series right down into the bass range.
What does that mean?Simply place the SUB next to your MAUI® 28 G3 facing backwards, activate the Cardioid preset, and you’ll get a quieter, more controlled low end at the rear while keeping the punch up front. Low-end frequencies behind the system are attenuated by -15 dB. For extra bass, place the SUB facing the same direction as your MAUI® 28 G3 and deactivate the Cardioid preset.
Setting up the SUB together with your MAUI® 28 G3 is straightforward and quick. Thanks to the automatic setup detection system, the SUB immediately switches to FOLLOWER mode as long as no column is mounted.
It is also recommended to use a protective cover and a wheel board to make transport easier and keep the SUB as free as possible from touring damage.
The MAUI® 28 G3 SUB W features the same design construction as the MAUI® 28 G3 W subwoofer and will be the perfect addition to get your low end under control.
- Powered 12" subwoofer with flow-optimised bass-reflex ports
- 12" custom-designed woofer with deep bass down to 37 Hz
- Preset for cardioid subwoofer configuration
- DynX® DSP (Gen.2) technology for distortion-free sound at maximum volume
- Automatic set-up detection (MAIN / FOLLOWER)
- Rugged subwoofer housing made out of polyurea-coated birch plywood
- Shockproof front grille for ultimate speaker protection
- Four ergonomic handles for easy handling
General
| Directivity | Cardioid |
| Peak output power | 2,060 W |
| RMS output power | 1,030 W |
| Amp class | Class D |
| Max. SPL peak | 127 dB |
| Frequency response (-10 dB, rel. Avg) | 37 - 20,000 Hz |
| Number of inputs | 2 |
| Input connector types | XLR combo socket |
| Number of outputs | 3 |
| Output connector types | XLR combo socket |
| Protection features | Direct current |
| Protection features | Multiband Limiter |
| Protection features | Overheating |
| Protection features | Short circuit |
| Colour | Black |
Bluetooth®
| Bluetooth® version | Bluetooth® 4.2 |
| Features | Audio Streaming (A2DP) |
| Features | TrueWireless™ Mirroring |
| Features | TrueWireless™ Stereo |
| Supported audio codecs | AAC |
| Supported audio codecs | SBC |
Outputs
| Number of speaker outputs | 1 |
| Speaker output connection type | XLR 3-pole male |
| Number of line outputs | 2 |
| Line outputs connector type | XLR 3-pole female |
Signal processing
| Mixer | Yes |
| Mixer channels | 3 |
| Audio processing | 3 band EQ (High, Mid, Low) |
| Audio processing | Presets |
| AD/DA converter bit depth | 24 Bit |
| AD/DA converter sampling rate | 48 kHz |
Bass driver
| Size | 12 " |
| Magnet | Ferrite |
| Voice coil | 3 " |
Mains operation
| Operation voltage | 100 V AC - 120 V AC / 50 - 60 Hz |
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz |
| Rated power | 400 W |
| Mains connector | Mains socket indoor power in male & powerCON® |
| Mains fuse | T5AL/250 V |
Housing
| Design | Bass reflex |
| Number of handles | 4 |
| Chassis material | Birch multiplex |
| Material thickness | 15 mm |
| Front grille material | Aluminium |
Cooling
| Cooling system | Convection cooling |
Environmental
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 370 mm |
| Height | 527 mm |
| Depth | 472 mm |
| Weight | 22.8 kg |
Other properties
| Included accessories | Mains cable |
