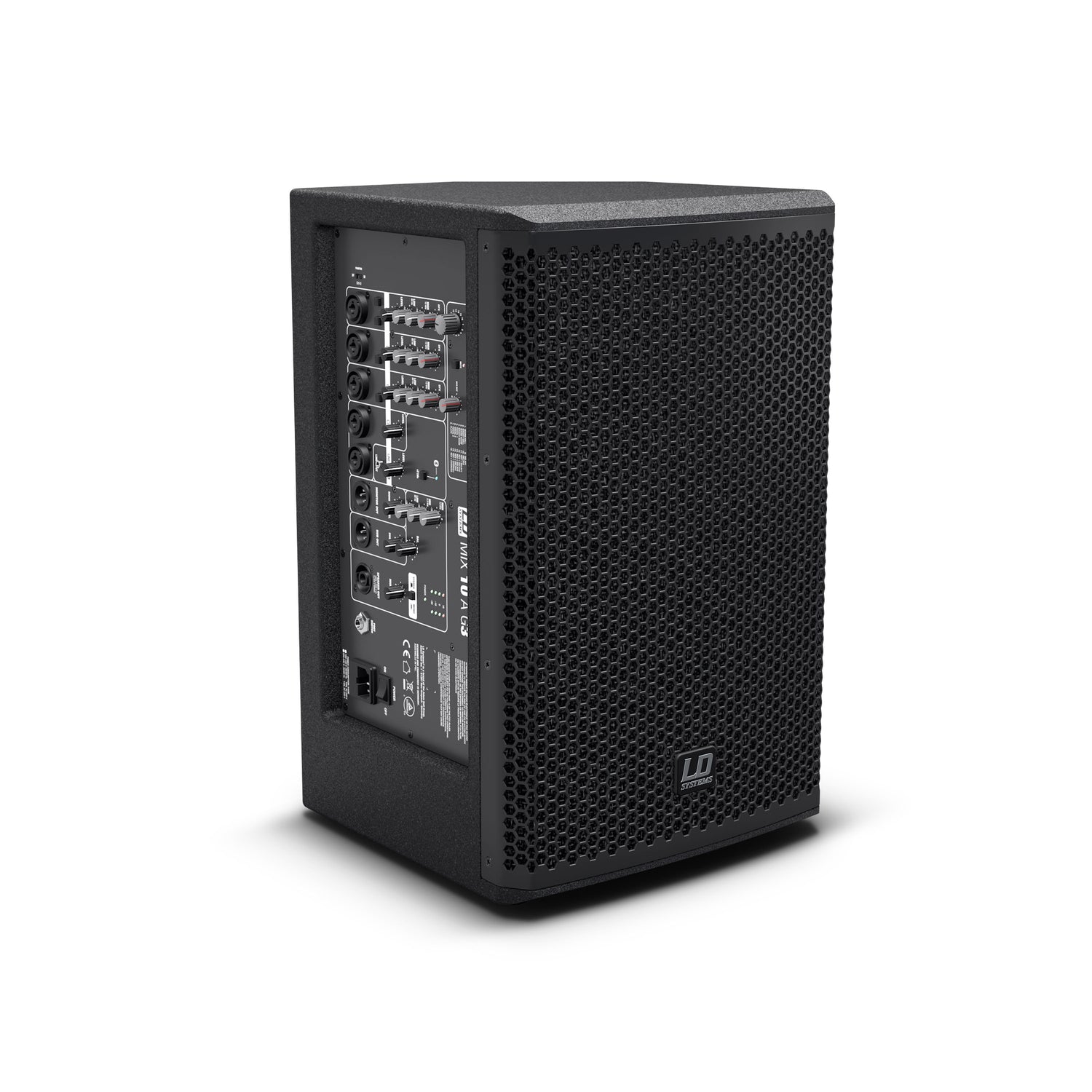

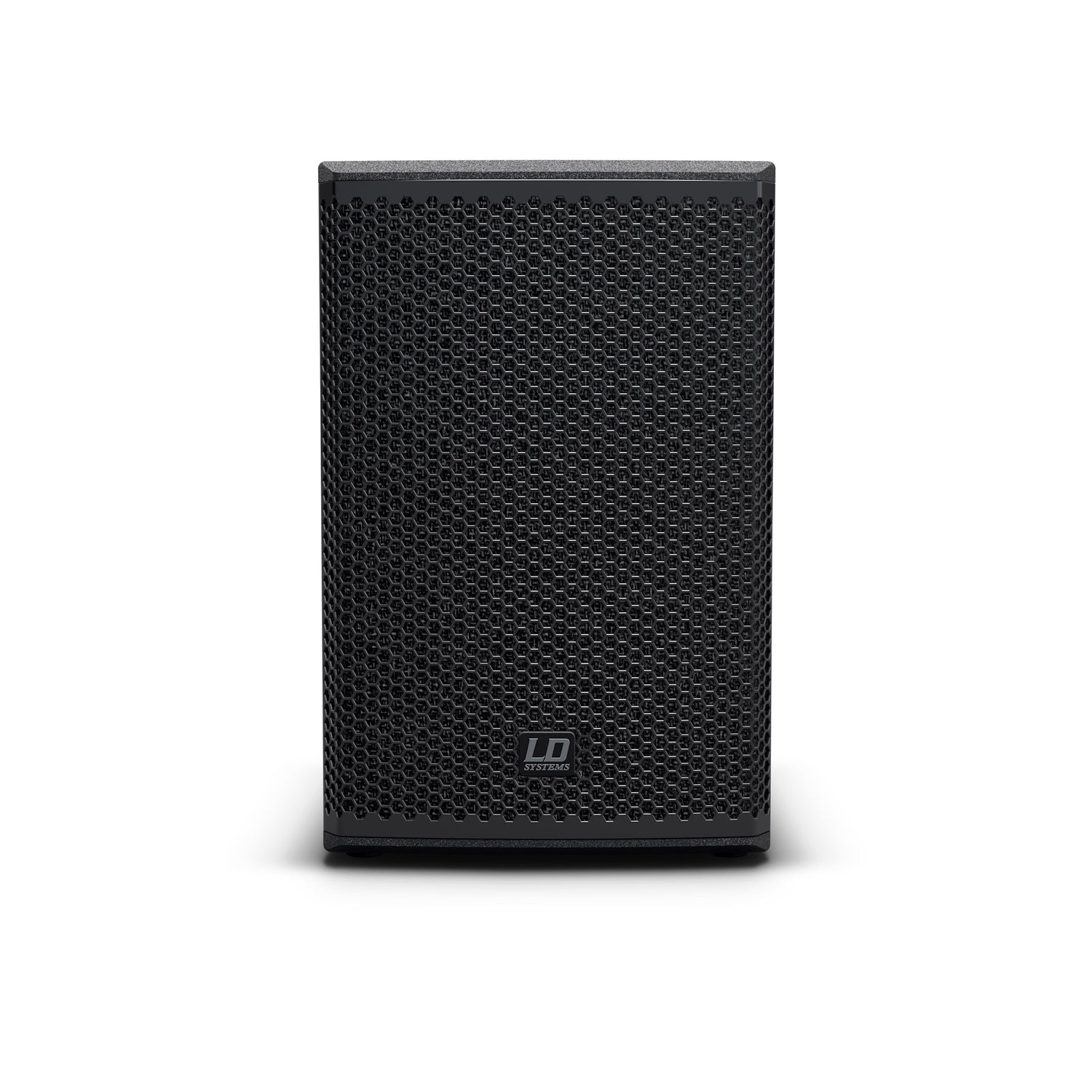

LD Systems MIX 10 A G3 - Aktiv 2-vejs højttaler med integreret 7-kanals mixer
Description
Description
Det ideelle valg til små PA-opsætninger og personlig monitorering: Den aktive LD MIX 10 A G3 integrerer en 7-kanals mixer og klasse D-forstærkning med 2 x 400 watt spidseffekt. Den kompakte basrefleks-højttaler er udstyret med en 10" specialtilpasset woofer og en 1" Celestion HF-driver, frekvensrespons fra 65 Hz til 20 kHz samt en spredning på 90° x 60°, der leverer krystalklar lyd med punch og detaljer.

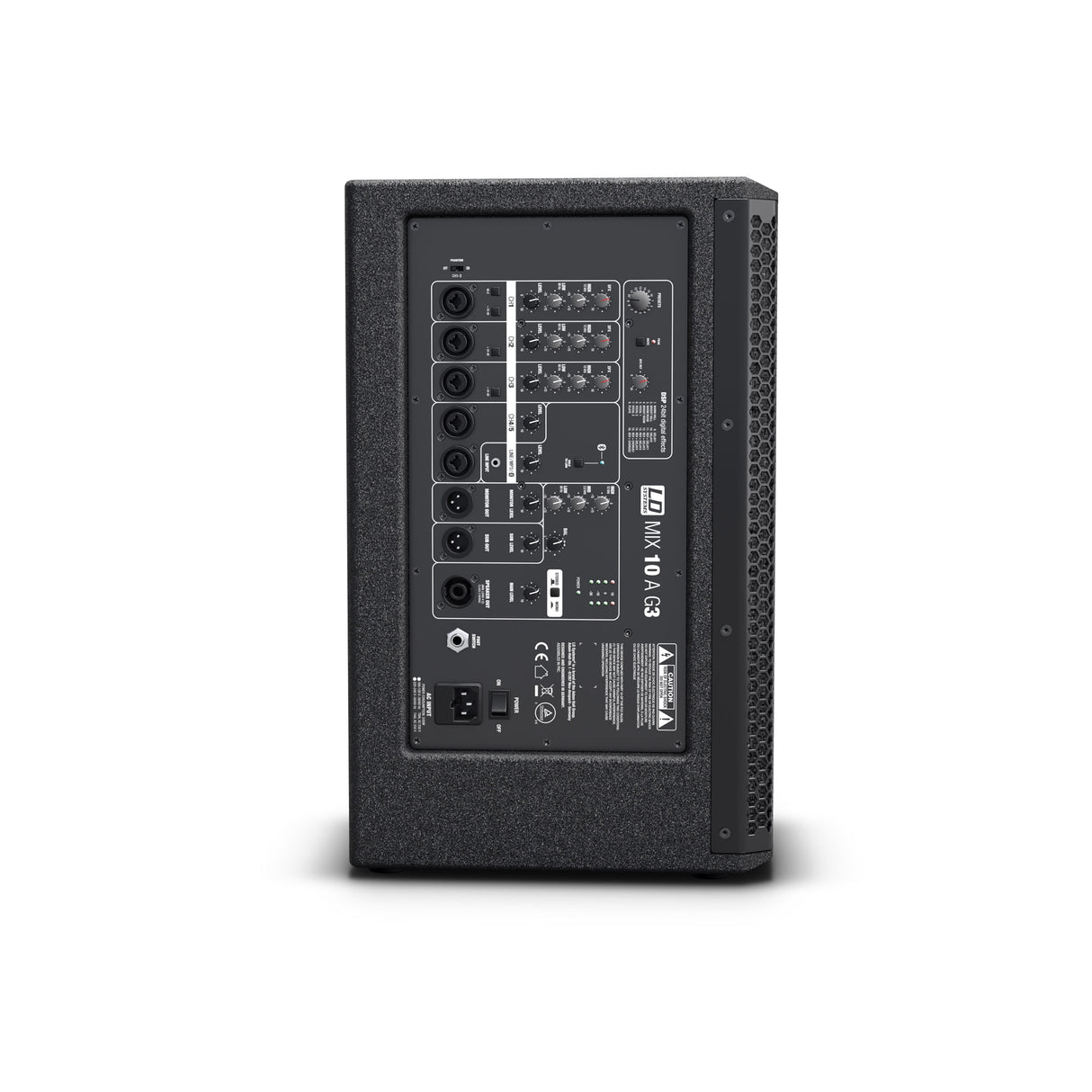

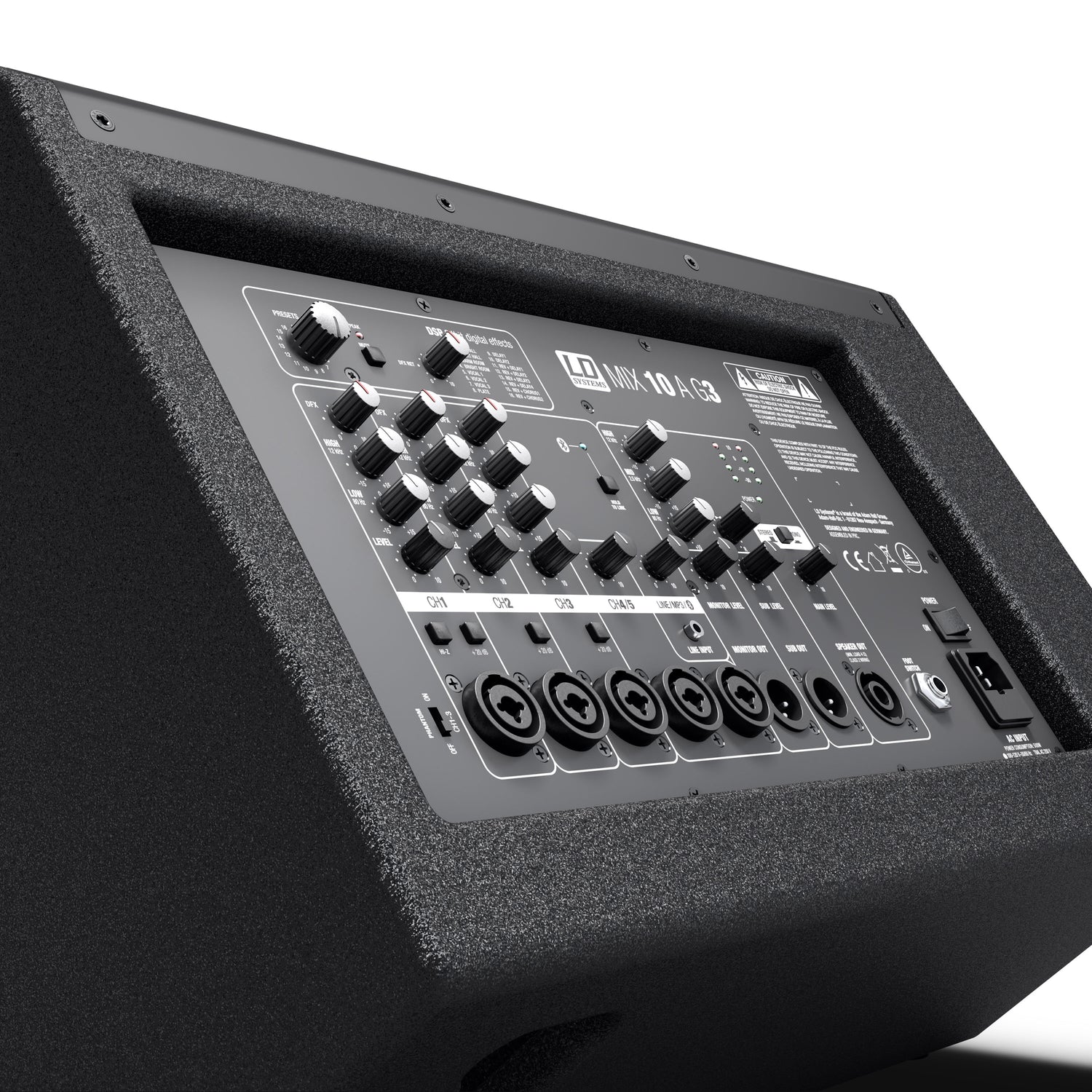

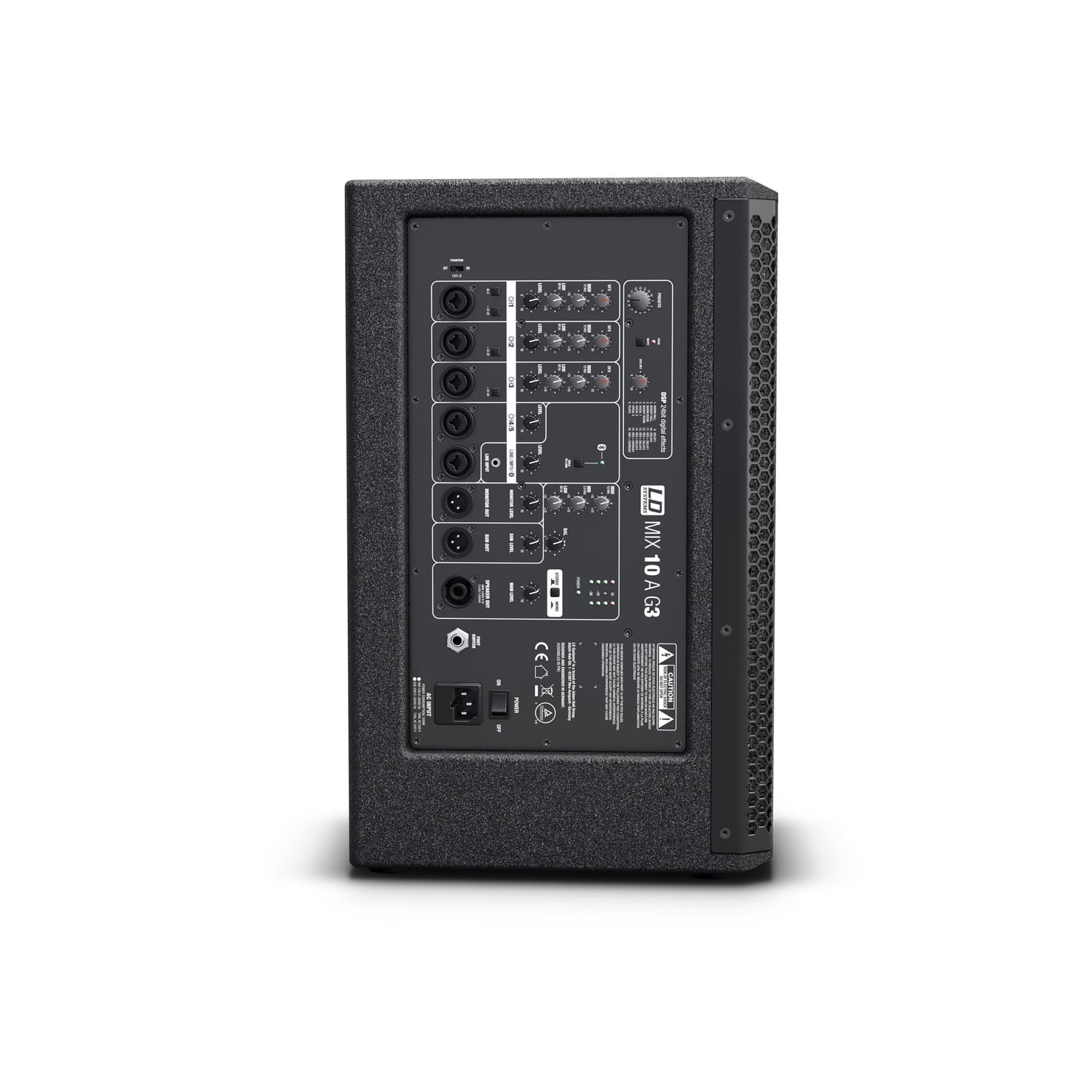

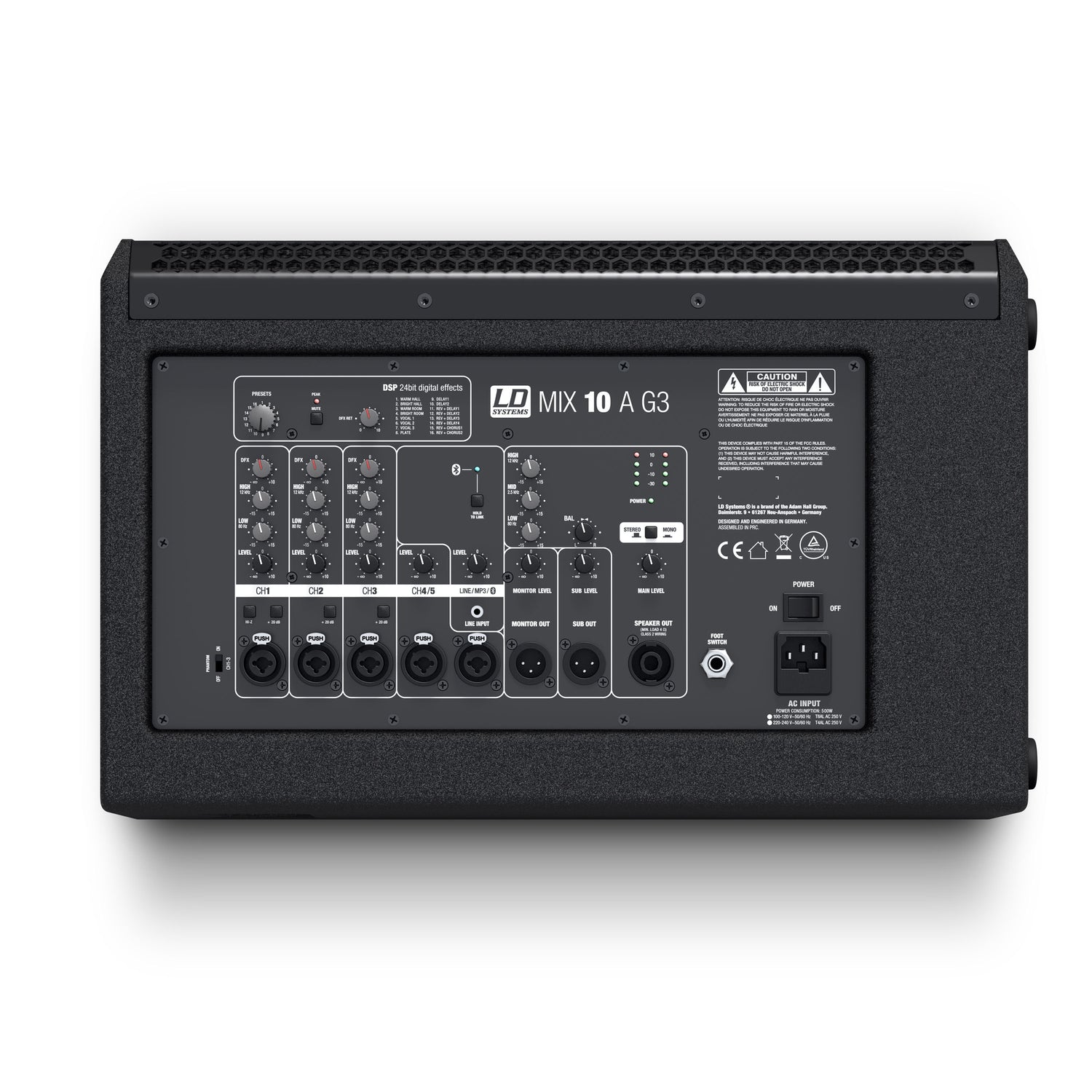

Den indbyggede mixer kan håndtere en lang række inputkilder, herunder elektriske instrumenter, smartphones, tablets, MP3- og CD-afspillere, og tilbyder 3 mikrofonkanaler med 2-bånds EQ, 48 V phantom power samt omskifteligt hi-Z-input (CH1) og en stereolinjekanal. Outputsektionen omfatter en 3-bånds master-EQ til overordnet klangformning, 4-segment LED-metering samt XLR-udgange til monitor og subwoofer. Derudover har LD MIX 10 A G3 en DSP med 16 effektpresets, limiter samt beskyttelse mod overstrøm, overbelastning, kortslutning og overophedning. En speakON-udgang gør det muligt at drive den passive LD MIX 10 G3 for nemt at oprette et stereo-setup.

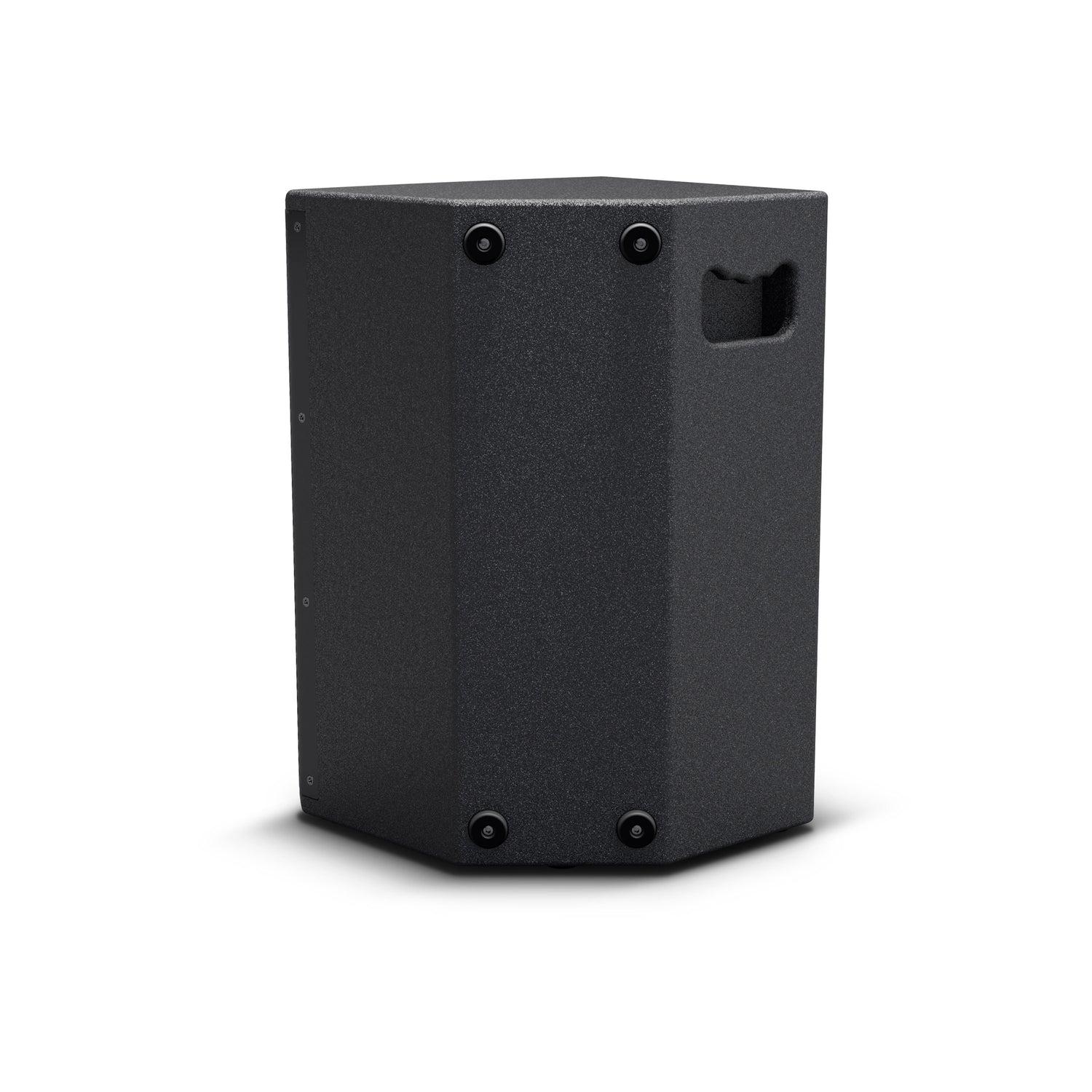

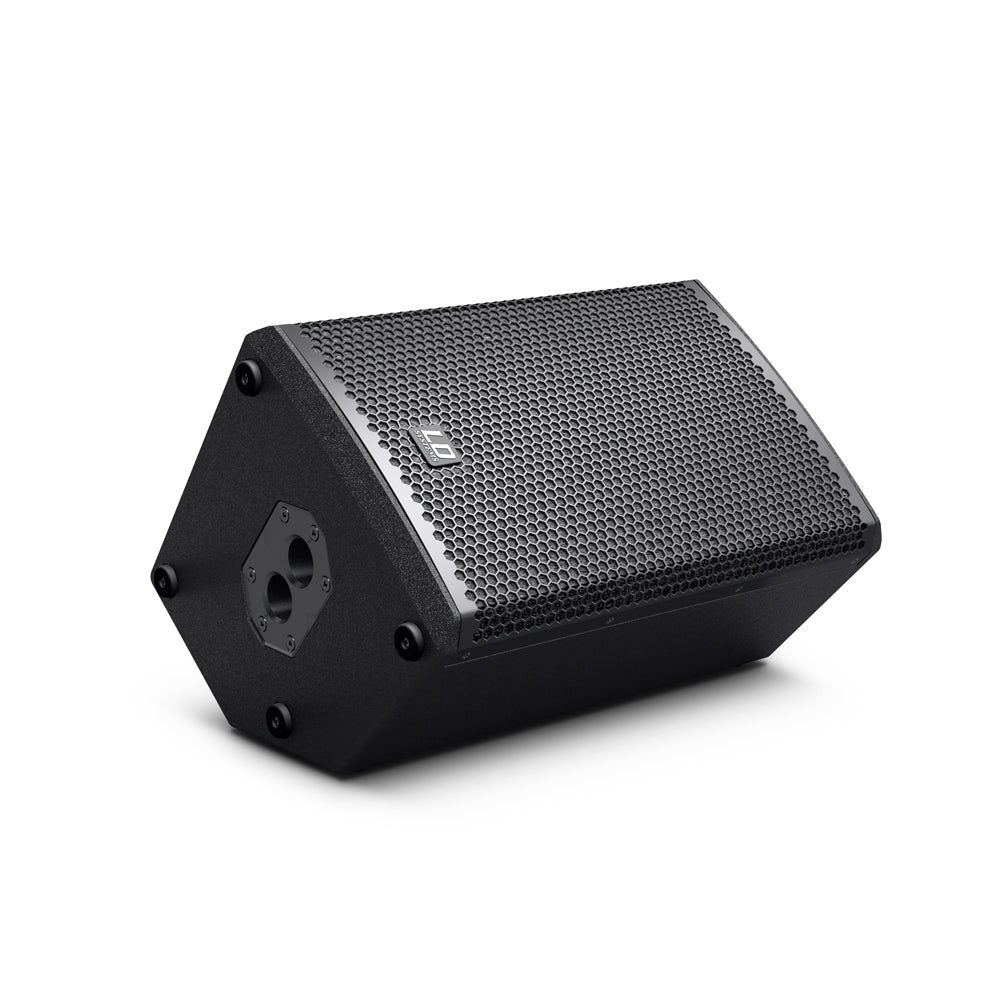

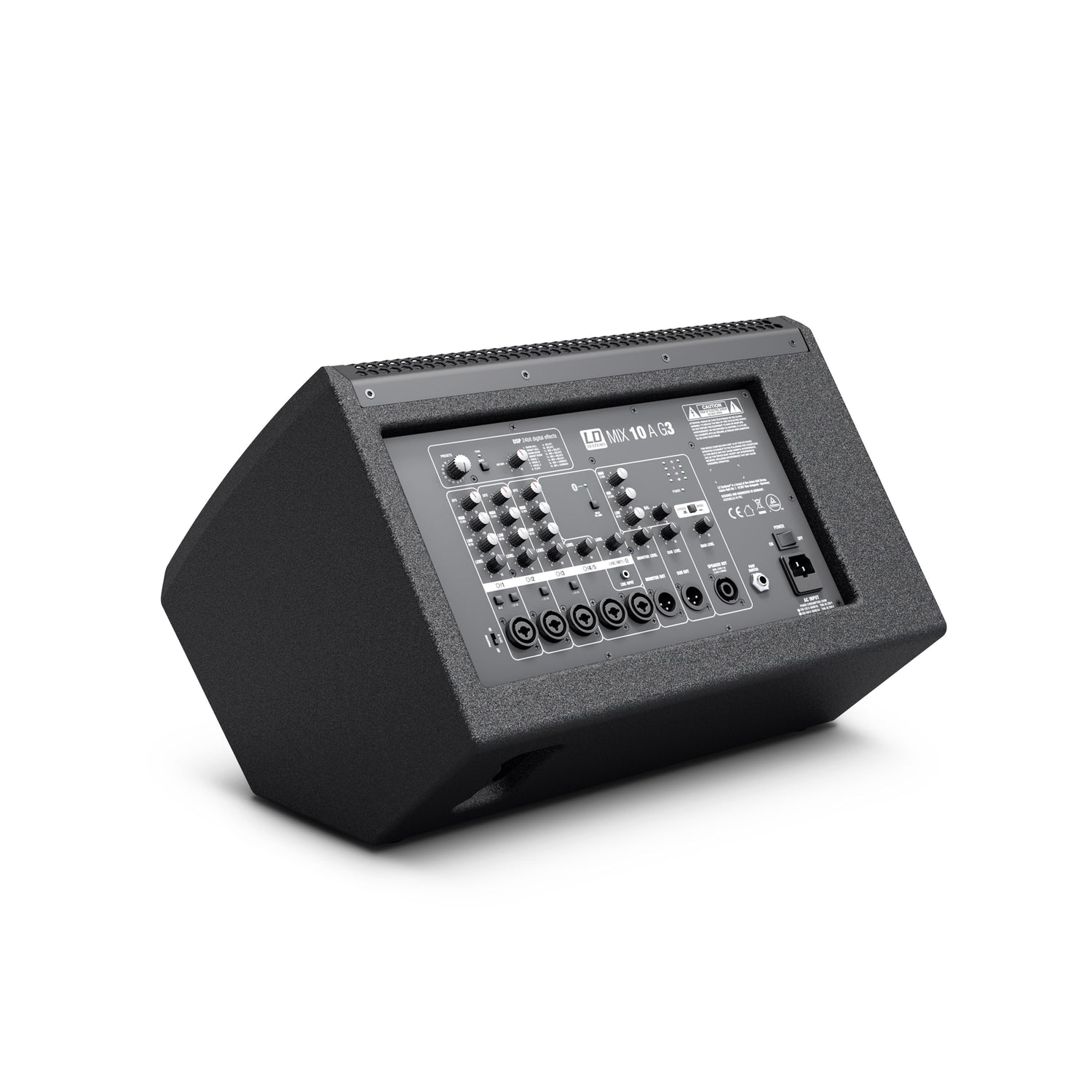

Det robuste kabinet er fremstillet af slidstærk krydsfiner med en 50° monitorvinkel og Dual-Tilt-stangmontering til 0° eller 5° monteringsvinkel. Alene eller sammen med den passive enhed leverer LD MIX 10 A G3 imponerende ydeevne og alsidighed i en let og nemt transportabel pakke.
Technical specifications
Technical specifications
- 2 x 200 watts RMS class D amplification
- 10” custom woofer and 1” Celestion HF driver
- Integrated 7-channel mixer
- DSP with 16 FX Presets
- Bluetooth® audio streaming
- Standalone mono or stereo applications with LD MIX 10 G3
- Subwoofer and monitor outputs
- Rigid plywood enclosure
- Dual-Tilt pole mount for 0° or 5° orientation
General
| Type | Active |
| Peak output power | 800 W |
| RMS output power | 400 W |
| Amp class | Class D |
| Max. SPL peak | 124 dB |
| Frequency response | 65 - 20,000 |
| Speaker system | 2-way system |
| Beam angle | 80° (hor.) / 70° (vert.) |
| Number of inputs | 6 |
| Number of outputs | 3 |
| Output connector types | Standard speaker connector 4-pole male & speakON® |
| Output connector types | XLR 3-pole male |
| Protection features | Limiter |
| Protection features | Overheating |
| Protection features | Overload |
| Protection features | Overvoltage |
| Protection features | Short circuit |
| Colour | Black |
Bluetooth®
| Features | Audio Streaming (A2DP) |
Inputs
| Number of microphone inputs | 3 |
| Mic-in connector type | XLR combo socket |
| Phantom power | 48 V |
| Number of instrument inputs | 1 |
| Inst-in connector type | XLR combo socket |
| Number of line inputs | 2 |
| Line-In connector type | XLR combo socket |
| Number of music inputs | 1 |
| Music inputs connector types | 3.5 mm Jack TRS female |
Microphone input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. gain) | 70 mV |
| Input impedance | 14 kΩ |
Instrument (Hi-Z) input performance
| Input impedance | 1,000 kΩ |
Line input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain) | -5 dBu |
| Input impedance (balanced) | 44 kΩ |
Signal processing
| Mixer | Yes |
| Mixer channels | 4 |
| Audio processing | 2 band EQ (High, Low) |
| Audio processing | 3 band EQ (High, Mid, Low) |
| Audio processing | Digital effects (DFX) |
Bass driver
| Size | 10 " |
| Magnet | Ferrite |
Tweeter
| Driver size | 1 " |
Mains operation
| Operation voltage | 110 V AC - 120 V AC / 50 - 60 Hz |
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz |
| Power supply type | Switched-mode power supply (SMPS) |
| Rated power | 500 W |
| Mains connector | IEC C14 plug male |
Housing
| Design | Bass reflex |

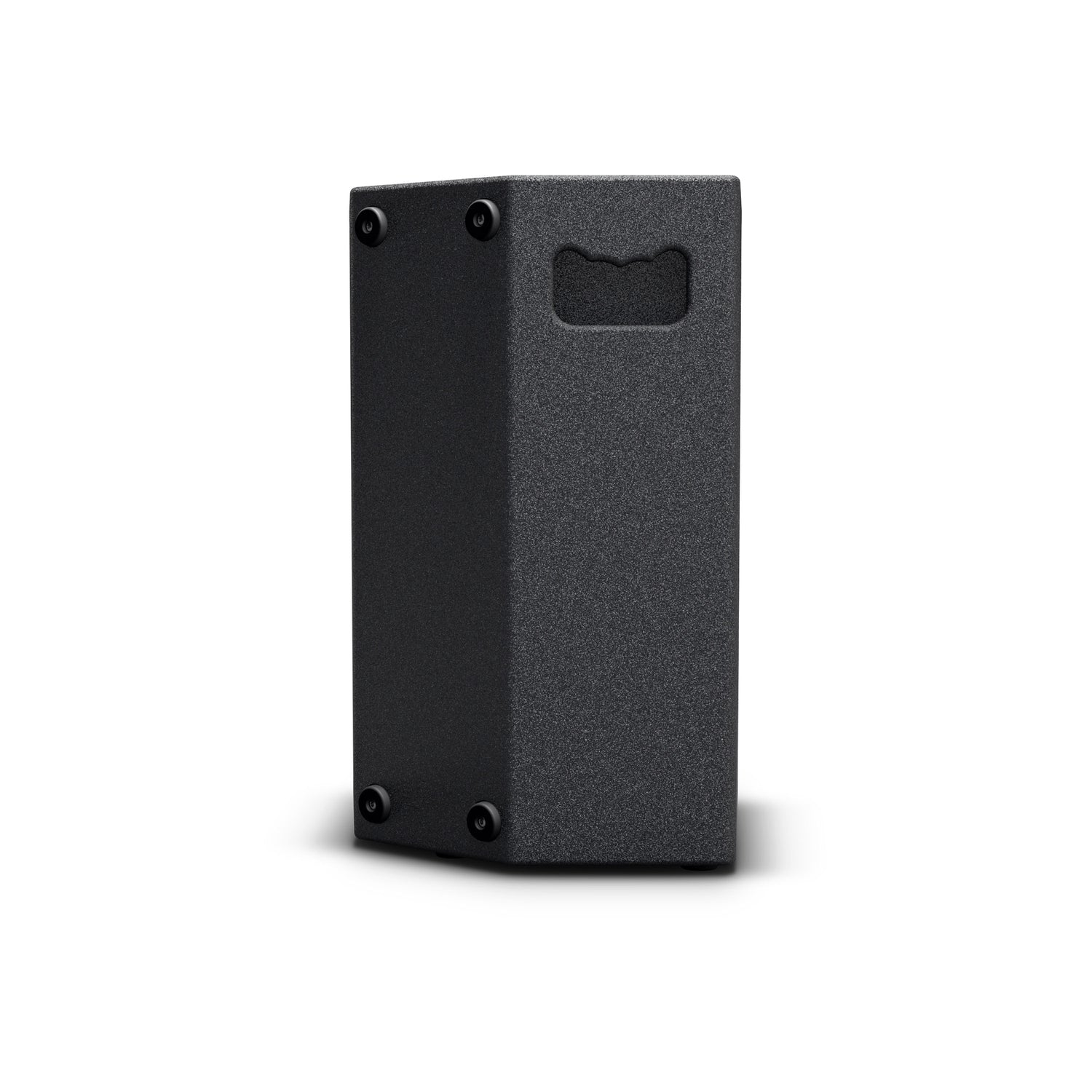

| Number of handles | 1 |
| Flange | 36 mm (0°/5°) |
| Chassis material | Birch plywood |
| Material thickness | 16 mm |
Dimensions & weight
| Width | 315 mm |
| Height | 489 mm |
| Depth | 307 mm |
| Weight | 12.3 kg |
Other properties
| Included accessories | Mains cable |
