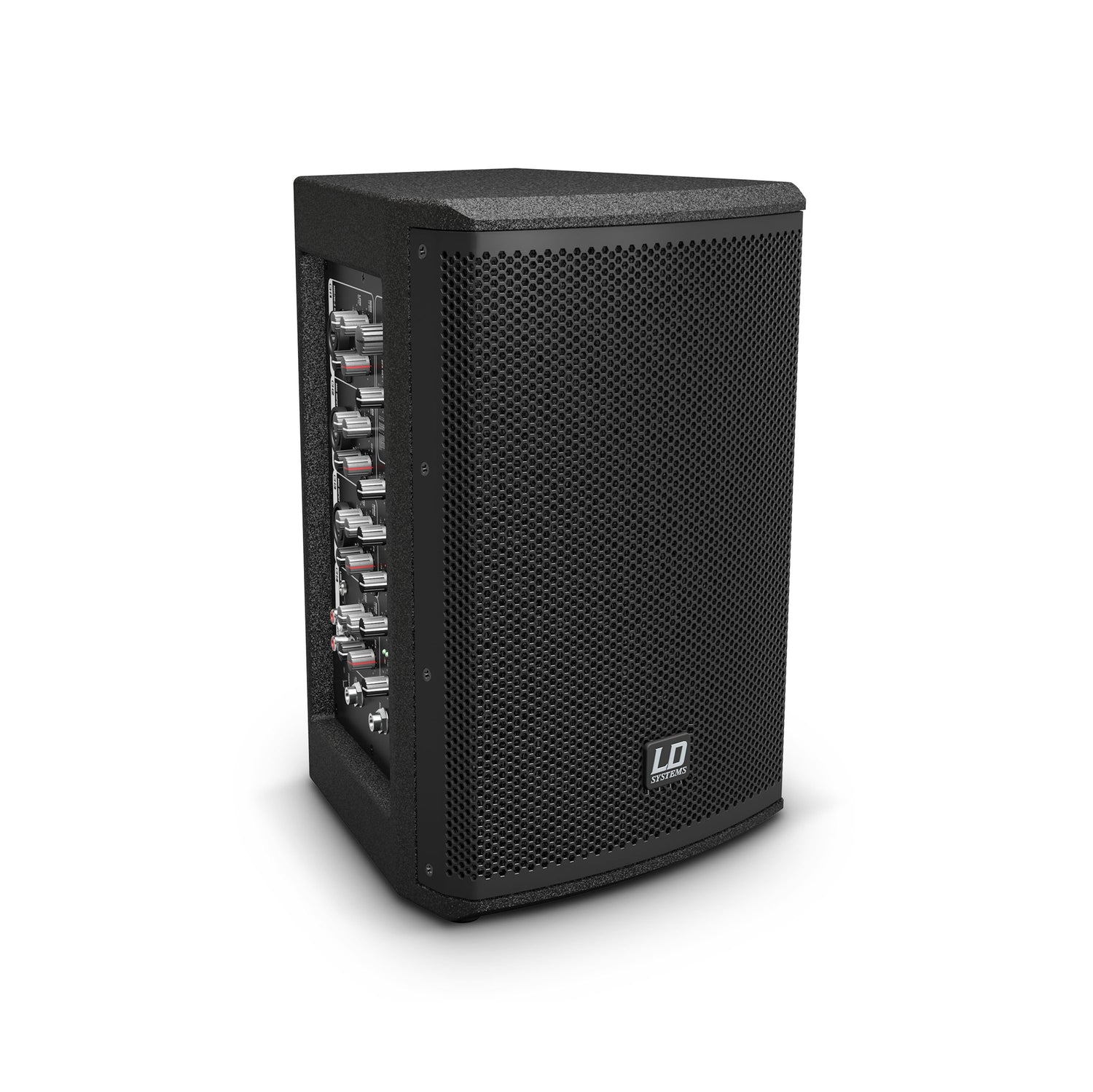

LD Systems MIX 6 A G3 - Active 2-way speaker with integrated 4-channel mixer
Description
Description

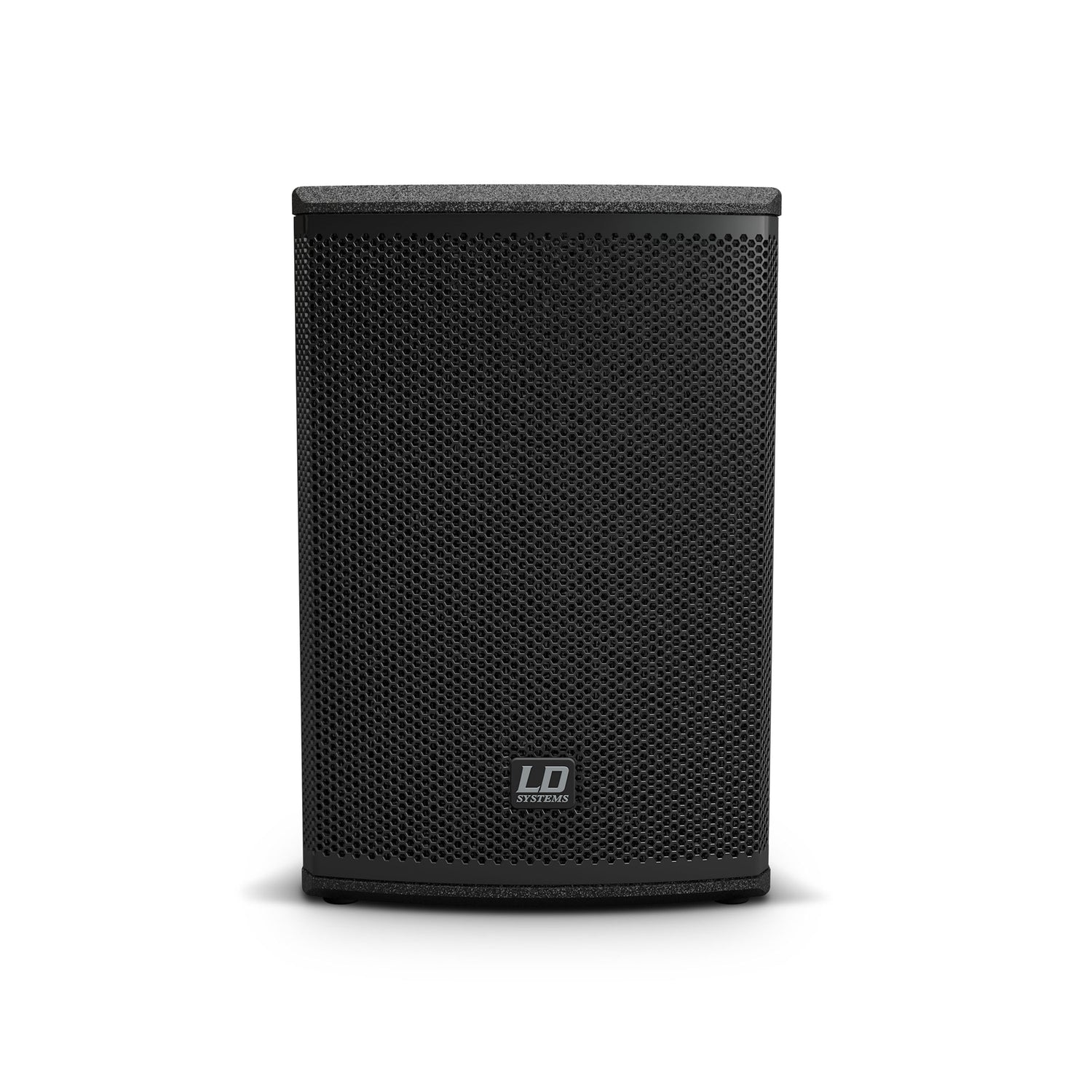

As the ideal choice for small PA tasks and personal monitoring, the active LD MIX 6 A G3 integrates a 4-channel mixer and Class D amplification with 2 x 280 watts peak power. The compact bass reflex loudspeaker features a 6.5" custom-designed woofer and a 1" HF driver, a frequency response from 80 Hz to 20 kHz, and 80° x 70° dispersion, delivering crystal-clear sound with punch and detail.

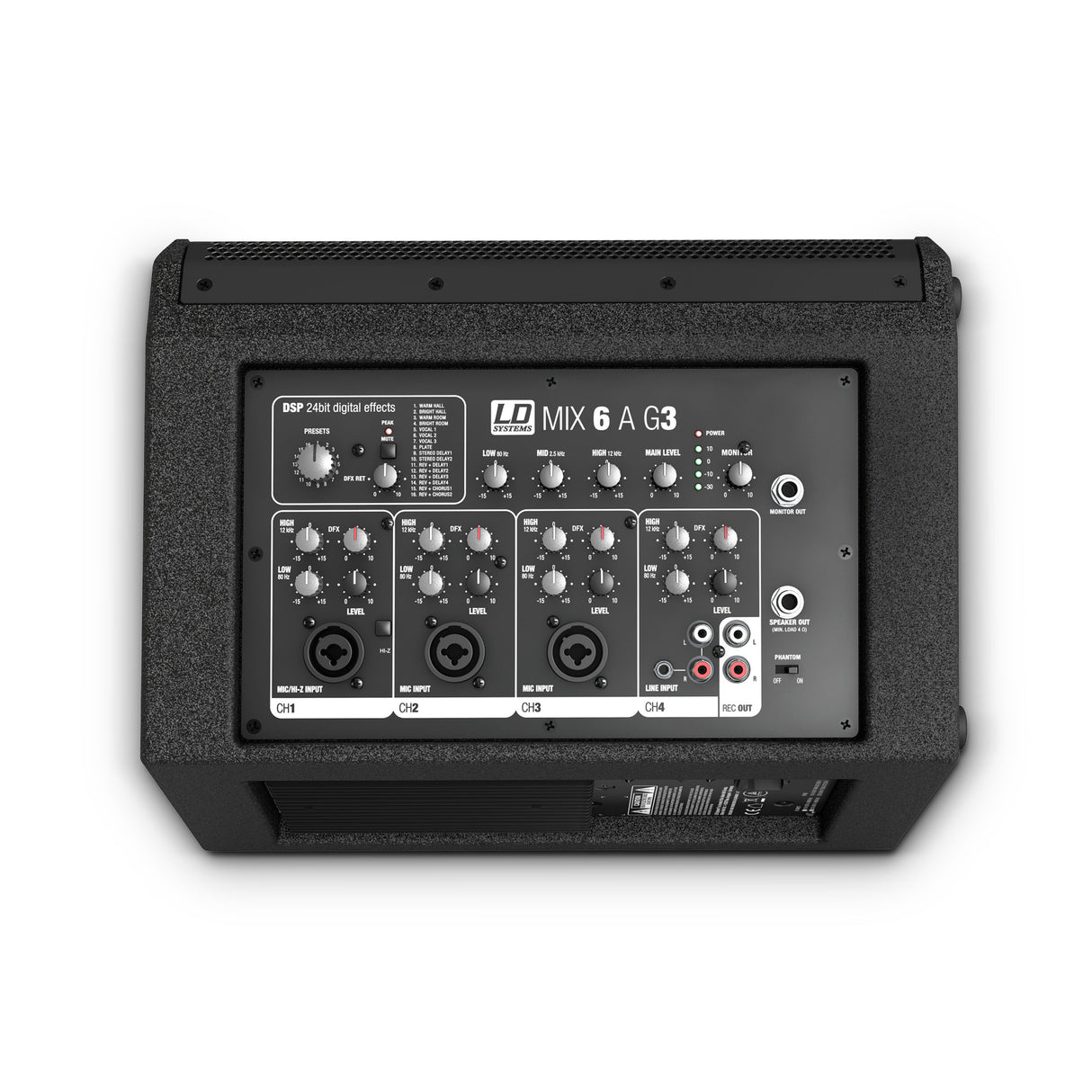

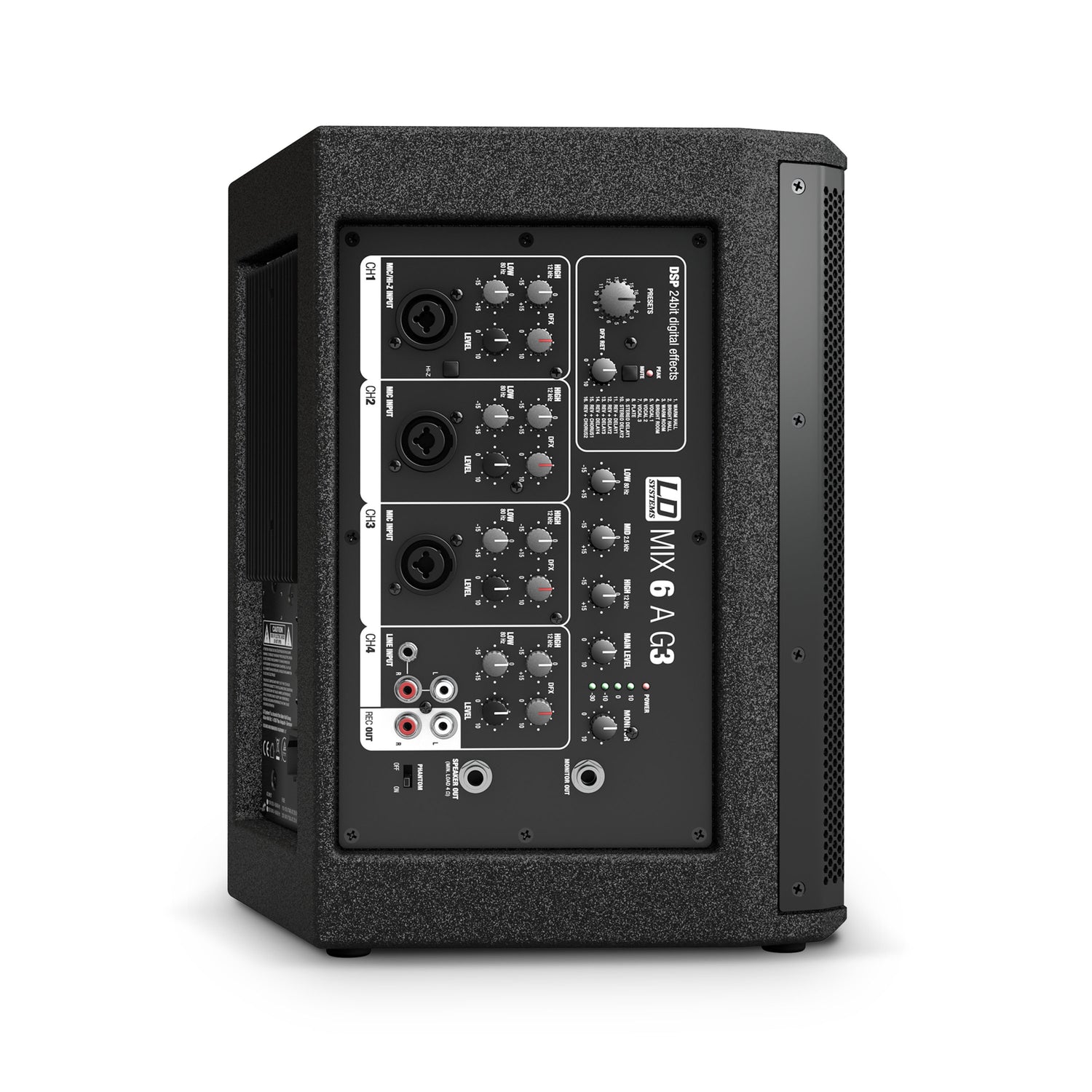

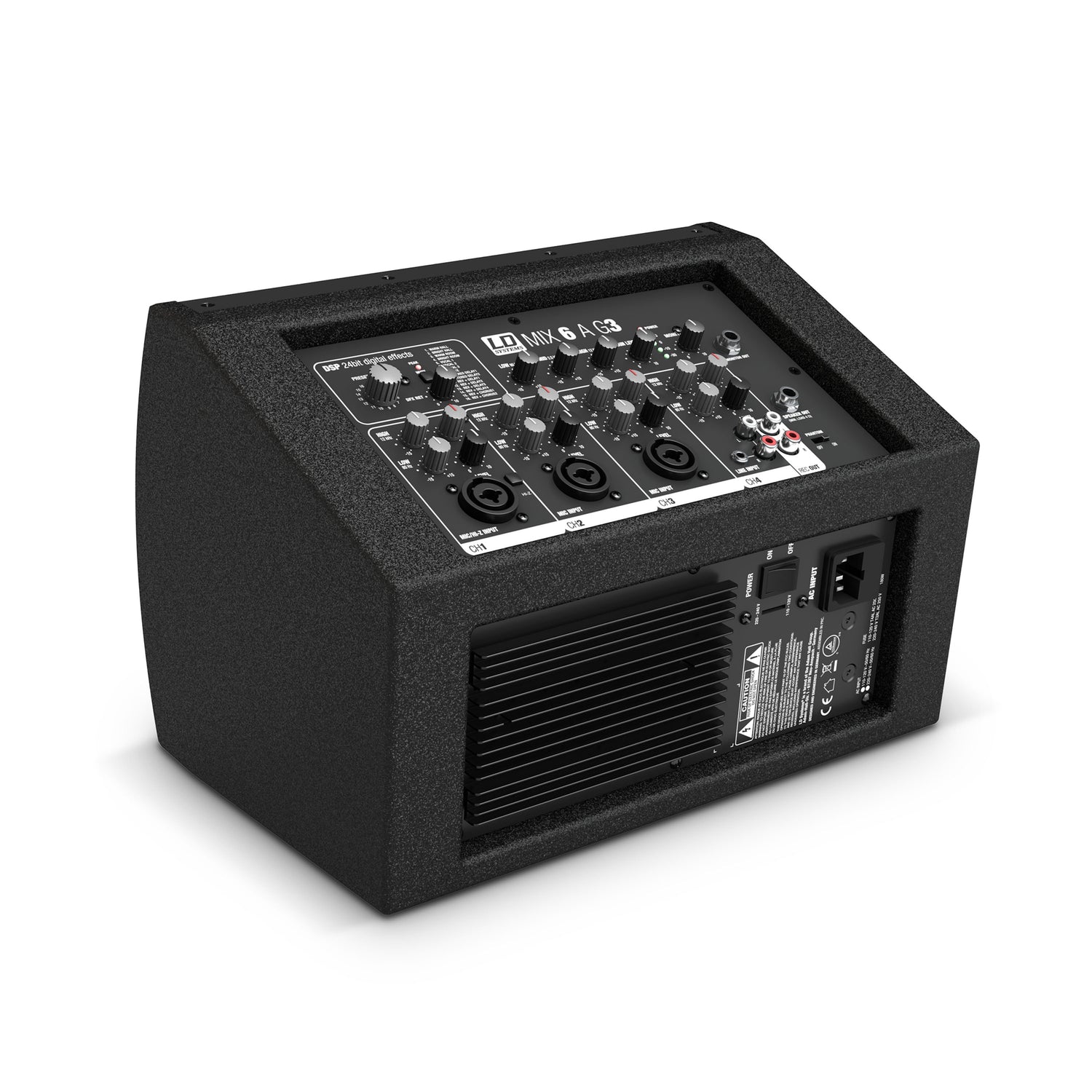

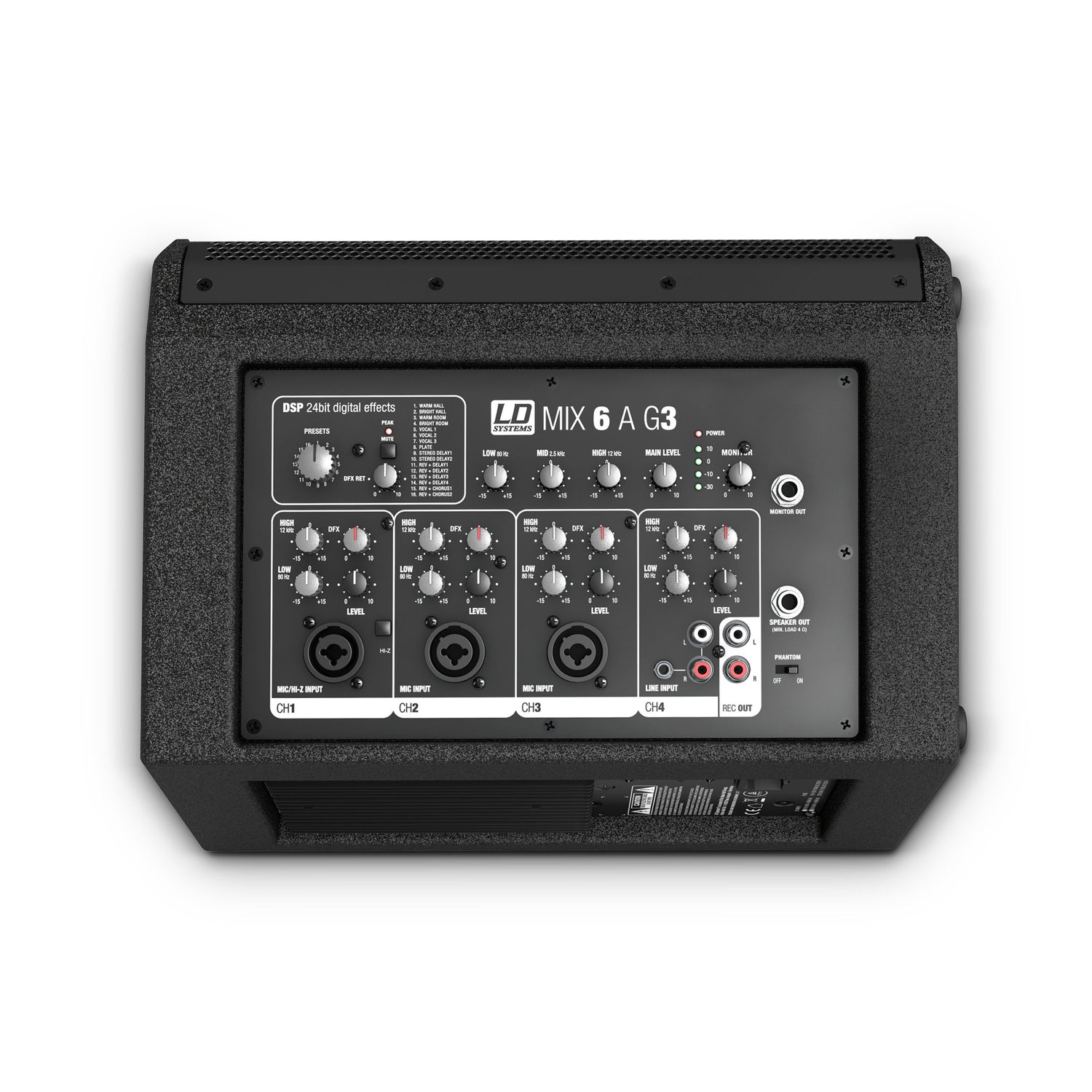

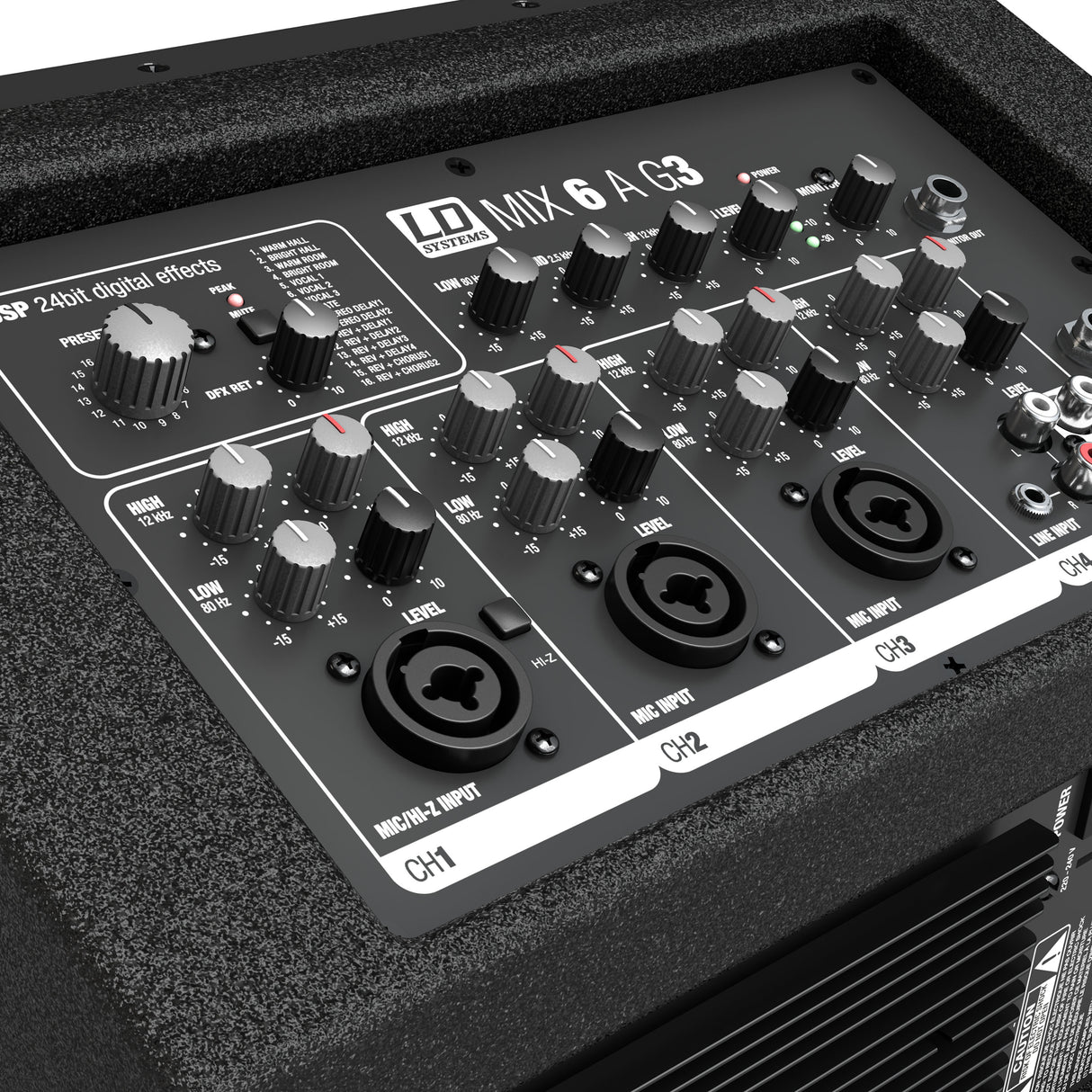

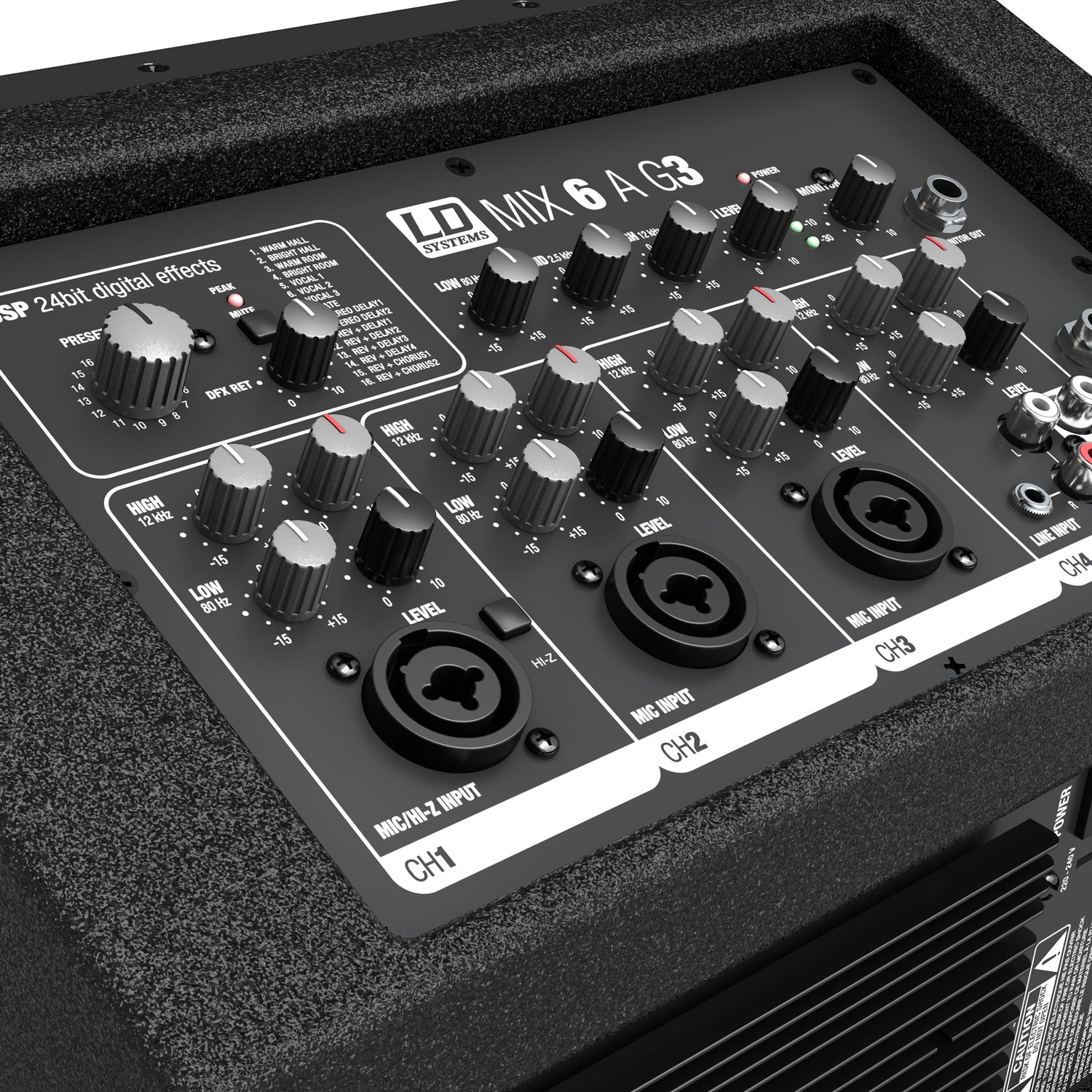

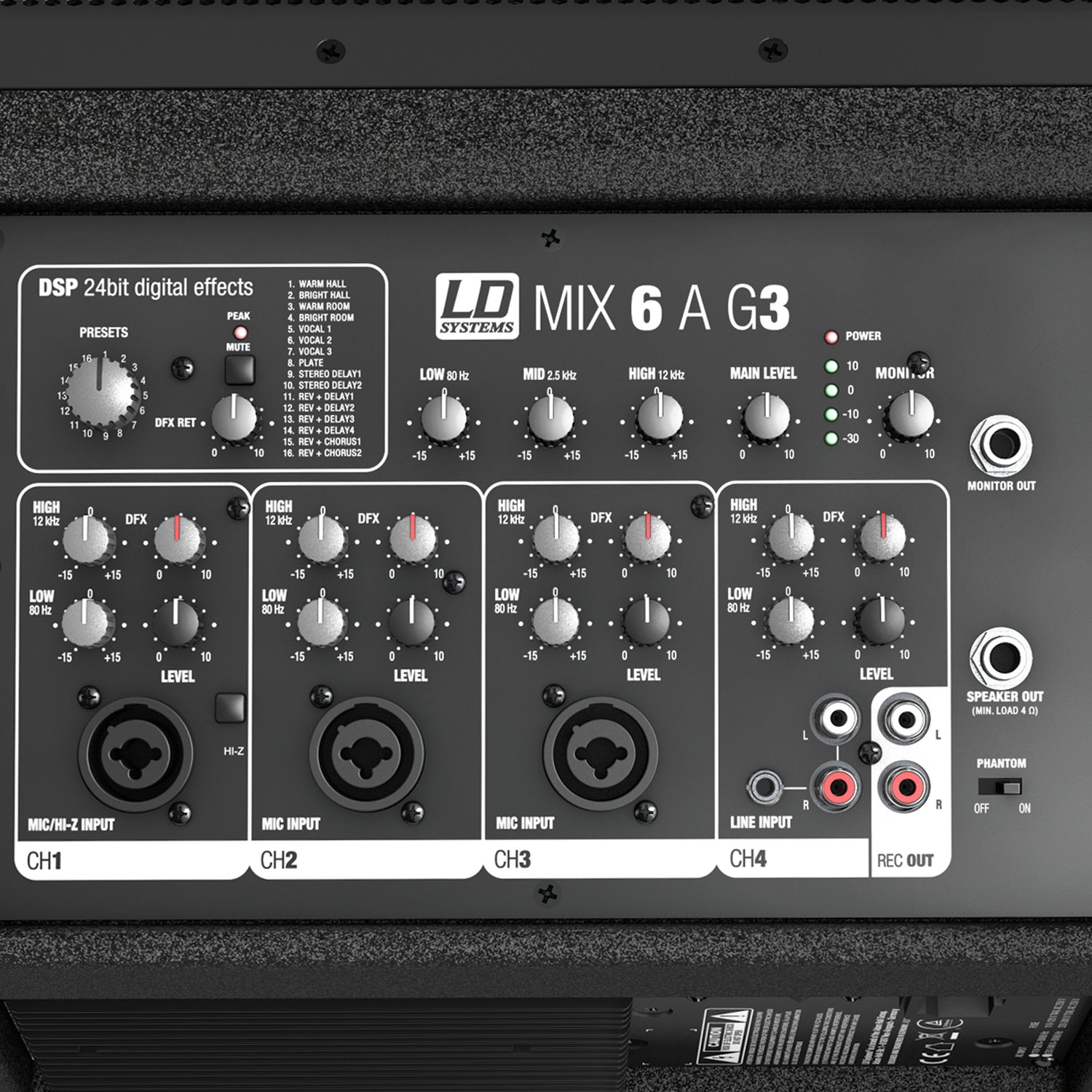

The built-in mixer can handle a wide range of input sources, including electric instruments, smartphones, tablets, MP3 and CD players, and it offers 3 microphone channels and a stereo line channel, each with 2-band EQ, plus a switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor output, and RCA recording outputs. In addition, the LD MIX 62 A G3 features a DSP with 16 effect presets, a limiter, and protection against overcurrent, overload, short circuit, and overheating. A 4 ohm slave output makes it possible to drive the passive LD MIX 6 G3 for a two-speaker setup.

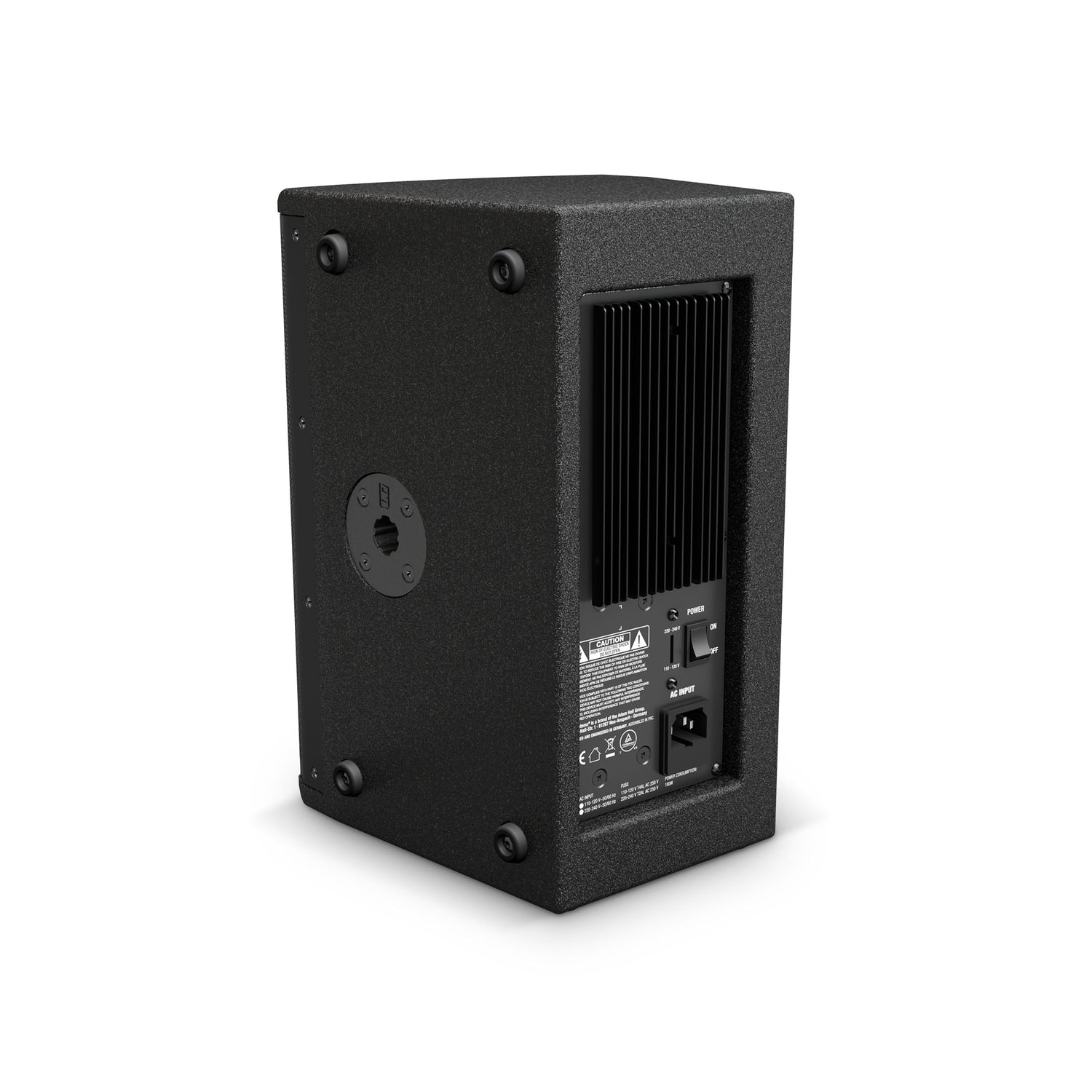

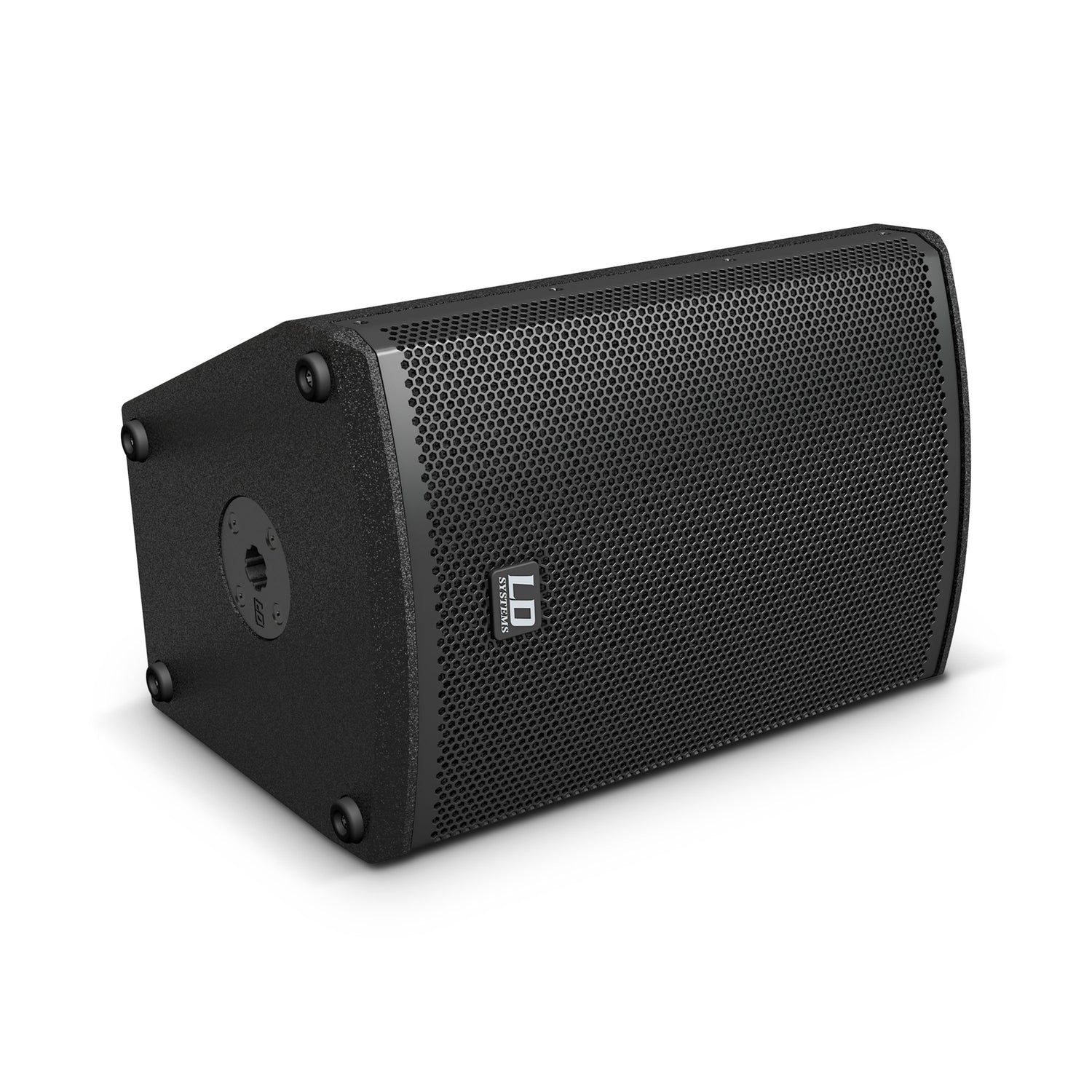

The rugged MDF cabinet has two 16 mm stand mounts for horizontal or vertical orientation. On its own or together with the passive unit, the LD MIX 62 A G3 delivers impressive performance and versatility in a lightweight, easy-to-transport package.
Technical specifications
Technical specifications
- Class D amplification with 2 x 280 watts peak power
- 6.5” custom woofer and 1” HF driver
- Integrated 4-channel mixer
- 24-bit DSP with 16 FX Presets
- Slave output for combination with LD MIX 6 G3 passive loudspeaker
- Bass reflex enclosure for powerful, punchy bass
- Dual 16 mm pole mounts for horizontal or vertical orientation
General
| Type | Active |
| Peak output power | 560 W |
| RMS output power | 160 W |
| Amp class | Class D |
| Max. SPL peak | 122 dB |
| Frequency response | 80 - 20,000 Hz |
| Speaker system | 2-way system |
| Beam angle | 80° (hor.) / 70° (vert.) |
| Number of inputs | 5 |
| Number of outputs | 2 |
| Colour | Black |
Inputs
| Number of microphone inputs | 3 |
| Mic-in connector type | XLR combo socket |
| Phantom power | 15 V |
| Number of instrument inputs | 1 |
| Inst-in connector type | XLR combo socket |
| Number of line inputs | 1 |
| Line-In connector type | 2 x RCA female (Stereo) |
| Number of music inputs | 1 |
| Music inputs connector types | 3.5 mm Jack TRS female |
Microphone input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. gain) | 70 mV |
| Input impedance | 14 kΩ |
Line input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain) | -5 dBu |
| Input impedance (balanced) | 44 kΩ |
Outputs
| Number of speaker outputs | 1 |
| Speaker output connection type | 6.3 mm Jack TS female |
| Number of line outputs | 1 |
| Line outputs connector type | 6.3 mm Jack TS female |
Signal processing
| Mixer | Yes |
| Mixer channels | 4 |
| Audio processing | 2 band EQ (High, Low) |
| Audio processing | Digital effects (DFX) |
Bass driver
| Size | 6.5 " |
| Magnet | Ferrite |
Tweeter
| Driver size | 1 " |
Mains operation
| Operation voltage | 110 V AC - 120 V AC / 50 - 60 Hz |
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz |
| Power supply type | Linear power supply |
| Rated power | 180 W |

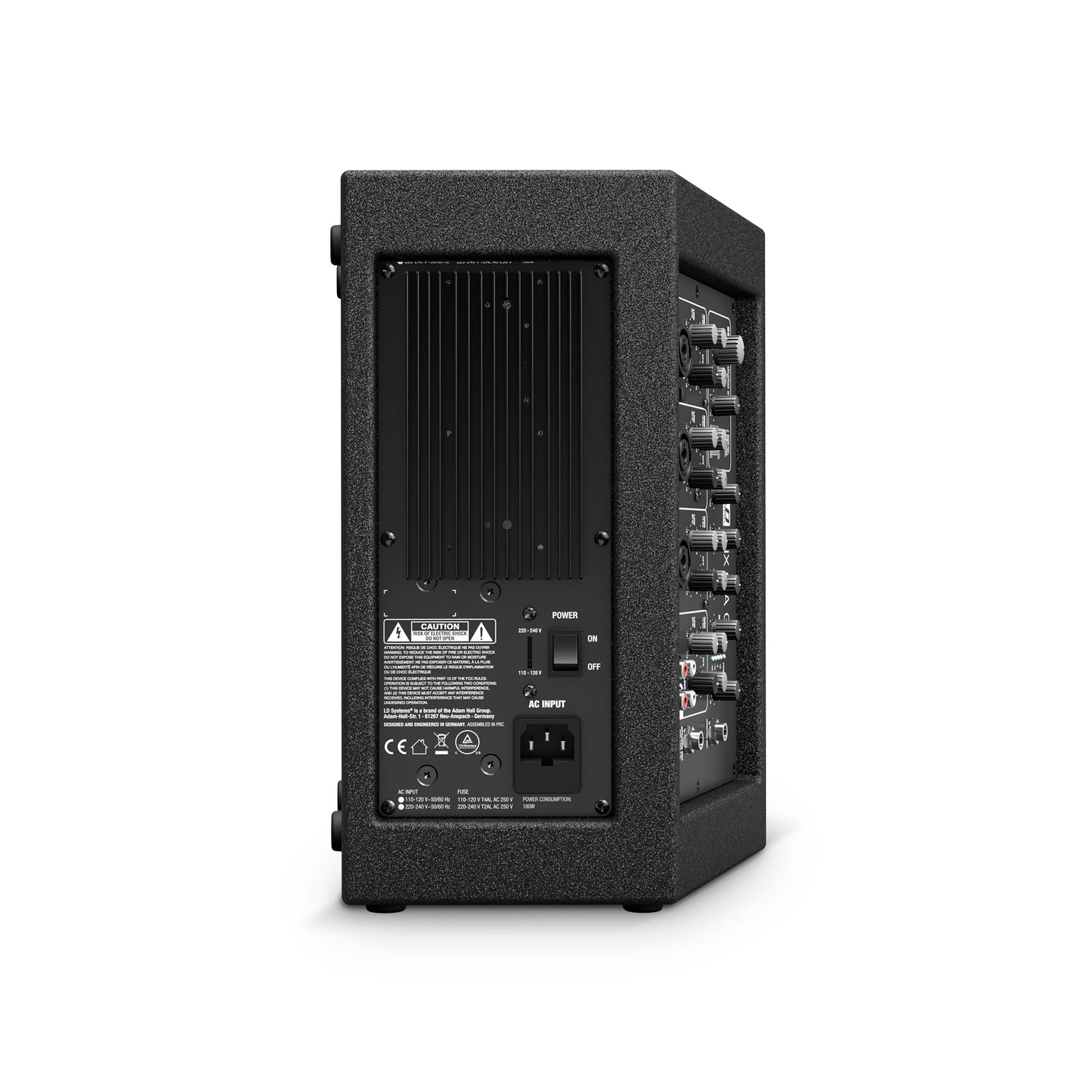

| Mains connector | IEC C14 plug male |
Housing
| Design | Bass reflex |
| Flange | 16 mm flange |
| Chassis material | Medium-density fibreboard MDF |
Dimensions & weight
| Width | 214 mm |
| Height | 323 mm |
| Depth | 221 mm |
| Weight | 7 kg |
Other properties
| Included accessories | Mains cable |
