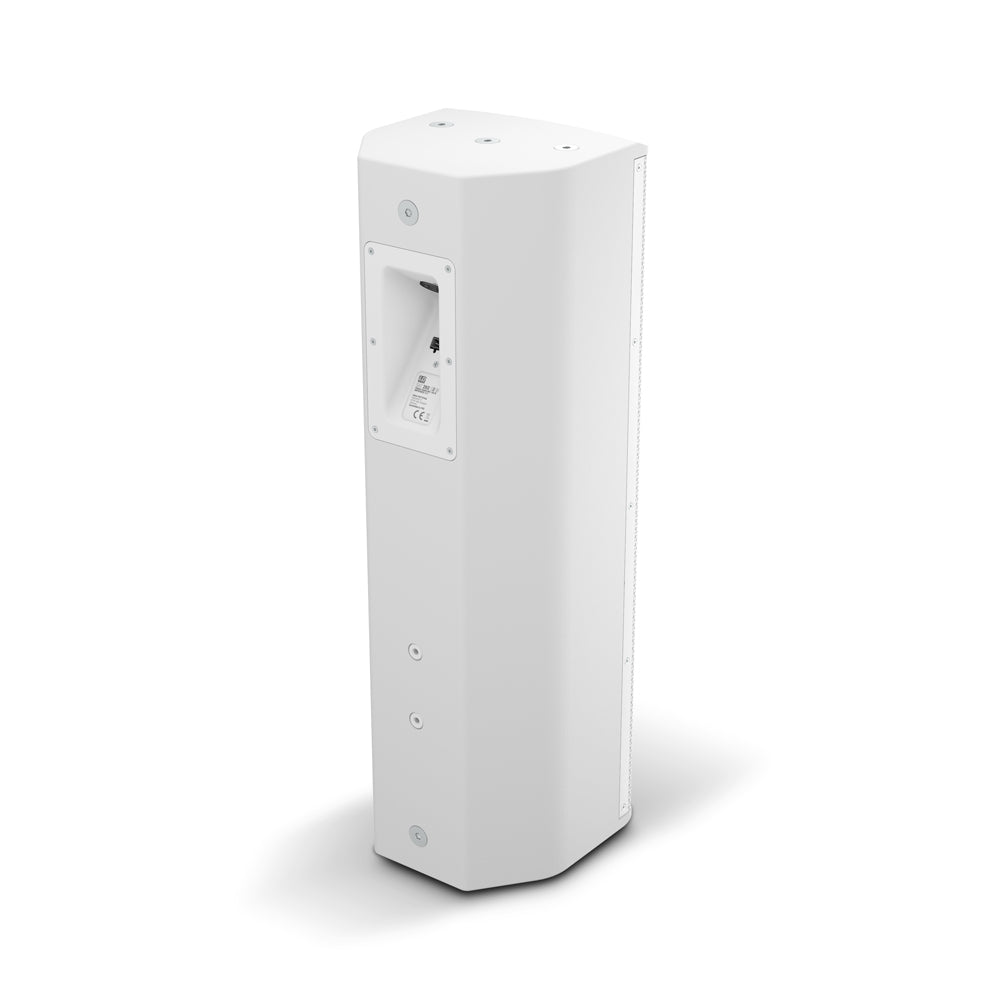

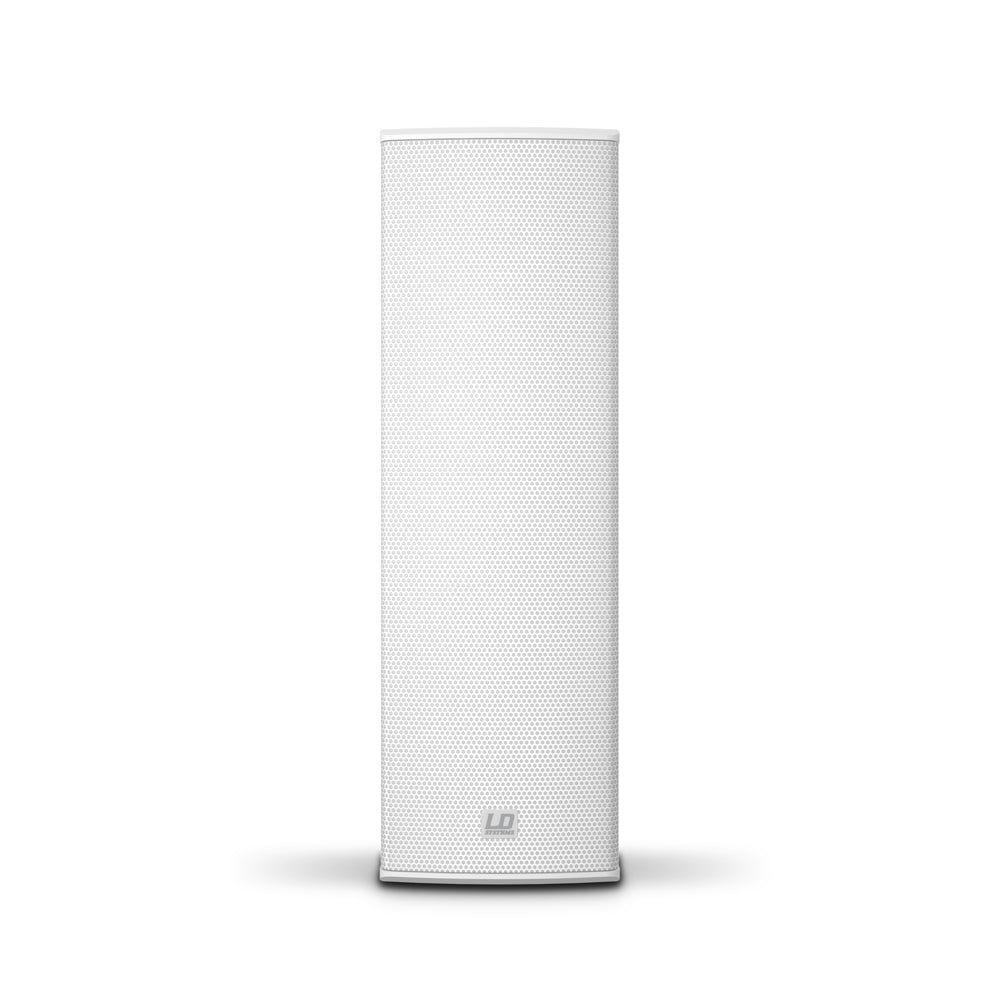

LD Systems SAT 262 G2 W - 2 x 6.5" passive installation speaker, white
Description
Description

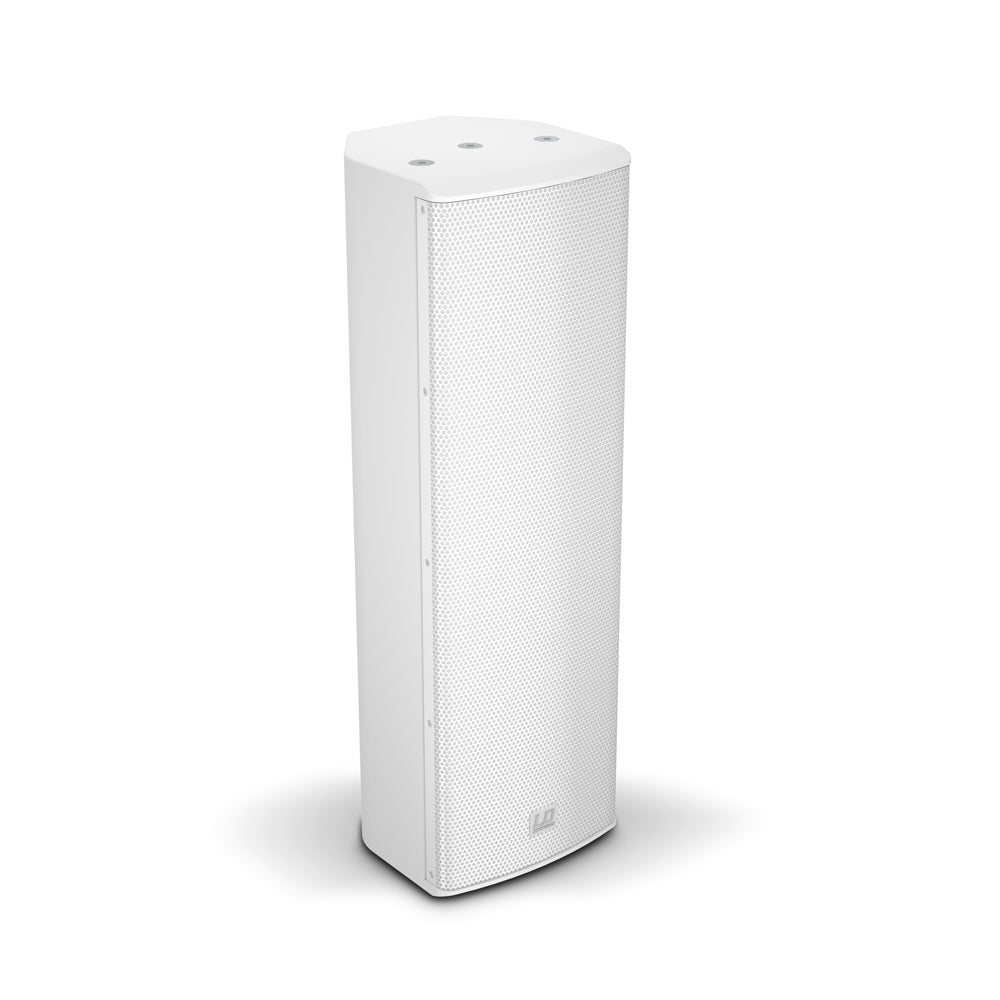

With its slim, streamlined design, the LD Systems SAT 262 G2 is particularly well suited to permanent installation and discreet integration into virtually any environment. It is equipped with two specially developed 6.5" woofers and a 1" Celestion compression driver connected to a rotatable CD horn with 80° x 60° dispersion. This makes the passive 2-way speaker ideal for both vertical and horizontal use.
The SAT 262 G2 achieves a maximum sound pressure level of 116 dB across a frequency range of 65–19 kHz with a continuous power handling of 180 watts. The bass reflex cabinet is made from 12 mm MDF and features four M8 mounting holes. A speakON-compatible socket and a terminal block provide input options, while an additional terminal block serves as an output for convenient parallel connection.

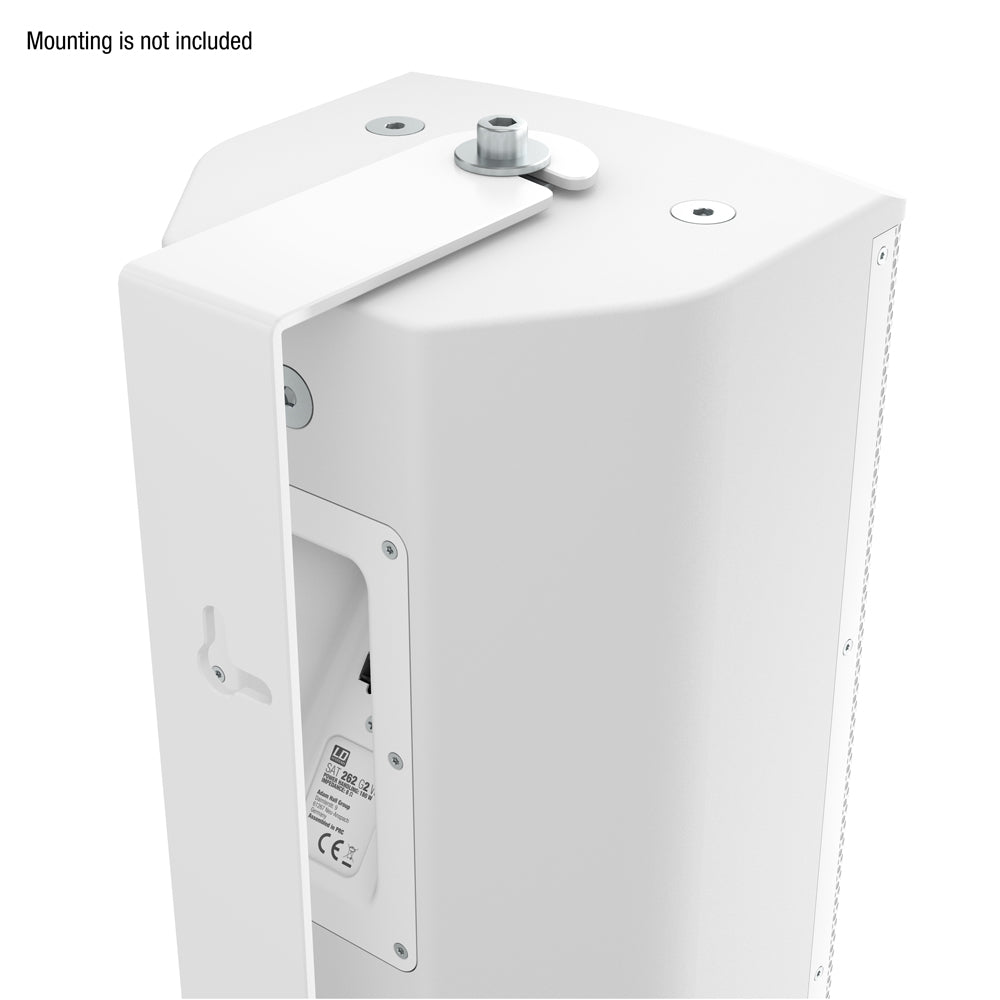

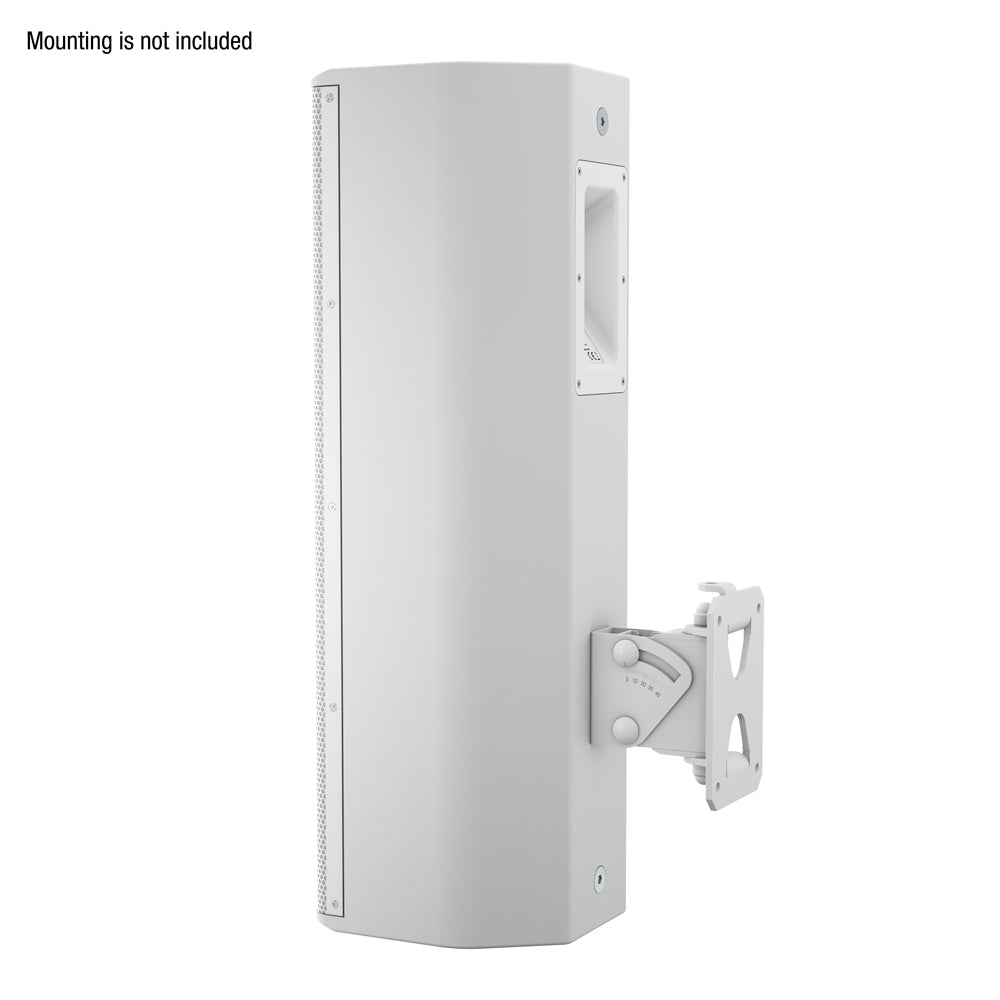

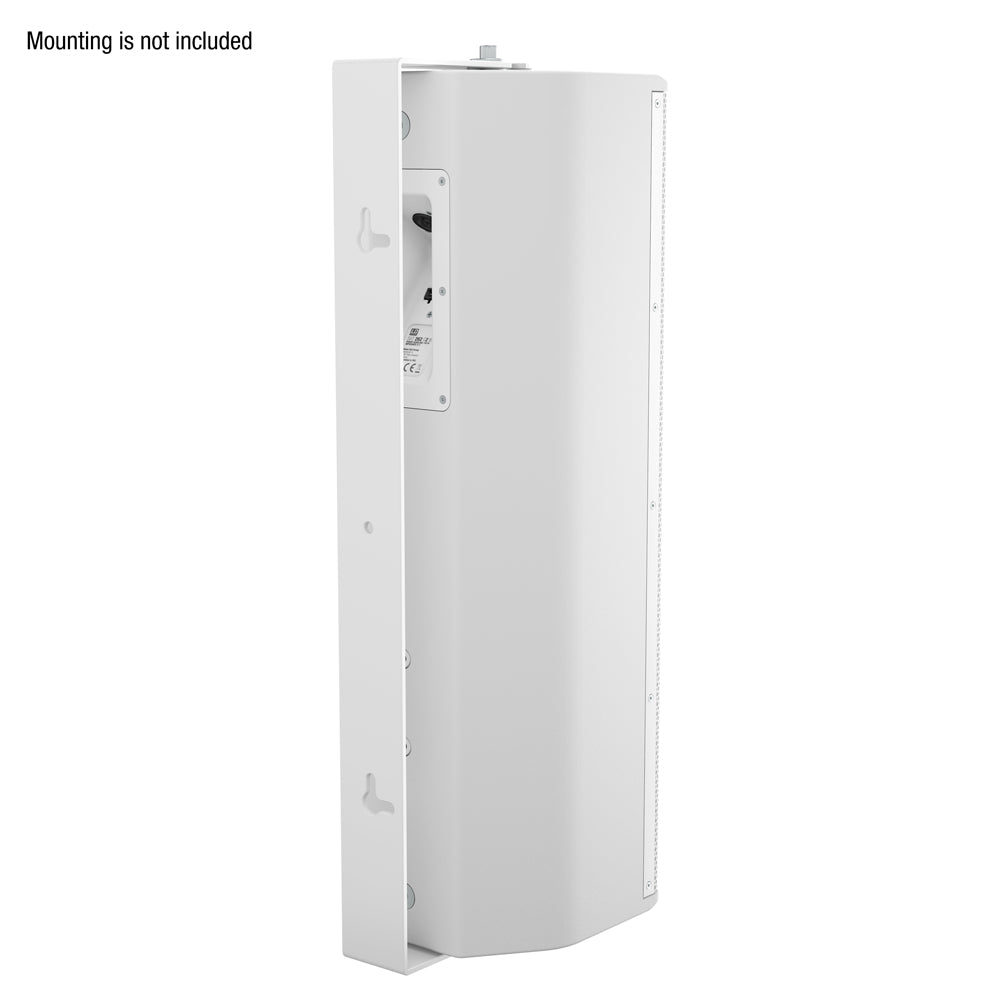

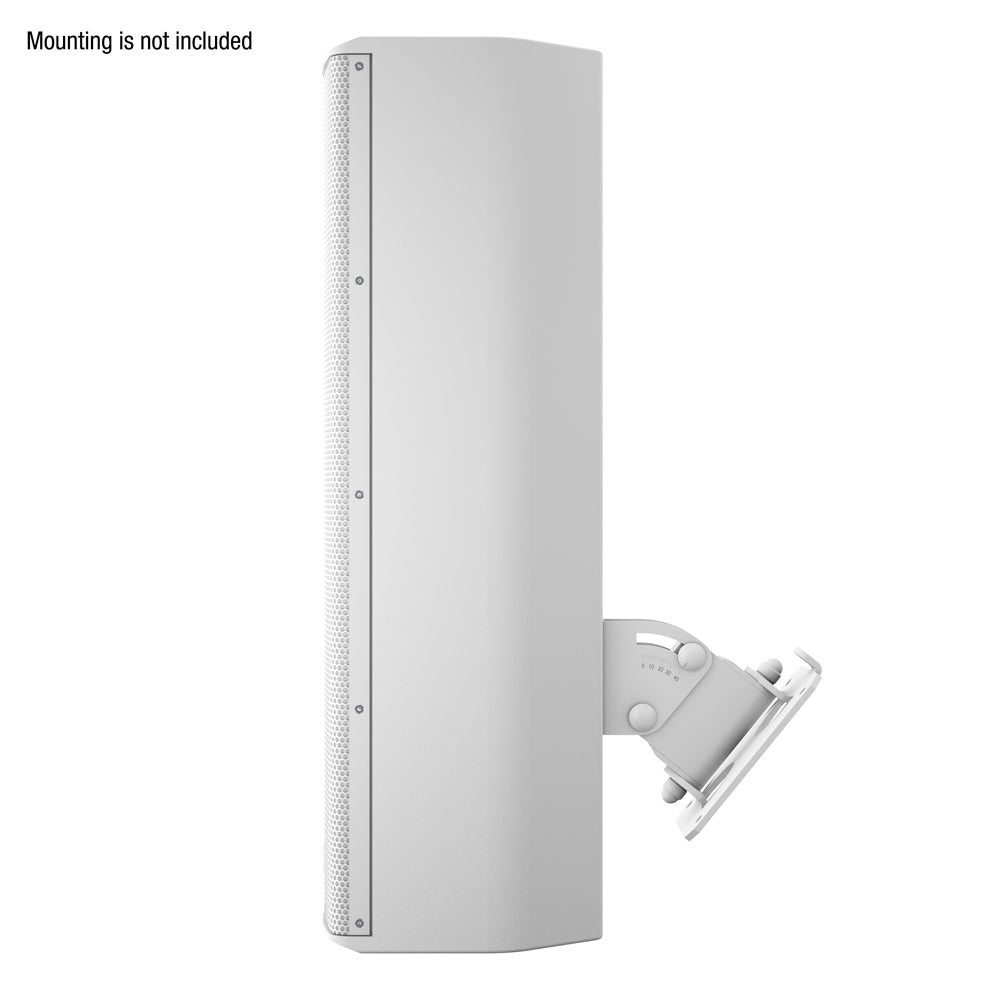

Special wall brackets are available as accessories to make wall mounting easier. The SAT 262 G2 is available in black (Art. no. LDSAT262G2) or white with a textured finish (Art. no. LDSAT262G2W).
Technical specifications
Technical specifications
- Passive 2-way bass-reflex installation speaker
- 180 W permanent load capacity
- 116 dB maximum sound-level pressure
- 2 x 6.5" custom woofer and a 1” Celestion tweeter driver
- Rotating CD horn with 80° x 60° dispersion
- For vertical or horizontal use

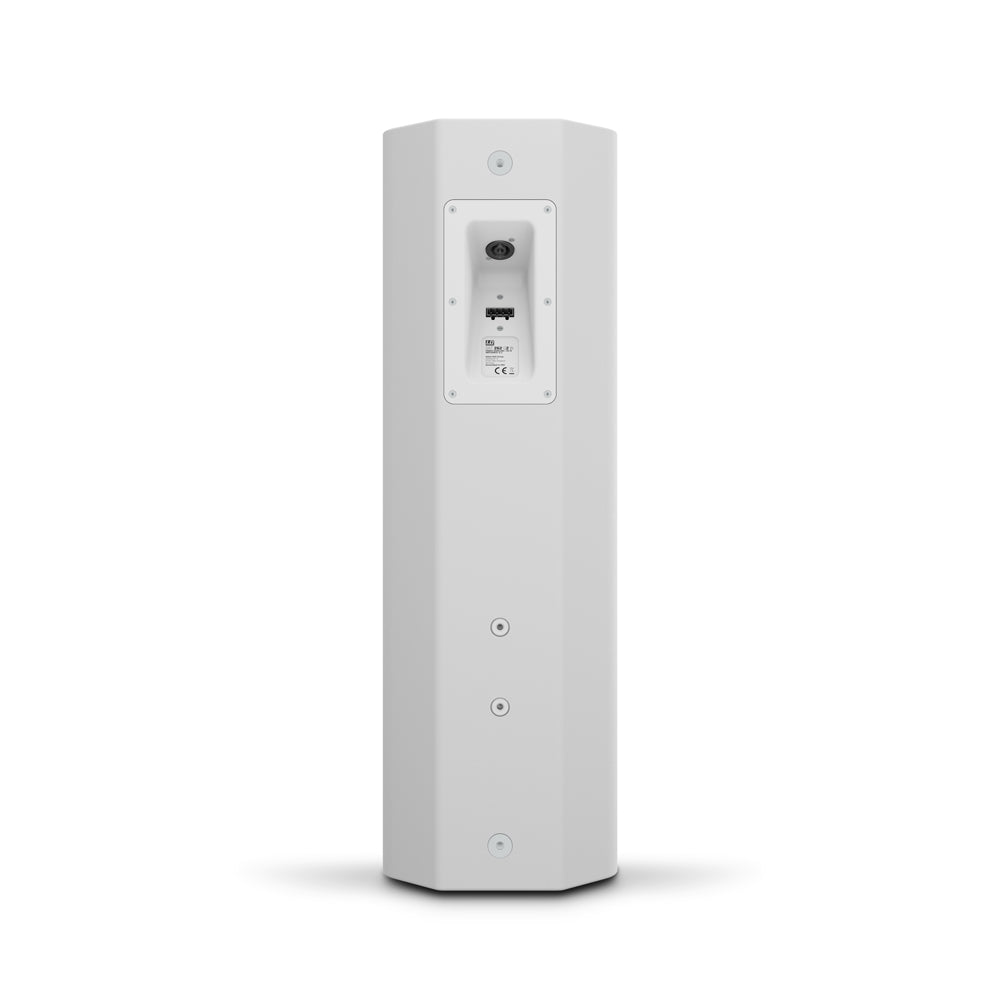

- speakON-compatible and terminal block input

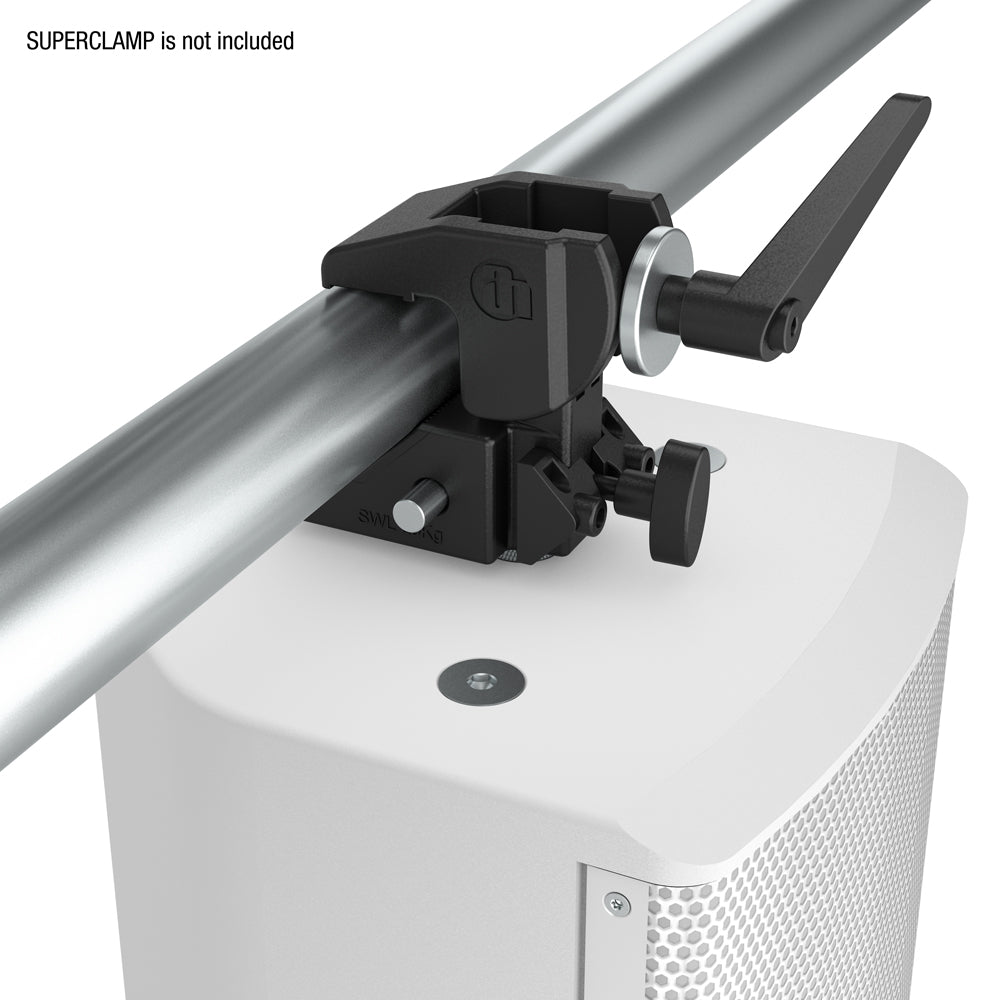

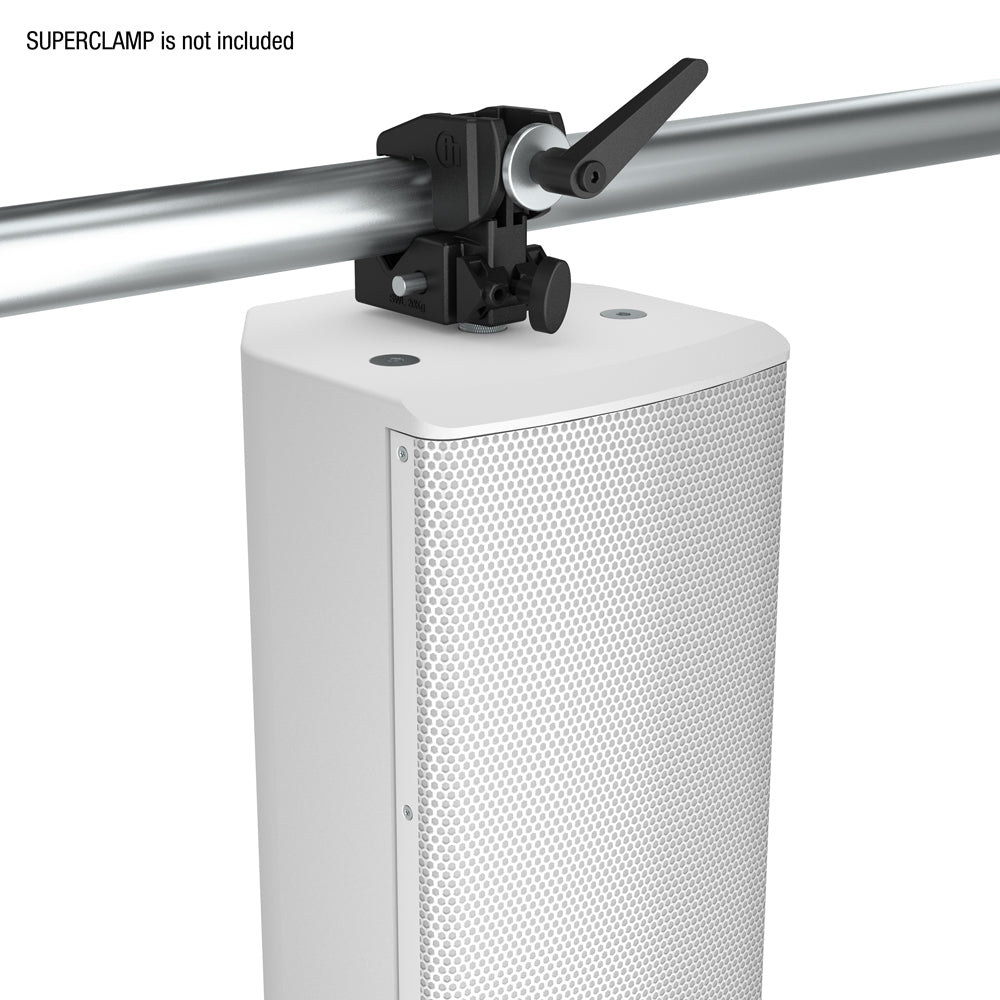

- 4 x M8 mounting holes
- Shock-resistant front grille for optimum speaker protection
- Extensive range of smart accessories for installation
- Available in black or white
General
| Type | Passive |
| Peak load capacity | 360 W |
| RMS load capacity | 180 W |
| SPL (1 W/1 m) | 93 dB |
| Frequency response | 65 - 19,000 |
| Impedance | 8 Ω |
| Speaker system | 2-way system |
| Beam angle | 80° (hor.) / 60° (vert.) |
| Number of inputs | 2 |
| Input connector types | Standard speaker connector 4-pole male & speakON® |
| Input connector types | Terminal block 4 pin (Euroblock) / 5.08 mm pitch |
| Number of outputs | 1 |
| Colour | White |
Bass driver
| Size | 6.5 " |
| Quantity | 2 |
| Magnet | Ferrite |
| Voice coil | 38.1 mm |
Tweeter
| Driver size | 1 " |
| Magnet | Ferrite |
| Voice coil | 1 " |
Housing
| Design | Bass reflex |
| Number of mounting points | 4 |
| Flange | M8 |
| Chassis material | Medium-density fibreboard MDF |
| Material thickness | 12 mm |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 200 mm |
| Height | 630 mm |
| Depth | 205 mm |
| Weight | 9.8 kg |
