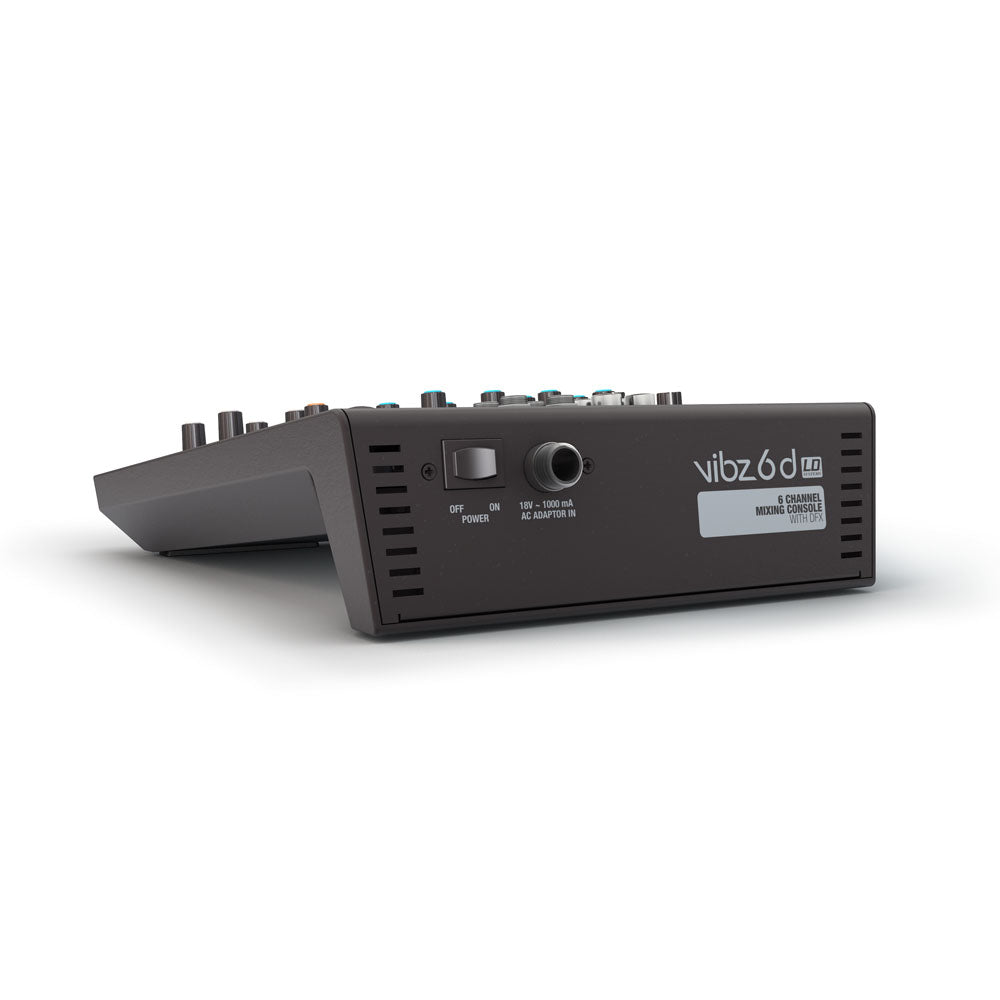

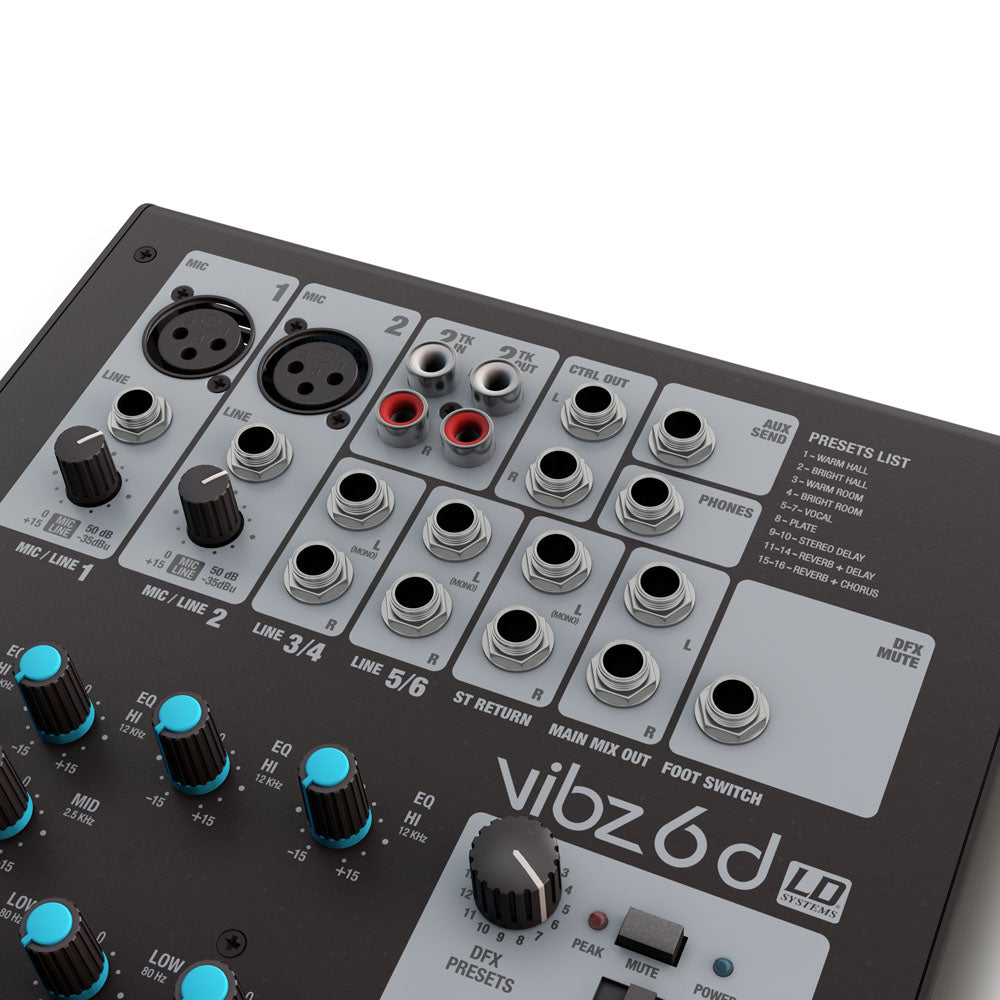

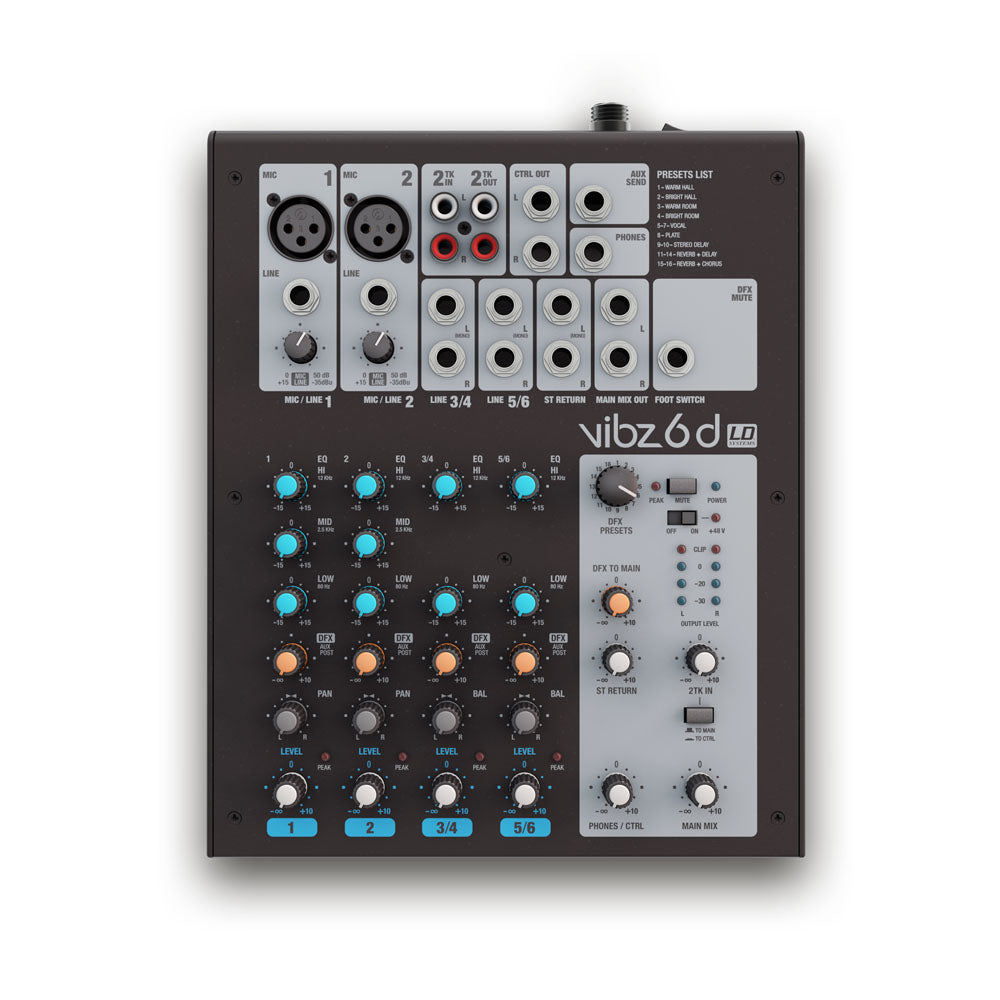

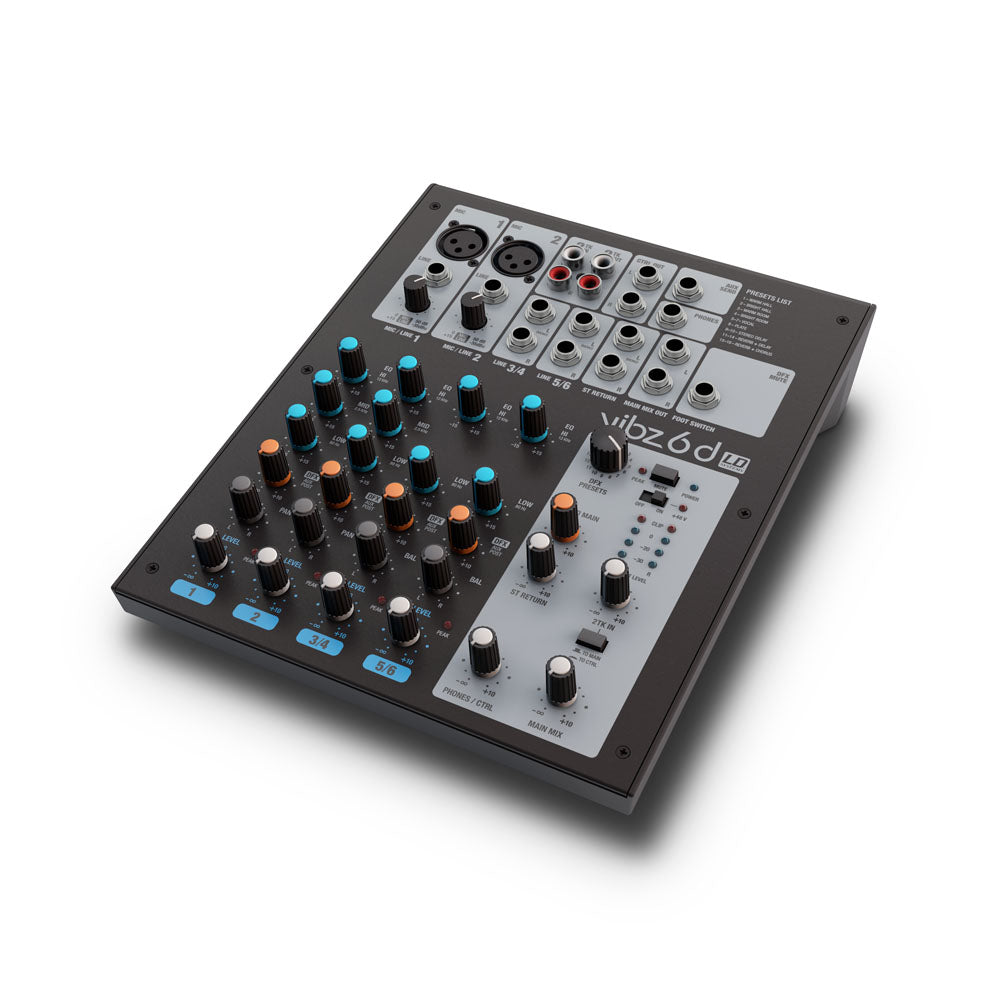

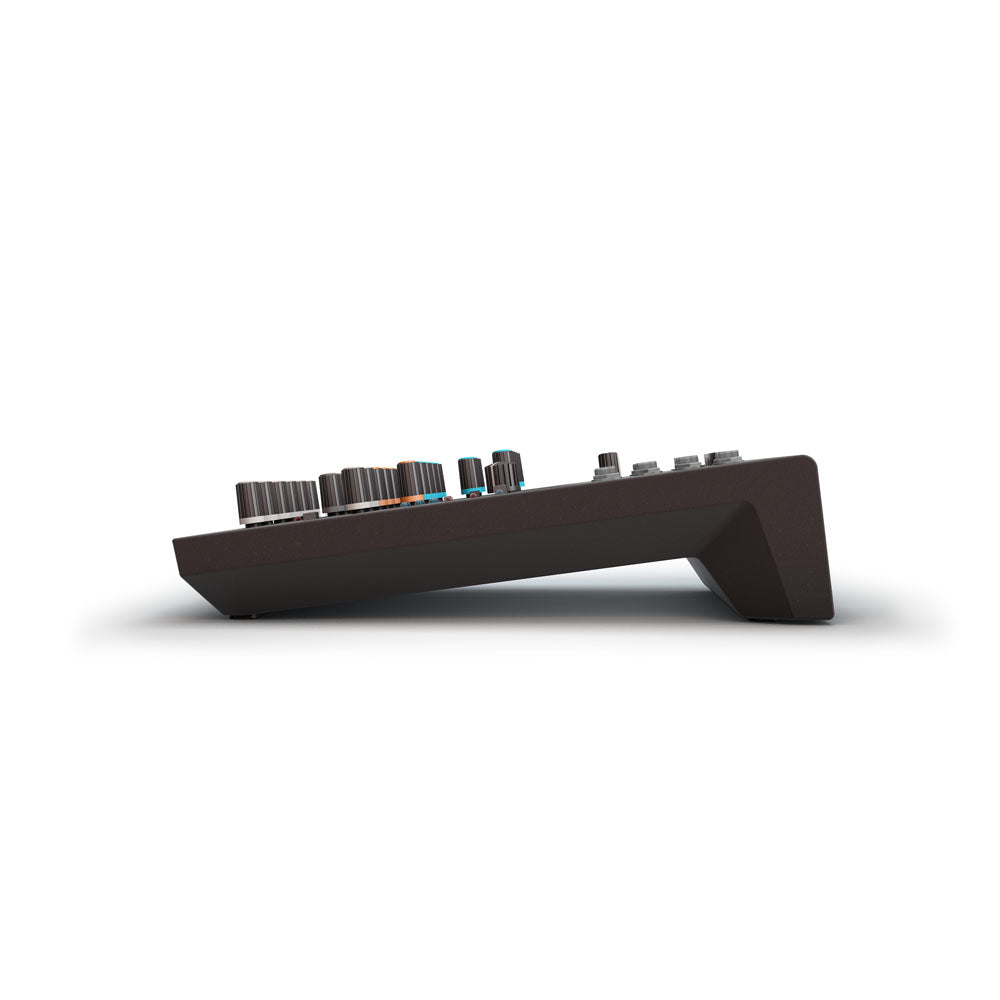

LD Systems VIBZ 6 D - 6-channel mixing console with DFX
VIBZ 6 is a compact 6-channel mixer, perfectly suited for entertainers, small bands, home recording and installations. It features two balanced microphone inputs with high-quality preamps, phantom power and 3-band EQ with a +/-15 dB adjustment range, two stereo line inputs with 2-band EQ that are mono-compatible, as well as an effects loop.
The master section of the VIBZ 6 is equipped with adjustable monitor outputs, a headphone jack and 16 digital effects presets, which can be operated via footswitch. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and delivers a warm, detailed sound. The external power supply can be screw-fastened.
A footswitch for the effects section and an adapter for mounting the VIBZ 6 on microphone stands are available as accessories.
6-channel mixer with 16 digital effects
2 microphone channels with 3-band EQ
2 mono-compatible stereo line channels with 2-band EQ
Master, Monitor and headphone outputs
Securely fastening external power supply
| Product type | Mixers |
| Type | Live |
| Channels | 6 |
Mono Channels:
| Mono Mic and Line Input Channels | 2 |
| Mono Mic input connectors | 6.3 mm TRS |
| Mono Mic input connectors | XLR |
| Mono Mic Input Type | Electronically balanced |
| Mono Mic Input Frequency Range | 10 Hz |
| Amplification Range mono Mic Input | 0 - 50 dB |
| Mono Mic Input Input THD-N | 0.0058% |
| Mono Mic Input Impedance | 4k Ohm(s) |
| Mono Line Input Type | Electronically balanced |
| Mono Line Input Frequency Range | 10 Hz |
| Amplification Range mono Line Input | 0 - 50 dB |
| Mono Line Input Input THD-N | 0.0045 % |
| Mono Line Input Impedance | 21k Ohm(s) |
| Mono Line Input S/N Ratio | 116 dB |
| Mono Channel Equalizer High | +/- 15 dB @ 12000 Hz |
| Mono Channel Equalizer Low | +/- 15 dB @ 80 Hz |
| Controls Mono Mic and Line Input Channels | 3-band EQ (High, Mid, Low) |
| Controls Mono Mic and Line Input Channels | AUX (DFX) Post |
| Controls Mono Mic and Line Input Channels | Channel Volume |
| Controls Mono Mic and Line Input Channels | Gain |
| Controls Mono Mic and Line Input Channels | pan |
| Phantom power | 48 V DC switchable |
Stereo Channels:
| Stereo Line Input Channels | 2 |
| Stereo Line Input Connectors | 6.3 mm TS |
| Stereo Line Input Type | Unbalanced |
| Stereo Line Input Frequency Range | 10 - 54000 Hz |
| Stereo Line Input Input THD-N | 0.0045 % |
| Stereo Line Input Impedance | 3,7k Ohm(s) |
| Stereo Line Input S/N Ratio | 116 dB |
| Stereo channel equalizer treble | +/- 15 dB @ 12000 Hz |
| Stereo channel equalizer bass | +/- 15 dB @ 80 Hz |
| Controls Stereo Line Input Channels | 2-band EQ (High,Low) |
| Controls Stereo Line Input Channels | AUX (DFX) Post |
| Controls Stereo Line Input Channels | Balance |
| Controls Stereo Line Input Channels | Channel Volume |
Main Section:
| AUX / Effects Send Channels | 1 |
| AUX / Effects Send Connectors | 6.3 mm stereo jack unbalanced |
| Stereo AUX Return Channels | 1 x stereo |
| Stereo AUX Return Connectors | 2 x 6.3 mm TRS |
| Stereo Tape Out Channel | 1 x stereo |
| Stereo Tape Out Connectors | 2 x RCA (Cinch) |
| Stereo Tape In Channel | 1 x stereo |
| Stereo Tape In Connenctors | 2 x RCA (Cinch) |
| Unbalanced stereo Main Outputs | 1 |
| Unbalanced stereo Main Output Connections | 6.3 mm TRS |
| Unbalanced Stereo Main Out Impedance | 120 Ohm(s) |
| Max. Unbalanced Stereo Main Out Level | +20 dBu |
| Stereo Control Room Out | 1 |
| Stereo Control Room Out Connectors | 6.3 mm stereo jack unbalanced |
| Headphones ouput | 1 |
| Headphones outputs | 6.3 mm TRS |
| Digital Effects Processor | Yes, 24-bit AD/DA Resolution |
| Number of Presets | 16 |
| Footswitch Connector DFX Mute | 6.3 mm TRS |
| Main section controls | 2-track Assignment (Main, Contr. Room) |
| Main section controls | 2-track In Volume |
| Main section controls | DFX Mute Schalter |
| Main section controls | DFX Presets |
| Main section controls | DFX To Main Volume |
| Main section controls | Master Volume |
| Main section controls | Phantom Power |
| Main section controls | Phones / Control Room Volume |
| Main section controls | Stereo Return Volume |
| Indicators | 4-segment Level Meter |
| Indicators | Channel Peak |
| Indicators | DFX Peak / Mute |
| Indicators | Phantom Power |
| Indicators | Power |
| Power supply | 18V DC - 1 A, External PSU |
| Power supply | 230 V |
| Width | 209 mm |
| Height | 68 mm |
| Depth | 260 mm |
| Weight | 1,425125 kg |
