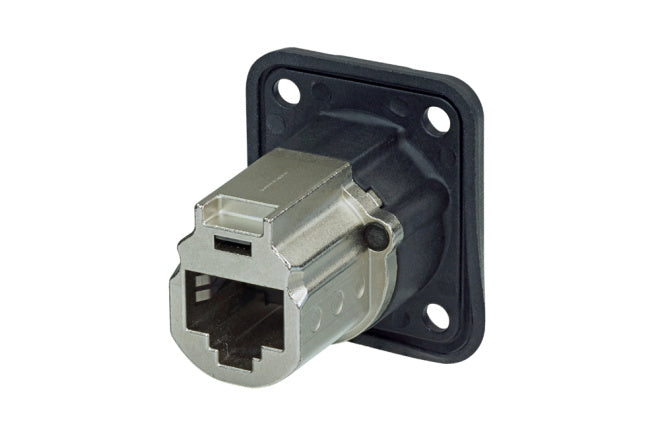

RJ45 CAT6A etherCON hun chassis gennemføring, IP65
NE8FDX-P6-W RJ45 CAT6A etherCON hun chassis gennemføring, IP65
Kan ikke bruges med CAT6 kabelstik NE8MC6-MO og NKE6S*-kabler.
Dielectric strength: 1 kVdc
Insulation resistance: > 0.5 GOhm
Rated current per contact: 1.5 A
Transmission performance: CAT6A, acc. TIA/EIA rating, Class EA, acc. IEC/ISO/EN rating
Power over Ethernet: PoE+ acc. IEEE 802.3at
Lifetime: > 1000 mating cycles
Wiring: Feedthrough
Locking device: Latch lock
Mounting direction: Front mounting
Contact plating: Au
Gasket: Rubber (EPDM)
Shell: Zinc diecast (ZnAl4Cu1)
Flammability: UL 94 V-0 (not applicable for the rubber sealing)
Protection class: IP 65
Temperature range: -40 °C to + 70 °C
