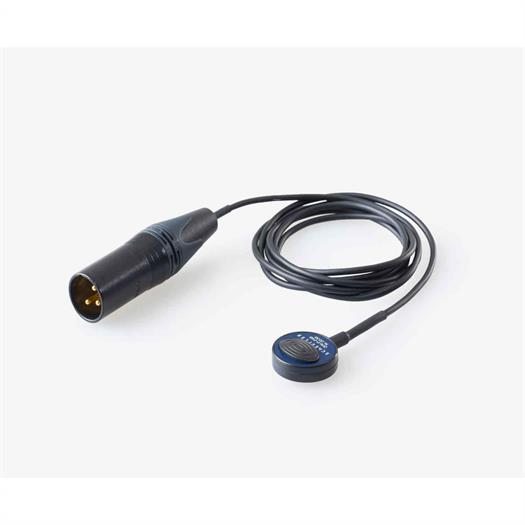

The microphones in the SCHERTLER DYN P48 series are high-end transducers developed for professional use. They are suitable for a wide range of instruments and can be used both live and in studio environments. With the included special adhesive putty, the microphone can be securely mounted even on very valuable instruments without damaging the surface.
The microphone can be quickly moved between instruments during performances or recordings, and its lightweight design keeps it discreet for the musician.
A balanced XLR connector enables direct connection to a mixing console or full-range amplification system. (Note: these microphones require 22–48V phantom power, except for the passive DYN UNI model). The torsion-resistant, Kevlar-reinforced cable is built to withstand daily use while ensuring optimum performance.
All microphones in the SCHERTLER DYN P48 series are equipped with built-in Class-A preamps and advanced filtering technology, enabling them to capture the instrument’s finest tonal characteristics with high precision.
Technical specifications:
Transducer type Electro-dynamic moving coil active contact microphone
Mechanical decoupling Butterworth 2nd order, Q = 0.6
Frequency Response (@ ±3dB) - filtered* 20 to 16 kHz
Sensitivity ca. -30 dBu
Dynamic range 139 dB
Output impedance (@ 1 kHz) 4.7 kΩ
Operating voltage 22 to 48 VDC
Built in preamp Yes all Class-A
External preamp No
Contacts All hard gold plated 0.5 mm
For fixed installations No
Removable Yes
Connection XLR balanced
Cable Length 1.4 m
DImensions 32x23x9 cm
