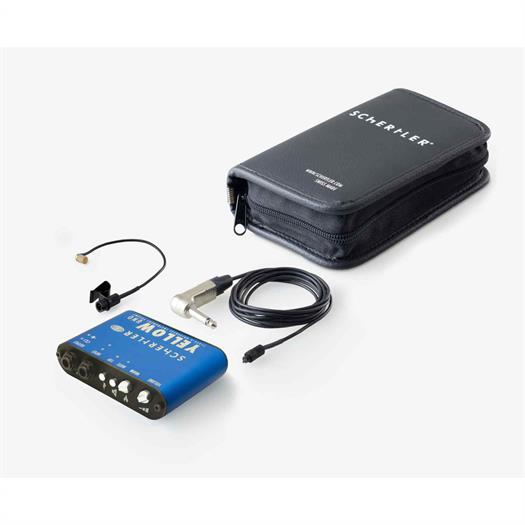

Schertler - STAT-V-UNO amplification set for Violins

The STAT V pickup system represents one of SCHERTLER’s most established technologies. Over decades, it has become a standard in high-end amplification of acoustic string instruments. The system is specifically developed for use in loud music environments and is impressively resistant to feedback. The bridge-mounted STAT microphone is therefore an ideal choice for jazz, fusion, rock or classical performances where a high level of amplification is required.

STAT is designed to accurately reproduce the warm tone of the instrument’s strings while playing, with depth and fullness in the low tones and clarity and brightness in the highs. STAT pickups are available either individually or in packages with various preamps, giving the musician flexibility and control over a wide range of sound parameters.

Techincal specifikations STAT-V:
Transducer type: Electro-static contact microphone
Output impedance: 2 kΩ
Frequency Response (@+/-3dB) - filtered*: 60 to 12 kHz
Dynamic range: 70 dB
Sensitivity: ca. -20 dBu
Operating voltage: 3 to 10 VDC
Built in preamp: No
External preamp or accessory: No
Contacts: All hard gold plated 0.5 mm
For fixed installations: Yes
Removable: Yes
Connection: Binder
Cable Length: 0.17 m + extra cable 2.25 m
