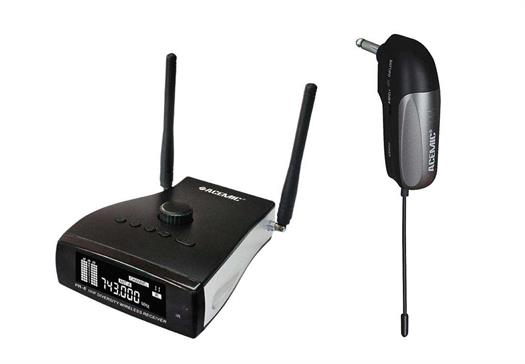

Wireless system package for electric guitar/keyboard - ACEMIC model PR-8/GT-1 (with 90° angled transmitter / jack plug)
The package includes:
1 x Receiver
1 x Transmitter (with 90° angled jack plug)
1 x Power supply
1 x Jack/jack cable
1 x aluminium case - as pictured
FEATURES UHF 600-952MHz frequency range( region dependant) PLL Synthesized, pre-set 100 selectable frequencies Antenna diveristy guarantee maximum range up to 80 meters Pre-set 100 (10*10) frequency selectable, IR synchronization High-fidelity sound quality, no loss compare to the cable LCD display shows the RF level, AF level, channel and frequency No need the bodypack transmitter, plug-in transmitter design Reciver powered by 2*1.5AA battery, convenient for outdoor use Special designed for electric guitar, bass, keyboard, violin ect. 6.35mm jack electric instrument wireless audio transmission SPECIFICATION Comprehensive Performance Frequency Range: 600-952MHz Modulation Mode: FM Dynamic Range: >100dB Frequency Response: 40Hz-17KHz±3dB Total Harmonic Distortion: <0.5% at 1KHz Signal/Noise Ratio: ≥105dB RECEIVER Frequency Range: 600-952MHz Receive Sensitivity: -110dBm (≥30dB) Signal/Noise Ratio: >105dB Power Supply: DC12V/ 500mA Audio Output: 1*XLR socket, 1*6.35mm jack socket TRANSMITTER Frequency Range: 600-952MHz RF Power: 10mW Microphone Type: Condenser Directivity: Cardioid Deviation: ±48KHz Antenna: 1/4 wave Length wire type Battery Voltage: 1.5V (1x1.5V AA Battery) not included Power Consumption: 10 hours, battery-dependent
