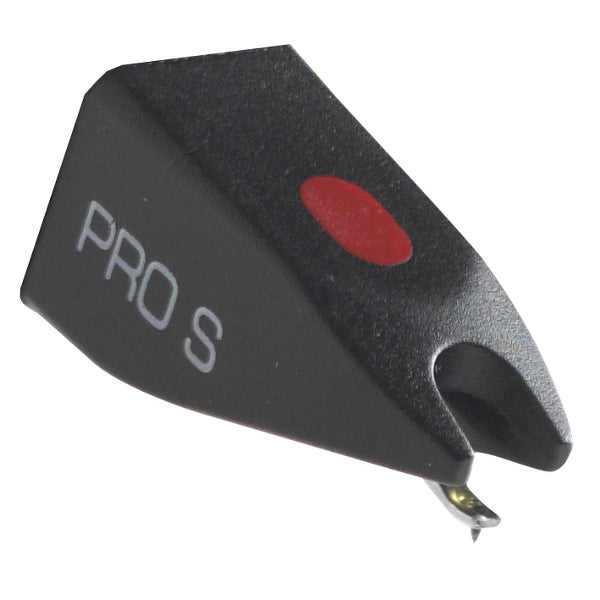

Ortofon PRO S Stylus
Description
Description
- This Stylus is perfect for beginners on the DJ scene who want to start with decent but not too expensive equipment.
- Also good for general all-round use
Ortofon PRO S Stylus Stylus
- New DJ - This Stylus is perfect for beginners on the DJ scene who want to start with decent but not too expensive equipment.
- Ortofon Pro The S features a spherical diamond stylus that minimizes scratches and a solid cantilever that can survive a flurry of activity on the turntable.
Technical specifications
Technical specifications
| Output voltage at 1000Hz, 5cm/sec. | 5 mV |
| Channel balance at 1kHz | 2 dB |
| Channel separation at 1kHz | 20 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at -3dB | 20-20.000 Hz |
| Frequency response | 20-18.000 Hz +/- 2 dB |
| Tracking ability at 315 Hz at recommmende tracking force | 70 μm |
| Compliance, dynamic lateral | 7 μm/m N |
| Stylus type | Spherical |
| Stylus tip radius | R 26 μm |
| Tracking force range | 3,0-5,0 g (30-50 mN) |
| Tracking force recommended | 4,0 g (40 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 750 Ohm |
| Internal inductance | 450 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 200-600 pF |
Matching accessories:
