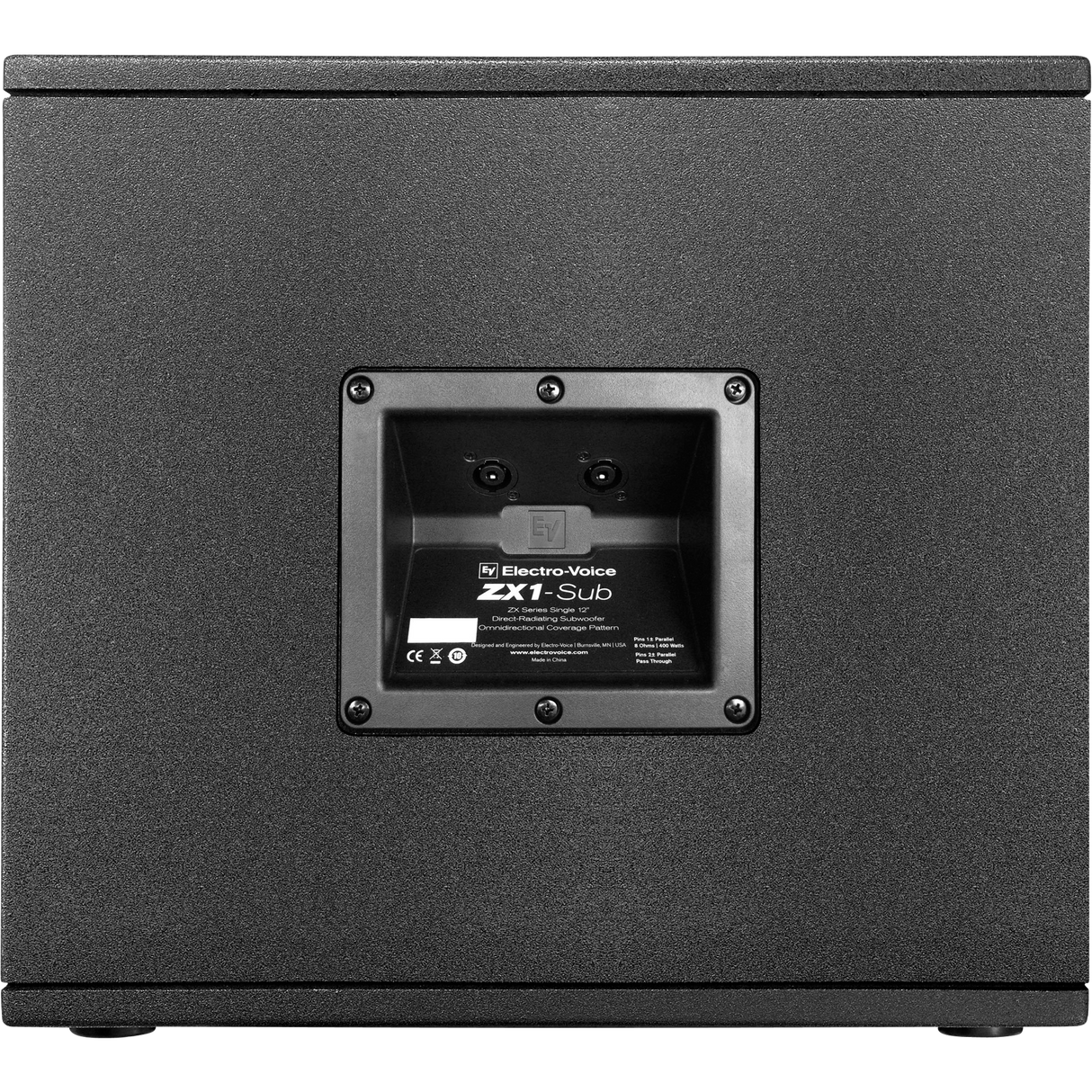

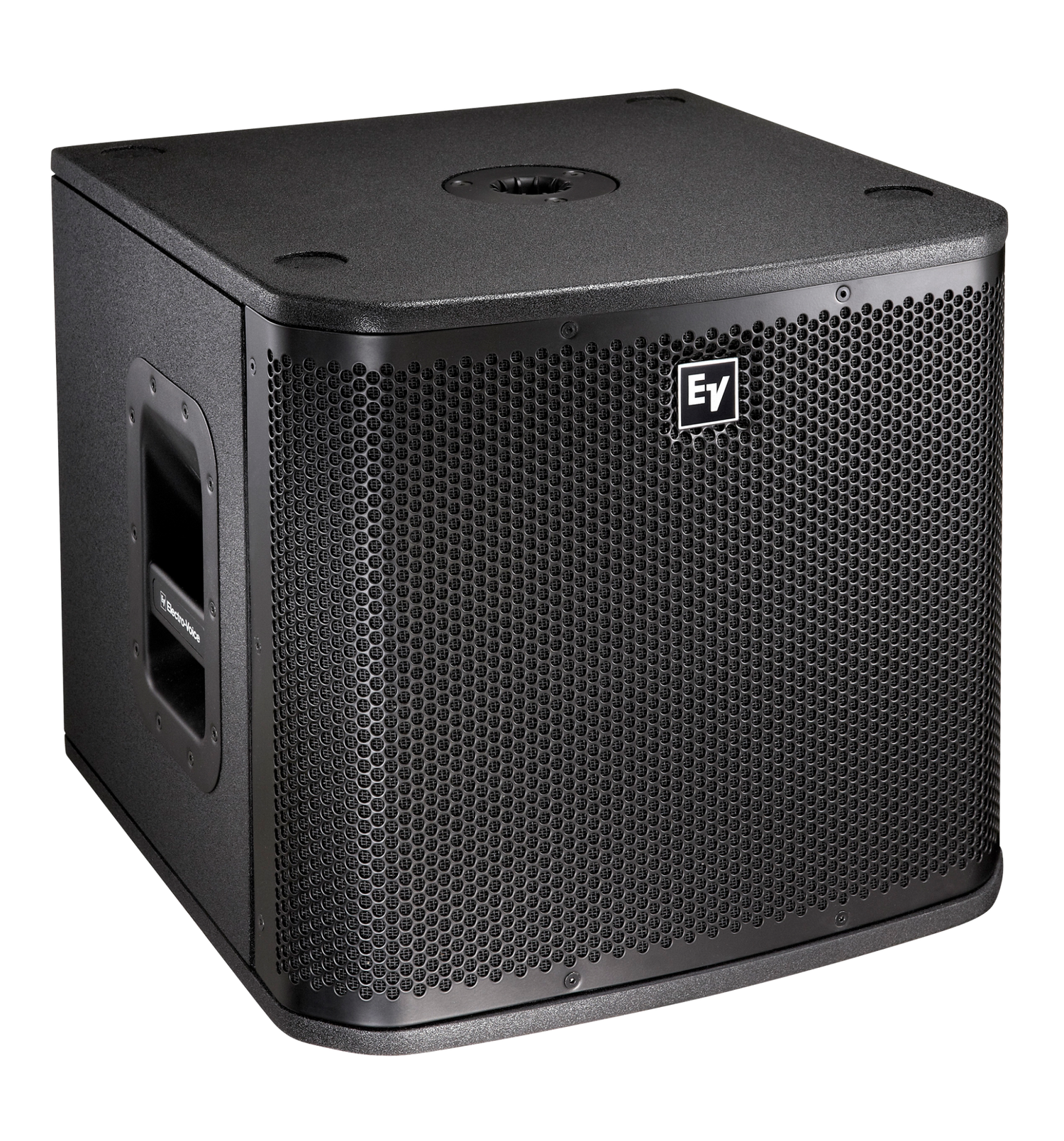

Electro-Voice ZX1-Sub - Passive Subwoofer (400W, 8 Ohm)
1
of
2
Loading...
€605,95
Unit price
/
Not available
Secure checkout
Electro-Voice ZX1-Sub is a passive subwoofer with 12" bass unit that delivers 800 Watt Program Power (1.200 Watt Peak)
Although the compact ZX1 Subwoofer from EV does not take up much space in the landscape, it delivers a nice sound pressure level of 127 dB Max. SPL.
The ZX1SUB can be used for a wide range of applications from bar, café and restaurant installations to mobile discos and bands.
The new ZX1-Sub is optimized for performance with a variety of EV loudspeakers, including ZX1, EVID, and EVU models, and will add a deep low-frequency punch that you can feel as well as hear.
An ideal choice to complete a wide range of smaller fixed installations or live sound systems.
Although the compact ZX1 Subwoofer from EV does not take up much space in the landscape, it delivers a nice sound pressure level of 127 dB Max. SPL.
The ZX1SUB can be used for a wide range of applications from bar, café and restaurant installations to mobile discos and bands.
Electro-Voice
ZX1-SubThe new ZX1-Sub is optimized for performance with a variety of EV loudspeakers, including ZX1, EVID, and EVU models, and will add a deep low-frequency punch that you can feel as well as hear.
An ideal choice to complete a wide range of smaller fixed installations or live sound systems.
- 15-mm plywood enclosure, internally braced, with textured paint
- EVS-12S 12" woofer for powerful, engaging bass response
- Pole mount for full-range systems
| Input Connections | NL4 style (2) |
| Nominal Impedance | 8 Ω |
| Frequency Response (-3 dB) | 53 - 125 Hz |
| Frequency Response (-10 dB) | 42 - 200 Hz |
| Sensitivity 1W/1m | 94 dB |
| Max. SPL/ 1m (calc) | 127 dB |
| System Power Handling (Contiuous/Program/Peak) | 400 / 800 / 1600 (12'') Woofer |
| Enclosed Material | 9-ply 15 mm plywood, inetrnally braced with textured paint |
| Grill | 16 GA steel with black powder coat |
| Height | 400 mm (15.75") |
| Width | 444.5 mm (17.5") |
| Depth | 457.2 mm (18") |
| Shipping Weight | 25.4 kg (56 lbs) |
| Shipping Weight | 39.3 kg (86.64 lbs) |
