- 18" passive subwoofer
- 134 dB maximum sound
- 15 mm wooden enclosure
- Durable EVCoat finish
- Mounting plate for M20 poles

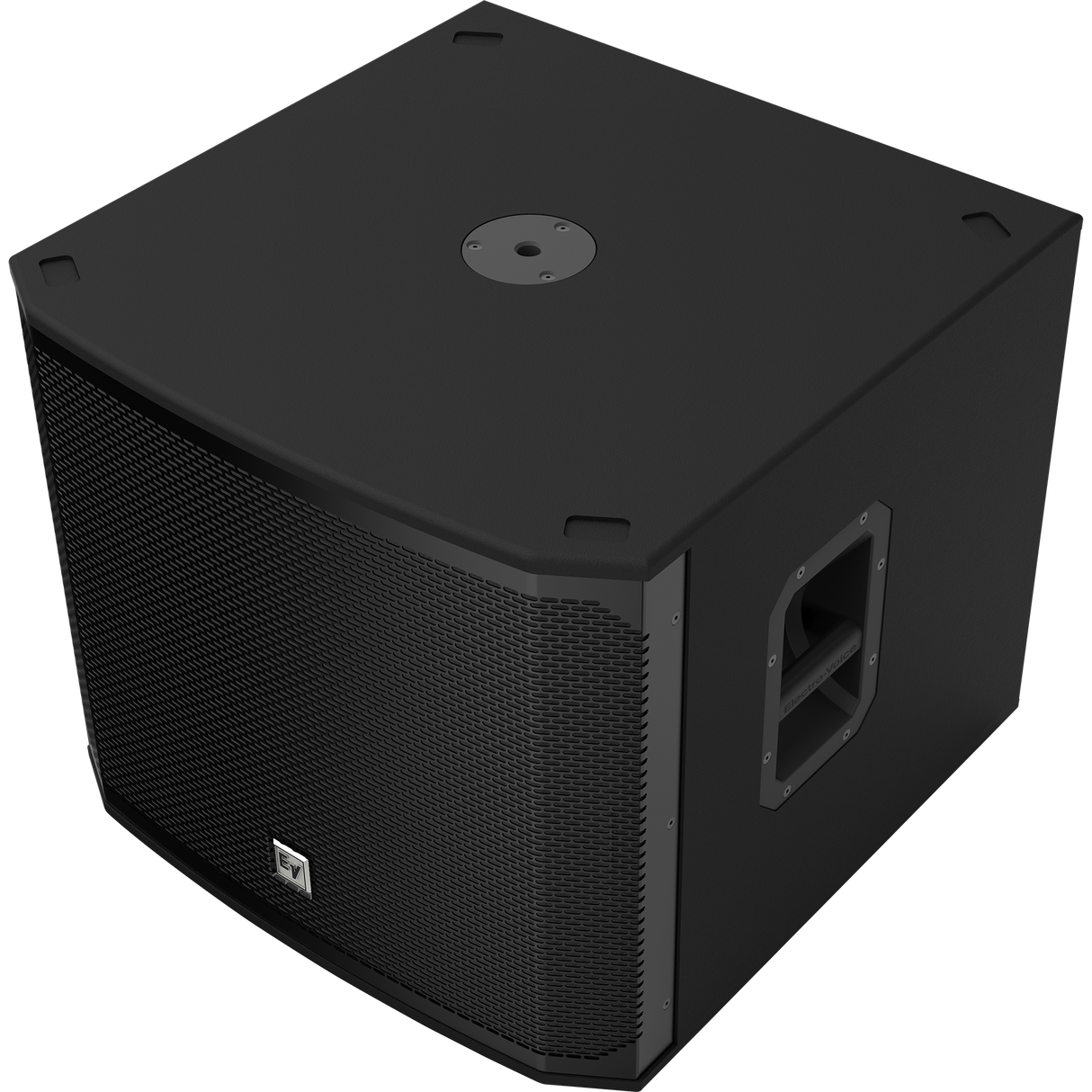

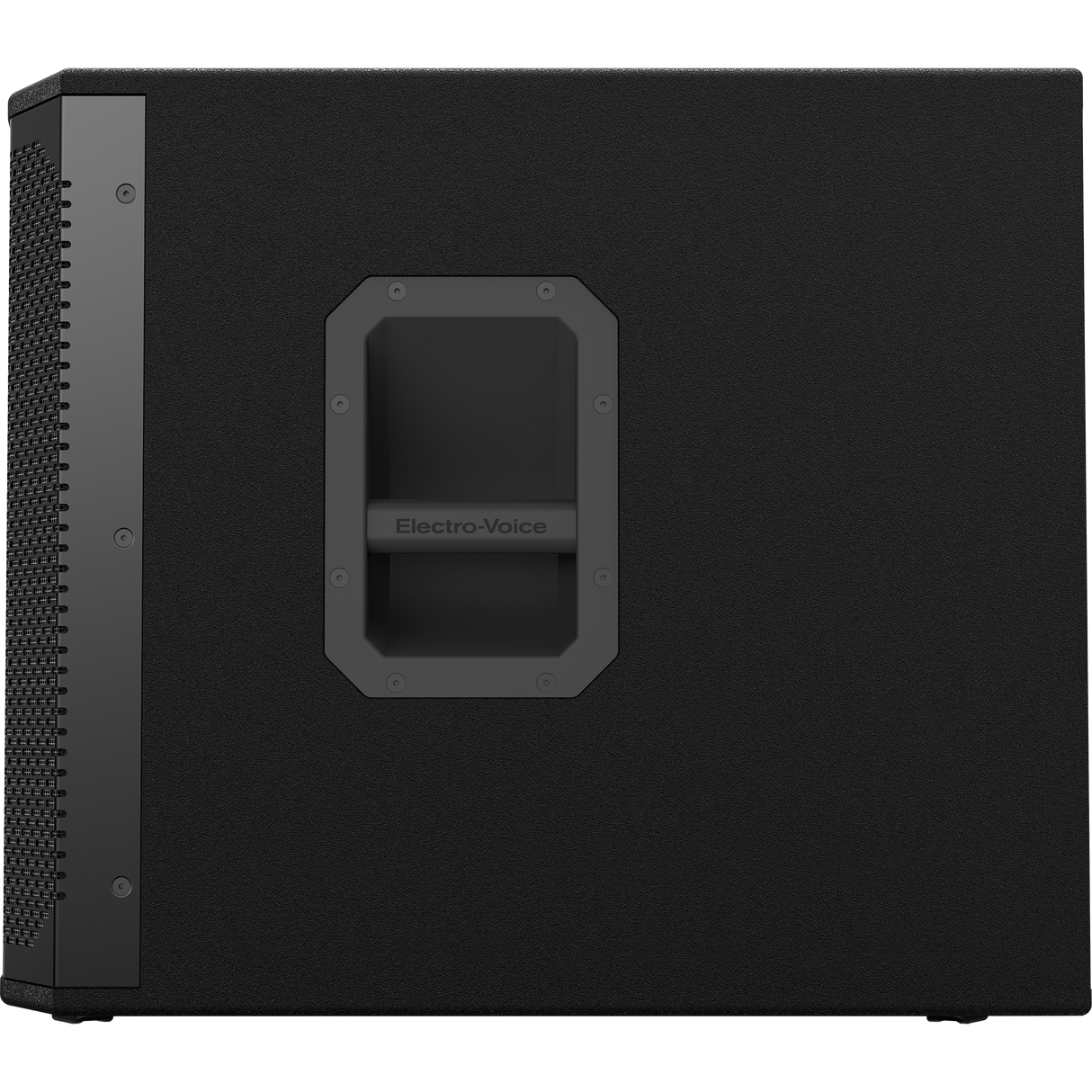

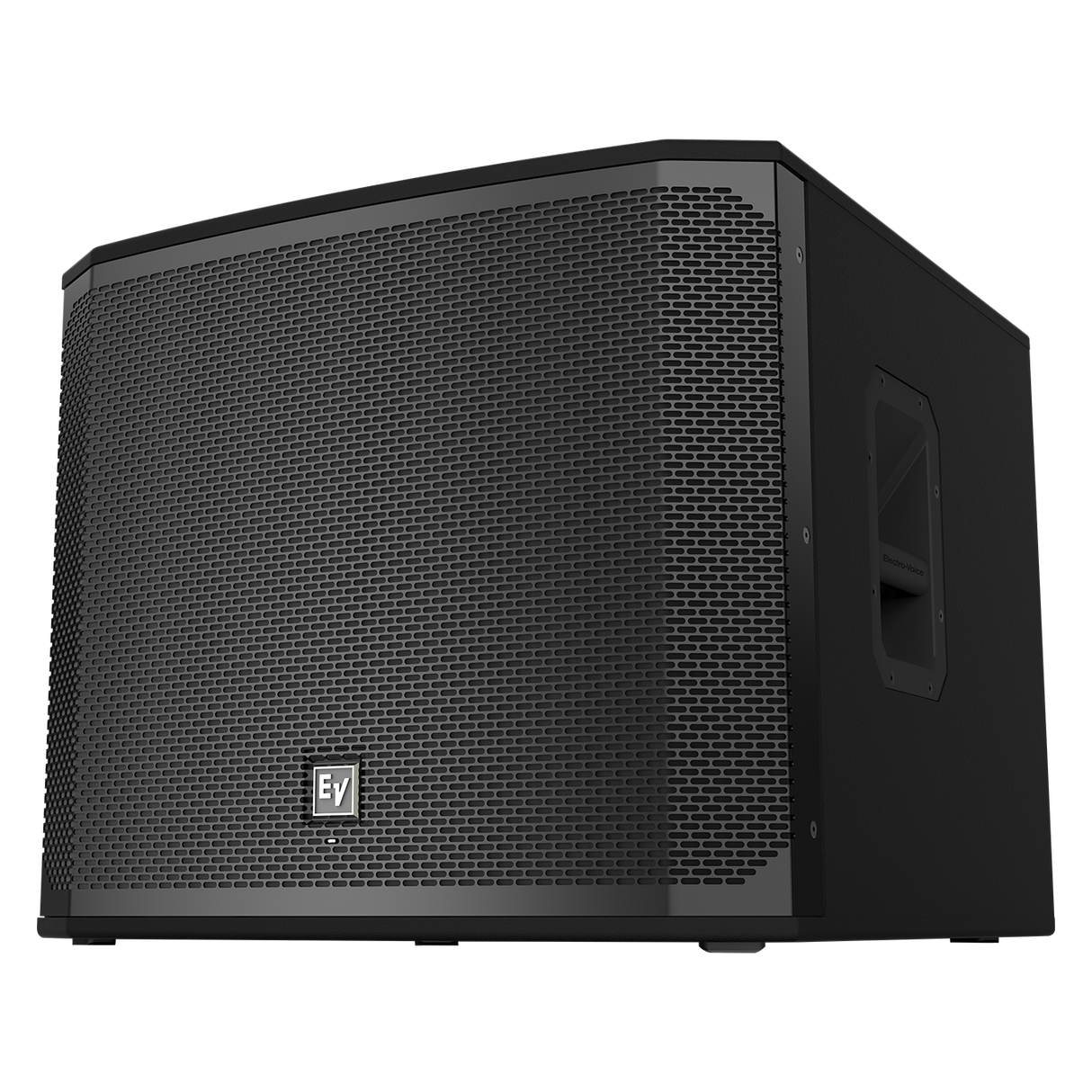

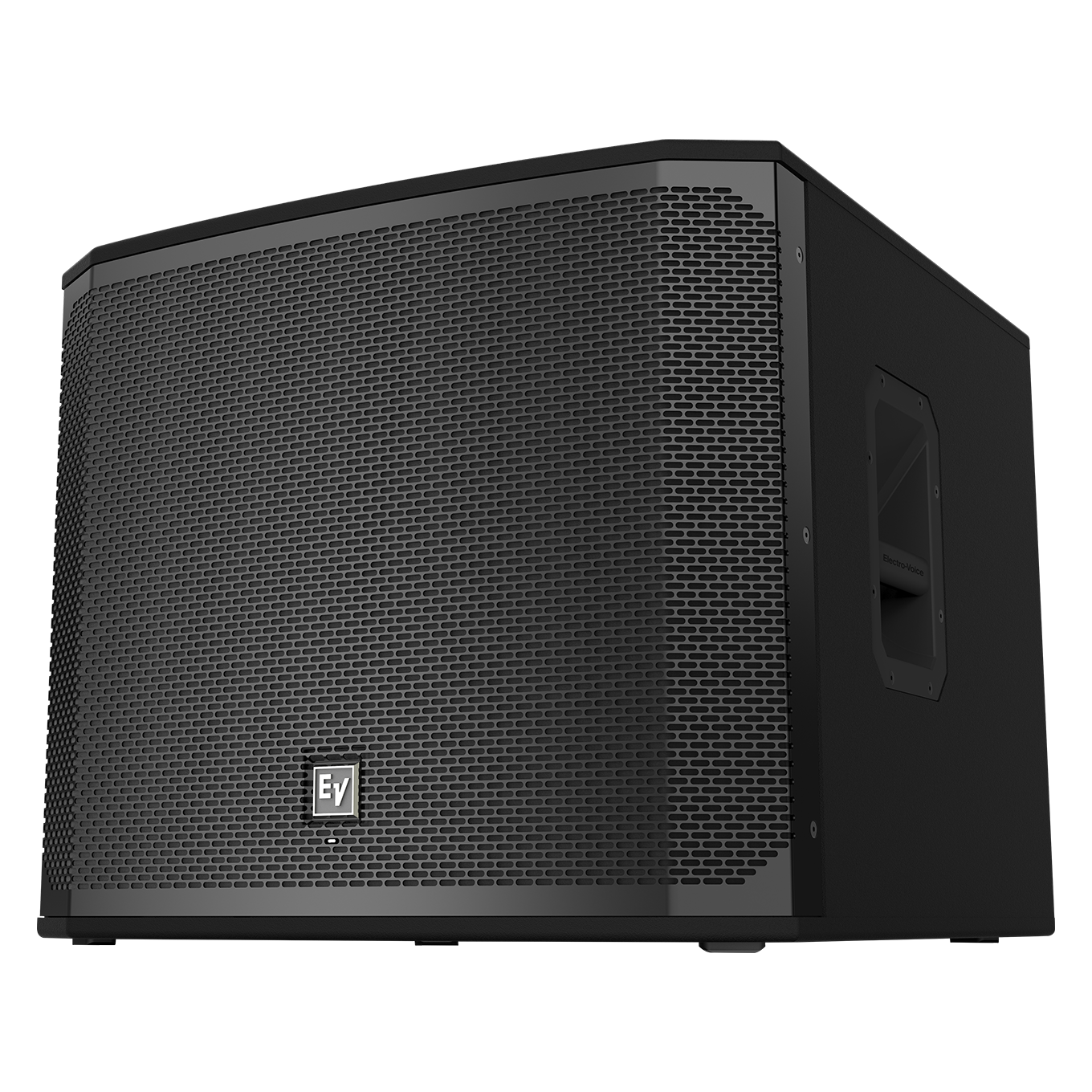

Electro-Voice EKX-18S Passive Subwoofer
Electro-Voice EKX-18S is an 18" passive subwoofer with a power handling of 400 W/1600 W (continuous/peak).
High sound level
Electro-Voice EKX-18S can produce 134 dB SPL maximum sound with high-sensitivity transducers.
Versatile and durable design
Electro-Voice EKX-18S is designed with a compact 15 mm wooden enclosure with durable EVCoat finish and a metal grille on the front. The subwoofer features a mounting plate for M20 poles.
Specifications | |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 96 dB |
| Connector Type | Dual NL4 |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 60 ° |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) | 35 Hz - 300 Hz Half Space Measurement |
| Frequency Response (-3 dB) | 50 Hz - 100 Hz Half Space Measurement |
| Grill | 18 AWG steel with powdercoat |
| LF Transducer | EVS-18C 457 mm (18 in) |
| Maximum SPL | 134 dB |
| Minimum Impedance | 7 Ω |
| Nominal Impedance | 8 Ω |
| Power Handling (Continuous / Peak) | 400 W/1600 W |
| Recommended High-Pass Frequency | 30 Hz |
| Shipping Weight | 40.1 kg (88.41 lbs) |
| Height | 12RU 520 mm (20.47") |
| Width | 606 mm (23.86") |
| Depth | 612 mm (24.09") |
| Weight Net | 31.8 kg (70.11 lbs) |
