Electro-Voice EKX-12
€631,00
Unit price
/
Not available
Description
Description
- 1400 W passive speaker
- SST waveguide
- SPL of 131 dB
- Built-in handles and mounting points
- Compact and durable

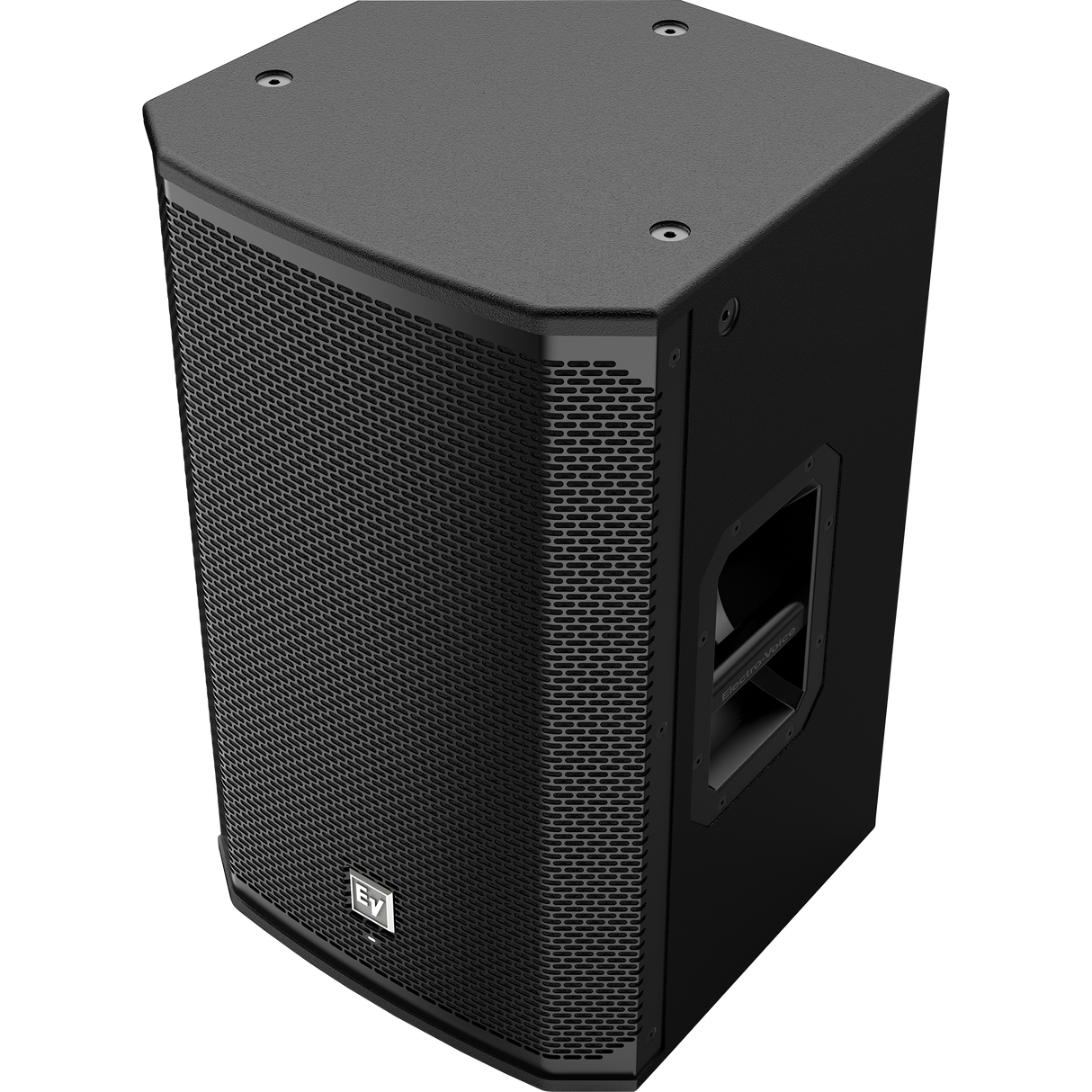

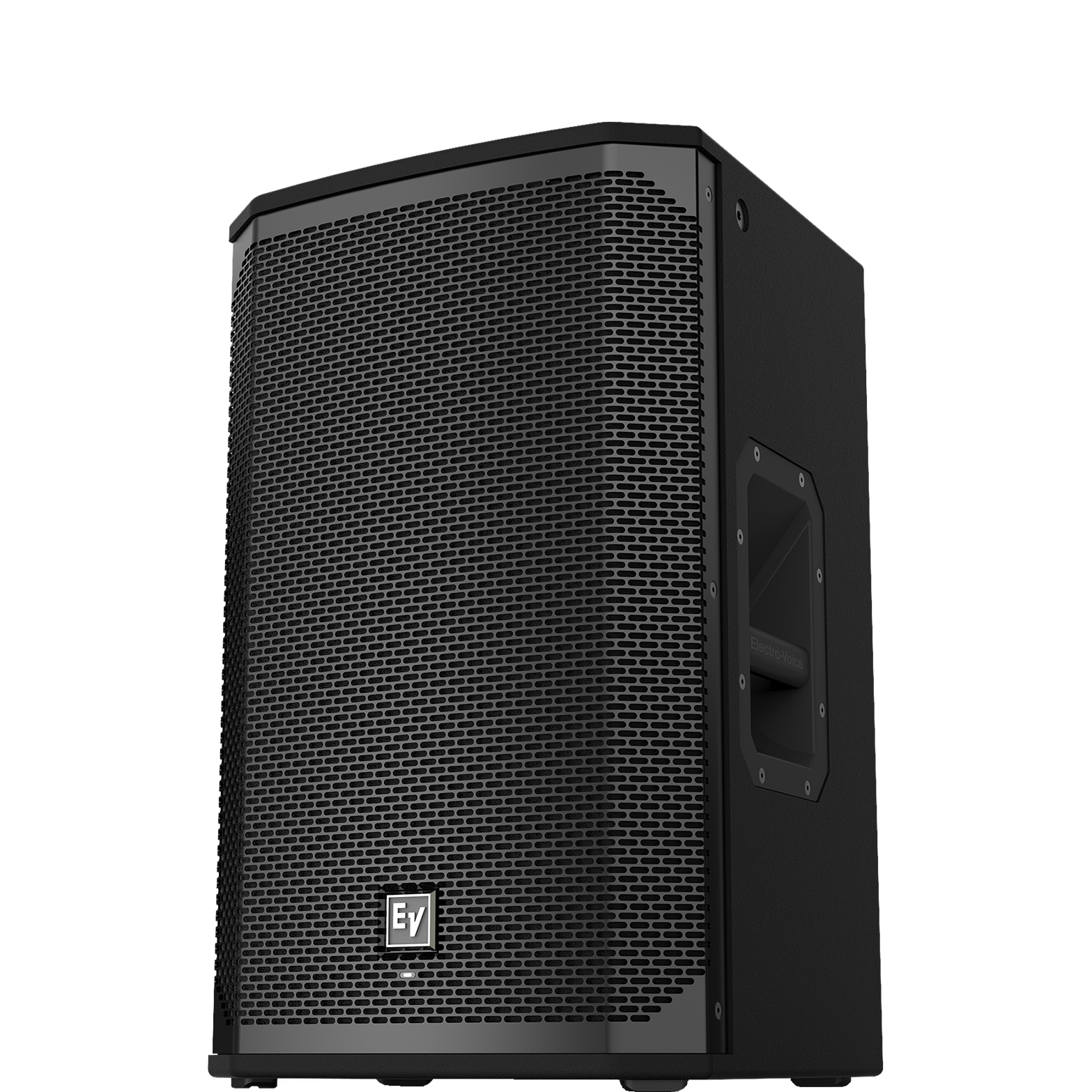

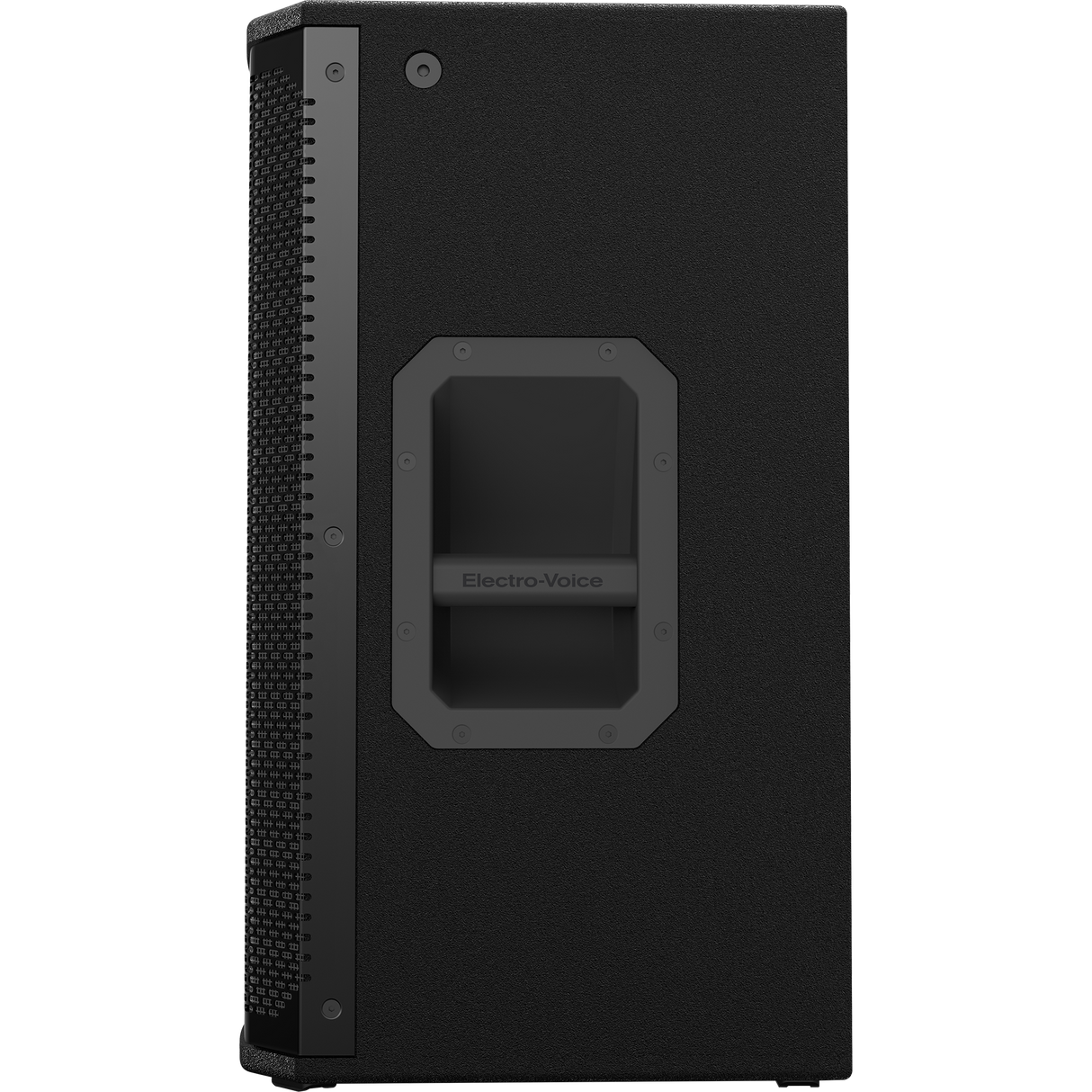

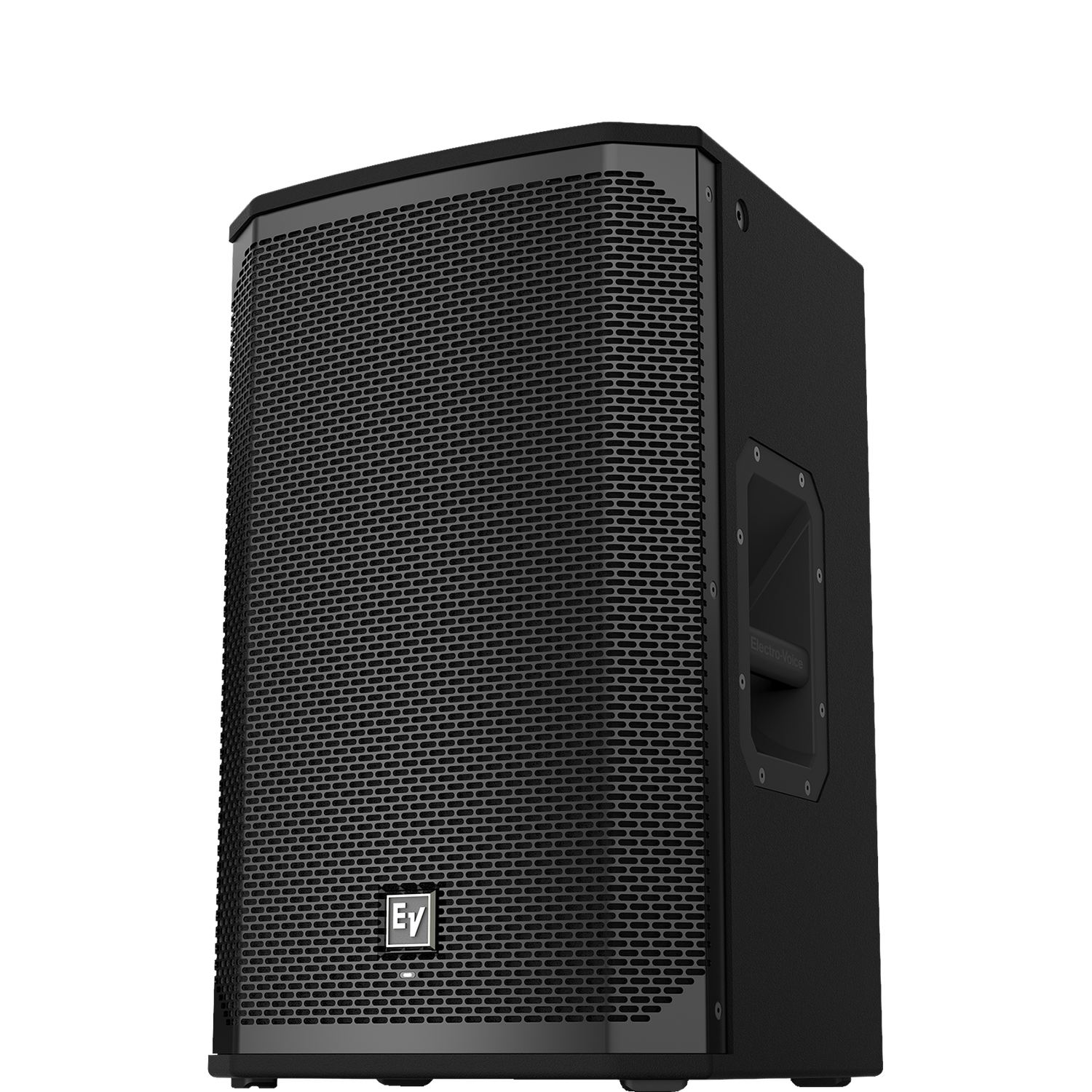

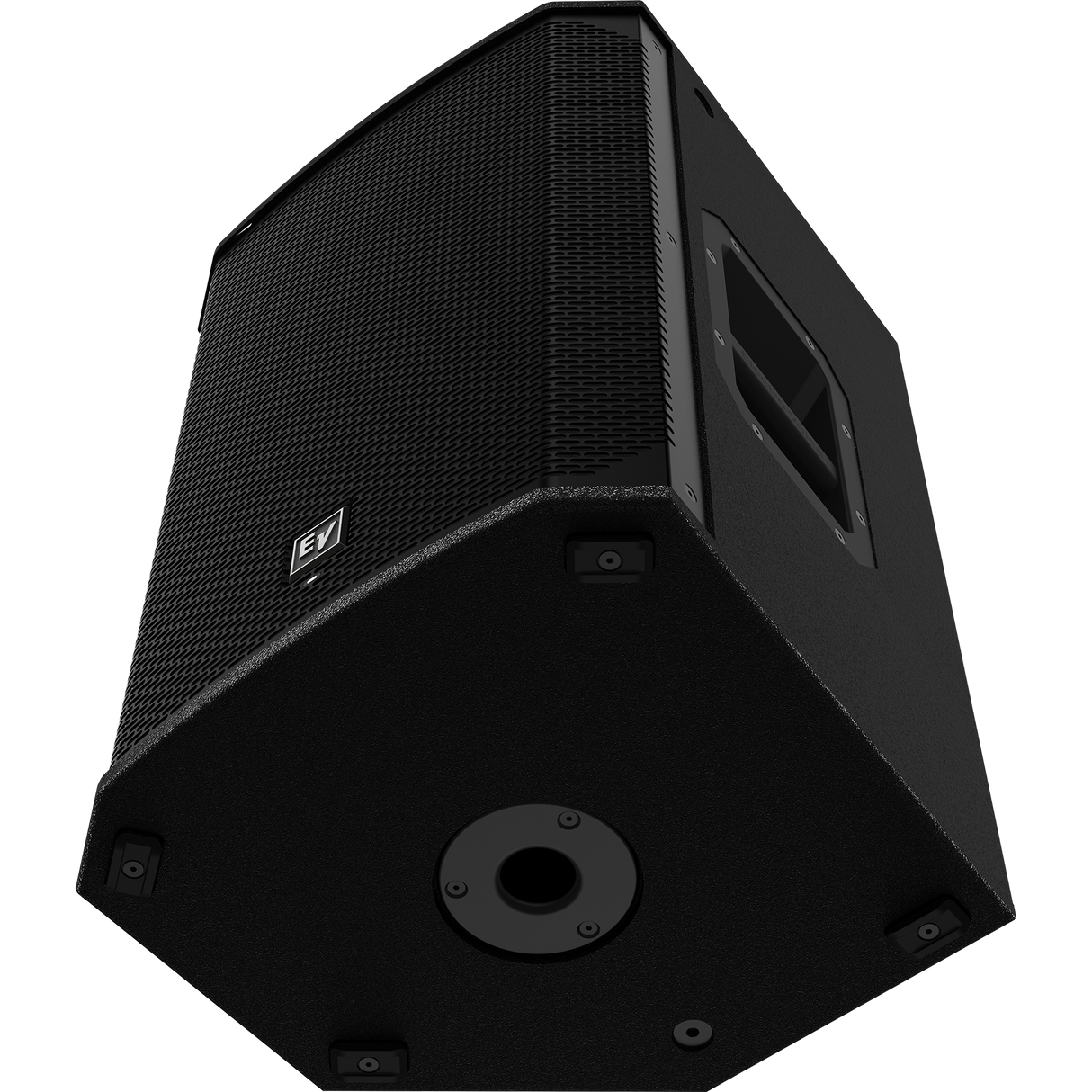

Electro-Voice EKX-12 Passive Speaker
Electro-Voice EKX-12 is a 1400 W passive speaker with built-in handles and mounting points for pole mounting. The loudspeaker has a lightweight construction and a compact wooden enclosure with a durable EVCoat finish.
Signal Synchronized Transducers
Electro-Voice The EKX-12 is designed with the Signal Synchronized Transducers (SST) waveguide system, providing a precise coverage area of 90 x 60 degrees. The speaker can also be used as a 40 degree floor monitor.
High sound pressure level
Electro-Voice The EKX-12 produces sound with a maximum sound pressure level of 131 dB.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
Specifications | |
| Axial Sensitivity(SPL, 1 W @ 1 m) | 95 dB |
| Connector Type | Dual NL4 |
| Coverage (Nominal -6 dB) H | 90 ° |
| Crossover Frequency | 1.6 k Hz |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) | 55 Hz - 20 k Hz Full Space Measurement |
| Frequency Response (-3 dB) | 82 Hz - 18 k Hz Full Space Measurement |
| Grill | 18 AWG steel with powdercoat |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| LF Transducer | EVS-12M 300 mm (12 in) |
| Maximum SPL | 131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating |
| Minimum Impedance | 7.5 |
| Nominal Impedance | 8 |
| Power Handling (Continuous / Peak) | 350 W/1400 W |
| RecommendedHigh-Pass Frequency | 55 Hz |
| Shipping Weight | 21.4 kg (47.18 lbs) |
| Suspension | (8) M10 threaded mounting points |
| Height | 14RU 607 mm (23.9") |
| Width | 375 mm (14.76") |
| Depth | 356 mm (14.02") |
| Weight Net | 17.4 kg (38.36 lbs) |
Brand: Electro-Voice
SKU: EV-EKX-12
Weight: 17.4 kg
