Electro-Voice EKX-15
- 1600 W passive speaker
- SST waveguide design
- 132 dB sound level
- Durable finish
- Built-in handles and pole mounts

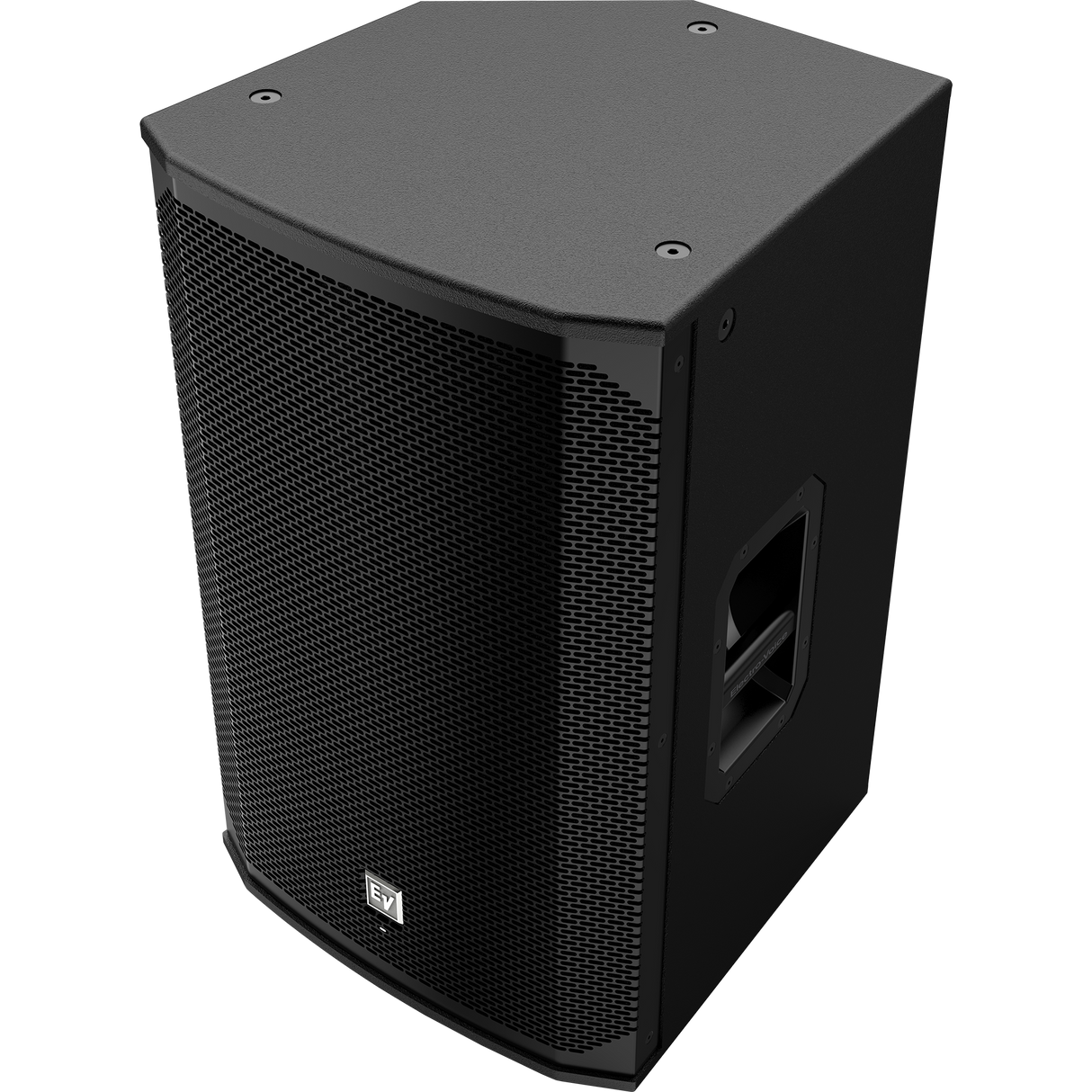

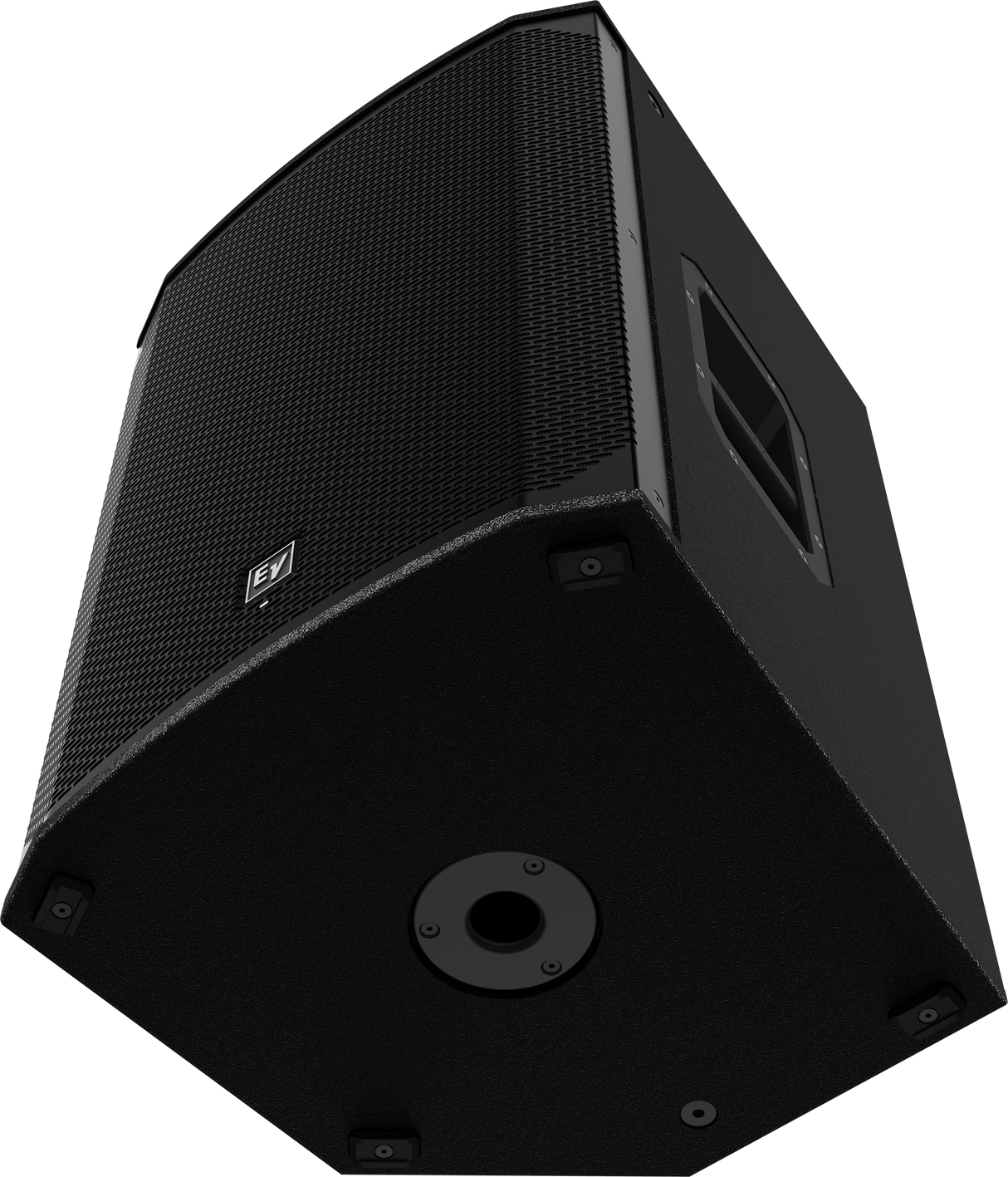

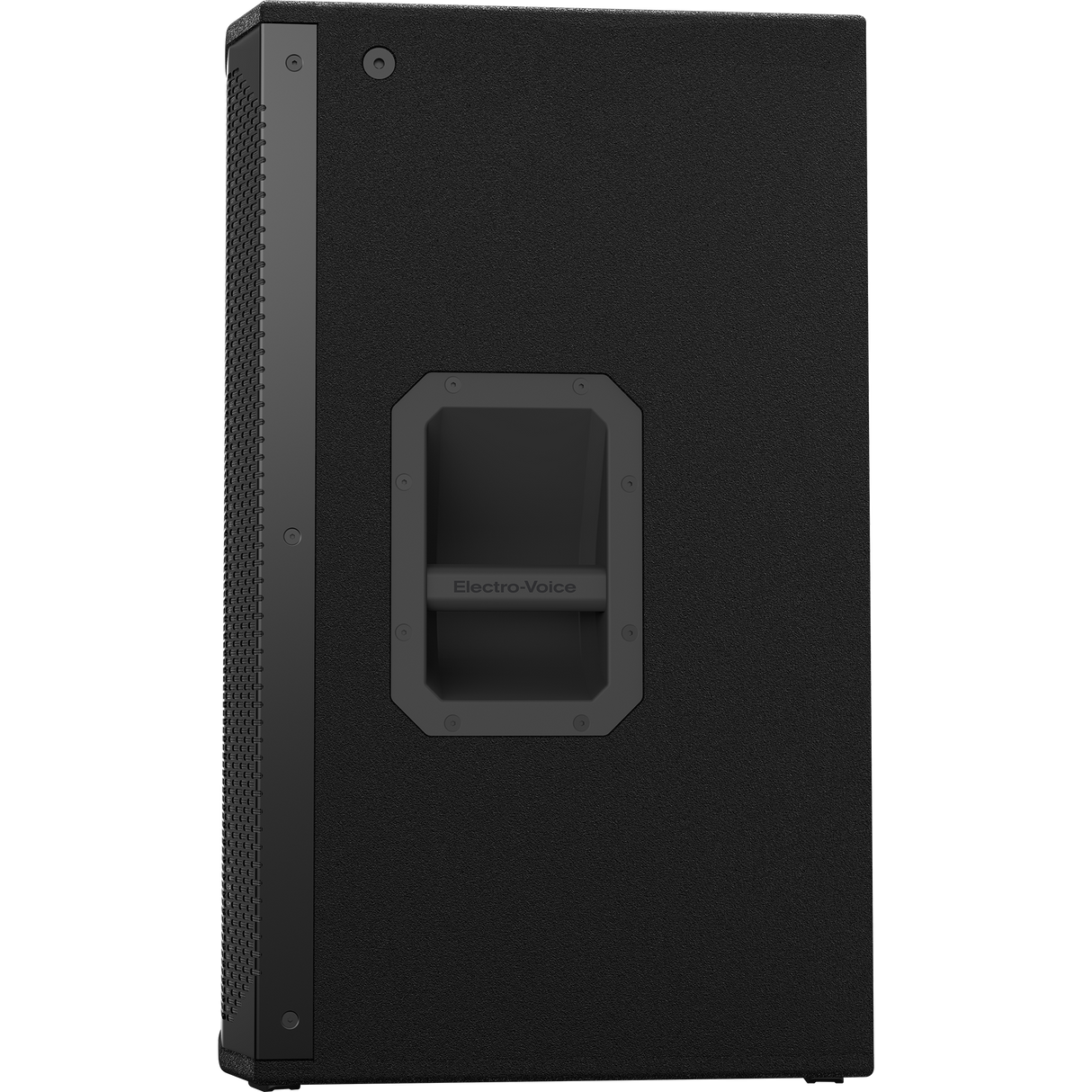

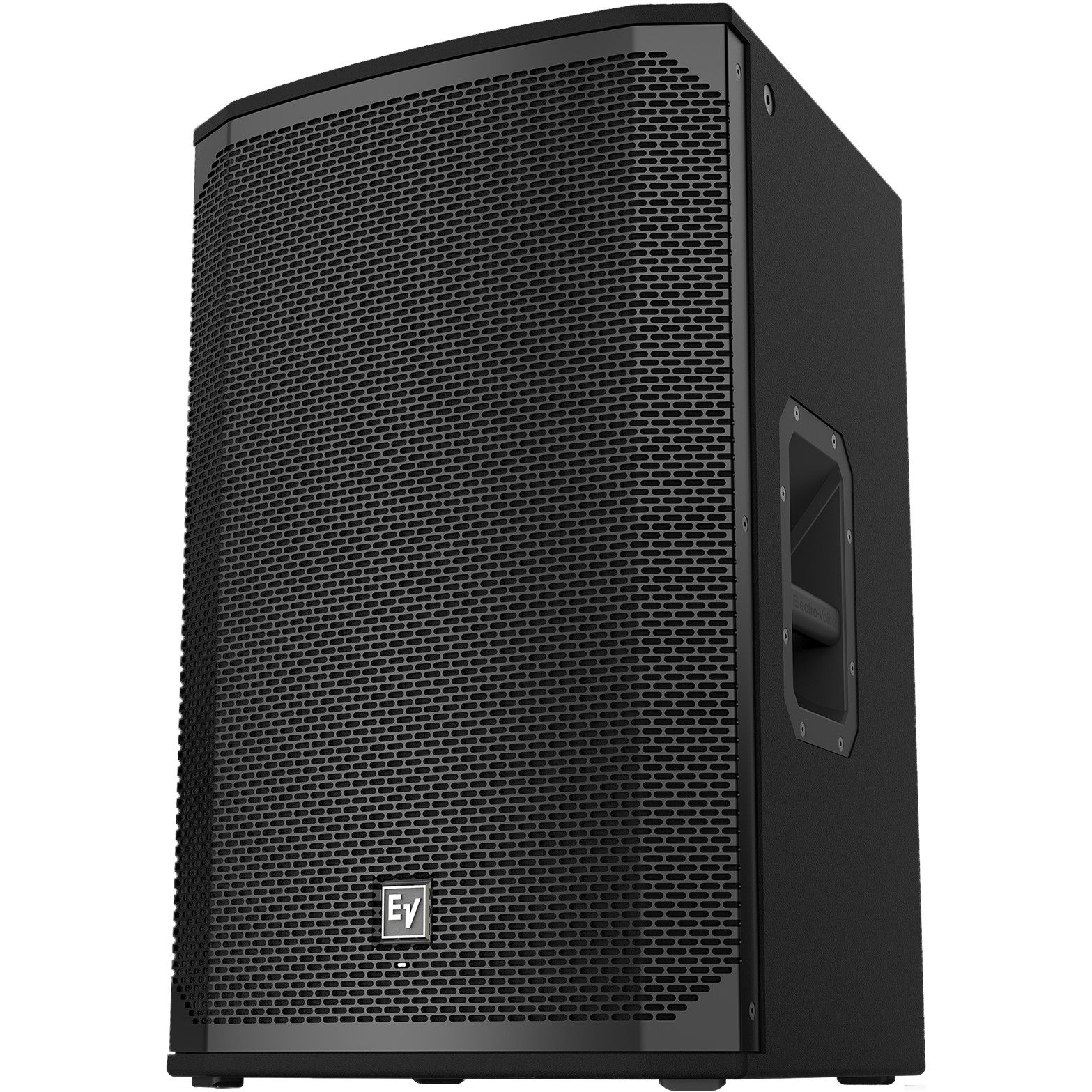

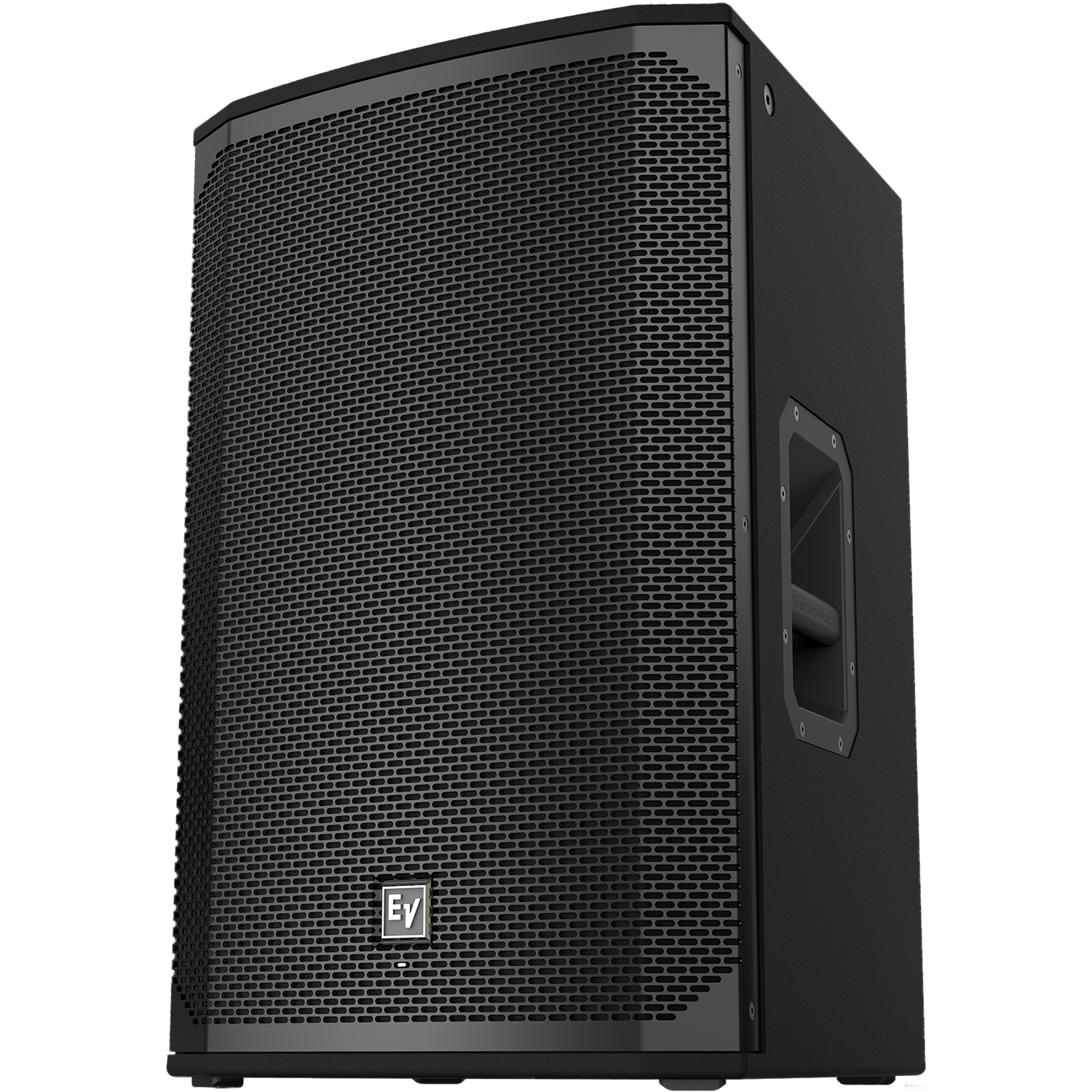

Electro-Voice EKX-15 Passive Speaker
The Electro-Voice EKX-15 is a 1600 W passive speaker with a frequency response of 50 Hz to 20 kHz. The speaker is built in a compact 15? wooden enclosure with a durable EVCoat finish. The Electro-Voice EKX-15 has built-in handles and pole mounts.
SST waveguide design
The Electro-Voice EKX-15 features Signal Synchronized Transducers (SST) waveguide design, providing a precise and consistent coverage area of 90 x 60 degrees. The speaker can also be used as a floor monitor.
High sound level
Using high-sensitivity transducers, the Electro-Voice EKX-15 can produce sound up to 132 dB.
Specifications | |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 96 dB Full Space Measurement |
| Connector Type | Dual NL4 |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 60 ° |
| Crossover Frequency | 1.6 k Hz |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) | 50 Hz - 20 k Hz Full Space Measurement |
| Frequency Response (-3 dB) | 75 Hz - 18 k Hz Full Space Measurement |
| Grill | 18 AWG steel with powdercoat |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| LF Transducer | EVS-15M 381 mm (15 in) |
| Maximum SPL | 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating |
| Minimum Impedance | 7.2 Ω |
| Nominal Impedance | 8 Ω |
| Power Handling (Continuous / Peak) | 400 W/1600 W |
| Recommended High-Pass Frequency | 50 Hz |
| Shipping Weight | 28.2 kg (62.17 lbs) |
| Suspension | (8) M10 threaded mounting points |
| Height | 16RU 685 mm (26.97") |
| Width | 432 mm (17.01") |
| Depth | 429 mm (16.89") |
| Weight Net | 23.2 kg (51.15 lbs) |
