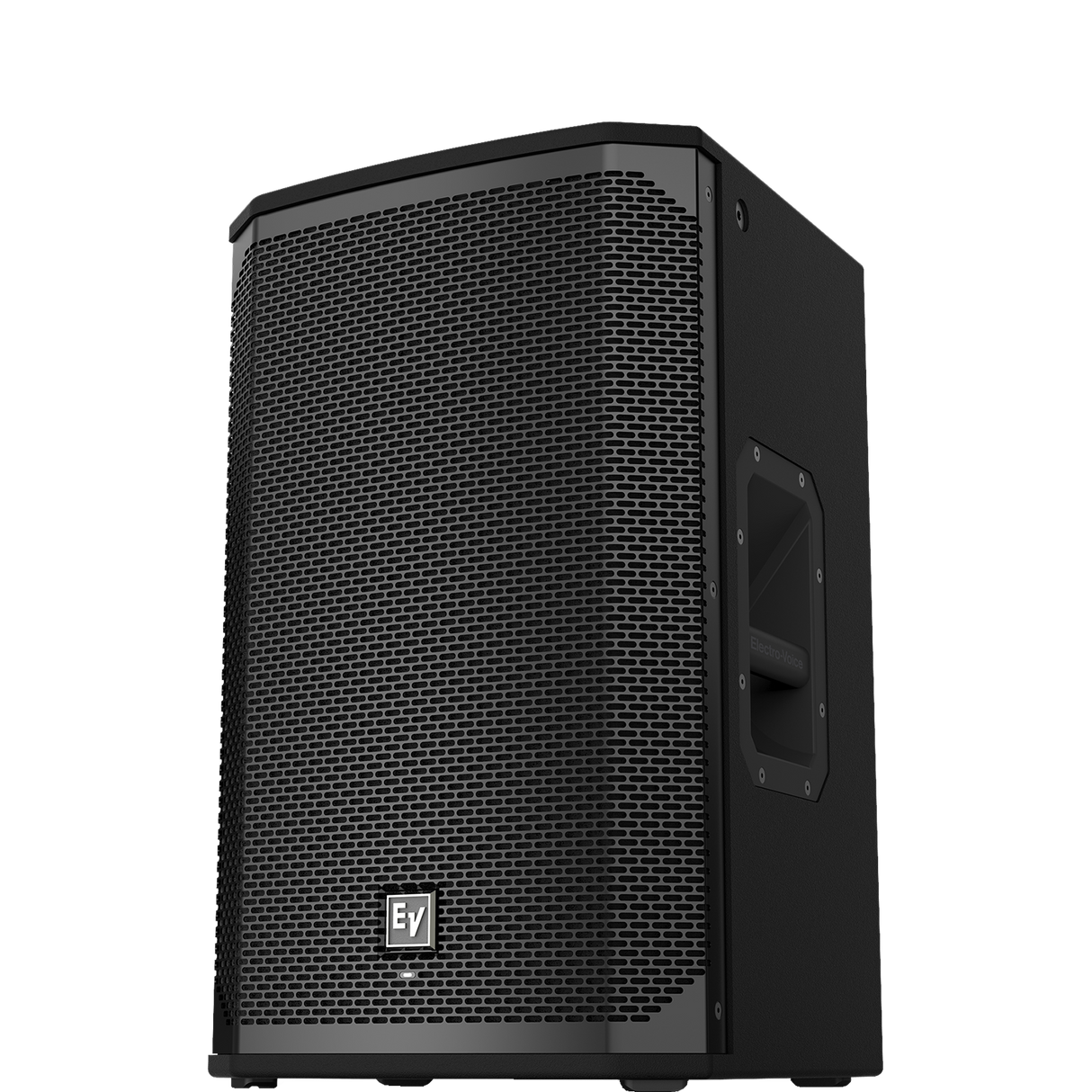

The Electro-Voice EKX-15P is an active 2-way PA speaker with a 15" woofer, designed for both live use and mobile sound setups. The cabinet is made of wood and treated with EVCoat, providing a durable finish and a construction suitable for transport and daily use.
The speaker is equipped with a 1500 W Class D amplifier, capable of delivering up to 134 dB sound pressure. This makes it suitable for situations requiring high output and clear reproduction.
The integrated QuickSmartDSP provides access to settings via an LCD display with intuitive navigation. Here you can adjust sound and setup directly on the unit.
The EKX-15P also features built-in intelligent thermal management with active cooling, which helps maintain stable operation under load and extended use.
Specifications
- Type: Active PA speaker
- System: 2-way
- Woofer: 15"
- Amplifier: 1500 W Class D
- Max. SPL: 134 dB
- DSP: QuickSmartDSP with LCD display
- Cabinet: Wood with EVCoat finish
- Cooling: Intelligent thermal management
Specifications | |

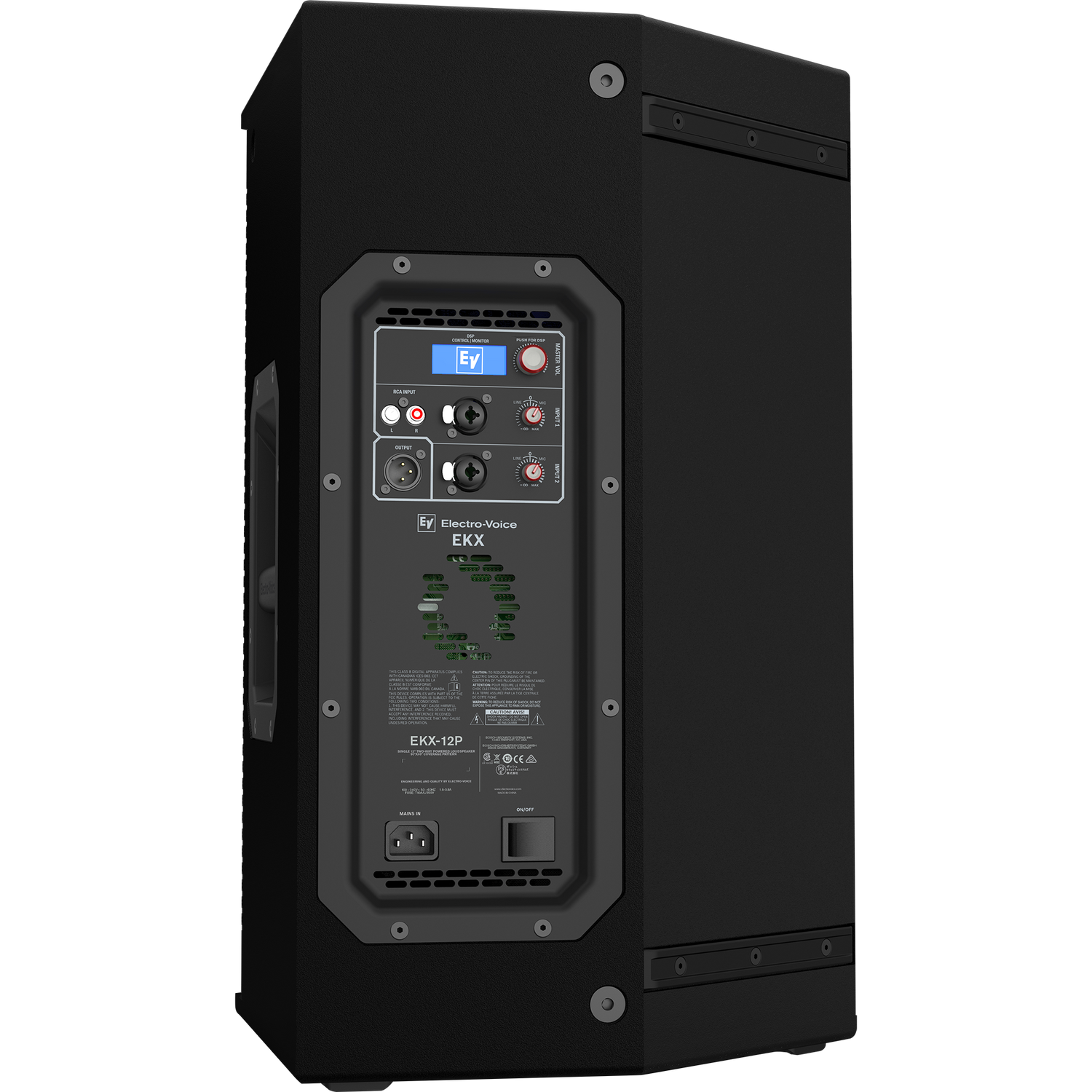

| Connector Type | (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 60 ° |
| Crossover Frequency | 1.7 k Hz |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) | 48 Hz - 20 kHz Hz Full space measurement using the music DSP preset |
| Frequency Response (-3 dB) | 55 Hz - 18 kHz Hz Full space measurement using the music DSP preset |
| Grill | 18 AWG steel with powdercoat |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| LF Transducer | EVS-15M 381 mm (15 in) |
| Maximum SPL | 134 dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output |
| Power Consumption | 1.8 A Current rating is 1/8 power |
| Power Rating | 1500 W |
| Shipping Weight | 29.5 kg (65.04 lbs) |
| Suspension | (8) M10 threaded mounting points |
| Height | 16RU 685 mm (26.97") |
| Width | 432 mm (17.01") |
| Depth | 429 mm (16.89") |
| Weight Net | 24.4 kg (53.79 lbs) |
