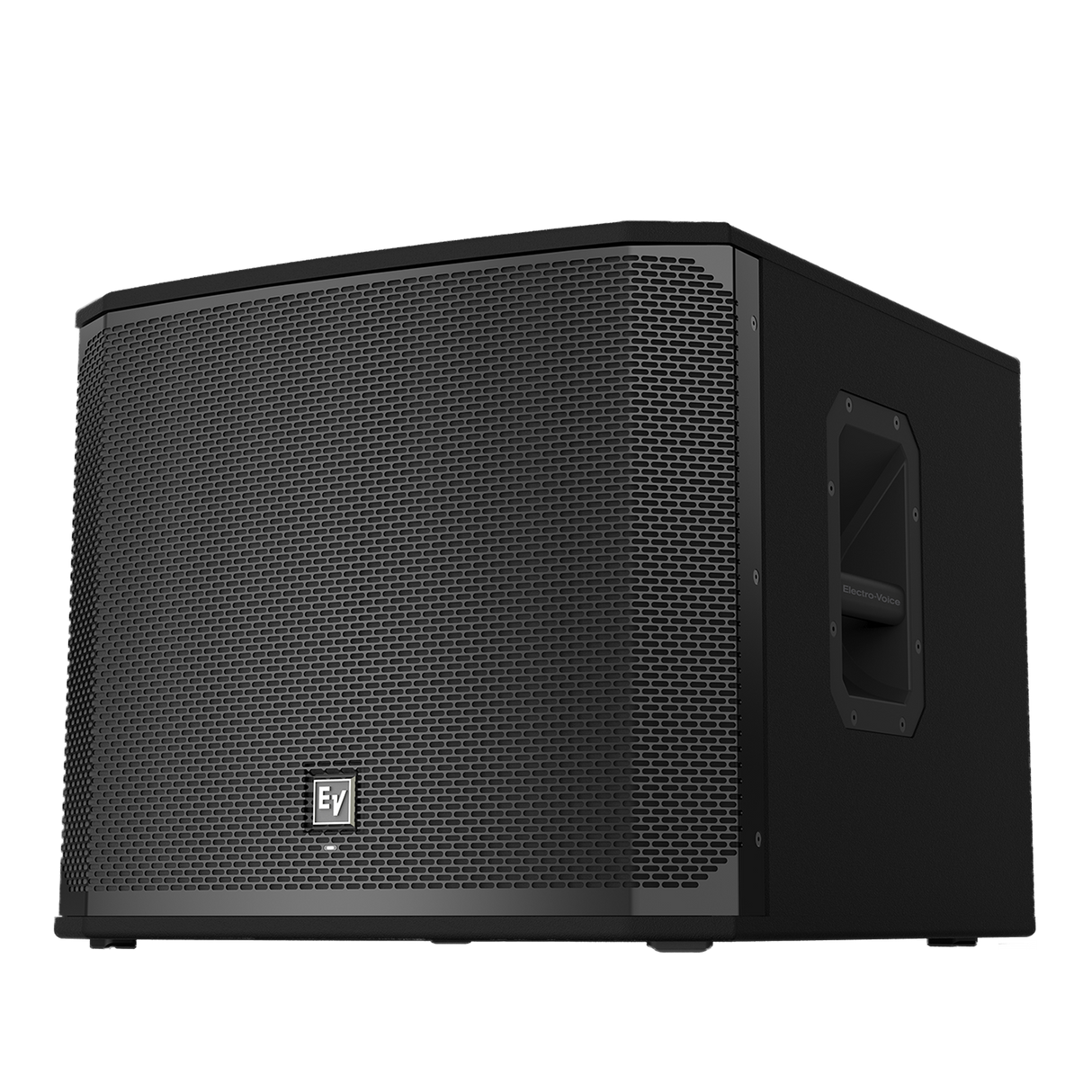

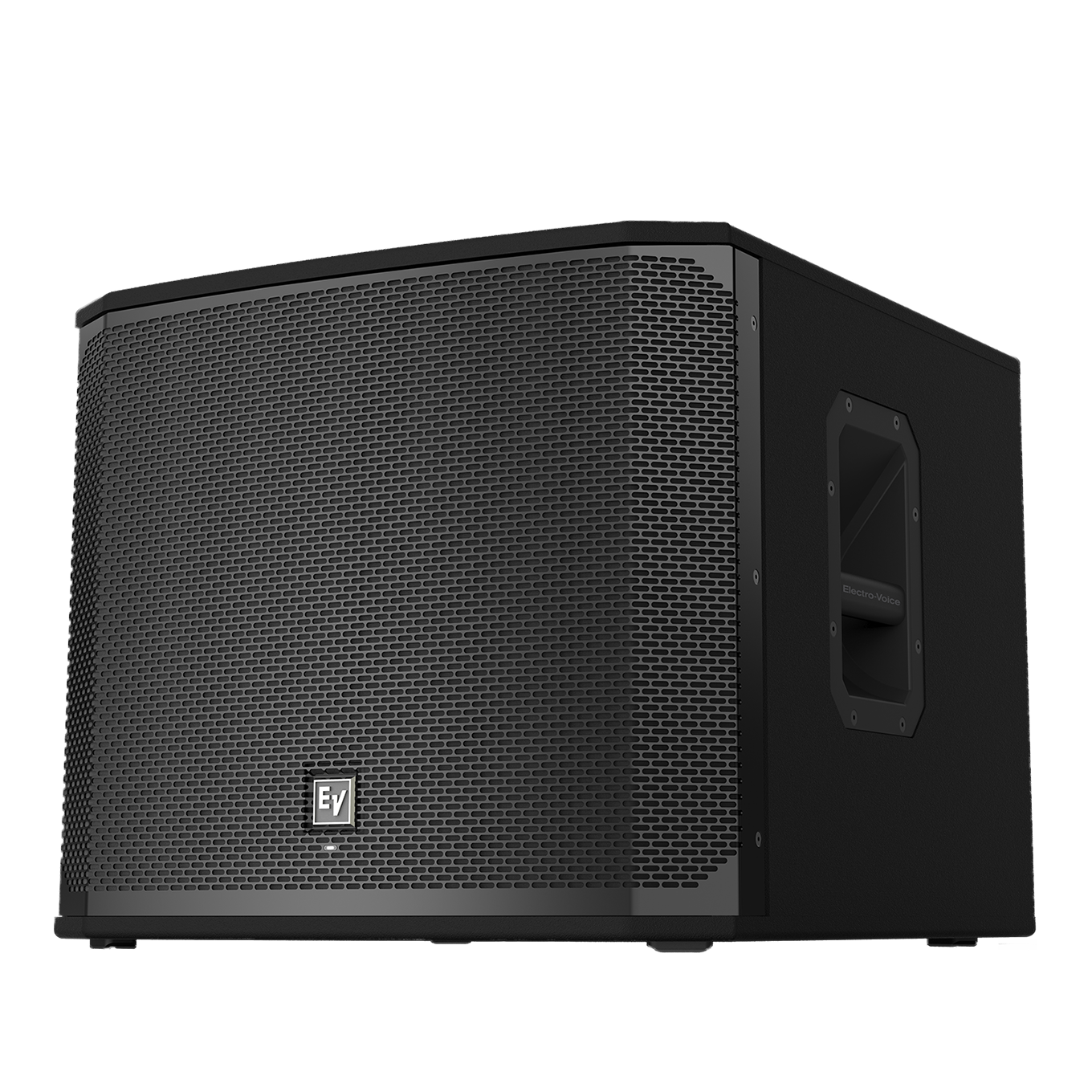

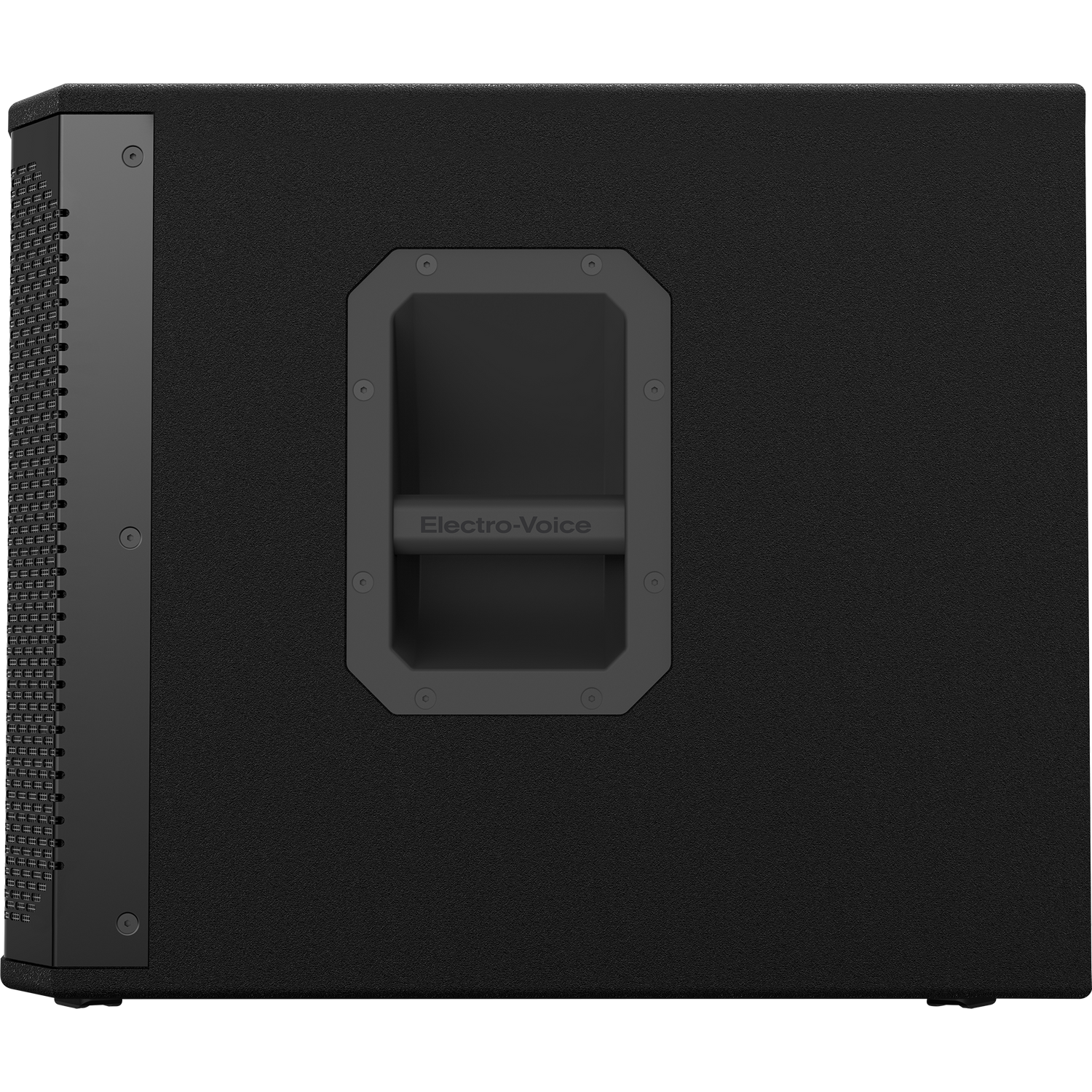

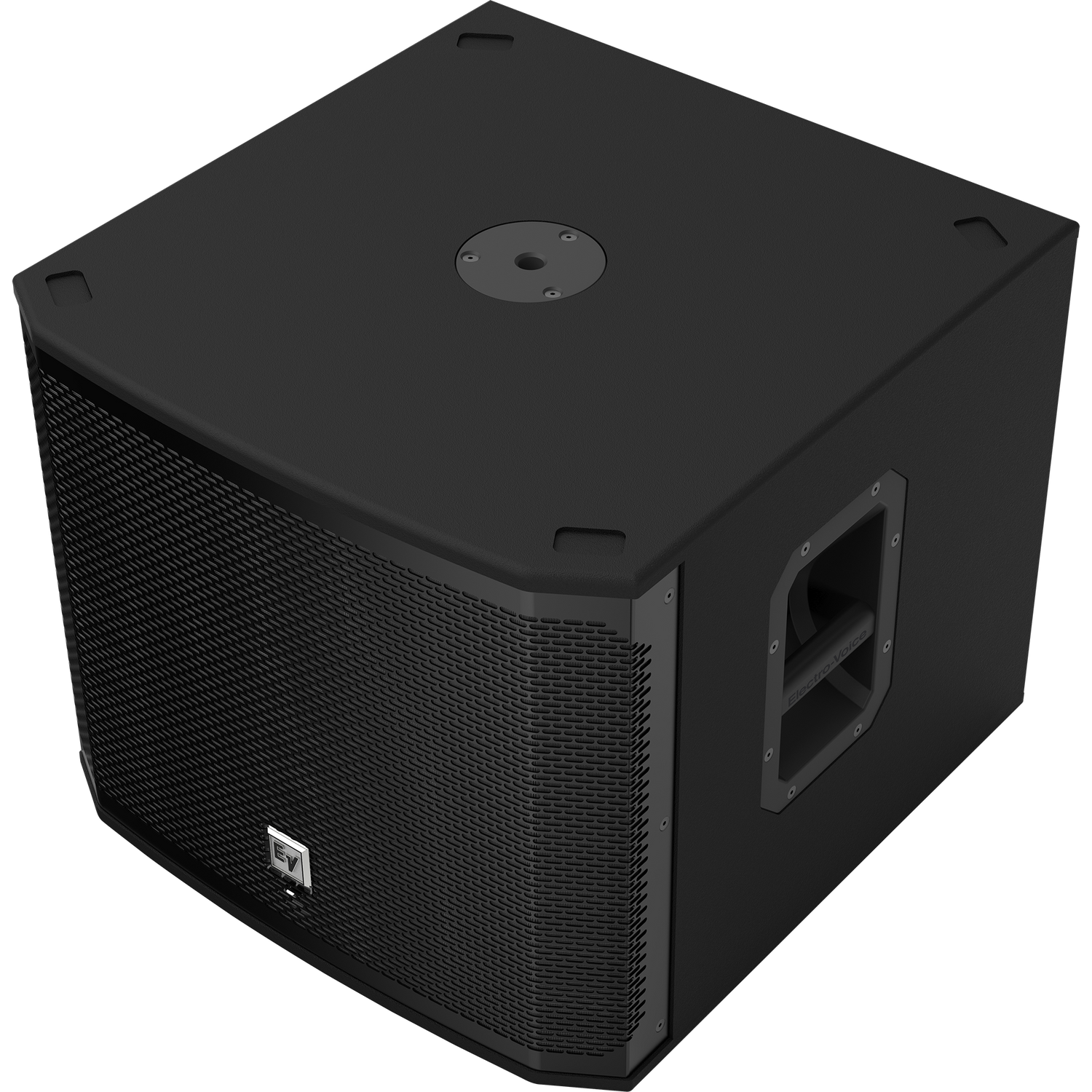

The Electro-Voice EKX-15SP is an active subwoofer with QuickSmartDSP, user interface, and navigation via LCD display. It is equipped with 2 XLR outputs for connecting speakers or additional subwoofers.
Class D amplifier
The built-in 1300 W Class D amplifier delivers up to 133 dB sound pressure. The subwoofer features sensor-controlled fans, contributing to stable operation under load.
Cardioid Control technology
Cardioid Control allows you to direct the sound, focusing the output forward towards the audience while reducing sound from the rear.
Specifications | |

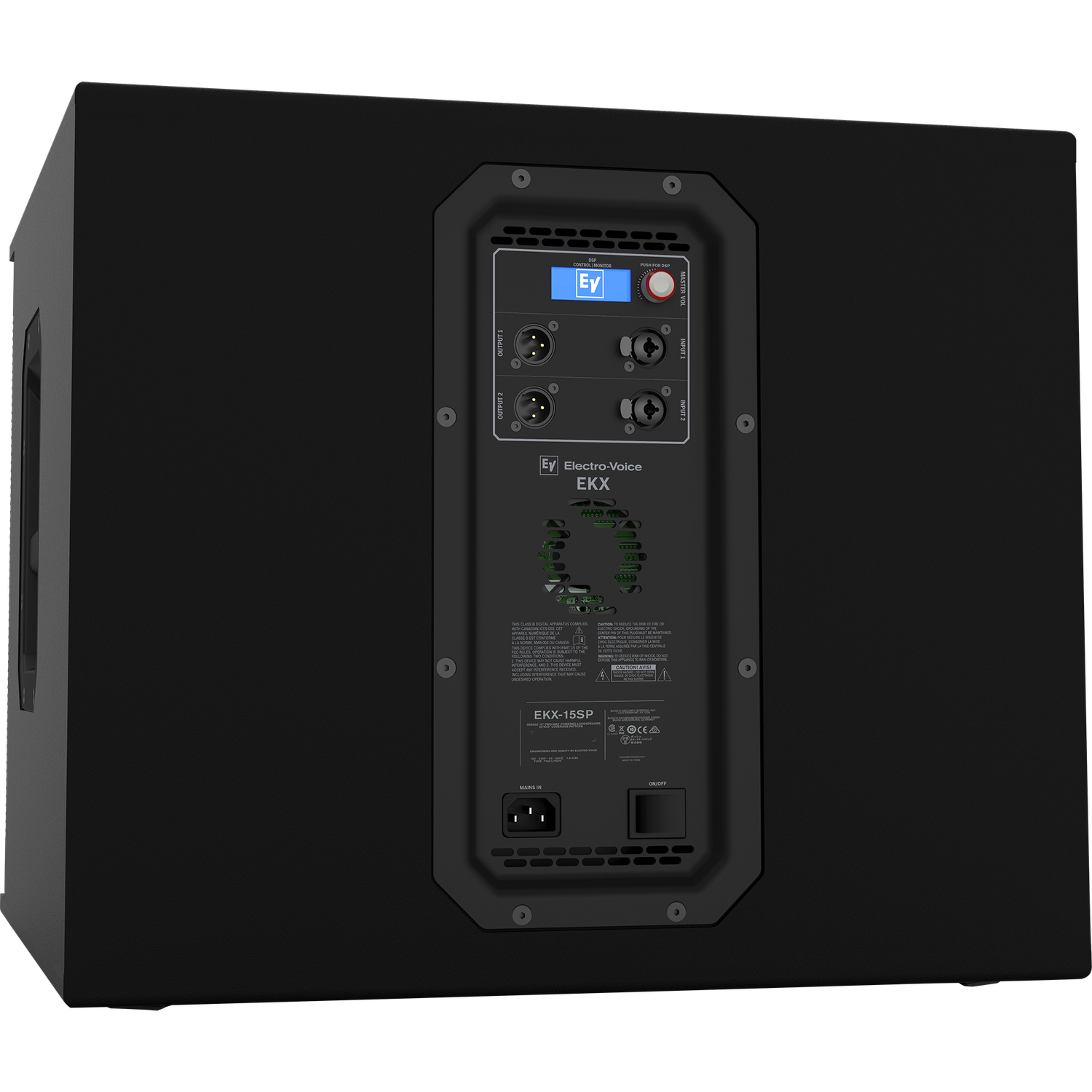

| Connector Type | (2) XLR/TRS combo jacks and (2) XLR link outputs |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) | 40 Hz - 180 Hz Hz Half Space Measurement |
| Frequency Response (-3 dB) | 45 Hz - 150 Hz Hz Half Space Measurement |
| Grill | 18 AWG steel with powdercoat |
| LF Transducer | EVS-15C 381 mm (15 in) |
| Low Pass Frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
| Maximum SPL | 133 dB peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output |
| Power Consumption | 1.8 A Current rating is 1/8 power |
| Power Rating | 1300 W |
| Shipping Weight | 32.6 kg (71.87 lbs) |
| Height | 11RU 455 mm (17.91") |
| Width | 530 mm (20.87") |
| Depth | 551 mm (21.69") |
| Weight Net | 26.2 kg (57.76 lbs) |
