LD Systems SAT 82 A G2
2-vejs basreflex design
8" custom made woofer
80 Watt Class AB effektforstærker
Frekvensgang på 50 Hz - 20 kHz
LD Systems SAT 82 A G2

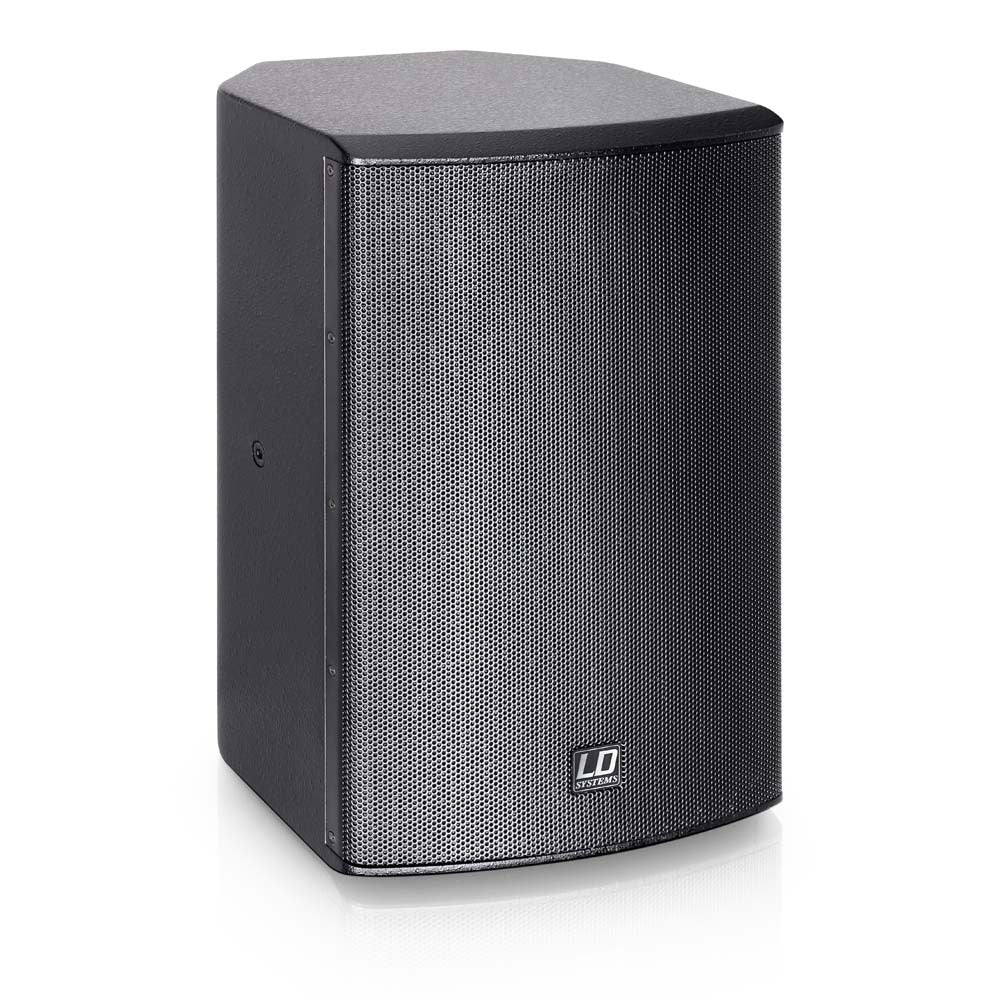

8" active installation monitor black
The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.
The compact 2-way bass reflex design is equipped with an 8" custom-made woofer and a 1" compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz - 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

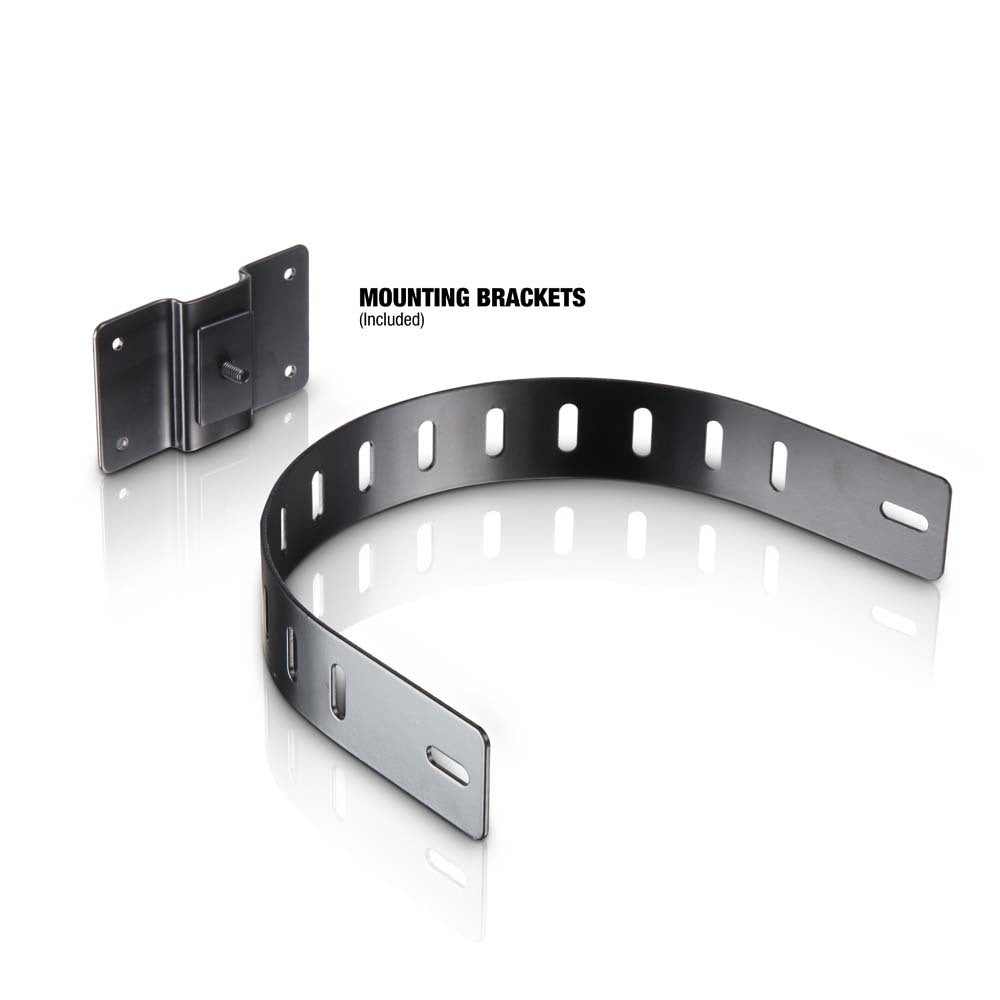

The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.
Specifications | |
|---|---|
| Product number: | LDSAT82AG2 |
| Product type: | Installation Monitor |
| Type: | active |
| Low/mid driver dimensions: | 8" |
| Low/mid driver dimensions (mm): | 203.2mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| HF driver dimensions: | 1" |
| HF driver dimensions (mm): | 25mm |
| HF driver brand: | Custom-made |
| Power amplifier (Class A): | Class A/B |
| Dispersion (H x V): | 60° x 60° |
| RMS: | 80W |
| Frequency response: | 50 - 20000Hz |
| Max. SPL: | 114dB |
| Protection circuits: | HF Driver, over voltage |
| Controls: | mains switch (on/off), volume |
| Indicators: | overload, Power |

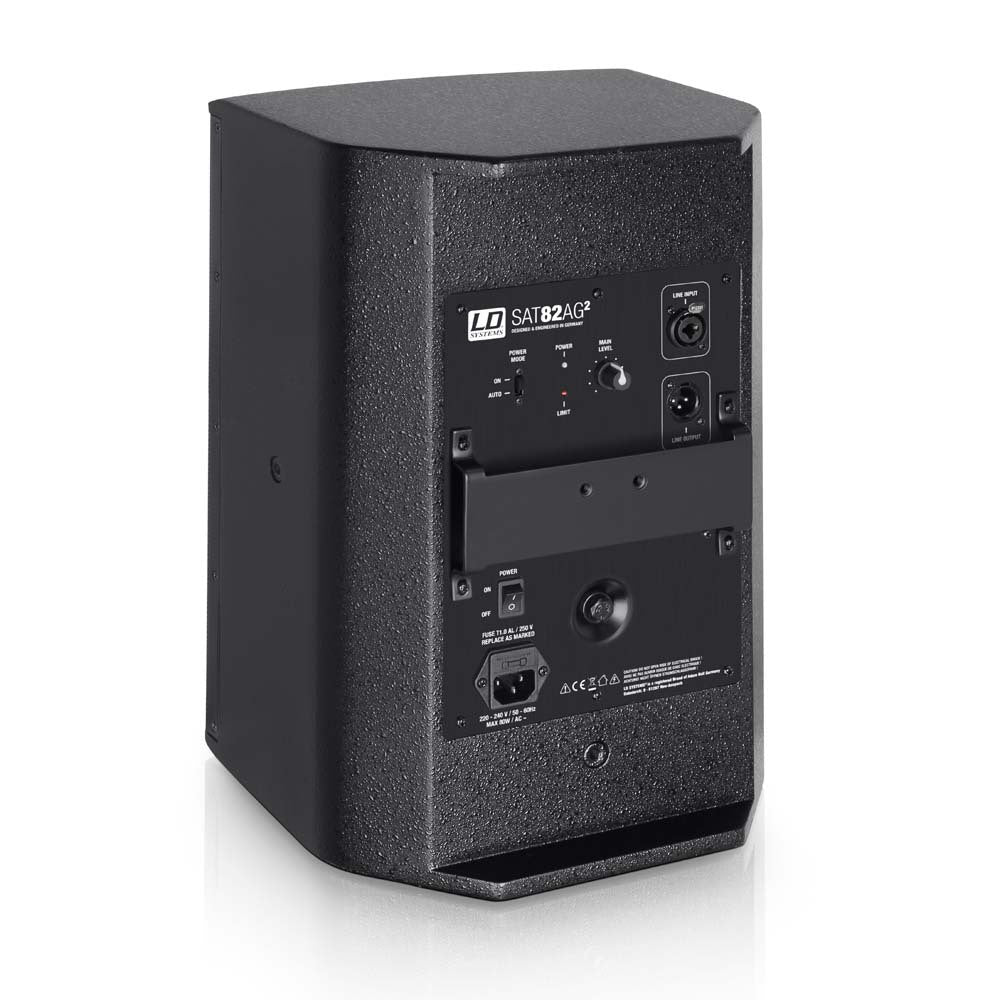

| Line input connectors: | 6.3 mm Jack, XLR |
| Line output connectors: | XLR |
| Operating voltage: | transformer, 220 V AC - 240 V AC, 50-60 Hz |
| Cabinet material: | 12 mm MDF |
| Cabinet surface: | texture paint |
| Cabinet colour: | black |
| Cabinet construction: | vented |
| Width: | 274mm |
| Height: | 410mm |
| Depth: | 243mm |
| Weight: | 8.5kg |
| Accessories (included): | wall bracket |
