Cameo SB 6 Dual
Cameo SB 6 DUAL
6-channel DMX splitter / booster (3-pin and 5-pin)

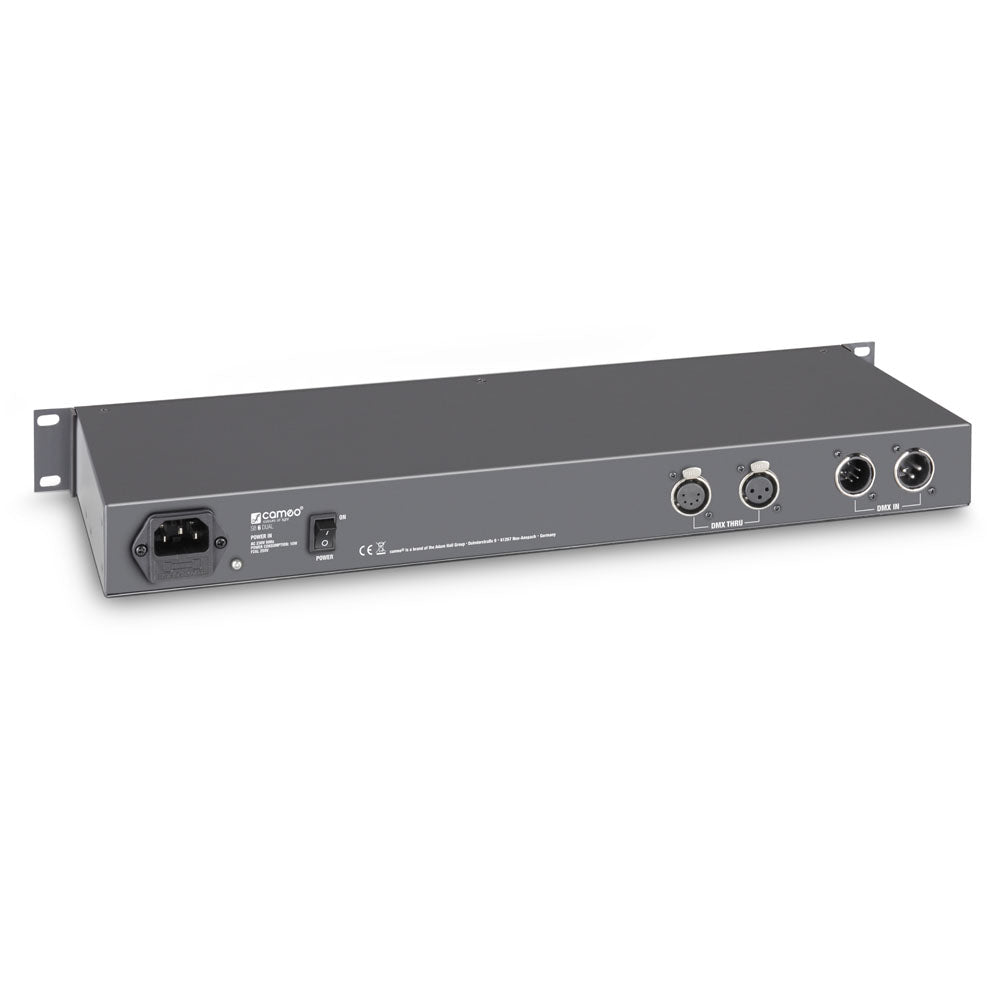

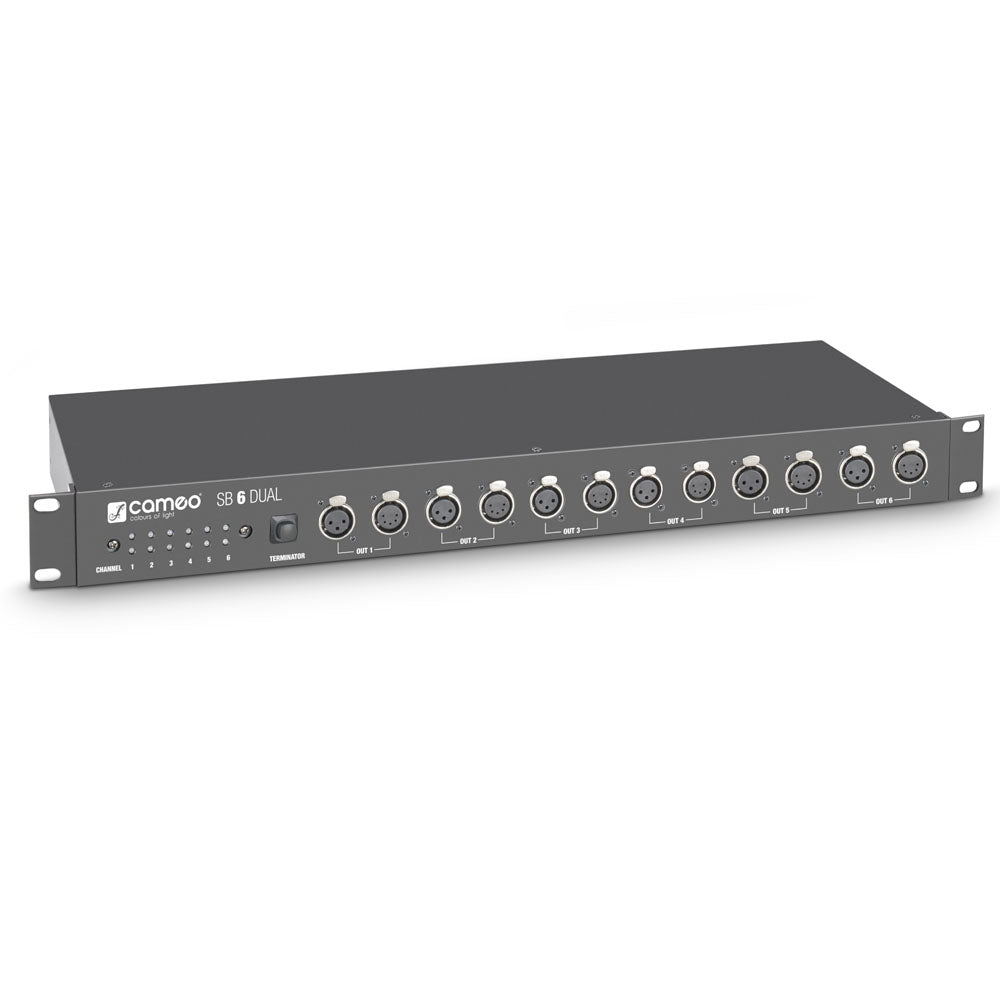

The Cameo CLSB6D is the professional solution for configuring DMX networks. The splitter and booster in 19" format amplifies the DMX input signal and distributes it to 6 electrically isolated outputs. It is connected directly to the DMX controller or to DMX devices. The input and the THRU socket for looping of the signal are duplicated on the front and back of the CLSB6D and connected in parallel. Bright LEDs show the DMX and power status of the channels on the front panel, the outputs are located on the back. A switchable 120 Ohm terminating resistor on the DMX THRU output and the power switch complete the equipment; the IEC-cable is supplied. For convenient output connector access and reverse installation the rack-mount angles can be attached to the rear of the chassis.
Features
- Professional 6-way DMX splitter / booster
- Chassis 1U 19" rack-mount enclosure
- 6 electrically isolated XLR (3-pin / 5-pin) outputs
- DMX status indicator per channel
- Power status indicator
- Switchable 120 Ohm terminating resistor for the DMX THRU output jack
- Front and rear rack-mount angle attachment options
| Product number: | CLSB6D |
| Product type: | DMX splitter / booster |
| Type: | DMX 512 protocol |
| DMX inputs: | 2 (parallel) |
| DMX input connectors: | XLR 3-pin male, XLR 5-pin male |
| DMX Thru Outputs: | 2 (parallel) |
| DMX Thru Output Connectors: | XLR 5-pin female, XLR 3-pin female |
| DMX outputs: | 6 |
| DMX output connectors: | XLR 5-pin male, XLR 3-pin male |
| Controls: | Power On/Off, DMX Thru Terminator |
| Indicators: | 6 x Power LED, 6 x Signal LED |
| Mains connector: | IEC power connector |
| Operating voltage: | transformer, 230 V AC, 50 Hz |
| Power consumption: | 15W |
| Width: | 483mm |
| Height: | 44mm |
| Depth: | 160mm |
| Weight: | 3kg |
| Accessories (included): | Power cord |
