• Intense 300 W LED light engine for punchy, bold beams
• Perfect gobo morphing between gobo wheels
• Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 3-facet prism, and frost for beam control
• Beautiful 16-bit LED dimming for ultimate fade control
• Neutrik® powerCON® power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R2 Spots
• Selectable PWM settings to maintain flicker-free operation on camera
• Simple and complex DMX channel profiles for programming versatility

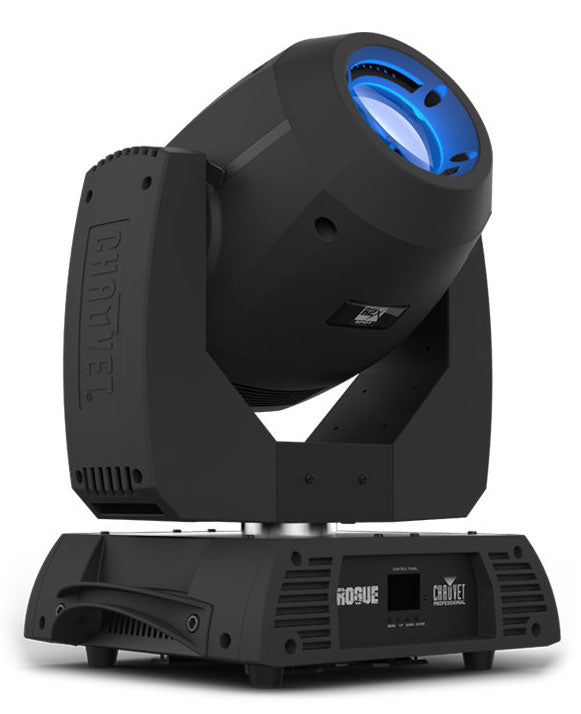

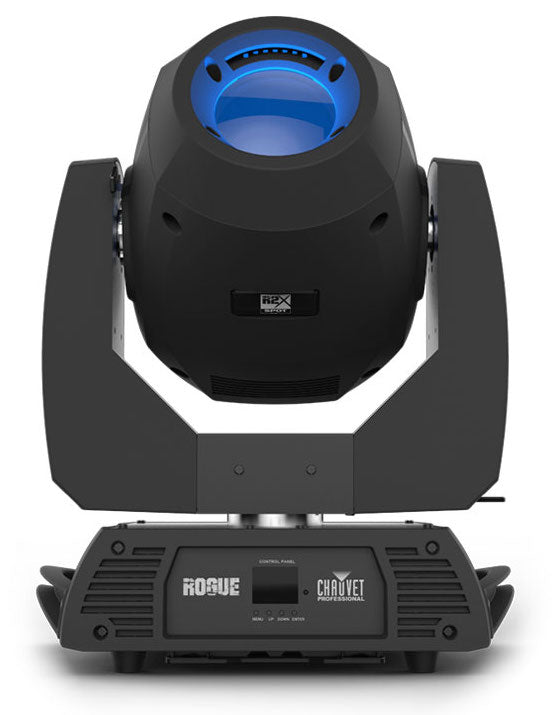

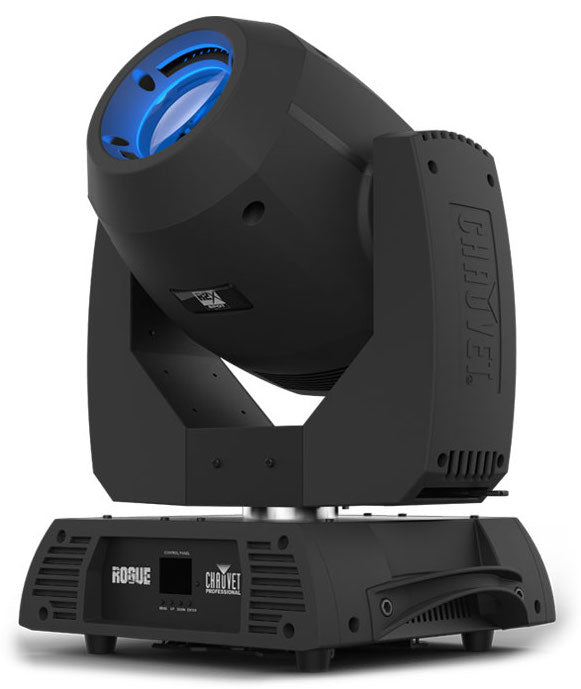

Rogue R2X Spot

• Rogue R2X Spot offers incredible value with a stunning range of colors and effects, all supported by professional quality engineering.

• Rogue R2X Spot builds on the features of the R1X Spot by adding gobo-morphing technology and two variable scrolling color wheels for an unlimited number of shape-changing and split-color effects.

• Rogue R2X Spot uses a powerful 300 W LED light source in a 16.5° beam angle for a brilliant light that creates an unparalleled audience experience.

OPTICAL

• Light Source: 1 LEDs (CW) 300 W, (8.7 amps), 8831 K, 50,000 hours life expectancy
• Color Temperature (at full): 8847 K
• Front lens diameter: 100 mmCRI: 71.7
• Beam Angle: 16°
• Field Angle: 18°
• Cutoff Angle: 18.4°
• Lumens – Source: 23,000
• Lumens – Output: 14,789
• Illuminance (total): 9,344 lux @ 5 m
• Selectable LED Power output: 50-100Selectable
• PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/250°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/250°, 180°, 90° tilt
• Colors (1): 7 + white, split colors, continuous scroll at variable speeds
• Colors (2): 7 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
• Gobo Size: Gobo Wheel 2 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)Framing
• Shutters: No
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Frost: MotorizedIris: Motorized
• Prism: 3 Facets, motorized, rotatingStrobe Rate: 0 to 22 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: No
• Move-in-Black: Yes

CONSTRUCTION / PHYSICAL

• Dimensions (single unit): 409 x 343 x 489 mm
• Weight (single unit): 21.7 kg
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

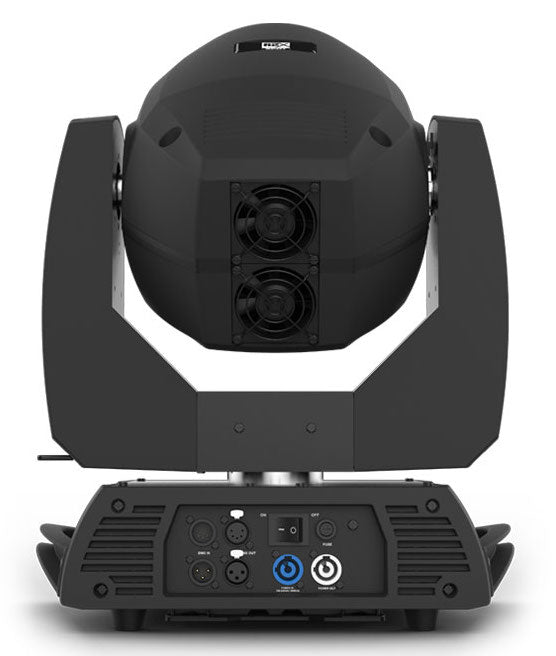

CONNECTIONS

• Power Connection: Edison (local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®Data Connectors: 3- and 5-pin
• XLRCable Length (power): 1.5 m

CONTROL

• Control Protocol: DMX, RDMDMX
• Channels: 18 or 21
• Modes/Personalities: 2 personalities (18, 21)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 5 units @ 208 V;5 units @ 230
• VPower and Current: 488 W, 4.09 A @ 120 V, 60
• HzPower and Current: 480 W, 2.35 A @ 208 V, 60
• HzPower and Current: 481 W, 2.03 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC, UKCAIP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Rogue R2X Spot
• Neutrik powerCON power cord
• Omega bracket with mounting hardware

DOWNLOADS

• Rogue R2X Spot Quick Reference Guide
• Rogue R2X Spot User Manual
• Rogue R2X Spot CAD File
• Rogue R2X Spot DMX Chart
• Rogue R2X Spot Photometrics Report
• Rogue R2X Spot ES files
