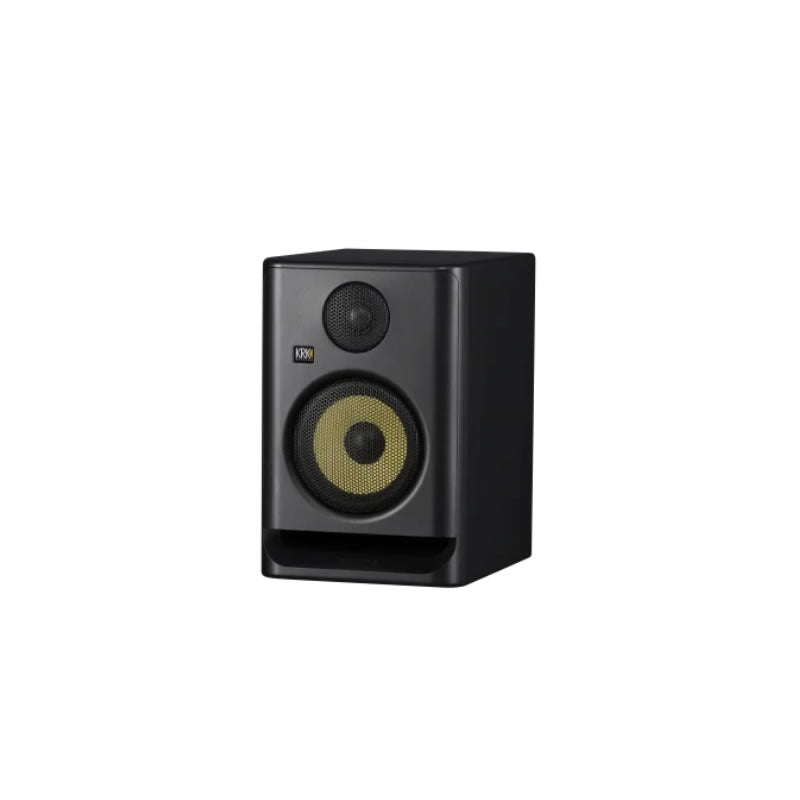

KRK Rokit 5 Generation Five Active Studio Monitor

• Active 5" two-way reference studio monitor
• 3 voicing listening modes: Mix, Focus, Create
• 25 Boundary & Tuning Eq - optimize for your room
• New KRK transducer designs
• BI-Amp Class D amplification
• Perfect for the home studio

KRK Rokit 5 Generation Five Active Studio Monitor

• Active 5" two-way reference studio monitor.
• With great sound and cool features.
• 3 voicing listening modes: Mix, Focus, Create.
• 25 Boundary & Tuning Eq - optimize your monitors for your room.
• New KRK transducer designs - even better response and accuracy.
• BI-Amp Class D amplification - plenty of dynamics and headroom.
• Woven Kevlar aramid fiber cone woofers.
• Silk dome tweeters.
• Frequency response 54 Hz - 30 kHz
• Max SPL 104 dB.
• Perfect for the home studio.

Configuration 2-Way Bass Reflex
System Type Active Studio Monitor
Low-Frequency Driver Woofer, 5-inch, woven Kevlar® aramid fiber cone, ferrite magnet
High-Frequency Driver Tweeter, 1-inch, Silk Dome, Copper Cap, ferrite magnet
Frequency Response (+/- 3 dB) 54 Hz – 30 kHz
Frequency Range (+3/-10 dB) 43 Hz – 40 kHz
Crossover Frequency 2.27 kHz
Amplifier Configuration Bi-amplified (Class D)
HF Amp Power Output* 20 Watts
LF Amp Power Output* 35 Watts
Total Power* 55 Watts
Total Dynamic Power Output** 130 Watts
Max SPL*** 104 dB
Coverage Angles**** 155° Horizontal x 126° Vertical
Analog Input Connector Balanced XLR / 1/4” TRS Combo
Input Impedance 5.12kΩ Balanced
SNR (Signal to Noise Ratio) >101.5 dB (Low Sensitivity setting, balanced), >94 dB (High Sensitivity, unbalanced)
AC Input Voltage 100 – 240VAC (+/- 10%), 50/60 Hz
Fuse Type 5x20 mm T1A 250V
Enclosure Construction PVC Vinyl Wrapped MDF
Baffle Construction Structurally Reinforced High Impact Polystyrene
Product Dimensions (H x W x D) 11.34” (288 mm) x 7.52” (191 mm) x 9.53” (242 mm)
Packaged Dimensions (H x W x D) 15.75” (400 mm) x 10.24” (260 mm) x 12.6” (320 mm)
Product Weight 10.91 lbs. (4.95 Kg.)
Packaged Weight 14.33 lbs. (6.5 Kg.)
Optional Accessories KRKSTDX68W1 Mounting Bracket and KRKSTDX4A1 35 mm Mounting Adapter
