• 360 powerful LEDs 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix)18 segments controlled separately
• Variable color temperature 1800 K - 6000 K
• 9 powerful LEDs 24 W COB (chip-on-board) CW/WW (homogenous color mix) LEDs controlled separately
• Each of the 9 COB blinder LEDs is surrounded by 2 RGB segments for atmospheric light
• One RGB LED segment is directed towards the front, one towards the reflector
• Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves with adjustable response; white balance adjustable
• 15 integrated show programs
• Strobe effect
• With a beam angle of 20°
• Control via stand-alone; DMX; ArtNet; RDM; Master/slave function
• Multicolor LCD display
• Flicker-free

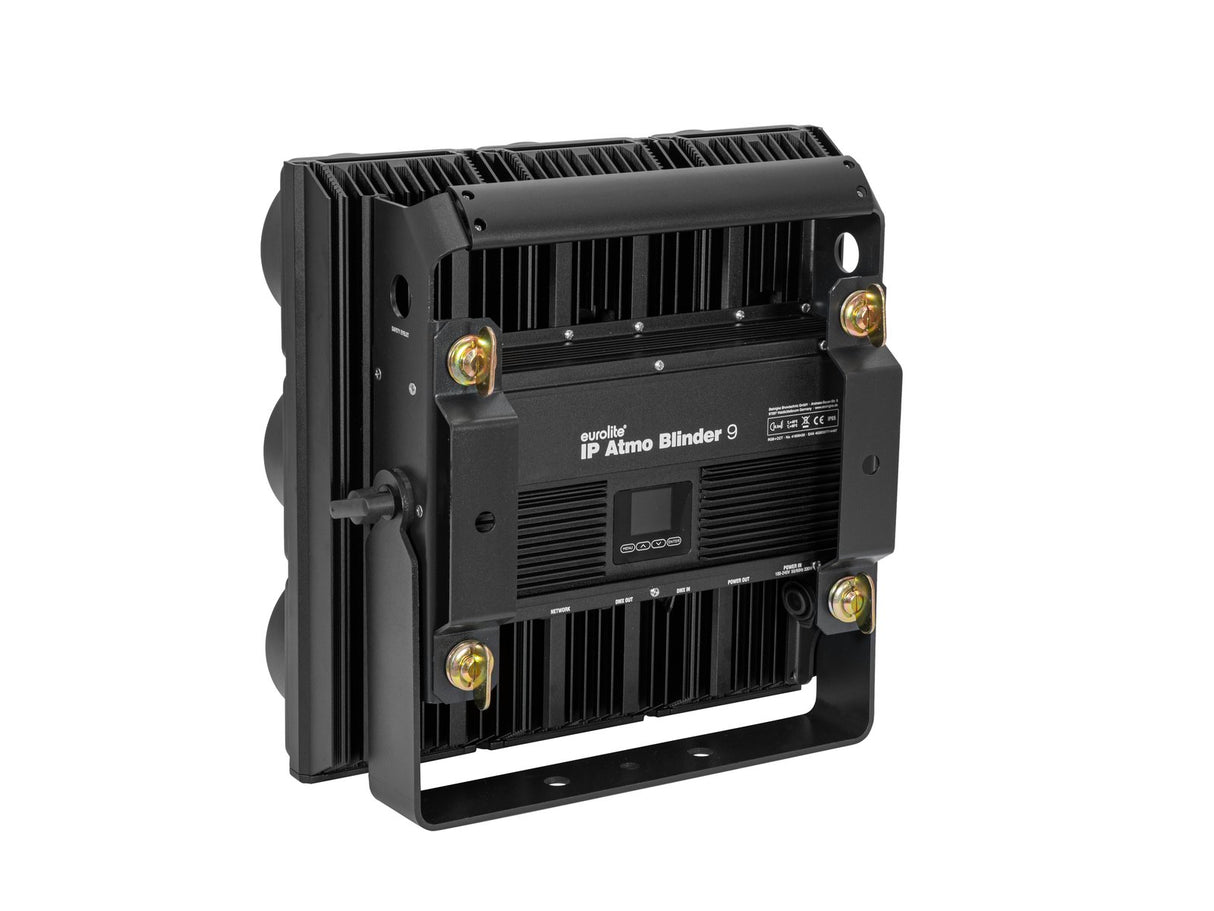

• With Mounting bracket; with Omega bracket
• The device is cooled by low-noise cooling fan
• Preprogrammed in Light Captain
• Mains input and output for power linking up to 4 units
• Suitable for outdoor use IP65
• For application areas such as: Mobile use; Stage; Rental
• Very quiet working noise
• Application possibility: Suspended; on stand

Package contents

• 1 x spotlight
• 1 x user manual
• 1 x power cord
• 1 x xLR cable
• 2 x omega bracket

Eurolite LED IP Atmo Blinder 9

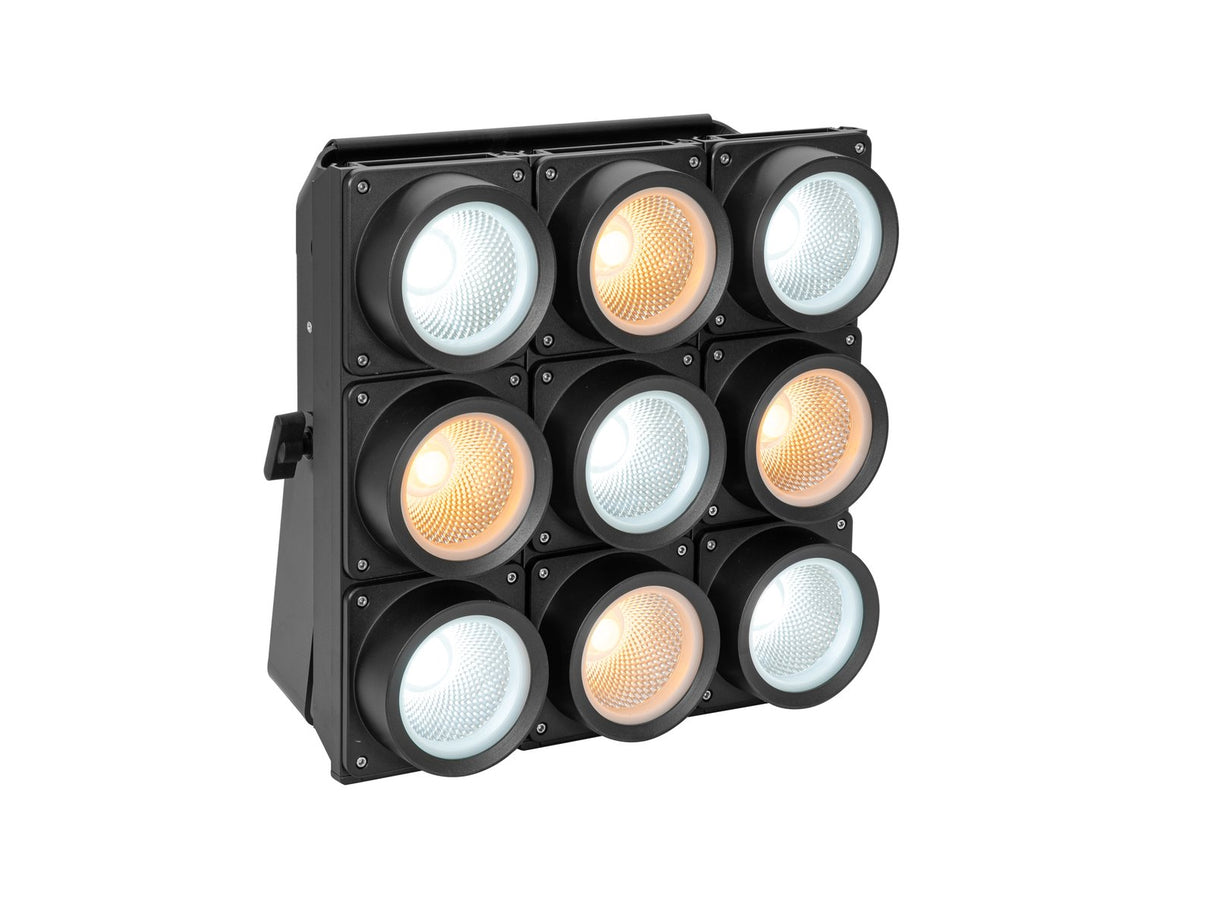

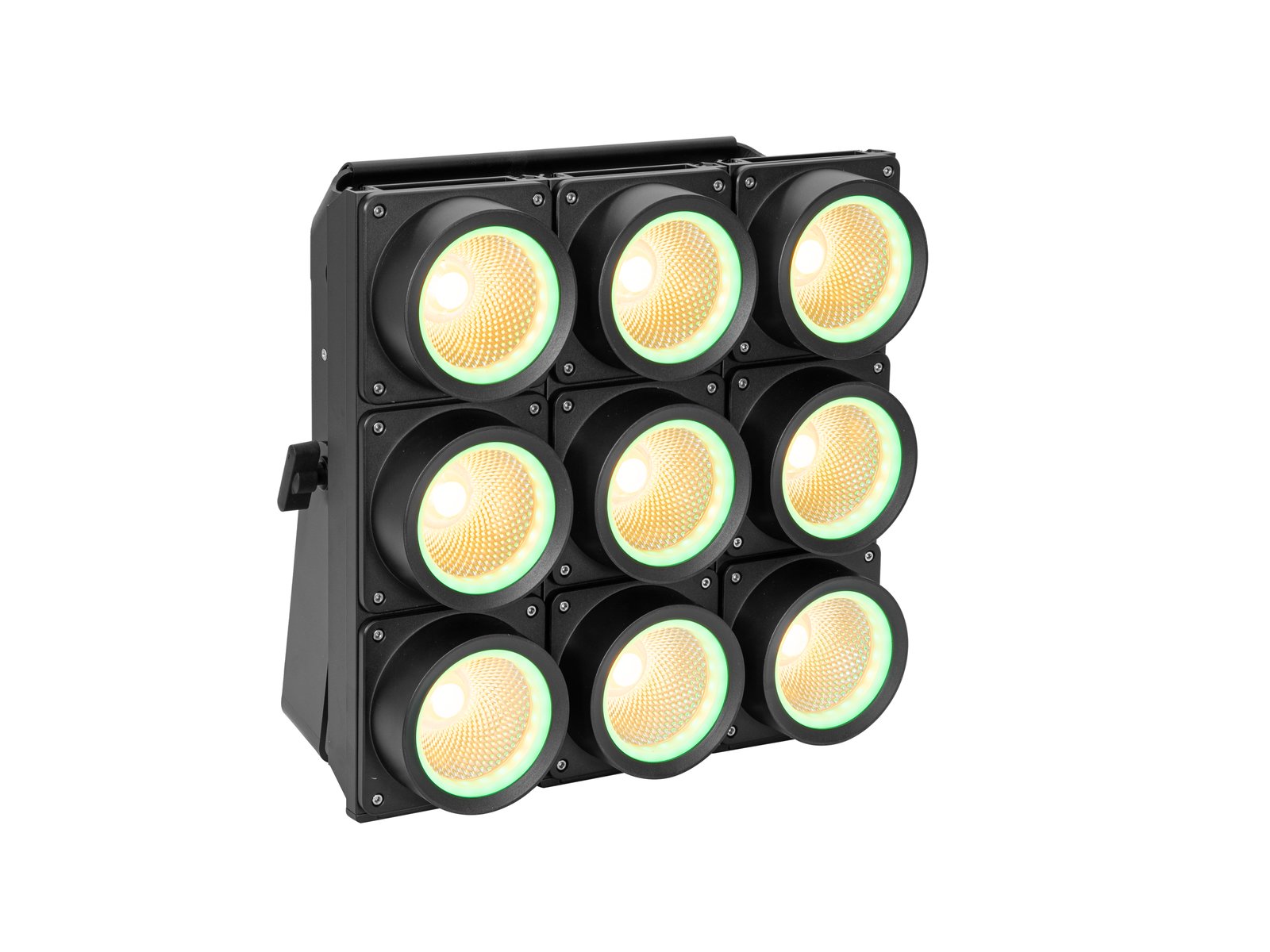

• The LED IP Atmo Blinder 9 from Eurolite is a cluster of 3 x 3 powerful WW/CW LEDs, each of which sits in a reflector.

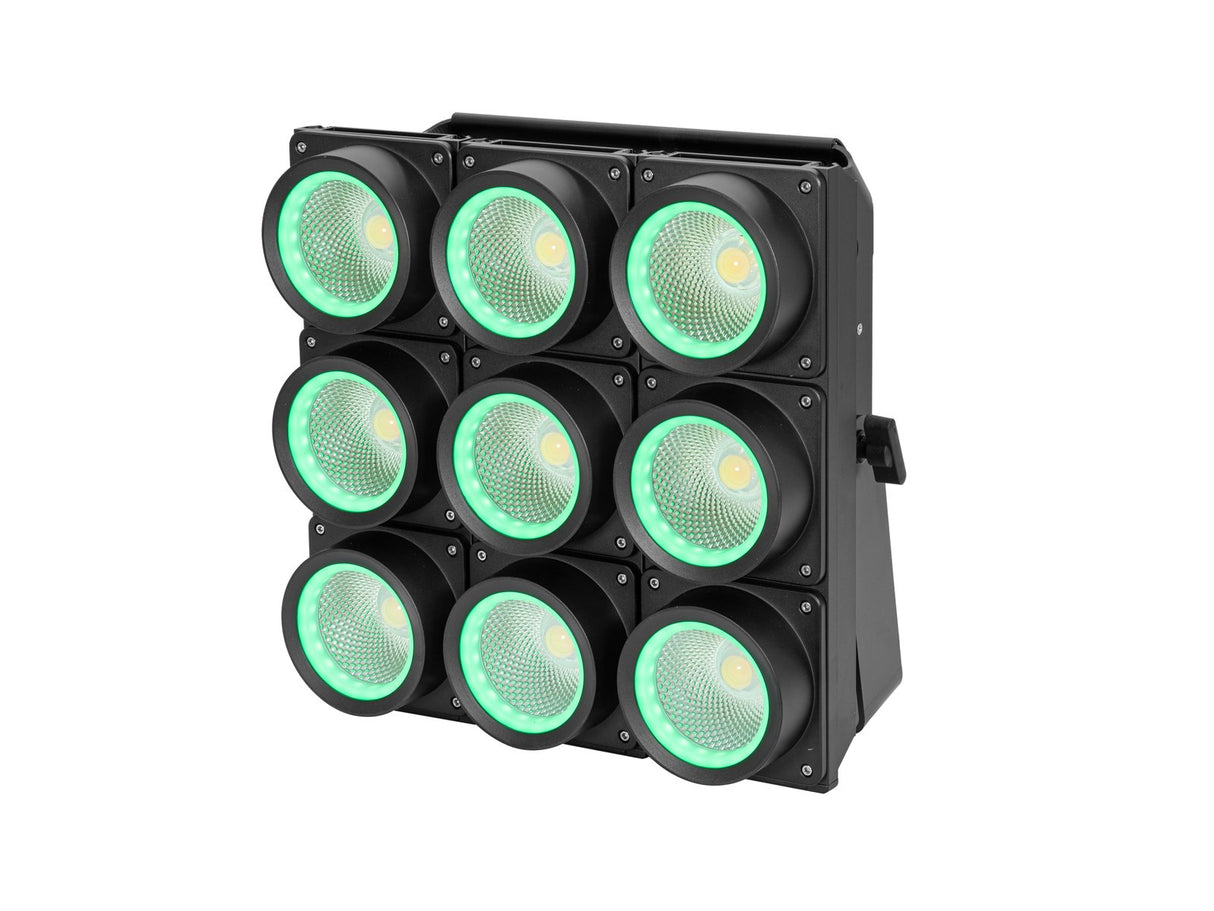

• Each of these reflectors can be additionally illuminated with RGB LEDs.

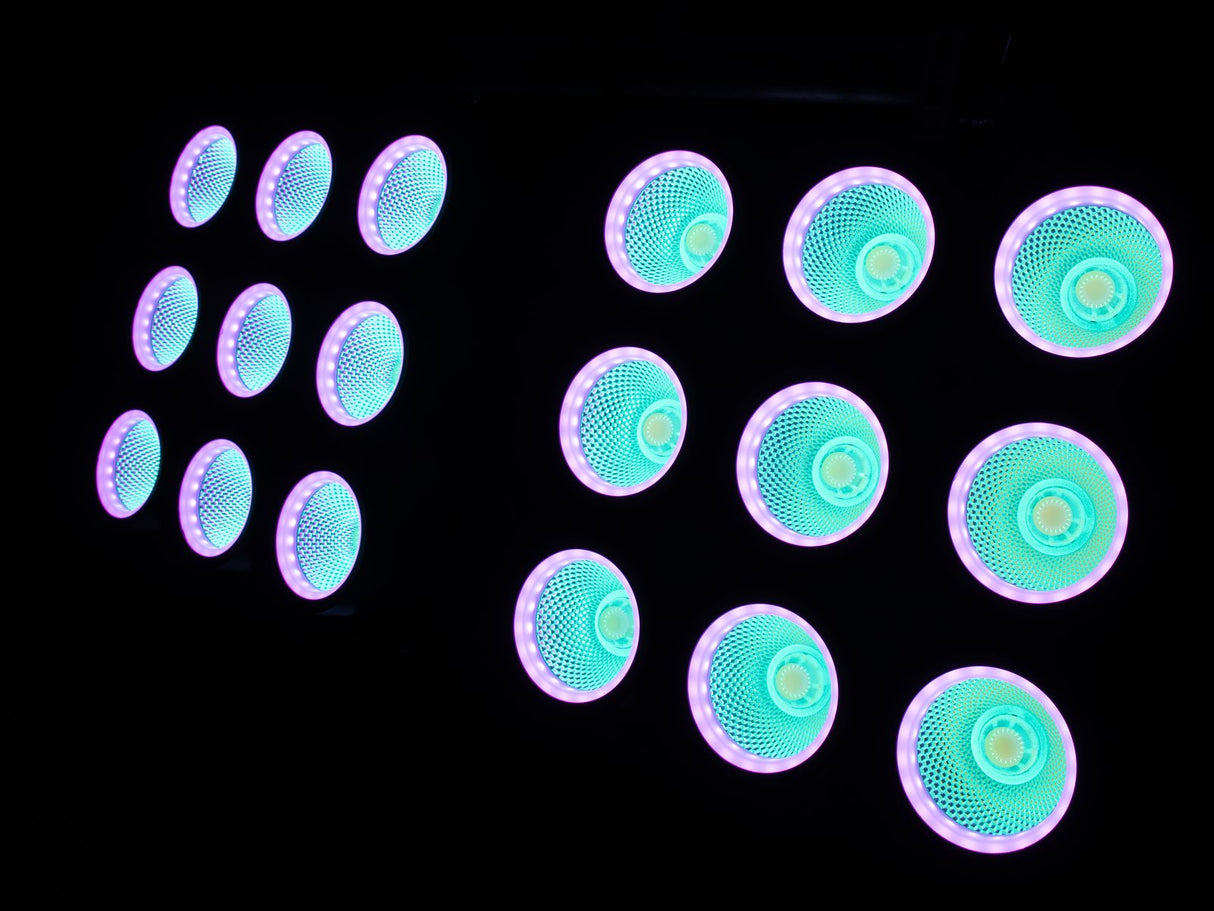

• In addition, at the edge of each reflector sits a ring of milky RGB LEDs, which can also be controlled individually.

EYE-CATCHING EFFECTS

• Thanks to this equipment, the Atmo Blinder 9 can be used in different ways:

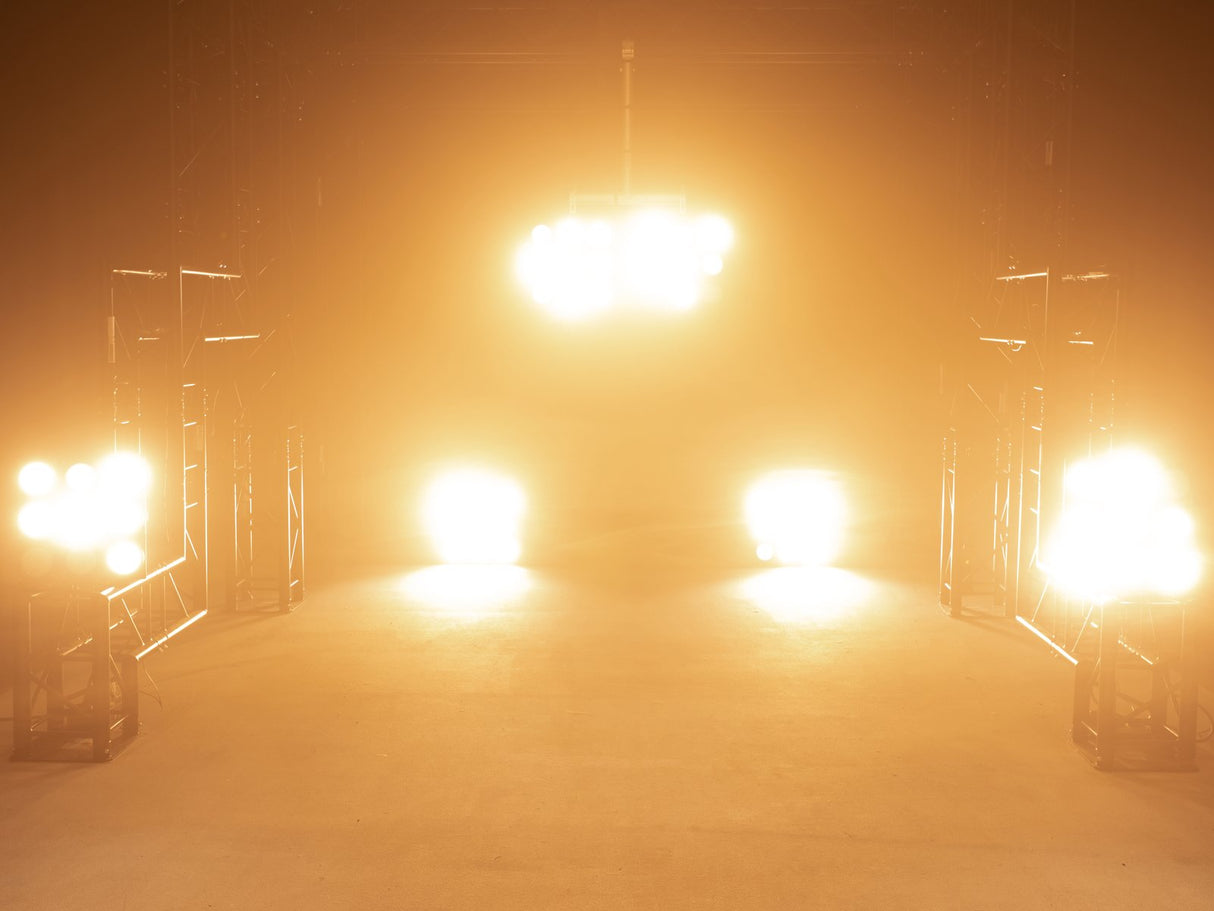

• Of course, it meets the requirements of a classic, white-emitting blinder.

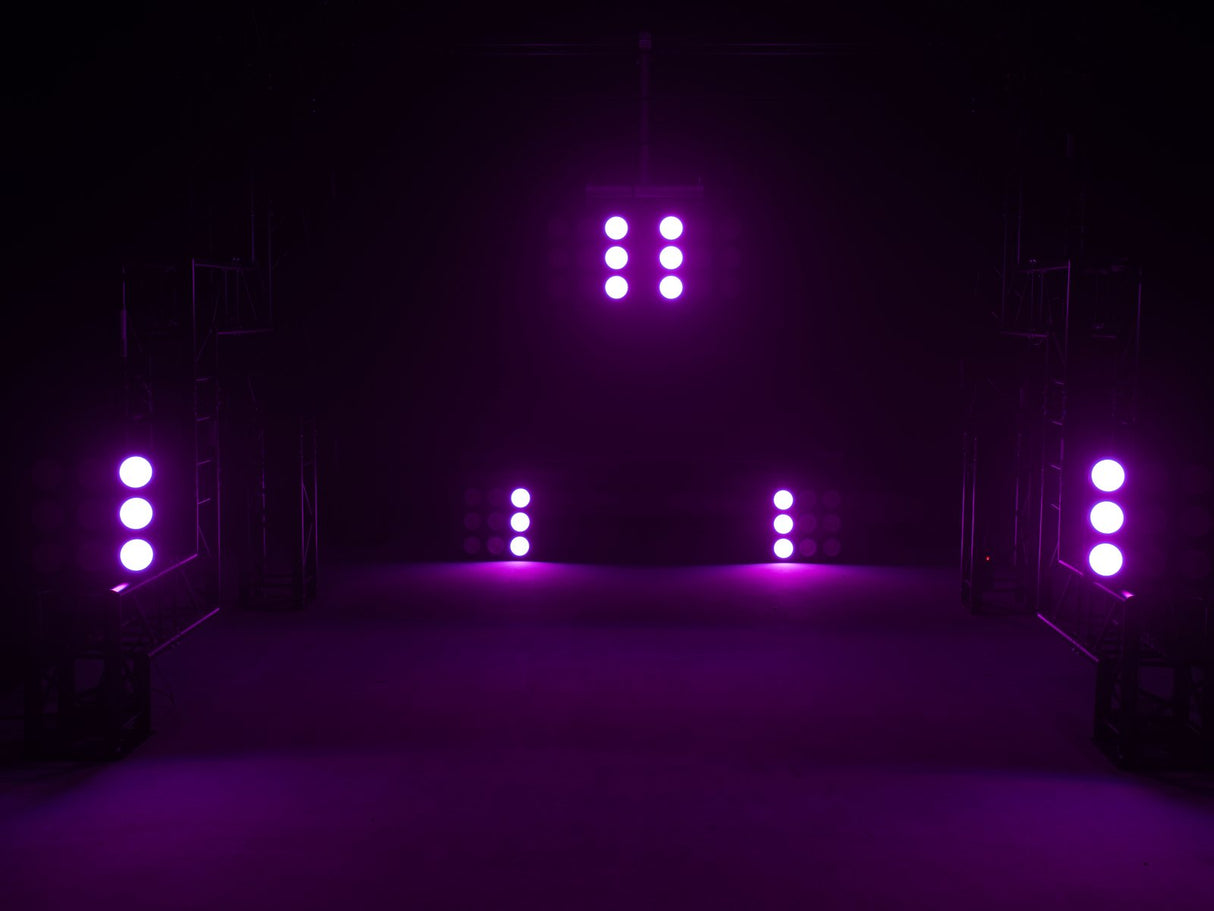

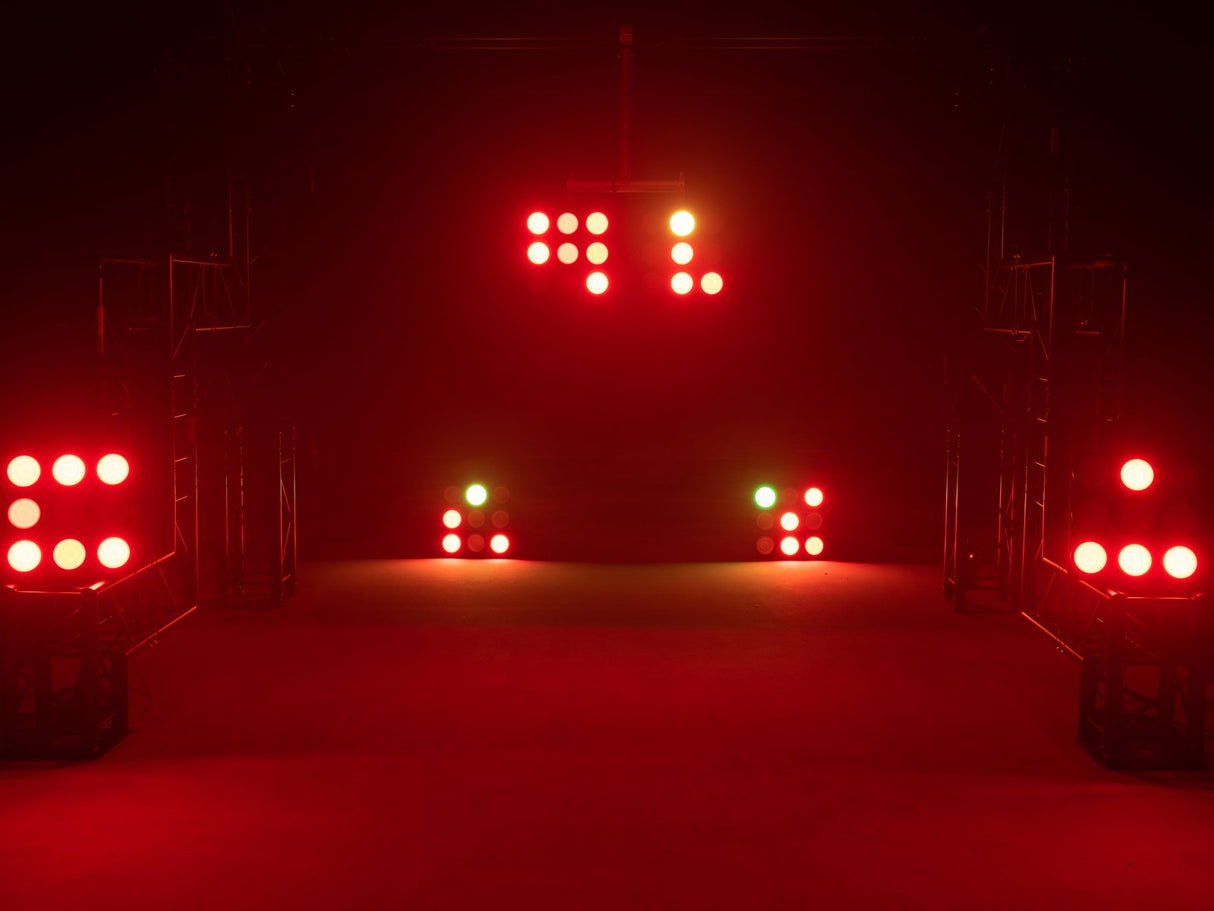

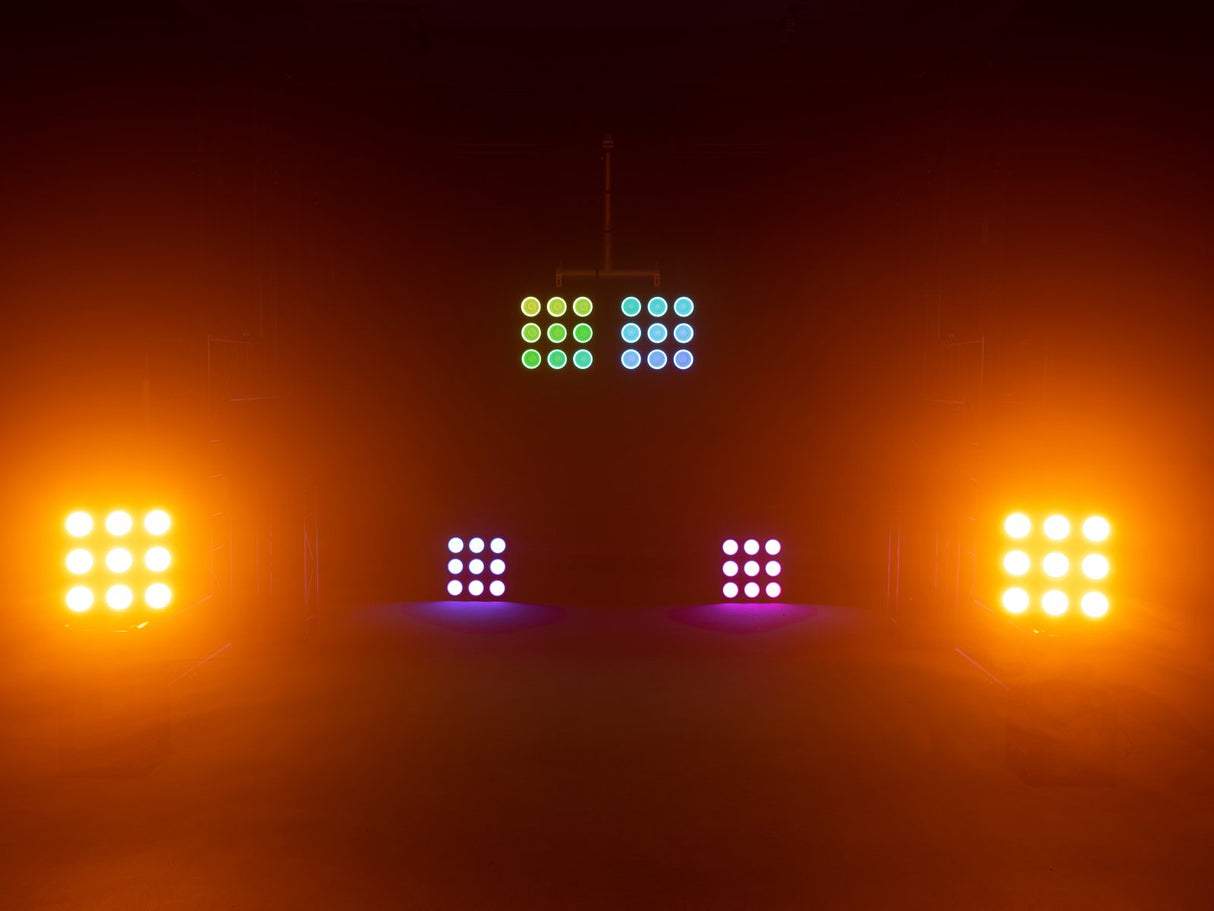

• But it can also be used as an eye-catching, colorful pixel effect in the stage background or as a soft, atmospheric light.

CONTROL

• Since each LED can be controlled individually, the Atmo Blinder 9 can be controlled via DMX as well as via ArtNet.
• For larger installations with pixel effects, we recommend using MADRIX for control.

ROBUST AND WEATHERPROOF

• The IP Atmo Blinder 9 has a robust housing, which makes it suitable for touring as well as outdoor use.

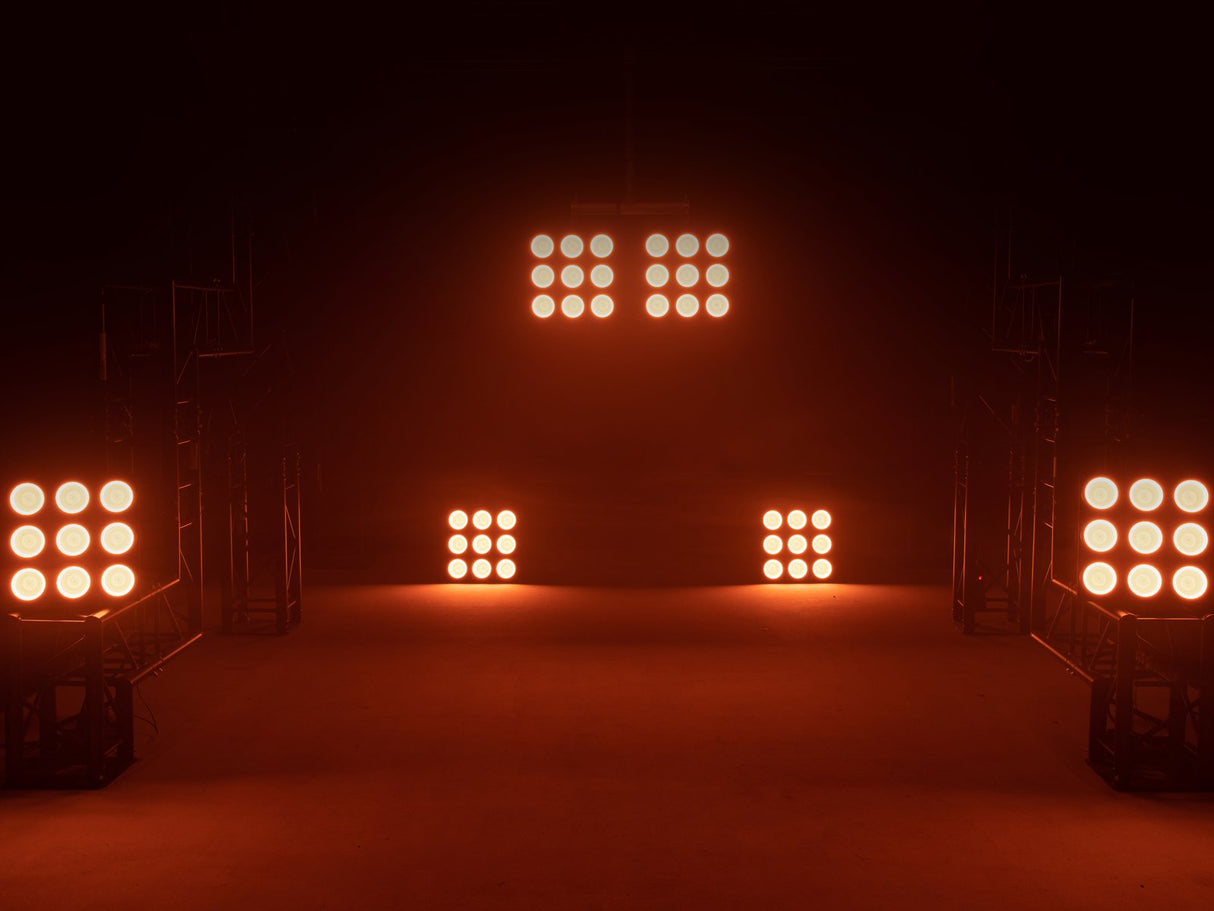

• The Blinder is best suited for festival and concert stages.

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 330 W
• IP classification: IP65
• Protection class: Protection class I
• Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
• Power output: IP T-Con (F) mounting version
• Lamp type: LED lamp
• LED: 360 x 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix)
• 9 x 24 W COB (chip-on-board) CW/WW (homogenous color mix)
• Color temperature: 1800K - 6000K adjustable
• DMX channels: 13; 18; 72; 85
• DMX input: 3-pin XLR (M) mounting version IP
• DMX output: 3-pin XLR (F) mounting version IP
• Cooling: Low-noise cooling fan
• Control: Stand-alone; DMX; ArtNet; RDM; Master/slave function
• Preprogrammed in: Light Captain
• Projection: Flicker-free
• Beam angle: 20°
• Beam angle (1/2 peak): 20°
• Beam angle (1/10 peak): 58°
• Housing color: Black
• Attachment system: Mounting bracket
• 2x Omega bracket
• Display type: Multicolor LCD display

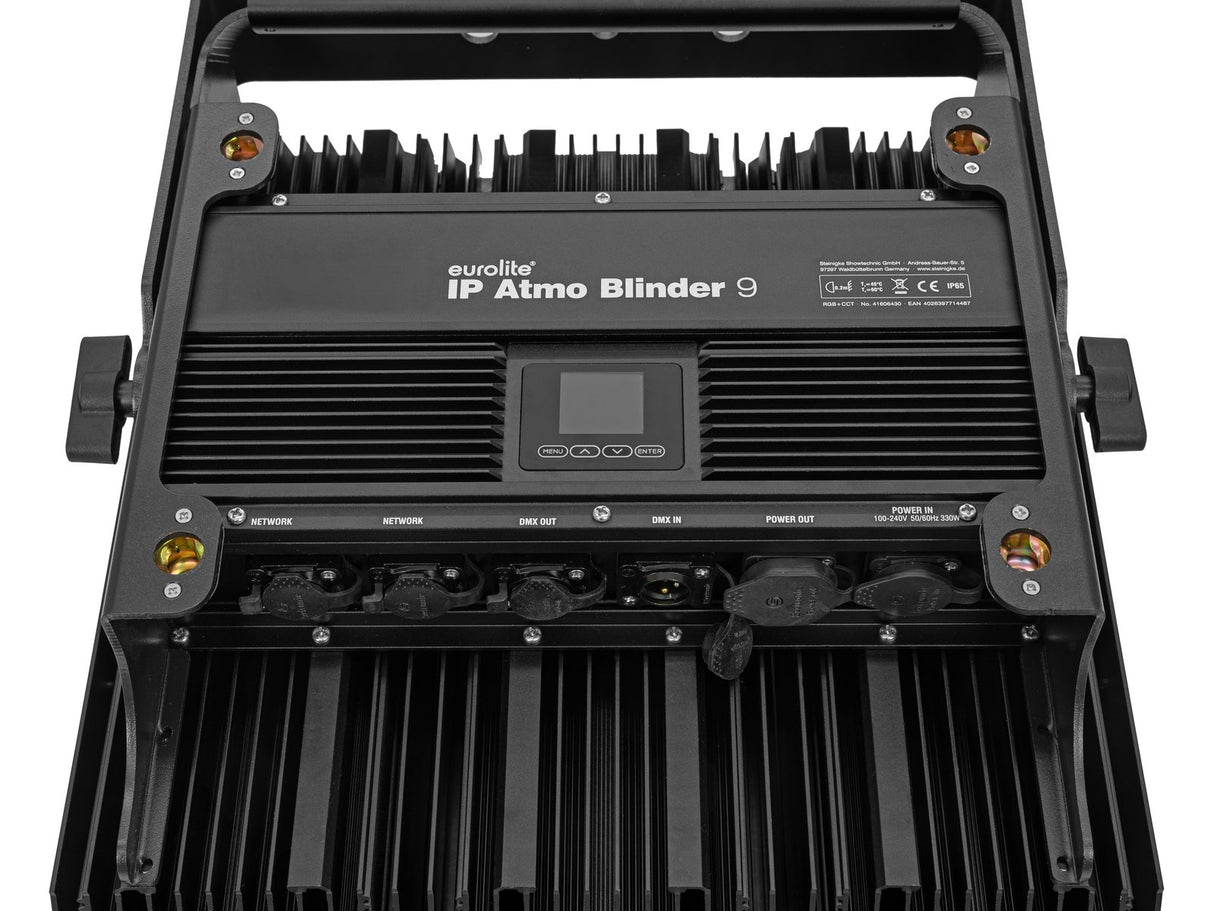

• Connections: 2 x RJ-45 (F) mounting version
• Dimensions: Width: 37,7 cm
• Depth: 20,5 cm
• Height: 38,4 cm
• Weight: 13,65 kg
• Noise classification: Class 1 (very slight noise, suitable for noise-sensitive environments)
• Legal specifications
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
