• Needle for use on Ortofon Digital MKII pick-up.
• Optimal output voltage and sound quality for use with conventional vinyl.
• Extends time code window life and minimises decoding errors

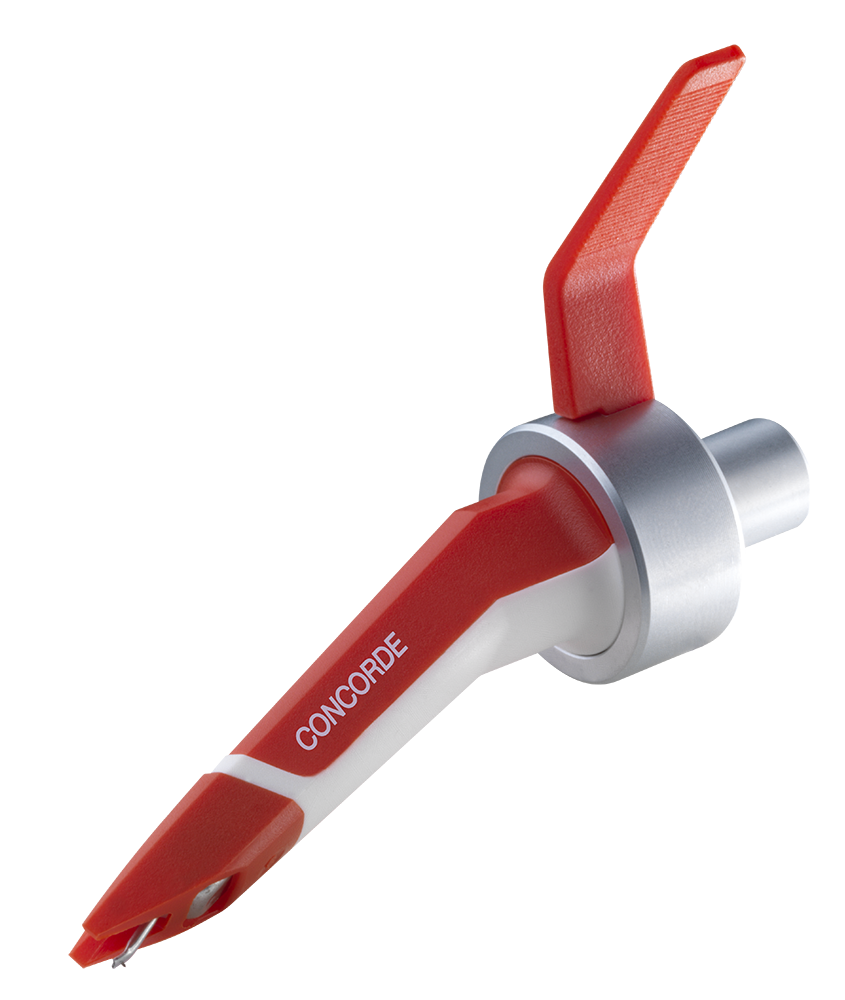

Ortofon Concorde Digital MKII spare needle

• Needle for use on Ortofon Digital MKII pick-up.
• Provides optimum output voltage and sound quality for use with conventional vinyl.
• Designed to extend time code window life and minimise decoding errors
• Optimized 10 mV output voltage maximizes signal-to-noise ratio of audio fed to software
• The result is a better interpretation of the time code signal.
• A decrease in the reproduction of frequencies where vinyl wear and crackle occur helps minimize errors in interpreting the time code signal and helps time-coded vinyl records last longer.

Specifications:

Output voltage at 1000Hz, 5cm/sec. - 10 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 100 m
Compliance, dynamic lateral - 14 m/m N
Stylus type - Spherical R 18 m
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g

Cartridge weight - 18,5 g
Replacement stylus unit - DIGITAL
