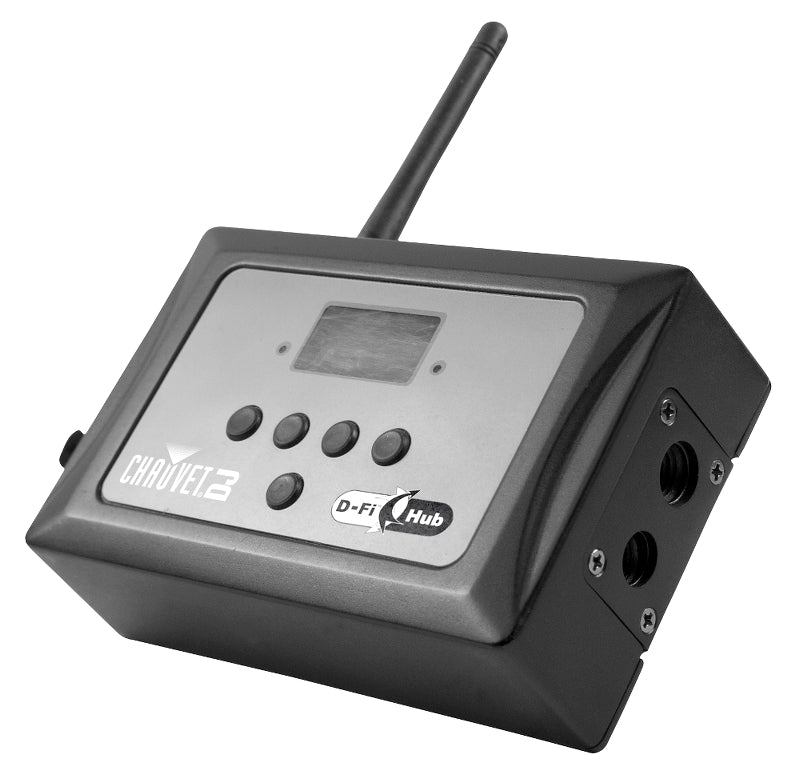

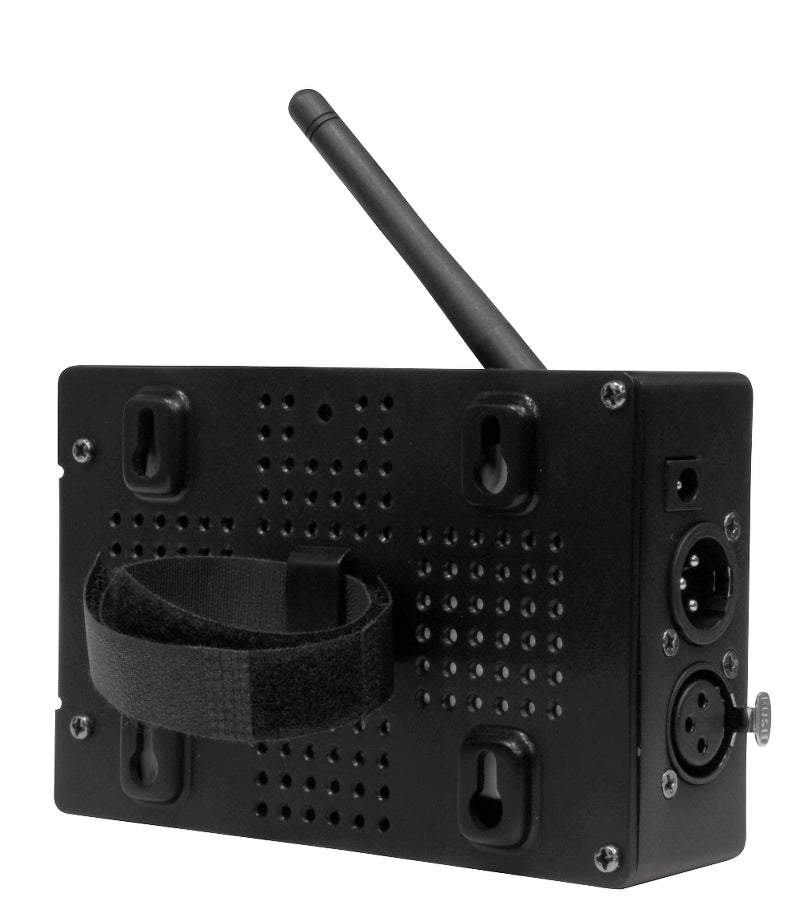

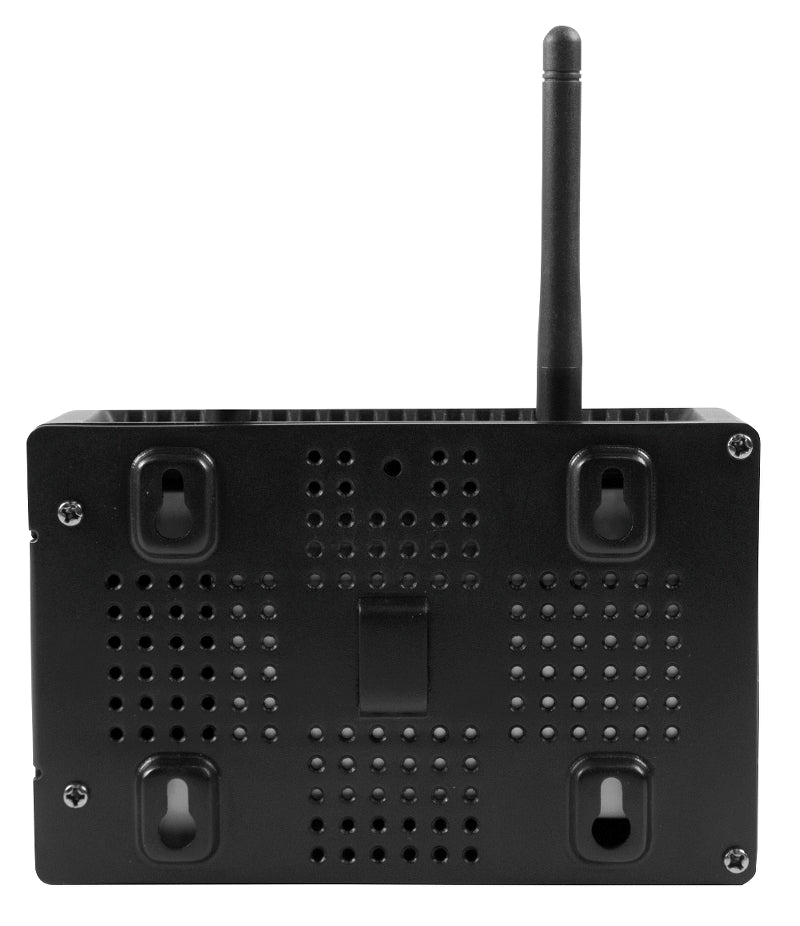

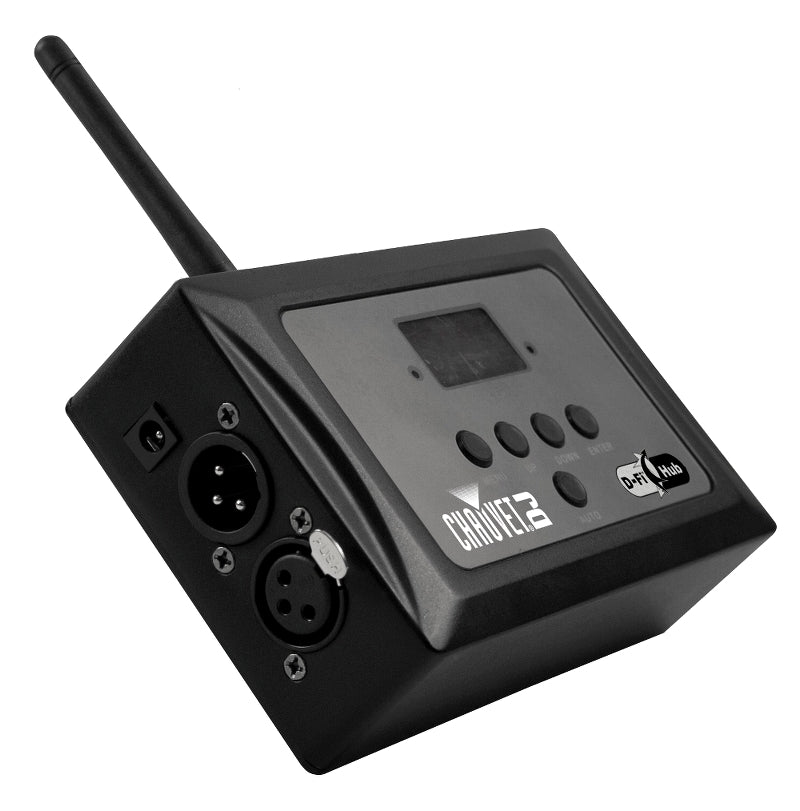

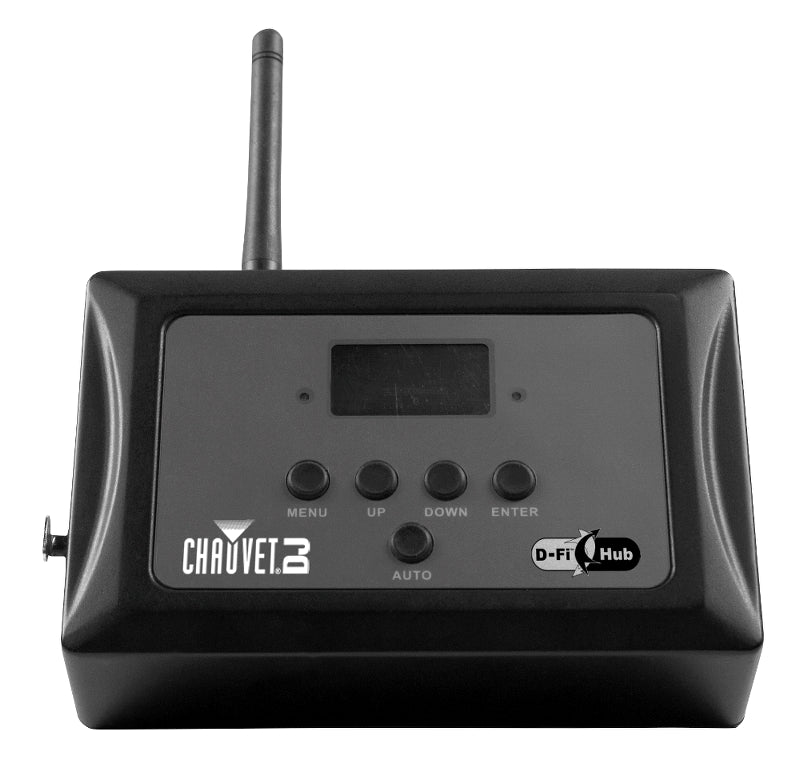

Chauvet D-Fi Hub
Compact Wireless DMX unit
Can be used as both transmitter and receiver
Range up to 200 meters
2.4 GHz frequency range with automatic channel search
OLED display for setup and status
Supports synchronization of multiple D-Fi devices simultaneously
D-Fi Hub is a compact DMX unit that can be used as both a transmitter and receiver in wireless lighting setups. It operates on the 2.4 GHz frequency range and has an automatic function that finds the best available channel and synchronizes compatible devices.
The device has a maximum range of up to 200 meters with line of sight and allows synchronization of multiple D-Fi compatible devices simultaneously. Setup and navigation are done via the built-in OLED display.
Specifications
- Wireless DMX transmitter and receiver
- Frequency range: 2.4 GHz
- Max. range: 200 m (line of sight)
- OLED display
- Automatic channel search
- 3-pin XLR DMX connection
- Input: 9 VDC, 500 mA
- Power consumption: 4 W
- Dimensions: 142 x 91 x 46 mm
- Weight: 0.6 kg
- DMX Connectors: 3-pin XLR
- Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
- Power and Current: 4 W, 0.1 A @ 120 V, 60 Hz
4 W, 0.1 A @ 230 V, 50 Hz - Weight: 1.2 lb (0.6 kg)
- Size: 5.59 x 3.58 x 1.81 in (142 x 91 x 46 mm)
- Approvals: CE, FCC
- Max Unobstructed Distance:: 656 ft (200 m)
