Roland UVC-02 USB Video Interface
€305,00
Unit price
/
Not available
Description
Description
- Uncomplicated video streaming
- Collect everything in one controller
- Auto scaling of video
- Integrated with most streaming platforms
- Hands-on audio control

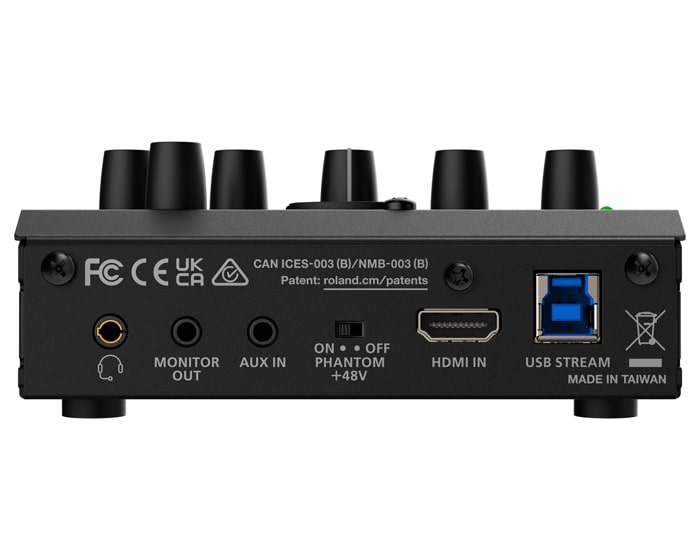

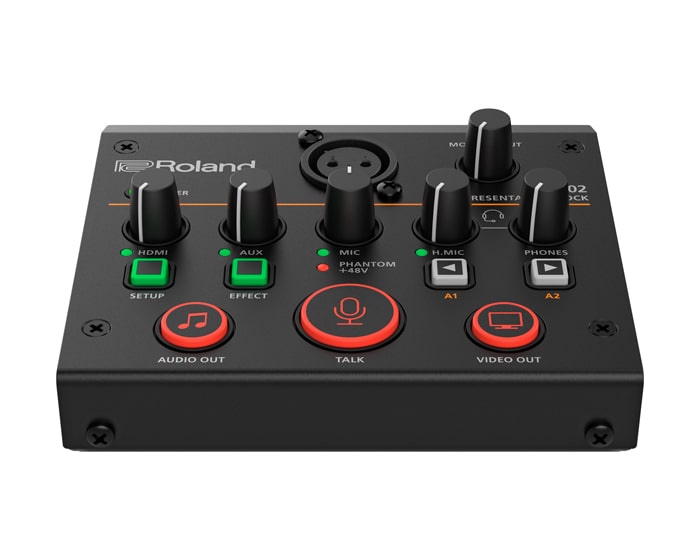

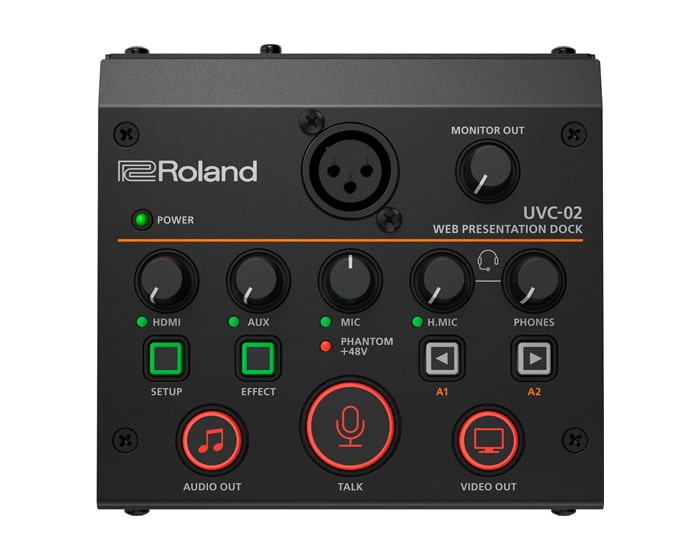

Roland UVC-02 USB Video Interface
- Compact and streamlined mini-controller for your video streaming setup.
- Ideal for webinars, online conferences and more.
- Combine camera, monitor, XLR microphone (or USB) and stereo audio into one source and controller.
- The HDMI video input supports both embedded audio and provides automatic video scaling.
- Pure plug-n-play with predefined audio and video settings on most popular streaming platforms.
- Gain knob for each device and quick short-cut buttons that can be manually adjusted.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
- VIDEO
- Input Connector
- HDMI IN : HDMI type A
* HDCP not Supported
* Multi-format Supported - Input Formats
- 480/59.94p, 576/50p, 720/59.94p, 720/50p,
1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,
WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,
SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,
SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,
FHD (1920 x 1080) 60 Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11. - Output Connectors
- USB STREAM : USB 3.0 Type-B
- USB Video Output Format
- YUY2 (Uncompressed), Motion JPEG (Compressed)
- USB Video Output Resolution
- 1920 x 1080, 1280 x 720, 640 x 480
* Maximum frame rate is 60 fps. - AUDIO
- Audio Processing
- Sample Rate 48 kHz, 24 bits
- Analog Connectors
- MIC : XLR type (Balanced, Phantom power DC 48V, 14 mA Max)
HEADSET : Stereo miniature phone type (CTIA, PLUG-IN power)
AUX IN : Stereo miniature phone type
MONITOR OUT : Stereo miniature phone type - Digital Connectors
- HDMI IN : HDMI Type A
USB STREAM : USB 3.0 Type-B - Nominal Input Level
- MIC IN : -54 to -14 dBu (Maximum input level : +4 dBu)
HEADSET : -20 dBu (Maximum input level : -2 dBu)
AUX IN : -10 dBu (Maximum input level : +8 dBu) - Nominal Output Level
- MONITOR OUT : -10 dBu
HEADSET : 9 mW + 9 mW (32 ohms load) - Input Impedance
- MIC IN : 5.8 k ohms
AUX IN : 10 k ohms
HEADSET : 1 k ohms - Output Impedance
- MONITOR OUT : 1 k ohms
HEADSET : 22 ohms - Digital Audio Format
- HDMI IN : Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo
USB STREAM : Linear PCM, 48 kHz, 16 bits, Stereo - Audio Effects
- Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay
- Audio File Player
- Number of tracks : 2
Data Formats : WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono)
Maximum Time : 5 seconds / track - OTHERS
- Other Functions
- MIC Mute (TALK button)
Audio Mute (AUDIO OUT button)
Video Off (VIDEO OUT button)
Slideshow Control - Power Supply
- Supplied from the computer via USB
- Current Draw
- 900 mA (4.5 W)
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit - Dimensions
- 124 (W) x 117 (D) x 52 (H) mm
4-15/16 (W) x 4-5/8 (D) x 2-1/16 (H) inches - Weight (excluding cables)
- 460 g
1 lb 0.3 oz - Accessories
- Leaflet "Read Me First"
USB 3.0 Cable
Brand: Roland
SKU: UVC-02
Weight: 0.56 kg
