• Powerful Active Subwoofer perfect for DJs, live sound, nightclubs, etc.
• 18" ferrite woofer with 3" voice coil with long stroke length
• Superb reproduction of low frequencies
• Frequency range of 40 Hz - 120 Hz
• 130 dB maximum SPL
• 3 DSP Preset Modes - Boost, Extended LF, and Normal
• Powerful Class D amplification at 4000 W
• Robustly constructed with high quality

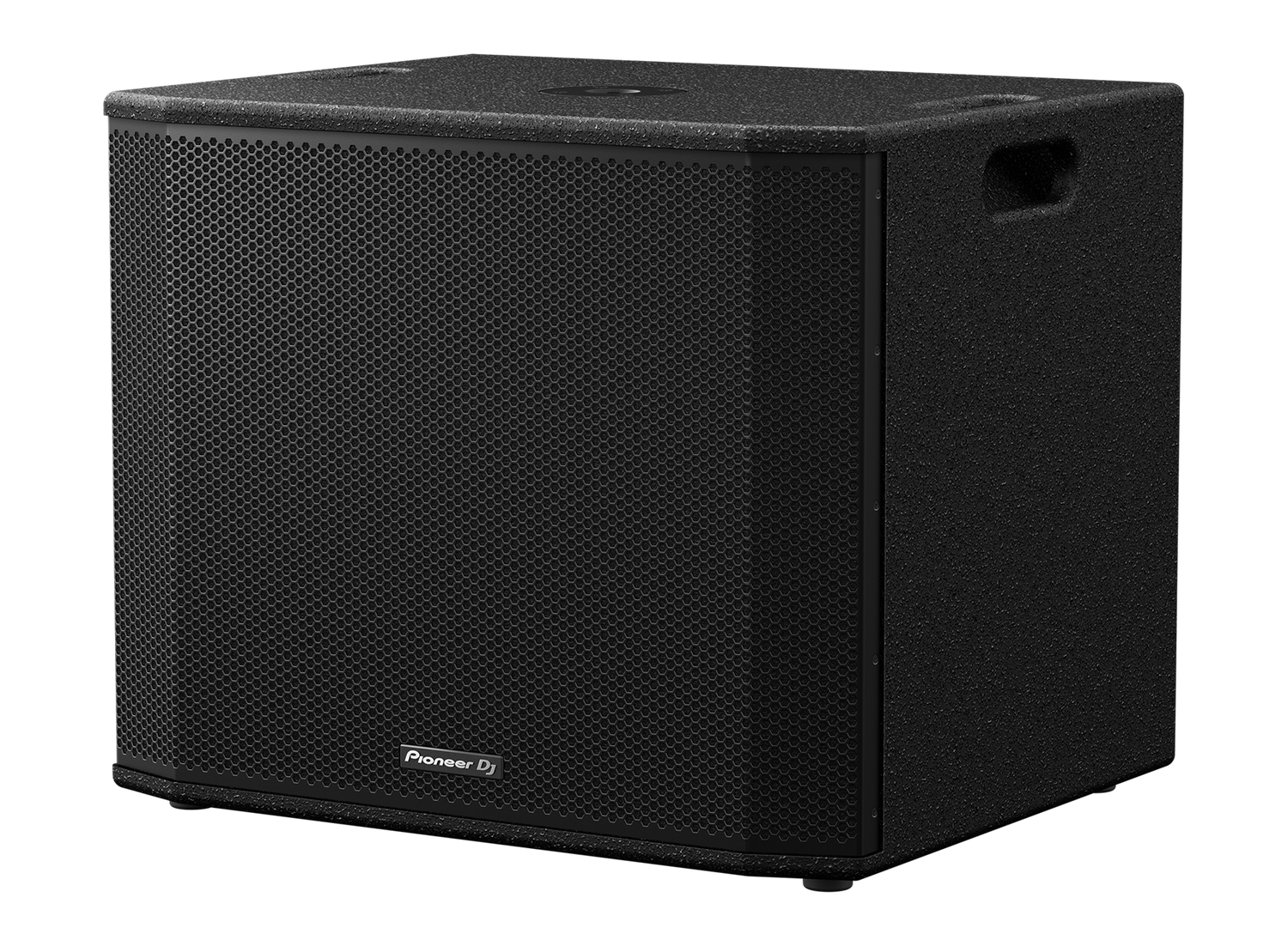

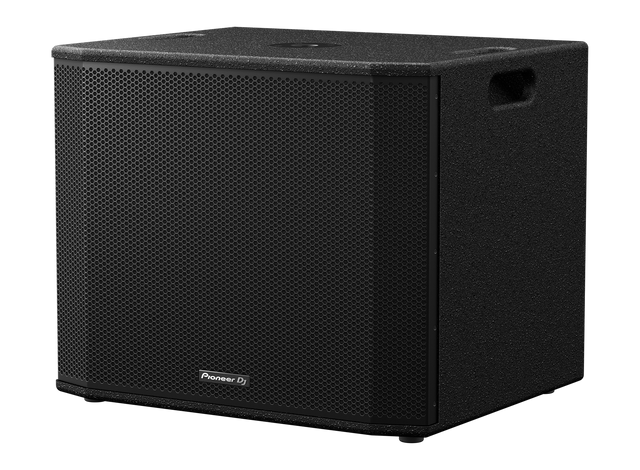

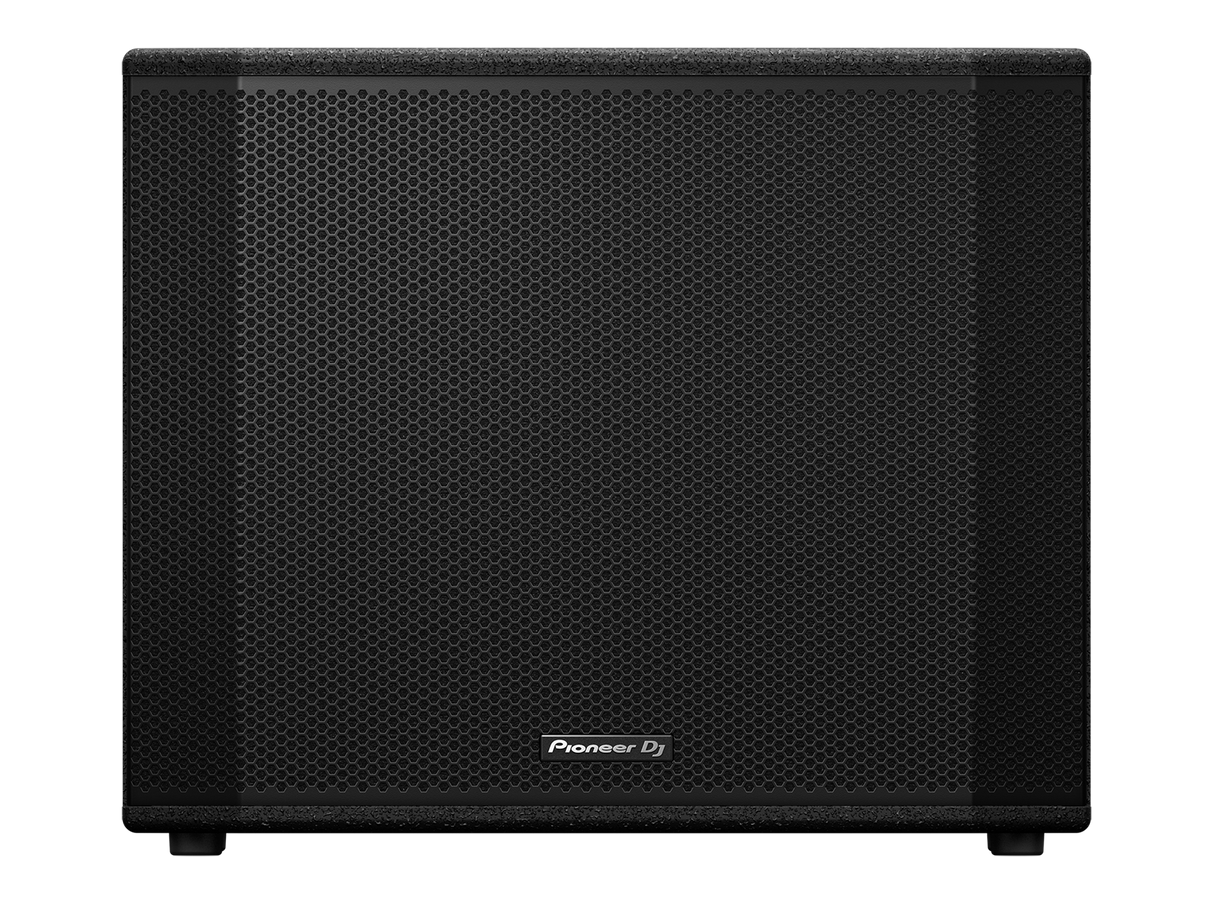

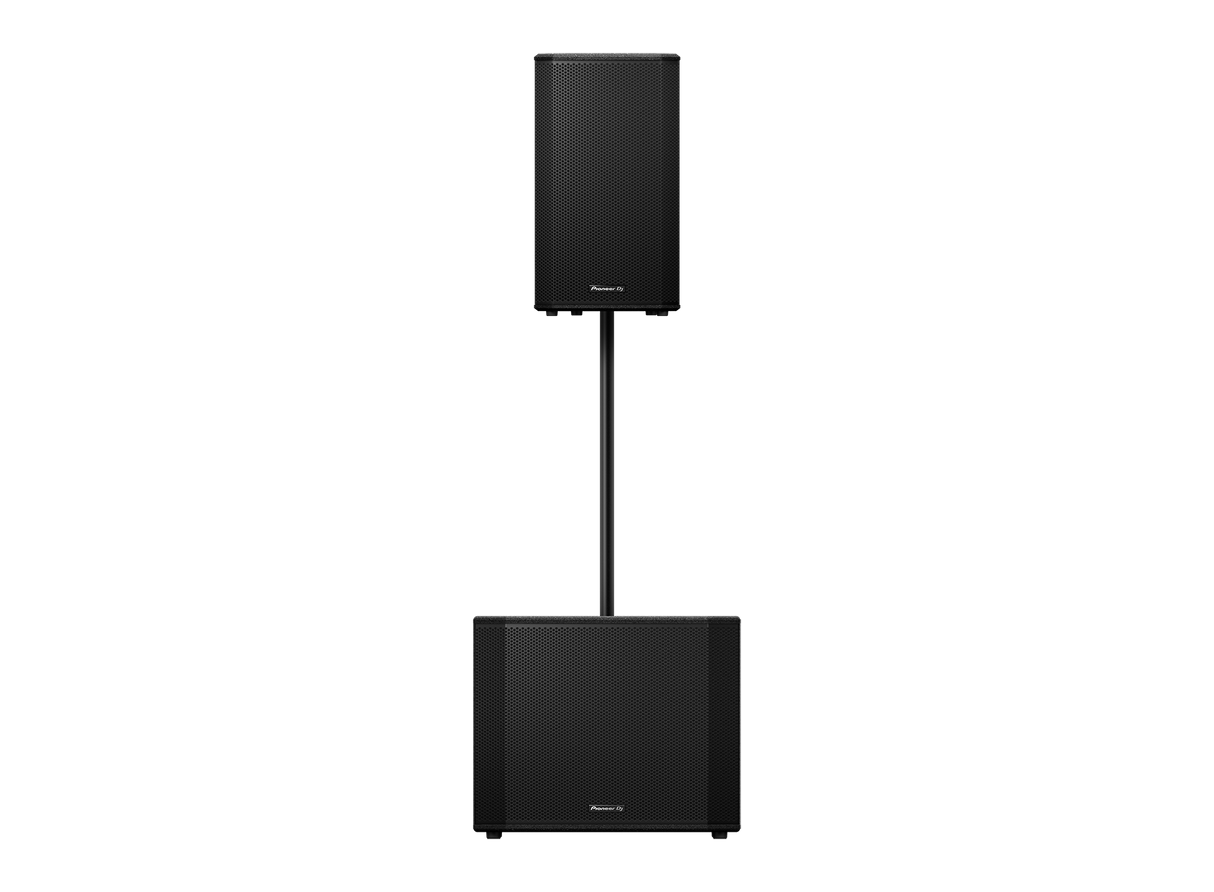

Pioneer DJ XPRS1182S Active Subwoofer

• Powerful Active Subwoofer perfect for DJs, live sound, nightclubs, etc.
• 18" ferrite woofer with 3" voice coil with long stroke length, ensuring superb reproduction of low frequencies.
• Frequency range of 40 Hz - 120 Hz.
• 130 dB maximum SPL.
• 3 DSP Preset Modes - Boost, Extended LF, and Normal.
• Powerful Class D amplification at 4000 W.
• Robustly constructed with high quality.

Main Features
Type
18 inch active subwoofer
Amplifier Output
Class D
4000W peak
What's in the box
XPRS1182S x 1 (not sold as a pair)
Powerd cord
Quick start guide
Important Safety Precautions
Specifications
Supported voltages
110 V to 240 V (50 Hz/60 Hz)
Power consumption
800 W
Frequency Range
40 - 120 Hz
Width
26.02 in
Height
21.06 in
Depth
21.12 in
Weight
71.21 lb
System characteristic
DSP modes
EQ Mode Select (3 DSP Preset Modes(Switch))
LPF
POLARITY
DSP presets modes
BOOST
EXTENDED LF
NORMAL
Maximum Sound Pressure
130 dB

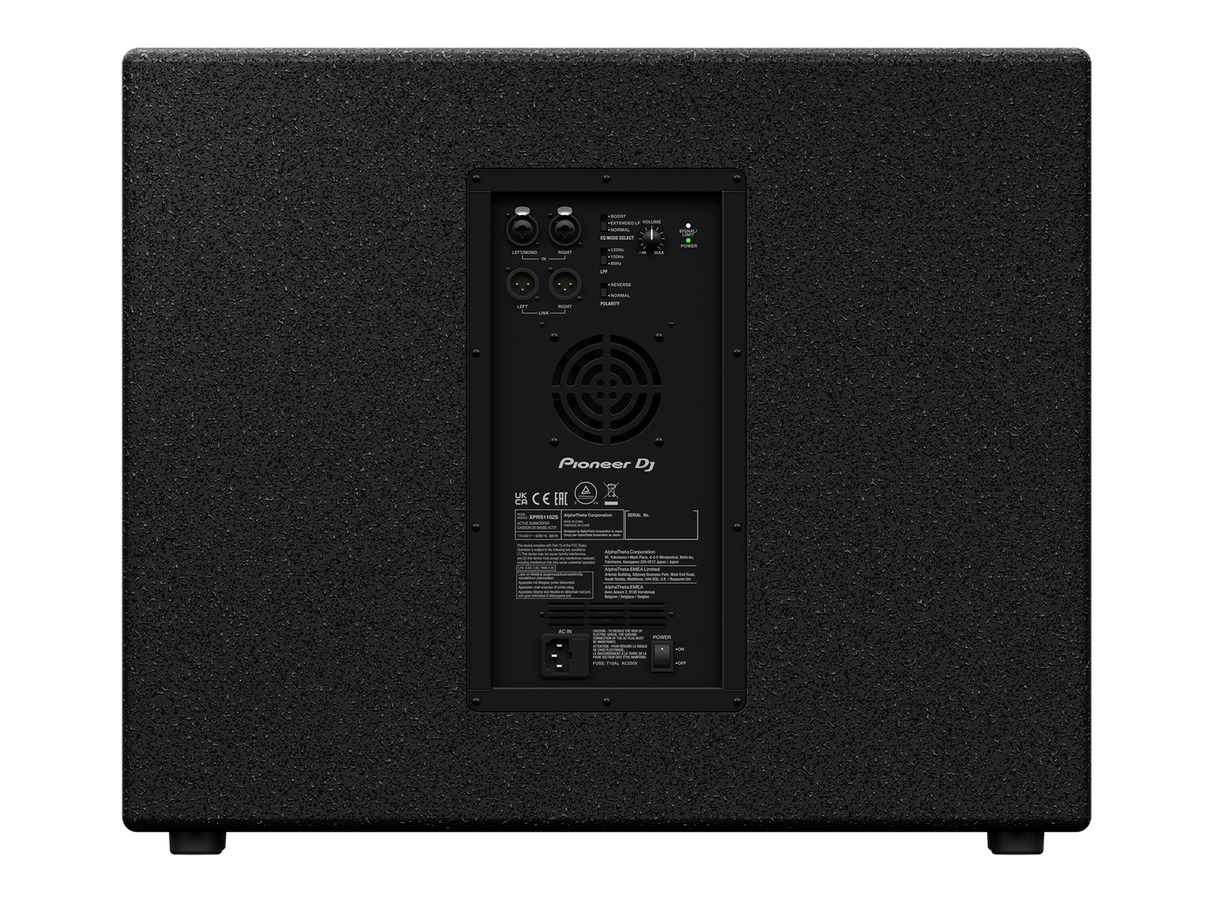

Terminals
Inputs
Left Mono (Combo)
Right (Combo)
Outputs
Left Mono (XLR)
Right (XLR)
Speaker
Driver
18" ferrite LF cone driver
Finish
Black paint, Rubber feet

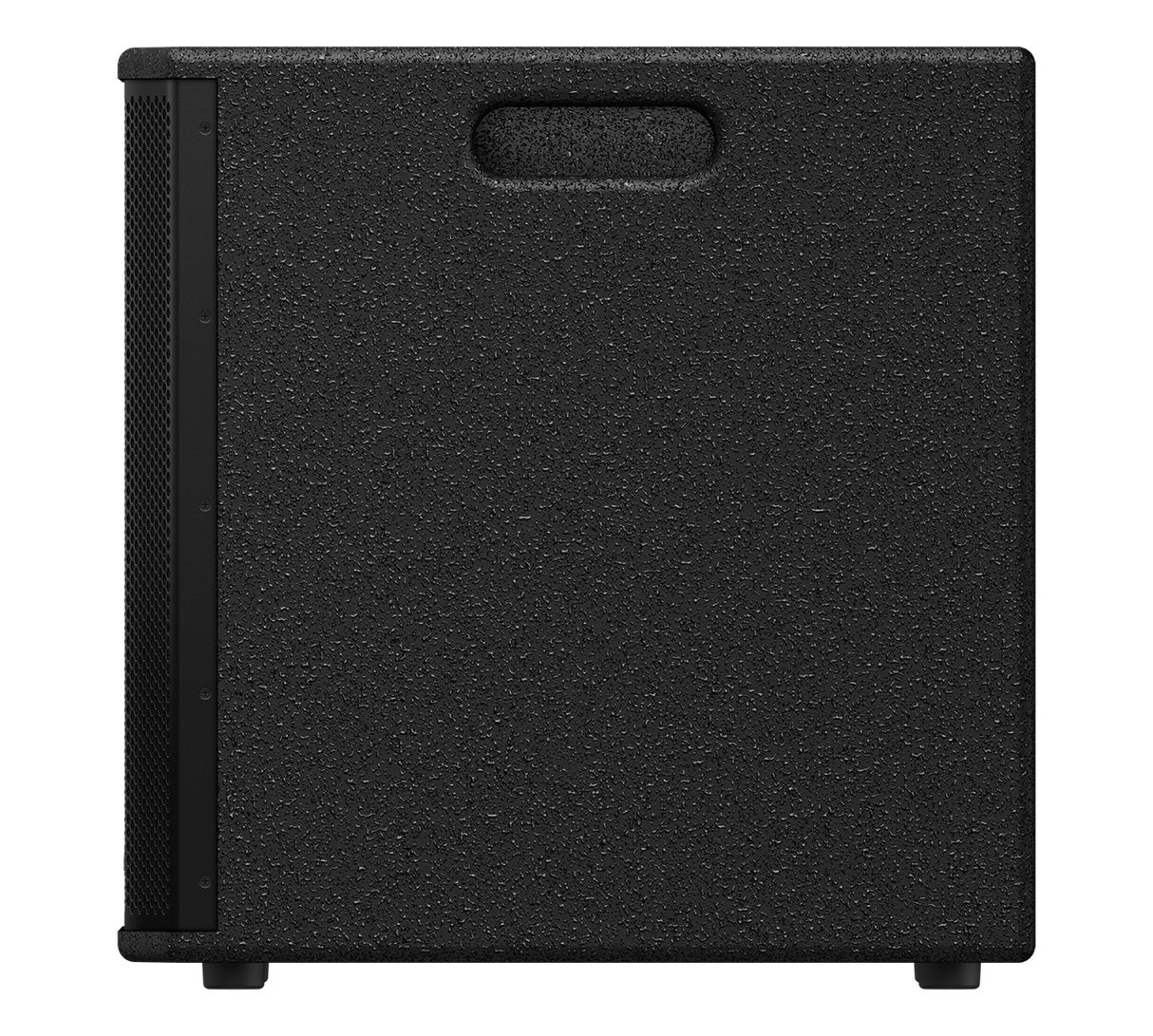

Handle
2 (on both sides)
Pole socket
35 mm socket
Enclosure
Plywood (TSCA)
Protection
Amplifier Protection
Thermal limiting
Digital compressor
Driver Protection
Short circuit protection
Power unit Protection
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection
