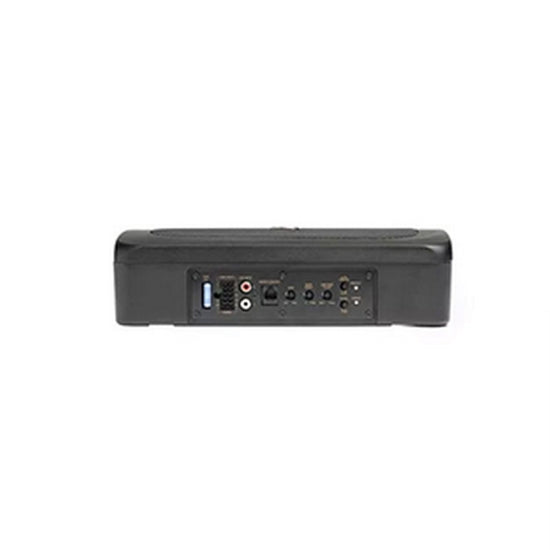

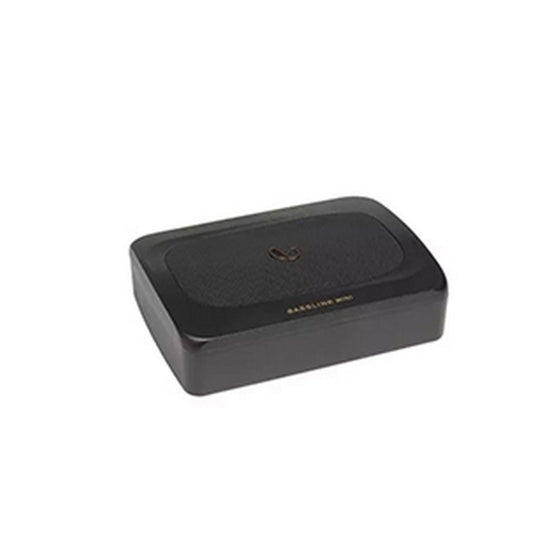

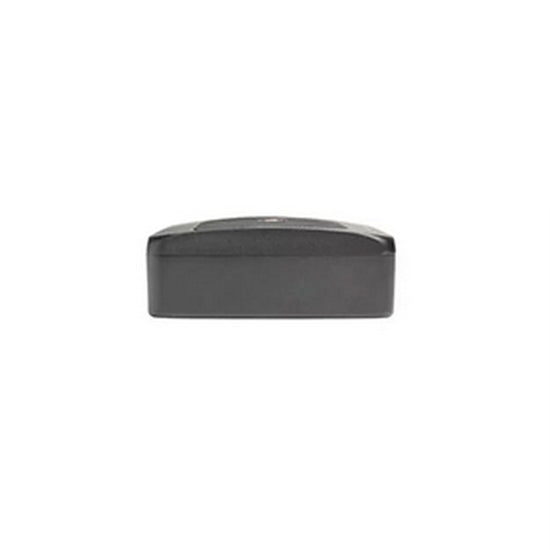

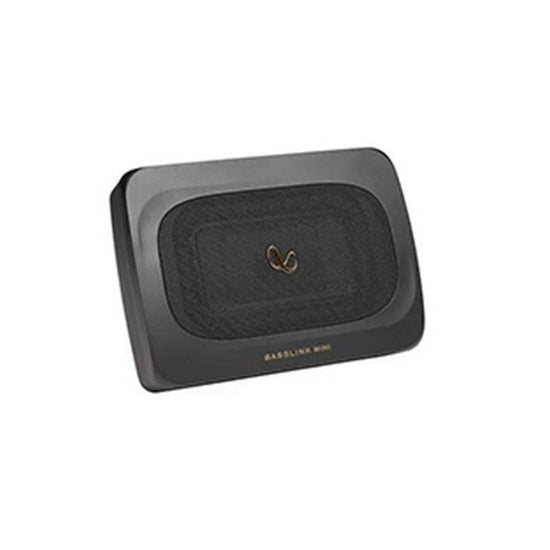

Infinity BassLink MINI Active Subwoofer (270W)

• 270W active subwoofer for under-seat installation
• Compact design, deep and powerful bass driven by a 100 watt amplifier

Infinity BassLink MINI Active Subwoofer (270W)

• 270W active subwoofer for mounting under the car seat.
• Compact design, deep and powerful bass driven by a 100 watt amplifier.
• Engineered to draw minimal power and not get hot.
• Robust die-cast aluminum construction.
• Volume can be controlled via remote control.

Driver Complement: 6" x 8" (152mm x 203mm) Subwoofer
Amplifier Power: 100Wrms; 200W Max
Frequency Response: 30Hz – 150Hz
Fuse: 15A
Maximum Current Draw: 13A
Quiescent Current Draw: <600mA
Input Sensitivity: 0.1V – 4.0V Low-Level Input;
0.25V – 10V High-Level Input
Crossover Frequency: 50Hz – 150Hz
Crossover Slope: 12dB/octave
Bass Boost: 0dB to + 12dB @ 50Hz
Dimensions (L x W x H): 11-7/16" x 8-5/16" x 3"
(289.6mm x 209.6mm x 75.0mm)
Weight: 8.22 lbs (3.73kg)
