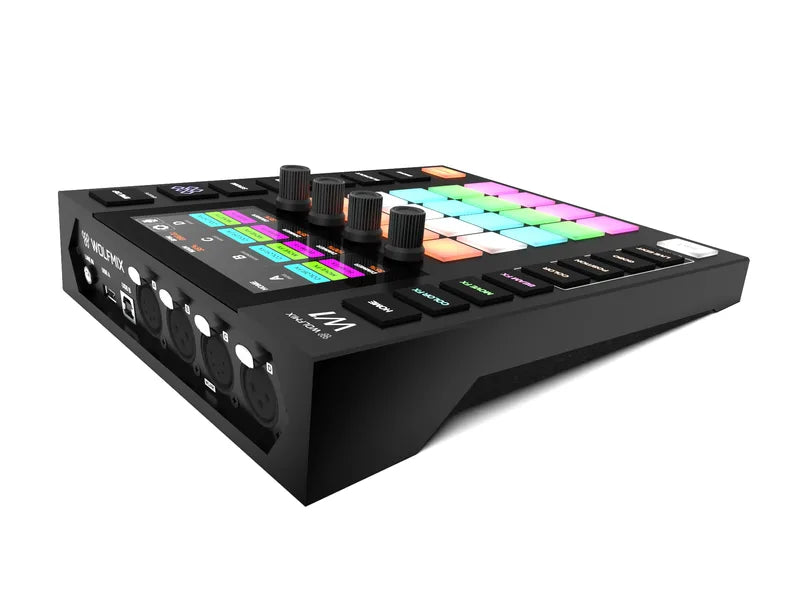

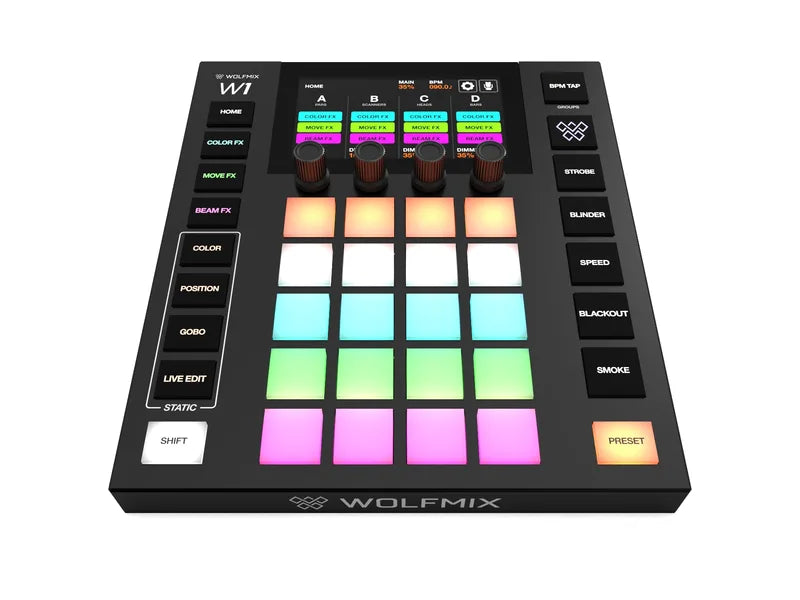

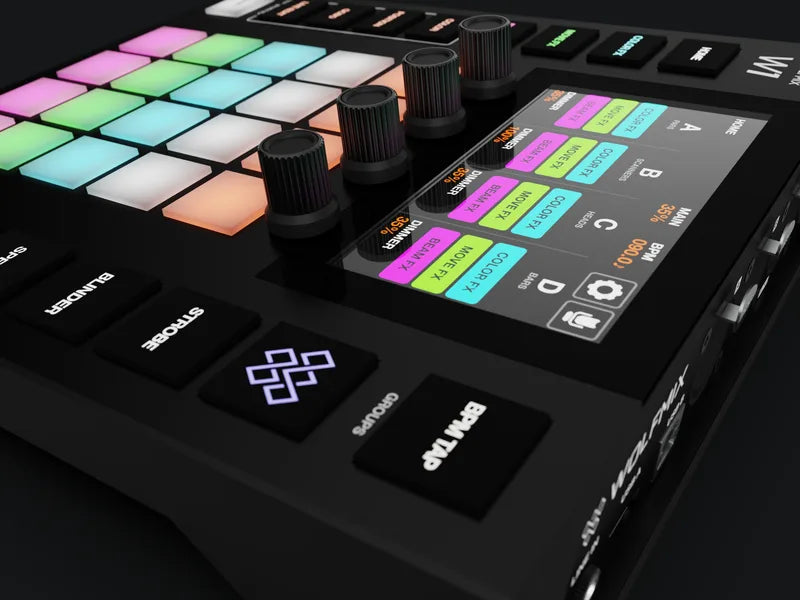

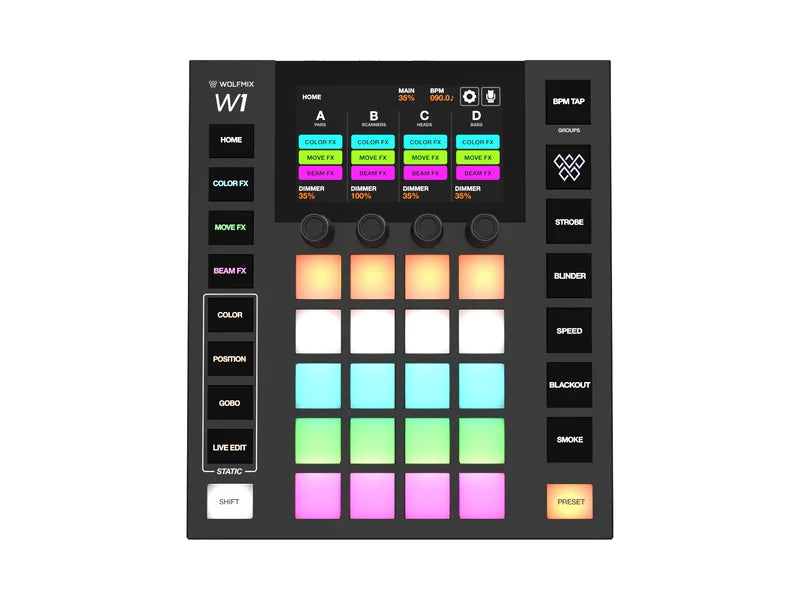

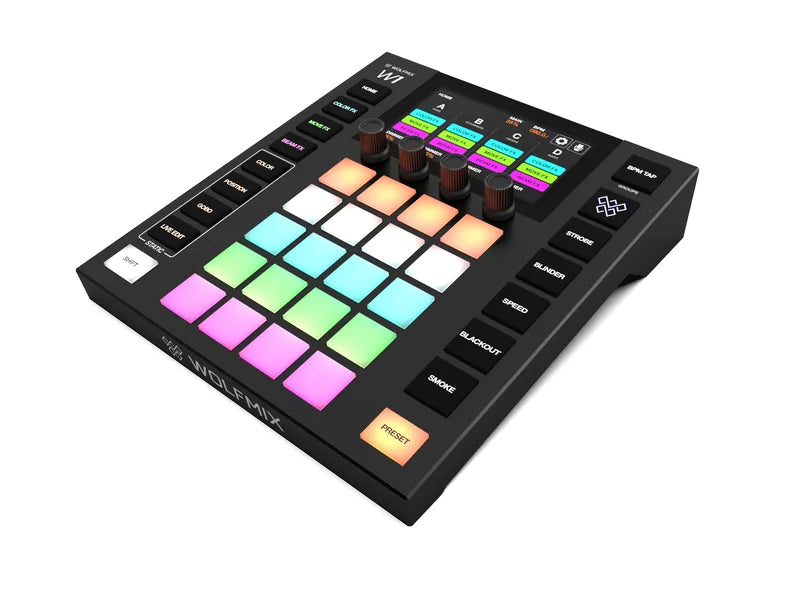

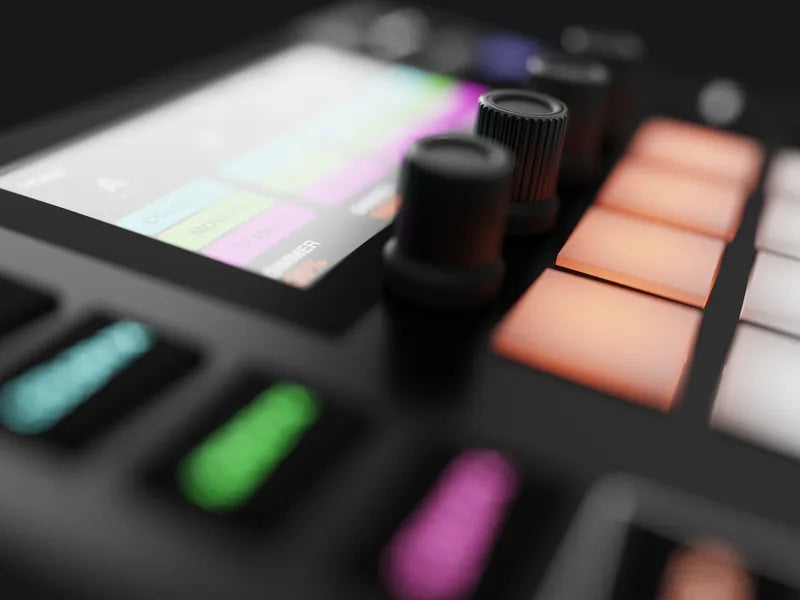

Wolfmix W1-MK2 DMX Light mixer
- Standalone DMX light mixer for use without computer
- FX modules, music sync, up to 4 DMX universes (2048 channels, add-on required for U3+4)
- Compatible with all DMX devices
- Up to 680 fixtures and beams, up to 50 fixture types, up to 5000 fixture features (color/gobo etc.)
- 8 fixture groups, 6 projects
- More than 15000 available fixtures (3500+ on the controller)
- Color FX module with 8 effect types and 16 definable colors
- Move FX module with 8 effect types
- Beam FX module with 8 effect types
- Packed with features in Palettes and FX, Control and Sync, Built-in tools
Wolfmix W1-MK2 DMX Light Mixer
- Standalone DMX light mixer designed to create light shows without a computer.
- A compact toolbox with FX modules, music sync, up to 4 DMX universes (2048 channels, add-on required for U3+4).
- Compatible with all DMX devices.
- Up to 680 fixtures and beams, up to 50 fixture types, up to 5000 fixture features (color/gobo etc.)
- 8 fixture groups, 6 projects.
- More than 15000 available fixtures (3500+ on the controller).
- DMX address, fixture and group setup.
- Can be used as a DMX splitter with DMX universe mapping.
- Connect a USB memory stick to backup and load projects and fixtures.
- Color FX module with 8 effect types and 16 definable colors.
- Move FX module with 8 effect types.
- Beam FX module with 8 effect types.
- 6 flashing buttons to control Special FX, Strobe, Blinder, Speed, Blackout and Smoke.
- Packed with features in Palettes and FX, Control and Sync, Built-in tools.
- See "Additional Specifications" for a complete list of all features.
- Beautiful 4.3" color display with tinted glass (capacitive touch).
- 37 LED illuminated silicone buttons.
- A powerhouse DMX mixer that has you covered on all fronts.
Palettes & FX
• Color FX module with 8 effect types & 16 definable colors
• Move FX module with 8 effect types
• Beam FX module with 8 effect types
• 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke
• Static color palette with 10 user definable colors per group & gradient control
• Static position palette with 5 user definable positions per group with fade & fanning
• Gobo palette with 5 user definable gobos per group
• 40 namable live edit buttons with flash triggering mode and ‘Park’ function
• 100 namable presets for storing snapshots with hold and fade timings
• Preset playback cue list- all presets or per page of 20 presets
Control & Sync
• Group and master dimming with encoder acceleration
• Group FLASH, FULL and Blackout
• 16 bit Pan/Tilt control
• Multi-beam LED bar control
• FX music pulse sync from Microphone or Line-In
• FX BPM sync with Ableton Link, OS2L, BPM TAP & MIDI Clock
• Effect Speed, Phase, Order, Size, Fade, Fan & Flick
• Live control of move FX registration point
• Global FX speed and freeze control
• Map DMX IN with group dimmer and patch to output channels (add-on required)*
• WLINK - sync with another Wolfmix controller (add-on required)*
• Trigger presets and control group dimmers with a MIDI controller
Built-in tools
• Fixture Builder
• Fixture calibration tool, to limit the area of moving fixtures
• X-Y touch controlled positioning grid
• RGBW touch controlled color picker
• 8-step real time sequencer for creating beam and move FX
• Live view of DMX levels with default value override and DMX channel tester
• Beam Editor to override Min and Max values used in generated FX
Other neat features
• Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
• Timed release of flash and preset buttons
• Fixture FLIP function, for reversing beam order
• Fixture SPLIT function, for splitting up multi-FX bars
• Lock full controller, or lock editing with a password
• Project & fixture backup with WTOOLS app
• Offline 3D visualization with Easy View & WTOOLS over USB (add-on required)*
• Auto-recovery of active project (no manual saving needed)
• Import different fixture setups into the same project
• Starts in under 2 seconds. Starts sending DMX in under 1 second
• Factory firmware startup recovery mode for times of crisis
*some features require an add-on purchase available through the WTOOLS appTechnical:
Housing
• ABS Plastic
• Powder-coated steel base plate with 100mm VESA (M4 6mm max)
• Powder-coated steel reinforced back plate
Display
• 4.3” Color TFT with tinted glass
• Capacitive touch
Encoders
• Alloy encoder caps
• Incremental push with acceleration
Button pads
• 37 Silicone buttons with matt oil finishing
• LED color backlit
Processing
• 220Mhz CPU with ARM core
• 8MB RAM
• 16MB Flash
Audio
• Omnidirectional electret mic
• 3.5mm Jack Line-In
• Analog adaptive peak detector

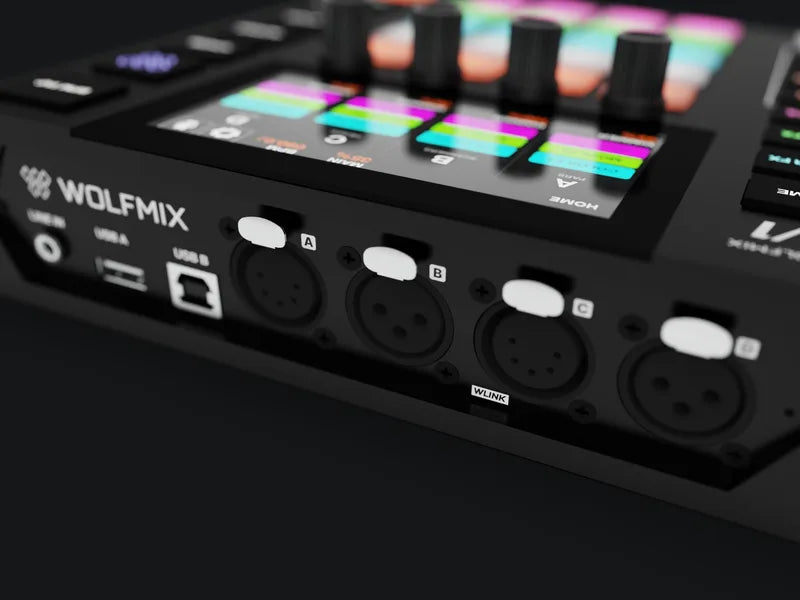

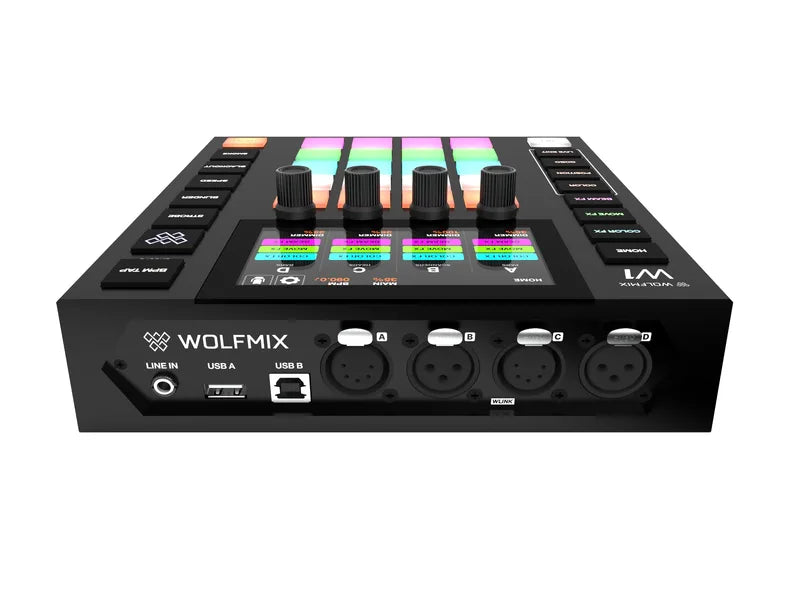

DMX
• 2x 3pin DMX OUT XLR connectors
• 1x 5pin DMX OUT XLR connector
• 1x 5pin DMX IN/OUT XLR connector with WLINK
USB
• USB-B connector- 900ma required (USB3 rating)
• USB-A connector (MIDI/MSD)
Size & weight
• 195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in
• 1070g / 2.36lb
