ART Zonemixer 5 zoner distributionsmixer til installationer

ART MX225CE Mixer 5 kanaler zone mixer

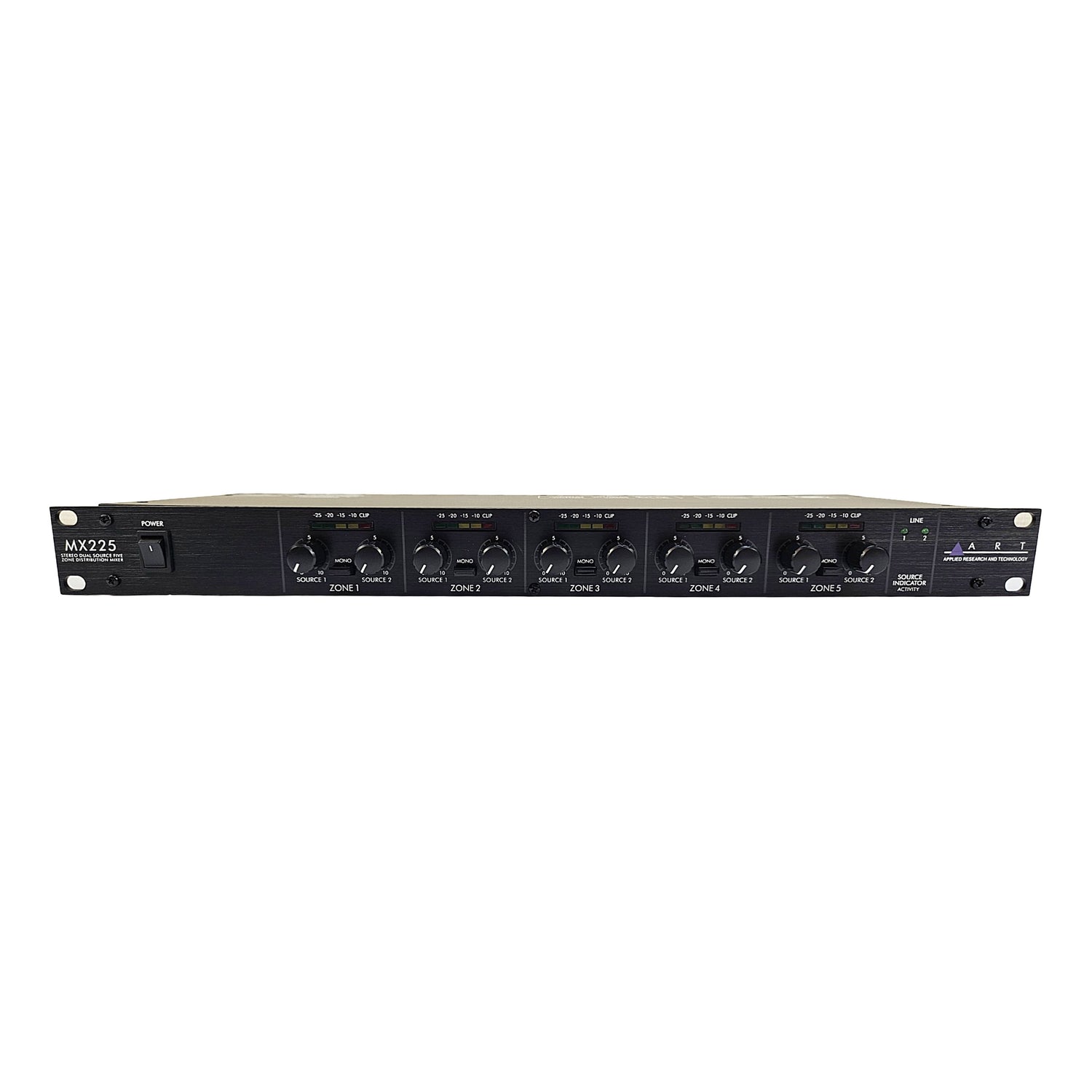

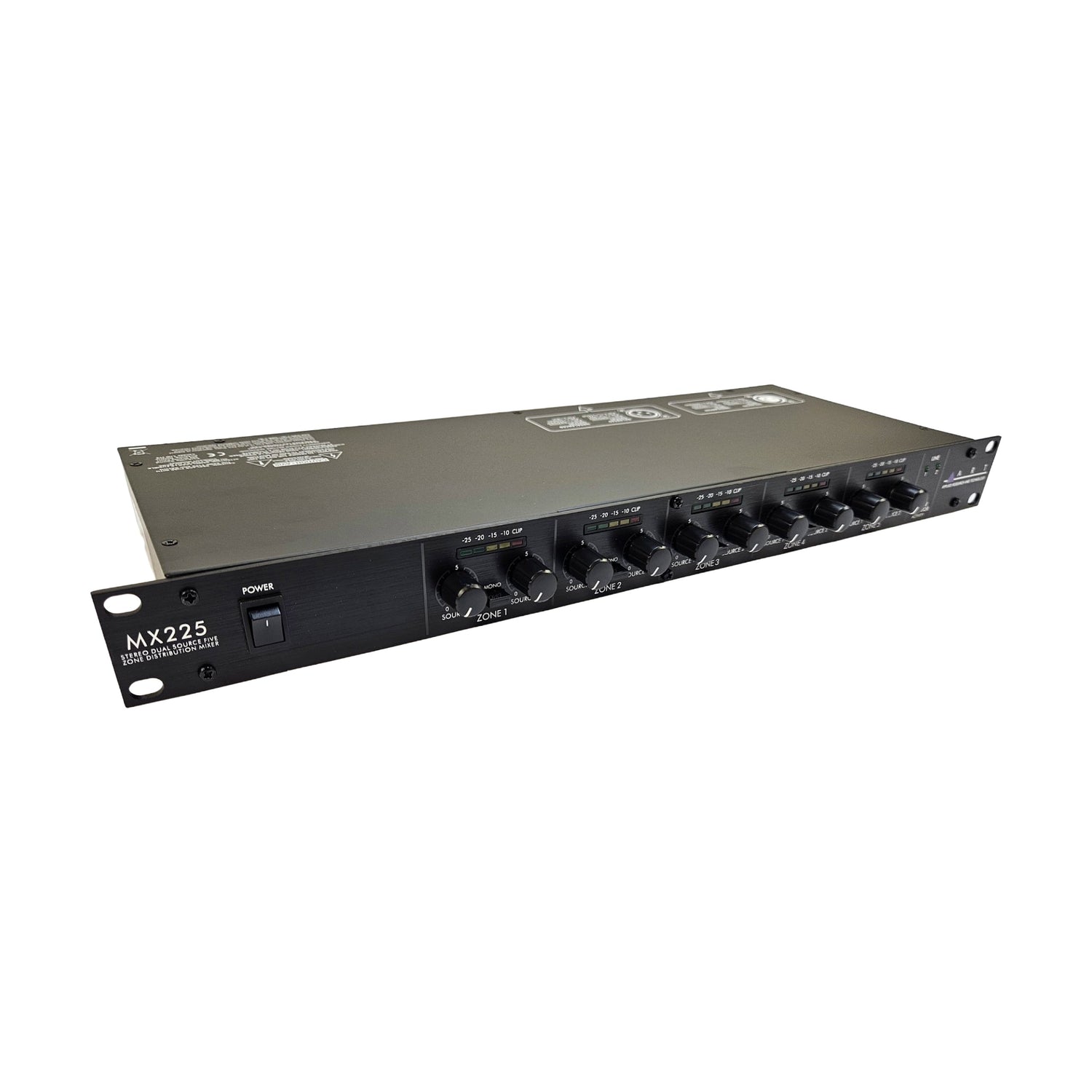

MX225 er designet til fjernstyret kontrol af volumen hos flere forstærkere, eller kraftfulde højttalere i et distribueret lydsystem. To stereo-kilder er tilgængelige til fem output-zoner. Hvert kilde input-par håndterer separate venstre og højre balancerede line-level signaler. Hver output-zone tilbyder uafhængig level-kontrol fra inputs 1 og 2, stereo/mono-selektor med mono-indikator, LED-niveaumålinger og venstre og højre balancerede line-level zone-outputs. Alle lydstik er balancerede XLR. Den indbyggede strømforsyning og 19" rackmount-format gør enheden let at installere og giver pålidelig drift.

Left and right balanced Source 1 and 2 Inputs, accepts stereo or mono signal sources
Source 1 and 2 input channels are internally routed to all five Zone channels
Five Zone channels each feature Source 1 and 2 level controls and left and right balanced output XLR connectors
Stereo/Mono selector on each zone sums left and right into Mono mode when engaged
Mono indicator LED on each zone channel indicates that mono has been selected
Five LED level metering (-25, -20, -15, -10, Clip) on each zone channel indicate signal activity for each zone
Source 1 and 2 indicator LEDs show you when signal is present in each source channel

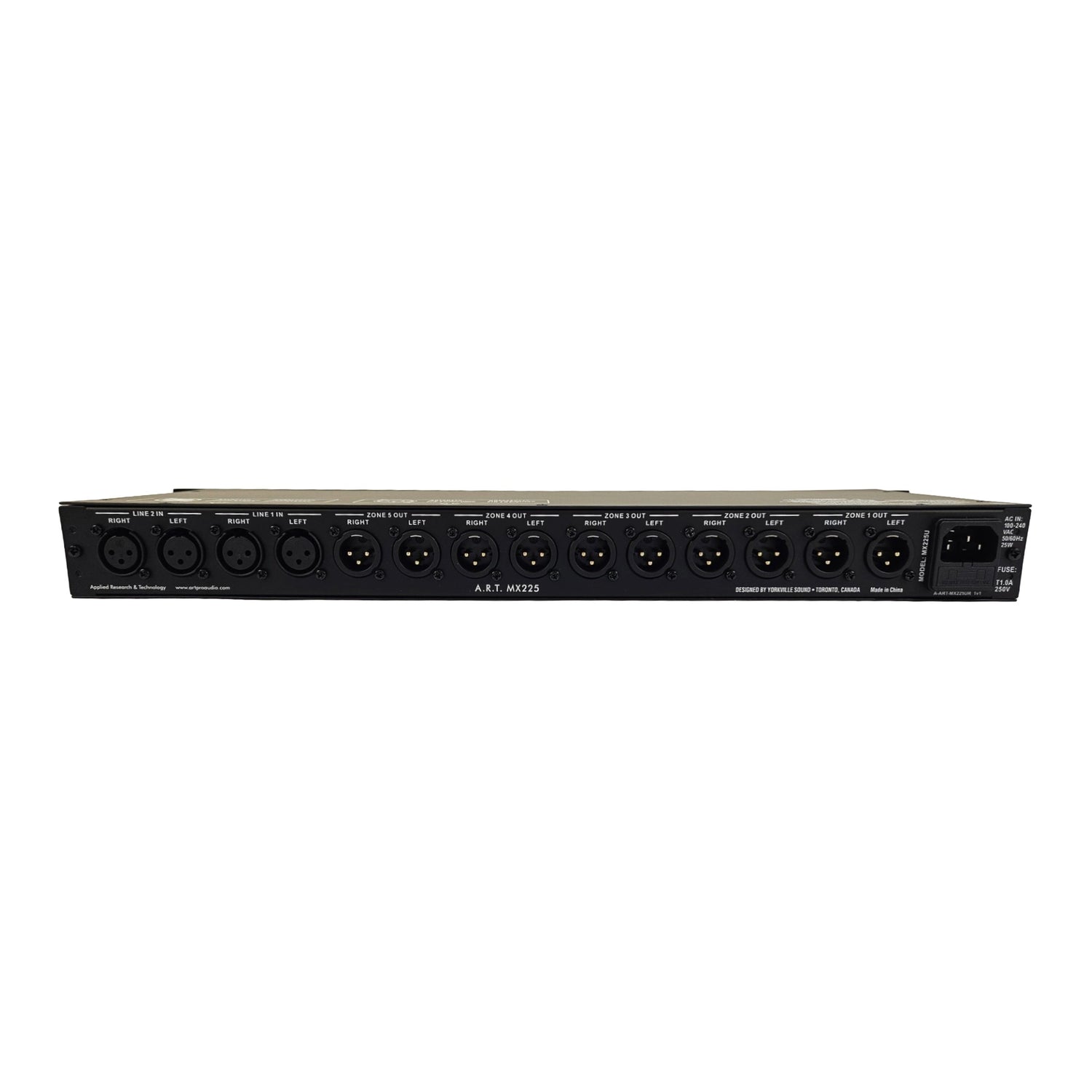

Input Connections: XLR-F balanced (x4)
Output Connections: XLR-M balanced (x10)
Input Impedance: 47k Ohm
Output Impedance: 200 Ohm
Total Harmonic Distortion: .05% Typical
Signal to Noise Ratio: > 90dB typical
Maximum Input Level: +20dBu
Maximum Output Level: +24dBu balanced
Maximum Gain: +6DB
Power Requirements: USA - 105 to 125 VAC / 50-60Hz, 15 W typical
Dimensions: 1.75"H x 19"W x 7.25.0"D (44.5mm x 483mm x 184mm)
Weight: 5.34 lbs (2.42 kg)
