Boya Trådløst kamera sæt med dobbelt modtager og 2 sendere

BOYA WM8 Pro er opgraderet version af UHF Dual-Channel Wireless Microphone System og
kan bruges til at optage lyd til live lyd, ENG, transmission og film, talkshows, konferencer og mere.

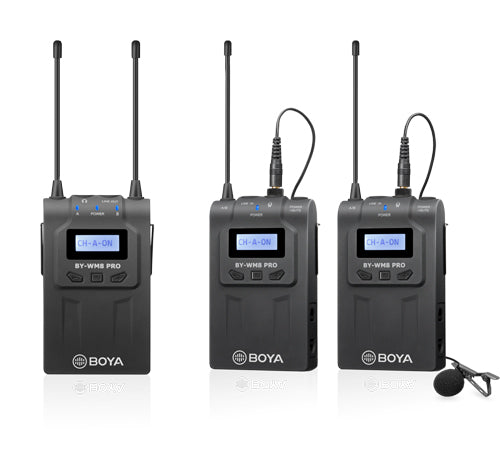

BOYA WM8 Pro-K2-systemet består af:
1 styk dobbelt kamera-monterbar modtager
2 styk bodypack-sendere
2 styk omnidirektionelle (kuglekarakteristik) lavalier-mikrofoner med clips og vindhætte
1 styk kamerasko monteringsadapter
1 styk minijack til XLR kabel
1 styk minijack til minijack kabel.
Leveres samlet i transport kuffert

Kamera modtageren har et bredt RF-båndbredde, et let at læseligt LCD-display
og en 3,5 mm hovedtelefonstik til realtidsovervågning. Bodypack-senderen er udstyret
med en krystalkontrolleret PLL-synthesizer, en muting-funktion, minijack mic input og minijack line-in.

Product Highlights:

Dual-Channel Wireless Receiver
Consists of One Transmitter and One Receiver
UHF transmission with 48UHF channels
Ideal for ENG/EFP, DSLR Video
Broadcast-Quality Sound
Operation range can reach up to 100m
Adjustable MONO and Stereo mode
Powered by one 2 x AA batteries for both transmitter and receiver

Oscillator type: PLL Synthesized Control Oscillator

Carrier Frequency Range: 576.4 MHz-599.9 MHz (Transmitter: A ), 568.6 MHz-592.1 MHz (Transmitter: B )

Channels:48

Frequency response: 40 Hz to 18 kHz (+/-3dB)

Operation range: 100m (300')(without obstacle)

Operating temperature: 14° F to 122° F (-10° C;to +50° C)

Storage temperature: 14° F to 131° F (-10° Cto +55° C)

Transmitter:
RF output power: 10 mW

Antenna: 1/4" wire antenna

Spurious emission: 250 nW or less

Audio input connector: 3.5mm mini jack

Reference audio input level:-60 dBV (MIC input, 0 dB attenuation)

Reference deviation: ±5 kHz (-60 dBV, 1 kHz input)

Input frequency range: 20 Hz-20 KHz Distortion: 0.5% or less

Power supply: Two AA size batteries Operation time: About 6 hours

Dimensions: 208(H)× 67(W) × 29(L)mm

Weight: 80g without batteries

Receiver:

Antenna: 1/4" wire antenna

Audio input connector: 3.5mm mini jack

Signal-to-noise ratio: 70 dB or more

Distortion: 0.5% or less

Headphone output level:30mW (16 Ohm)

Audio output level: -60 dBV

Power supply: Two AA size batteries

Operation time: About 4 hours

Dimensions: 208(H) × 67(W) × 29(L)mm

Weight: 90g without batteries

Lavalier Microphone:

Transducer: Back electret Condenser

Polar pattern: Omni-directional

Frequency Range: 35Hz ~ 18 KHz

Signal / Noise: 74dB SPL

Sensitivity:-30dB +/-3dB / 0dB=1V/Pa, 1 kHz

Connector: 3.5mm locking mini plug Length: 1.2m
