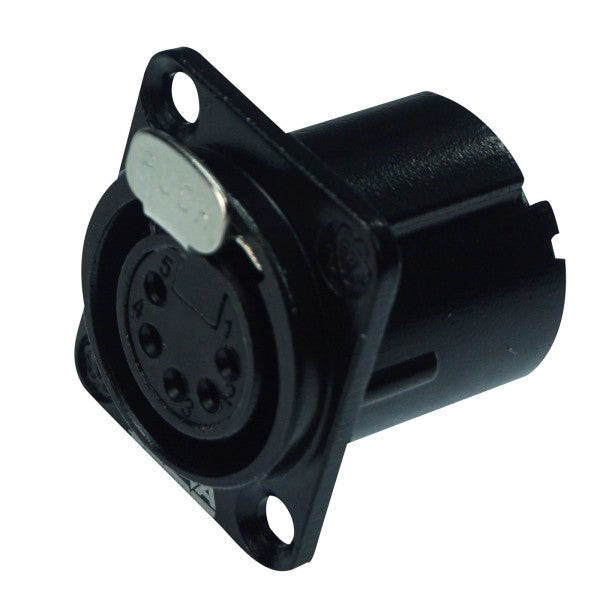

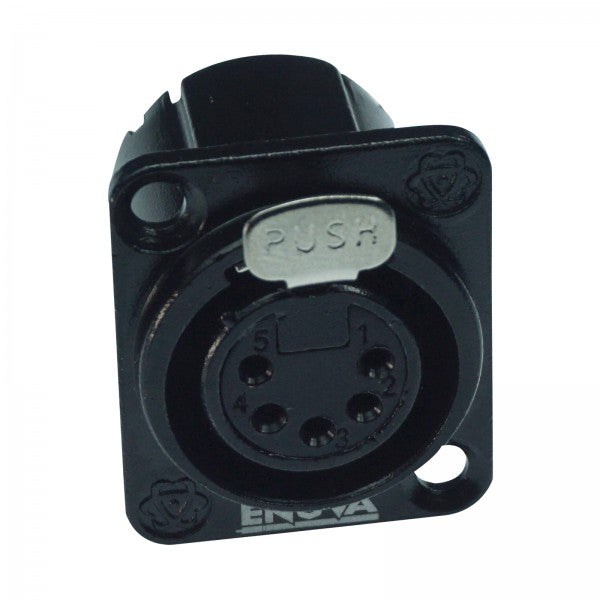

Enova 5-Pin XLR hun chassis stik, sort

ENOVA 5 POL HUN XLR CHASSIS STIK, SORT

ENOVA er en ny schweizisk producent af stik og kabler i høj kvalitet. ENOVA tilbyder et sortiment af de mest efterspurgte stik og kabler i Live- og AV-industrien og vil løbende udvide deres sortiment.
ENOVA bestræber sig på at tilbyde Live- og AV-industrien et fuldt ud alternativ.

Brand:ENOVA
Series:XL-Serie
Version (Plug / Chassis):Chassis version
Connector type:XLR, XLR female 5 pol
Number of contacts:5
Contact diameter in mm:3 x Ø 2.86 mm
Gender (M / F):Female connector
Connector housing color:Black
Wiring mode:Solder contact

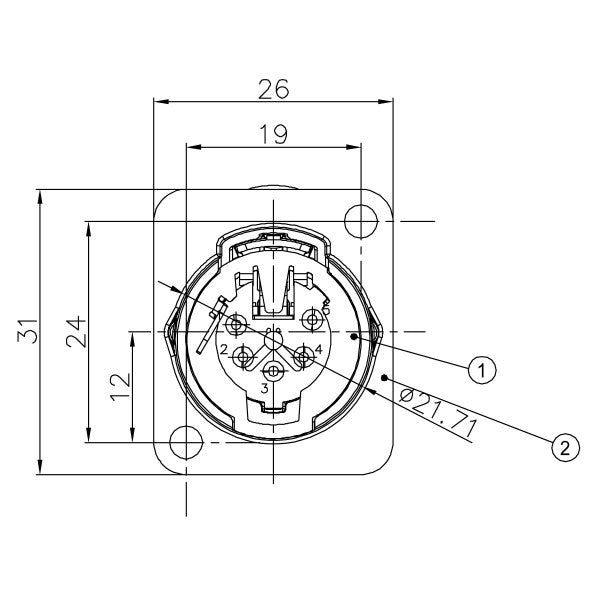

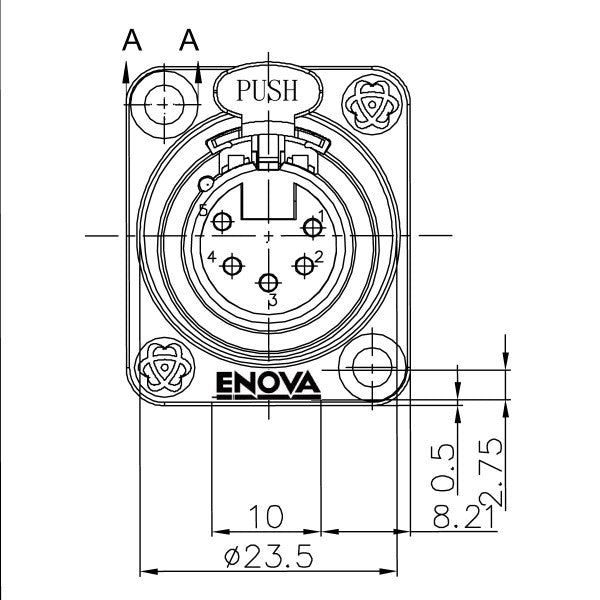

Installation diameter in mm:Ø 24.00 mm
Installation fixing height x width in mm:24.00 mm x 19.00 mm
Number of mounting holes:2
Mounting hole diameter mm:3.6 mm
Insulation component:High performance plastics
Material connector housing:ZZNAL4-1
Material contact:Phosphor Bronze
Working temperature minimum:-30°
ROHS according to EN62321-1:Ja
Country of origin:China
Operating voltage (VAC.RMS):Insulation resistance:> 10 GOhm
Contact resistance:<3 mOhm
Applications:DJ, Keyboard player, Lighting technician, Singer, Sound engineer
Märkte:Event Production, LED interior / exterior lighting, Industrie, Medical technology, Mechanical engineering, Gerätebau, Anlagenbau, Multimedia Installation, Digital Signage, Cable Assembly, Beleuchtung, Broadcast, Recording studio

NC5FDLX-BAG
