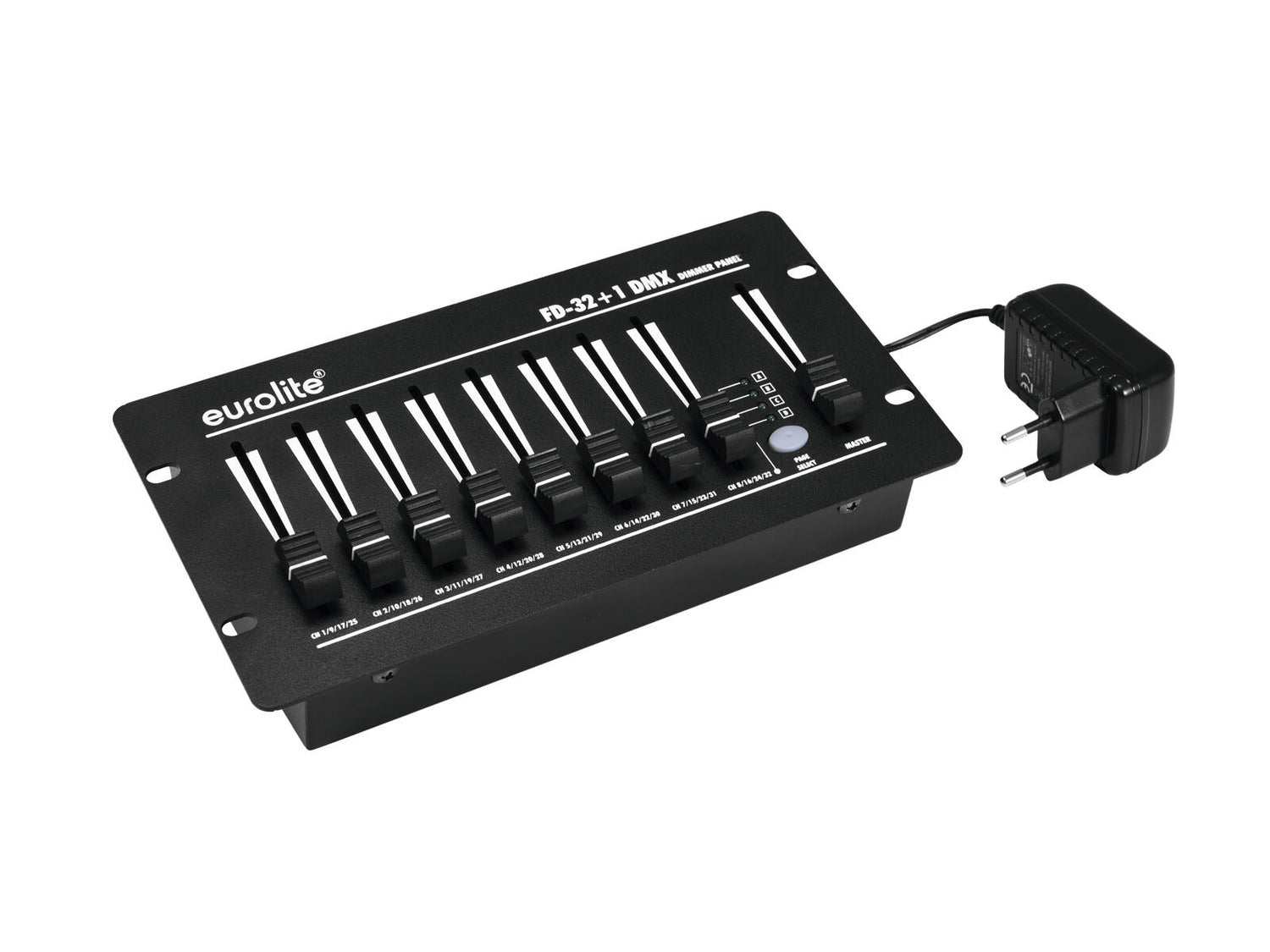

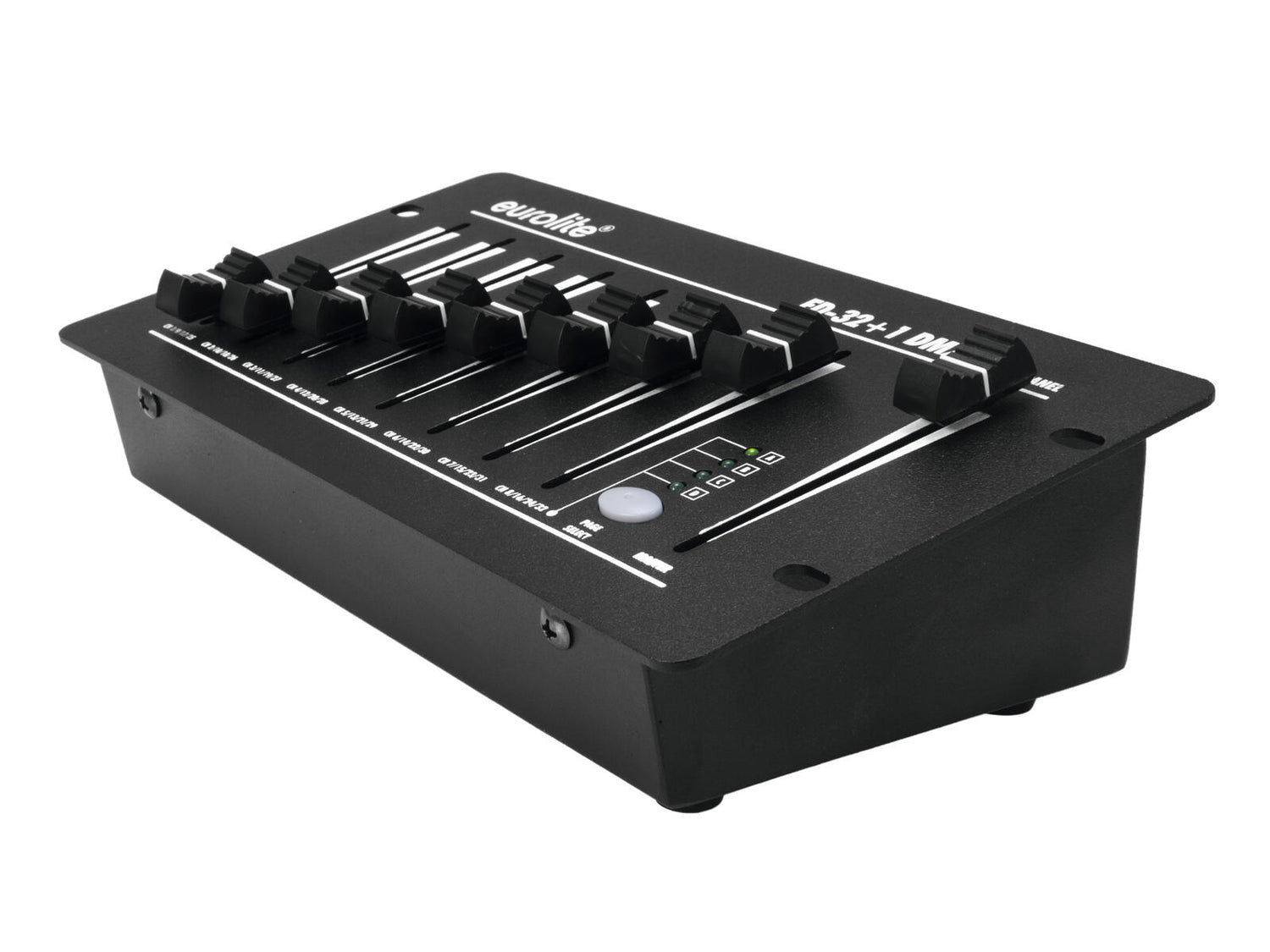

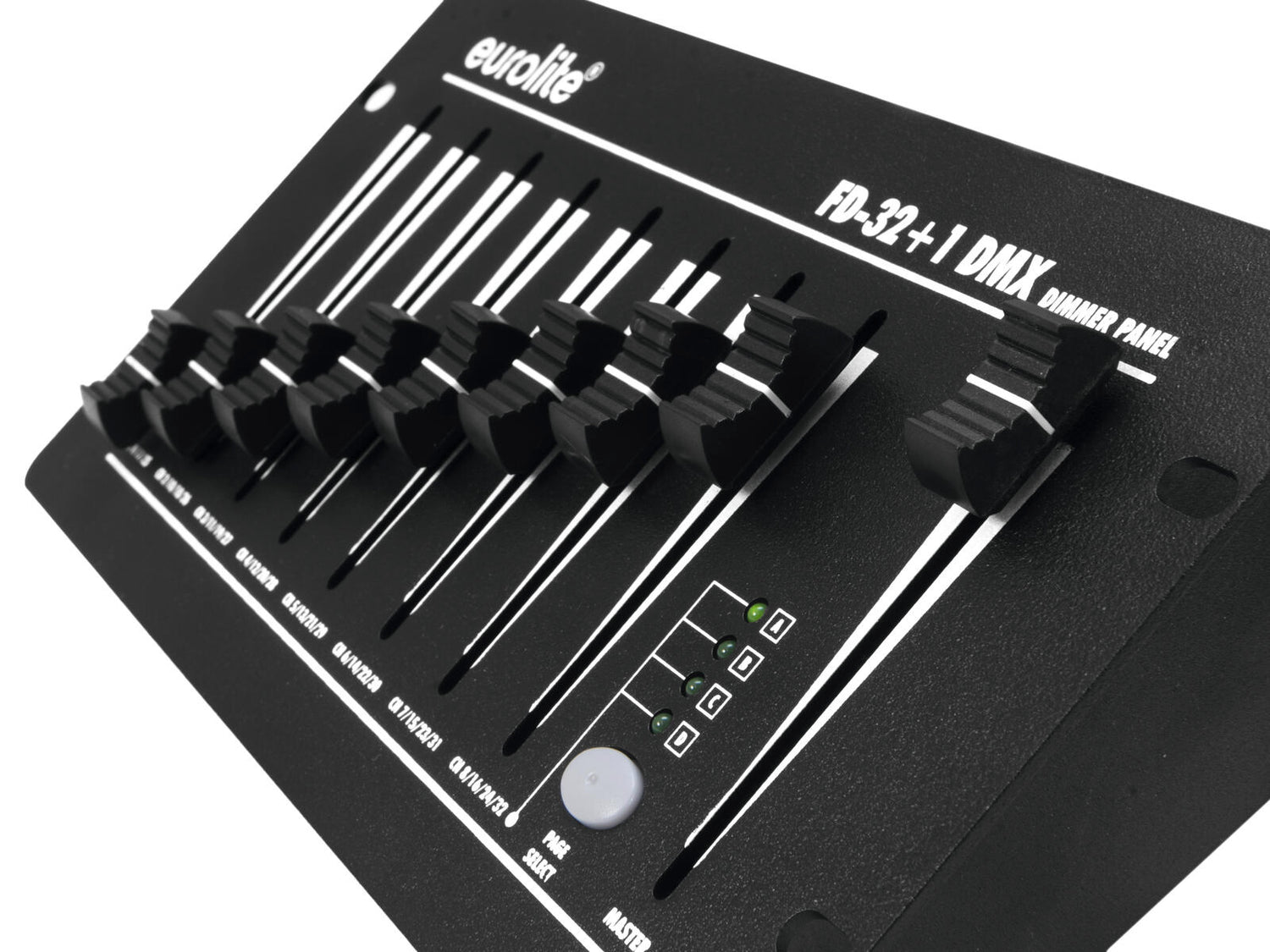

EUROLITE FD-32+1 DMX Dimmer Panel
1
of
5
Loading...
€73,95
Unit price
/
Not available
Secure checkout
Description
Description
Basic DMX controller for 32 channels with master fader
- Basic DMX controller for convenient operation of light effect units with DMX512 interface (e.g. spotlights and dimmers)
- Simply connect and operate, requires no extensive programming

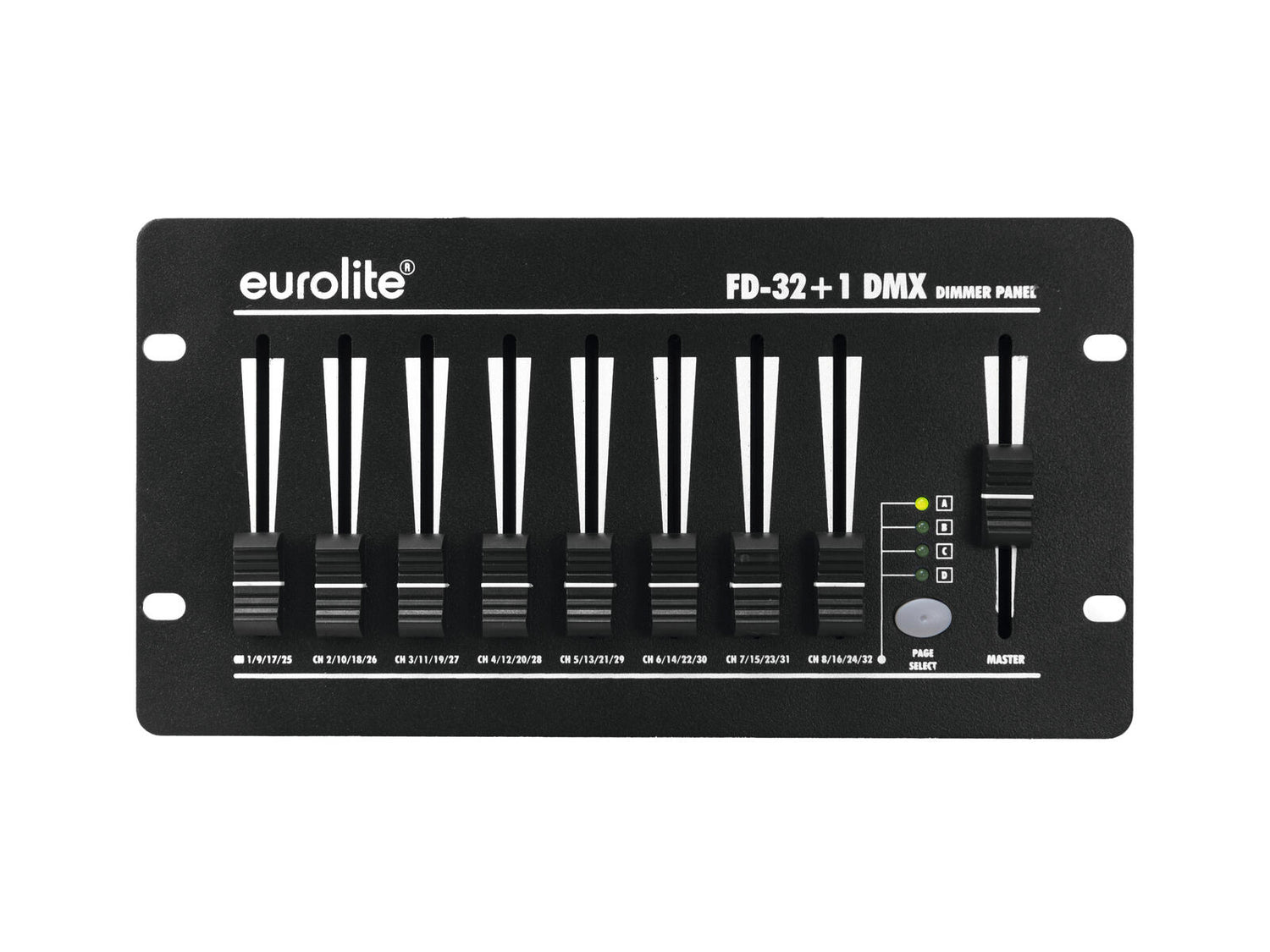

- 8 channel faders for adjusting the DMX values in 4 groups
- 1 master fader
- Compact design
- Powered by a battery/battery pack
- Can transmit up to 32 DMX channels
- Desktop console housing
- For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; video and photography
- Silent operation
Scope of delivery
- 1 x controller
- 1 x user manual
- 1 x external mains adapter
| Power supply: | 100-240 V AC, 50/60 Hz 9V DC |
| Power consumption: | 1.0 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Battery: | 1 x 9.0 V E block (not included) |
| DMX channels: | Output 32 |

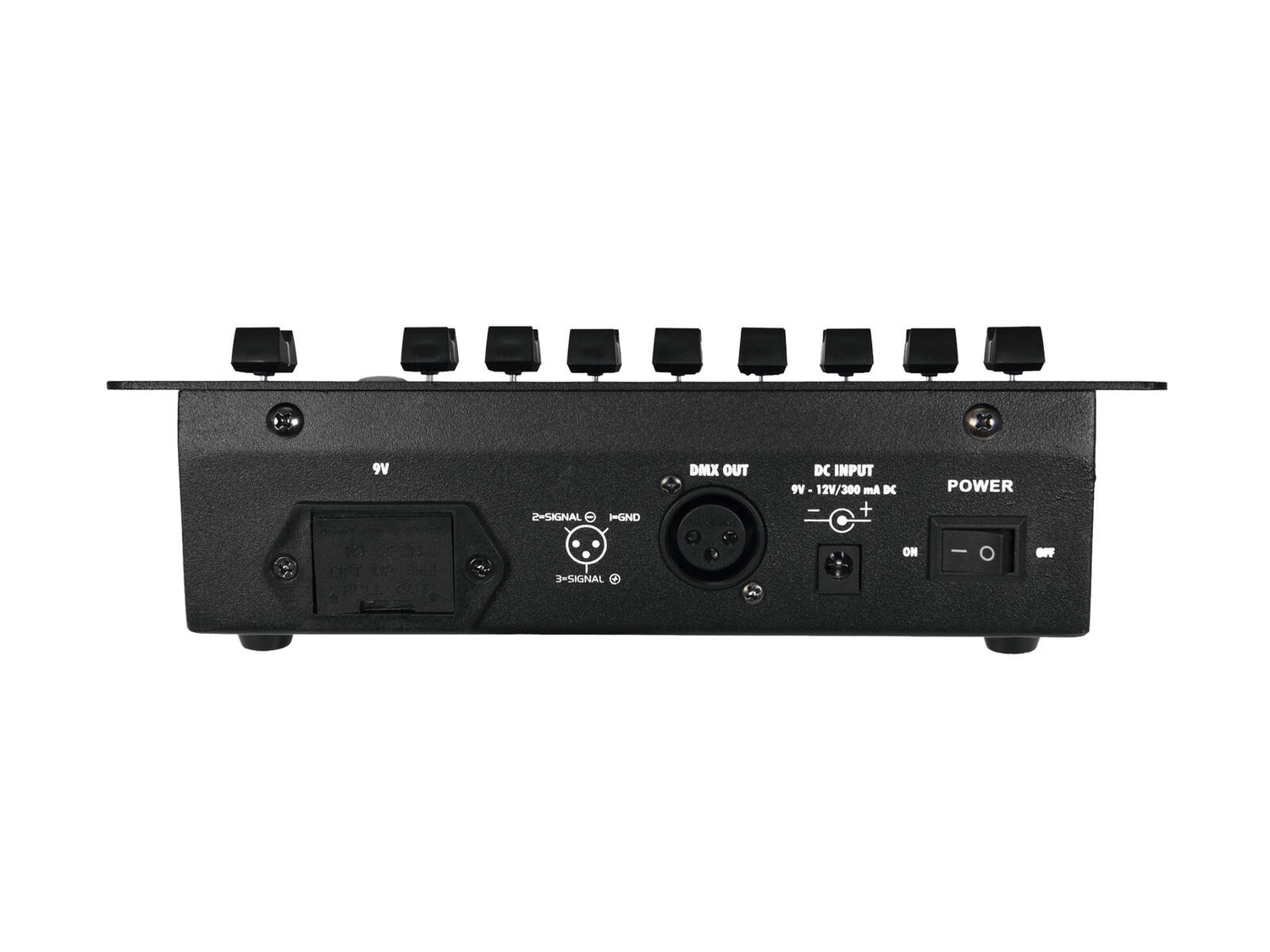

| DMX output: | 3-pin XLR (F) mounting version |
| Housing color: | Black |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 12 cm Depth: 23 cm Height: 6.5 cm |
| Weight: | 0.98 kg |
| Noise classification: | Class 0 (no noise at all) |
