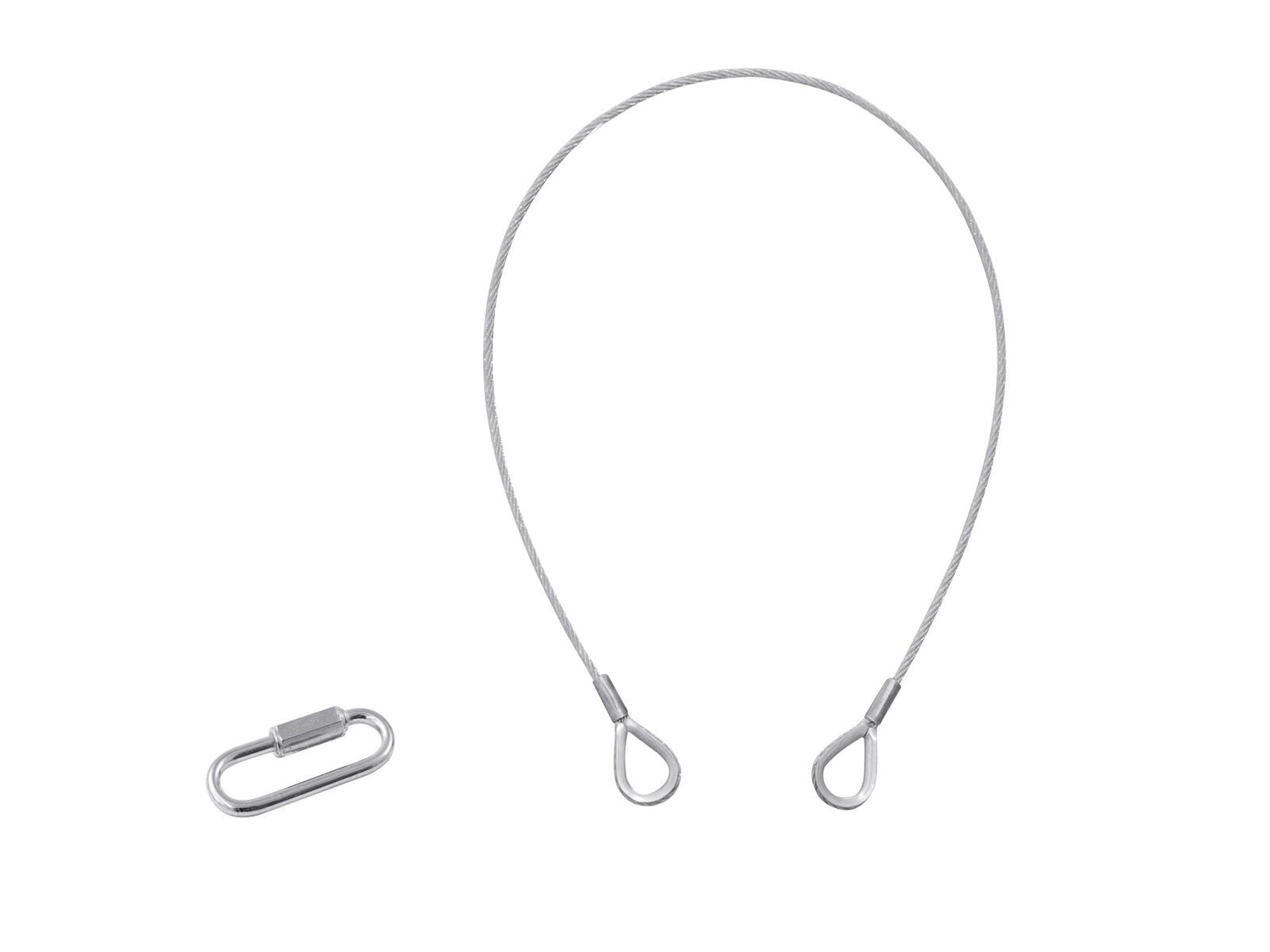

EUROLITE Safety Bond B 3x600mm up to 5kg silver
1
of
3
Loading...
€6,95
Unit price
/
Not available
Secure checkout
Description
Description

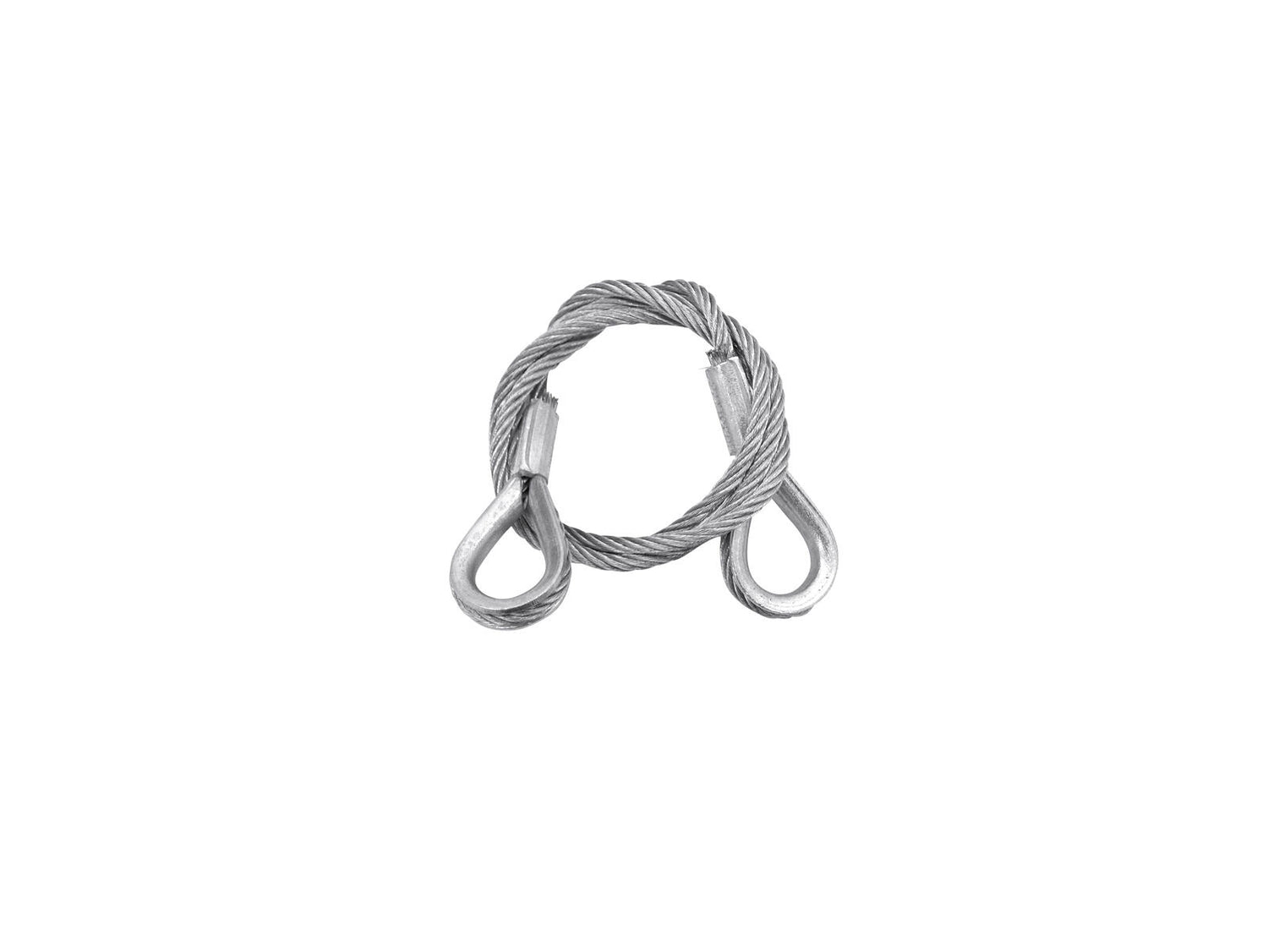

EUROLITE Steel Rope 600x3mm silver with Thimbles
Installation rope, safety bond, safety
- Round strand rope 6 x 19 with fibre core
- Suitable for installing and securing loads above persons
- Complies with DIN EN 12385-4:2008-06 and DIN 56927:2009-03
- Rope with thimble
- For further information about this product, please refer to the Data Sheet under "Downloads"

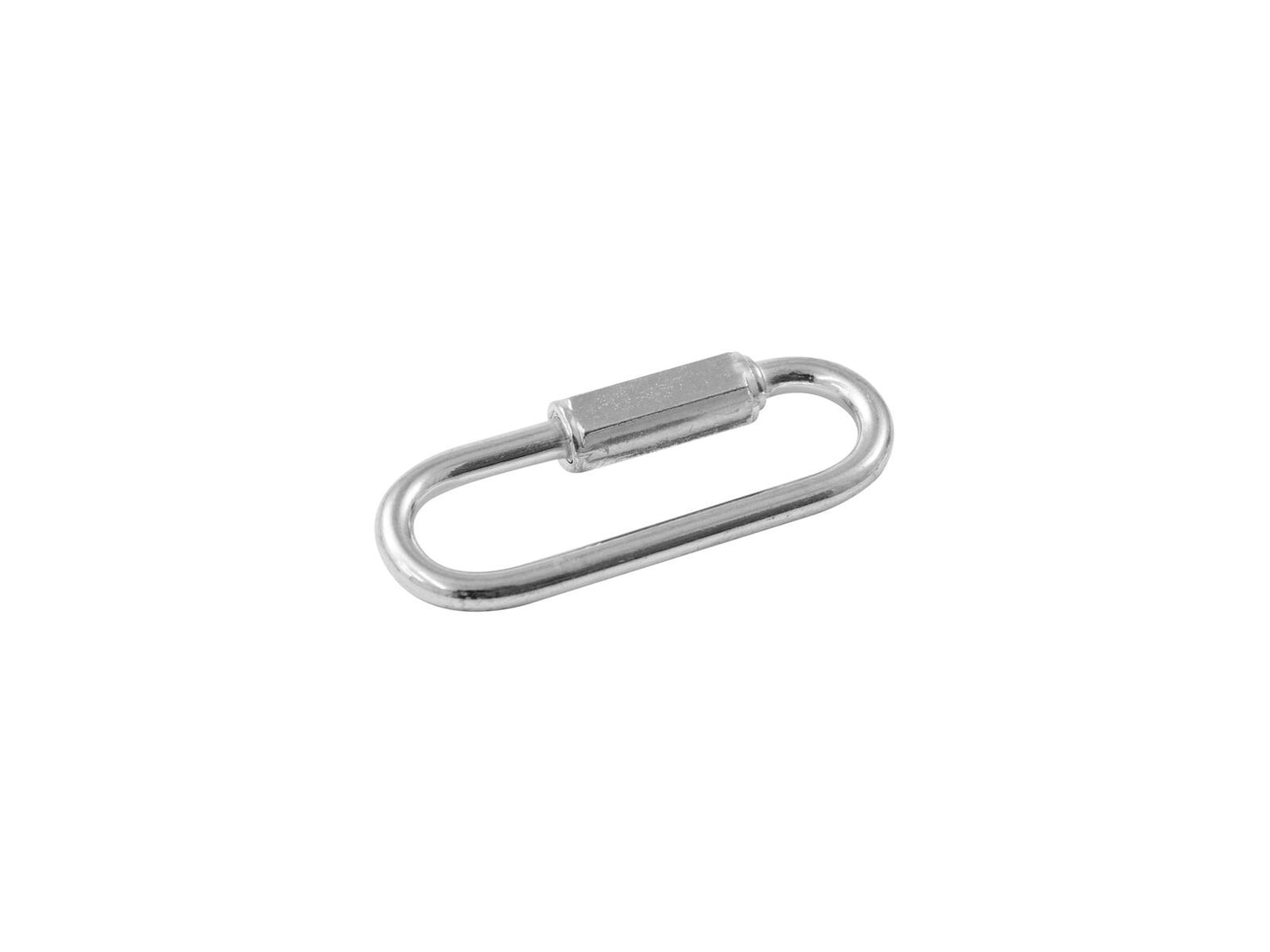

EUROLITE Quick Link Type B-90
Quick link
- Complies with DIN 56927:2009-03
Scope of delivery
| Weight: | 0.05 kg |
| EUROLITE Steel Rope 600x3mm silver with Thimbles | |
| Maximum load WLL (5-fold): | 100 kg |
| Design of the core: | 6 x 19 FC |
| Strength classification: | 1960 |
| Standard: | DIN EN 12385-4:2008-06, DIN 56927:2009-03 |
| Nominal tensile strenght of rope: | 1770 N/mm² |
| Wire surface: | Zinc-plated |
| Color: | Silver |
| Temperature range: | -40° C - +100° C |
| Dimensions: | Length: 60 cm Diameter: Ø 0.30 cm |
| Weight: | 0.03 kg |
| Length weigth: | 0.0311 kg/m |
| EUROLITE Quick Link Type B-90 | |
| Maximum load WLL (10-fold): | 90 kg |
| Standard: | DIN 56927:2009-03, |
| Shape: | B - big opening |
| Material: | Steel, zinc-plated |
| Opening: | 0-11.5 mm |
| Dimensions: | Length: 4.50 cm Diameter: Ø 0.40 cm |
| Weight: | 0.02 kg |
