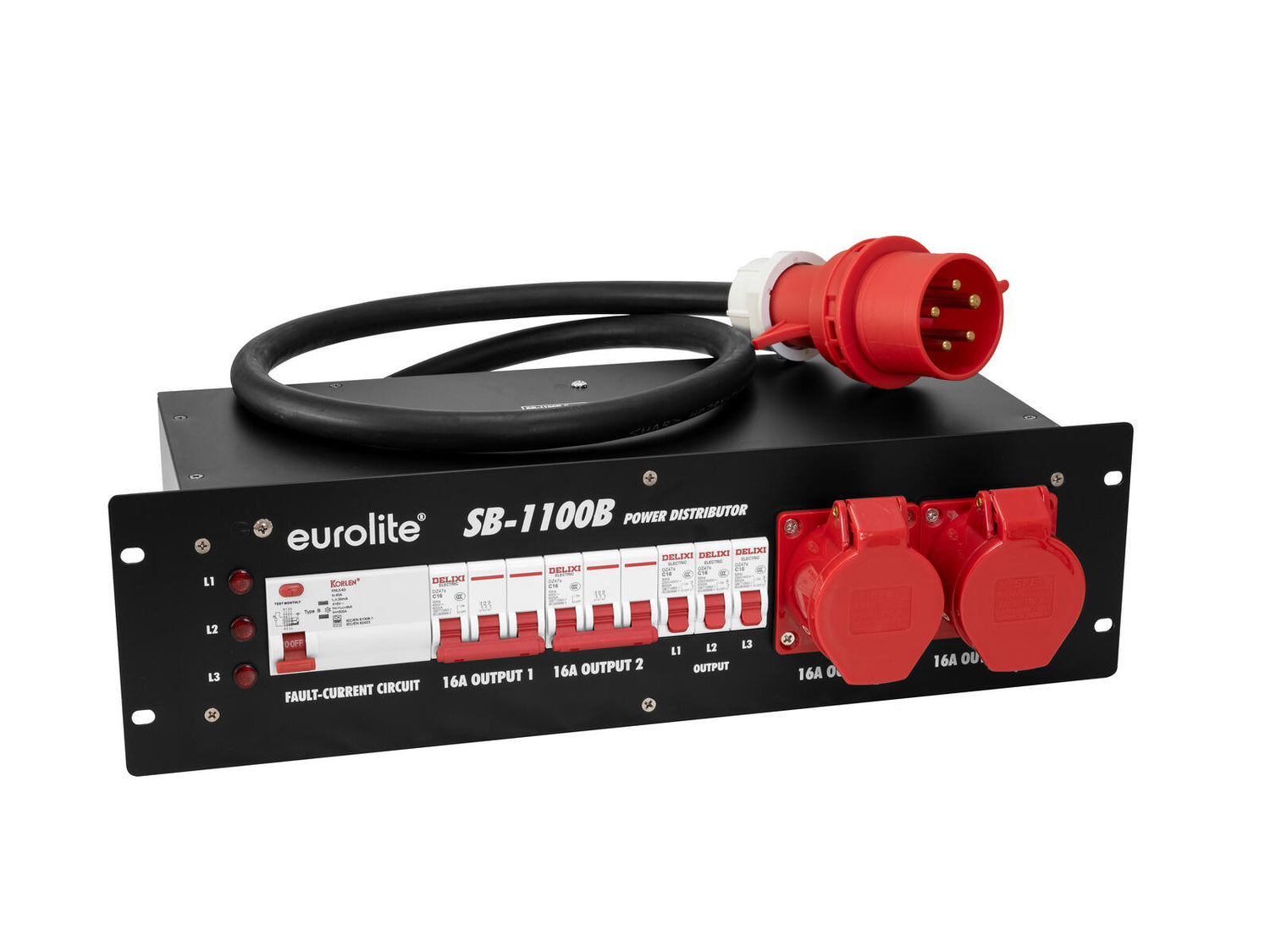

EUROLITE SB-1100B Power Distributor
1
of
3
Loading...
€420,95
Unit price
/
Not available
Secure checkout
Description
Description
Practical 32 A distributor in 483 mm housing (19")
- Specially designed for larger distribution needs
- With M6 earthing screw in order to ground a rig if necessary
- (19") 48.3 cm rack installation 3 U
Scope of delivery
- 1 x device
- 1 x user manual
| Power supply: | 380-400V AC, 50Hz |
| Power connection: | Fixed power supply cord with CEE 32A 5-pin |

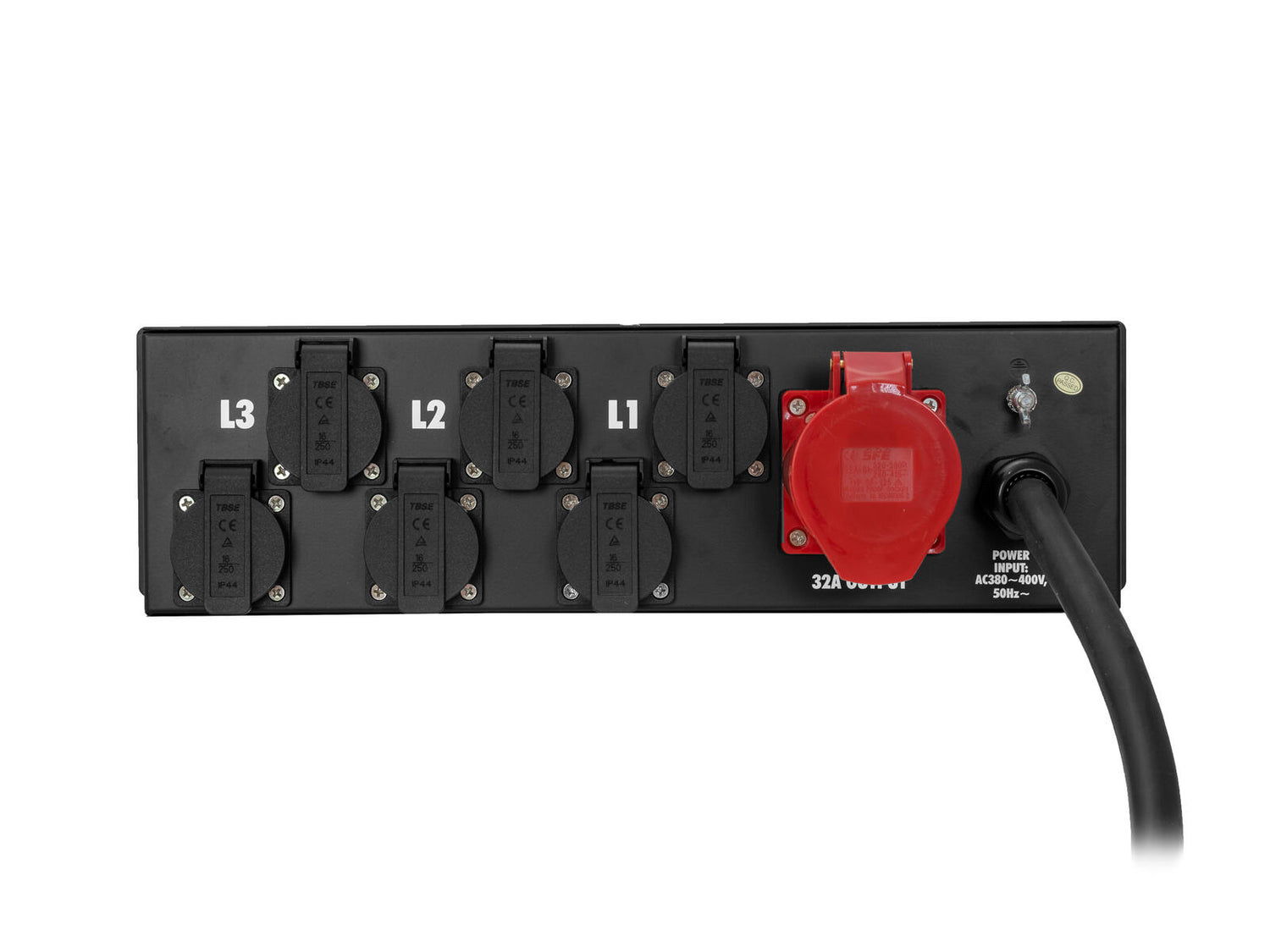

| Power output: | 1 x CEE 32A 5-pol (F) recessed mounting Bypass 6 x safety contact (F), hinged lid mounting version fused 2 x CEE 16A 5-pol (F) recessed mounting fused |

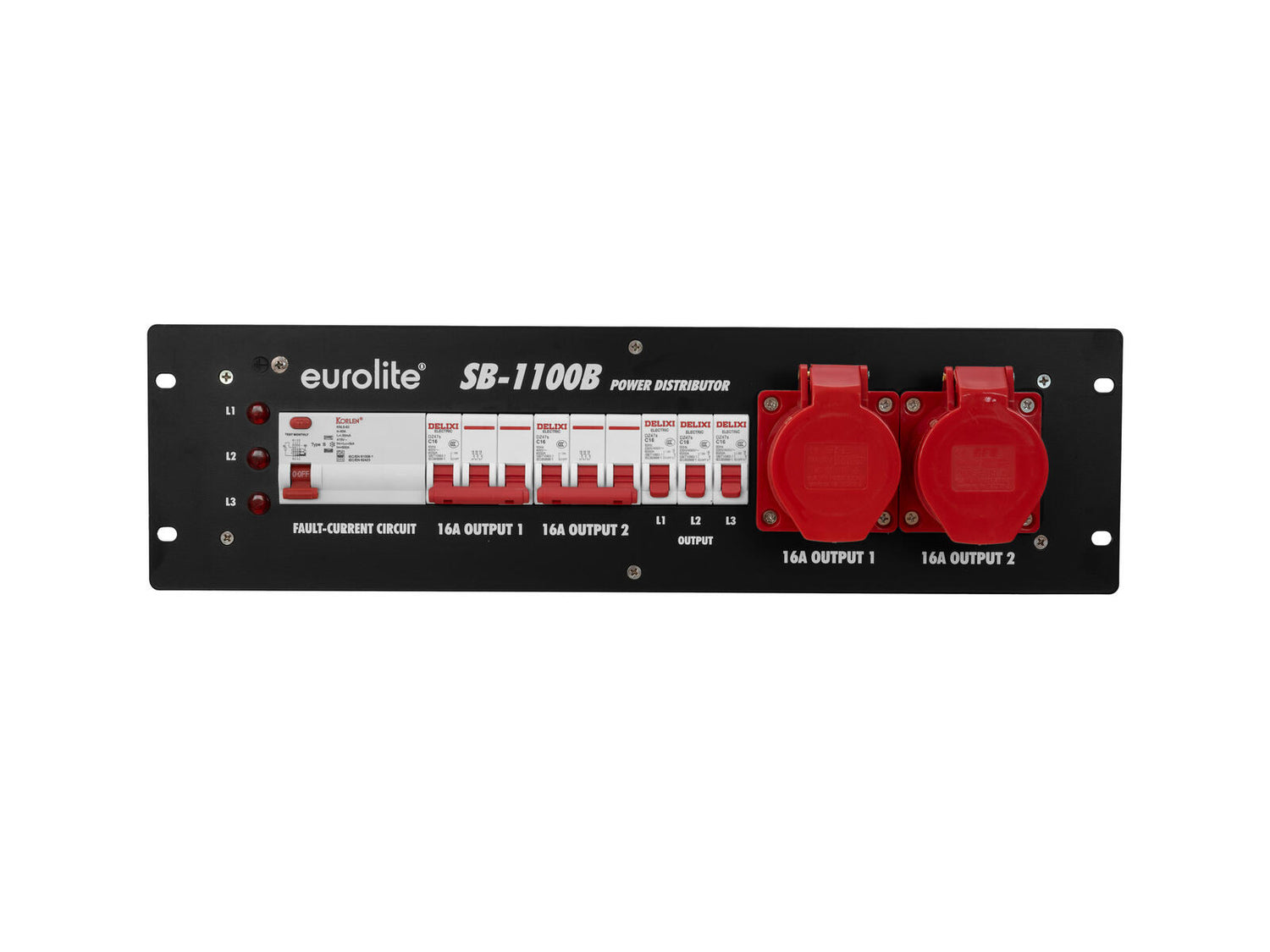

| Protection: | 1 x fault-current circuit breaker (FI) Typ B 40A/0.03A 4-pol 2 x circuit breaker C 16A 3-pol 3 x circuit breaker C 16A 1-pol |
| Phase status display: | 3 |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48.3 cm Depth: 29.5 cm Height: 13.35 cm |
| Weight: | 6.45 kg |
Technical specifications
Technical specifications
