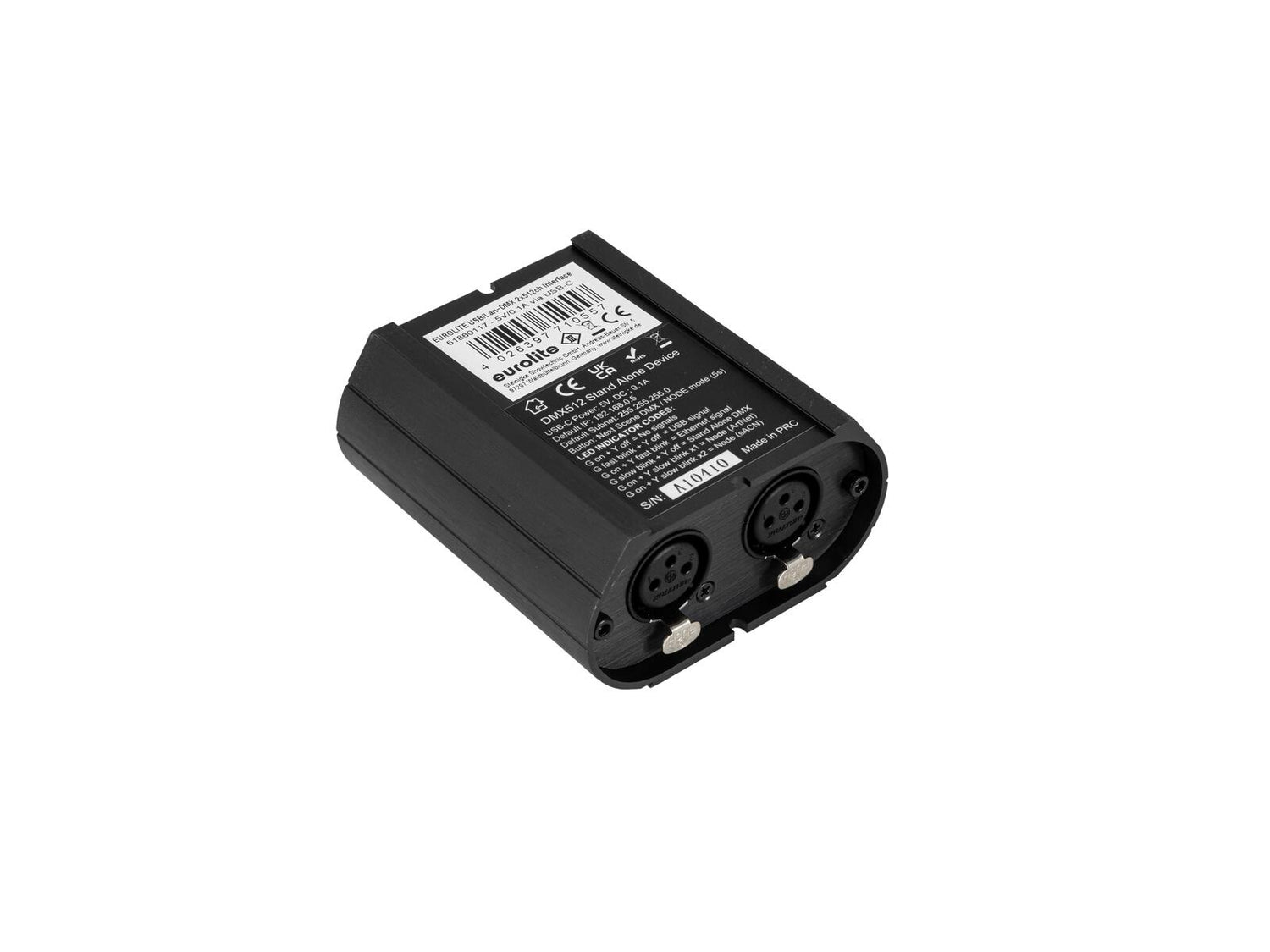

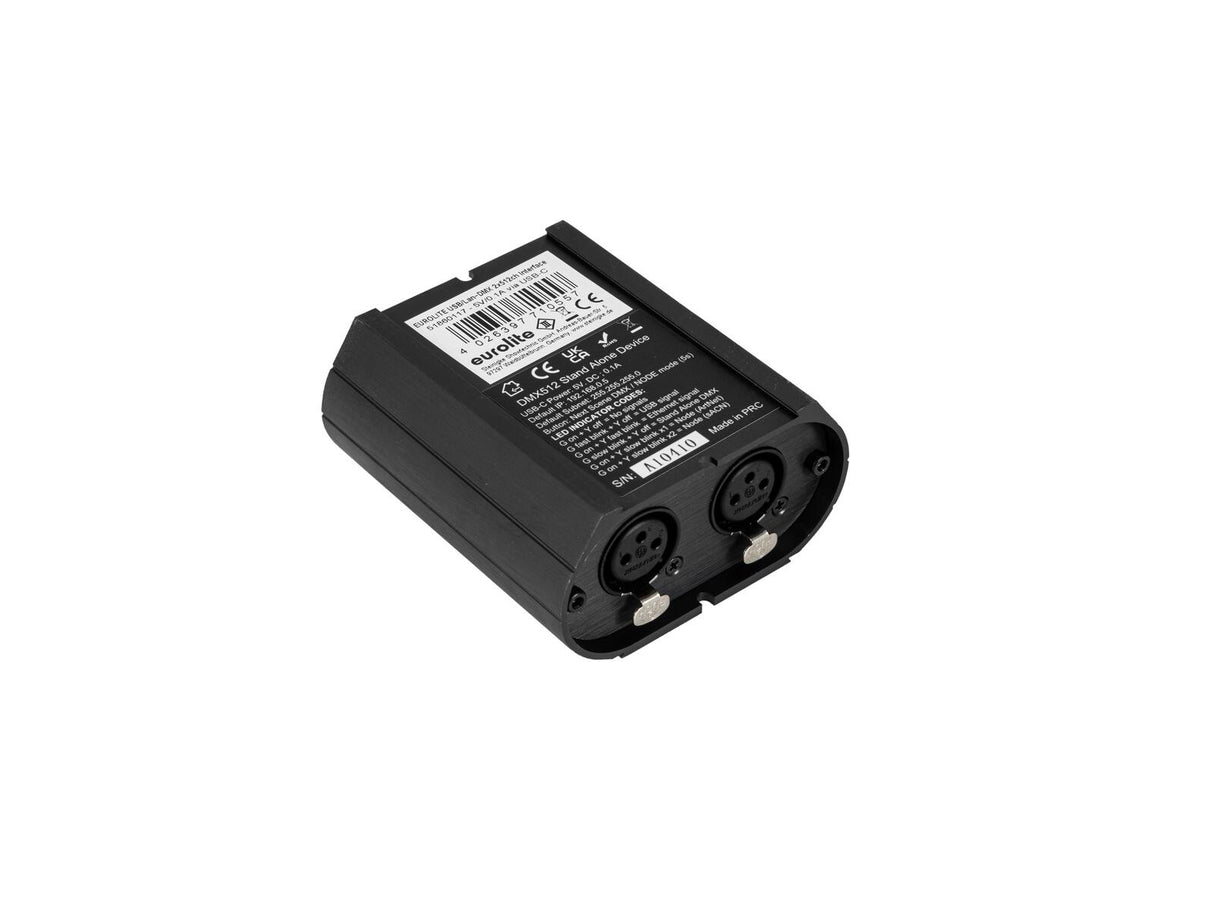

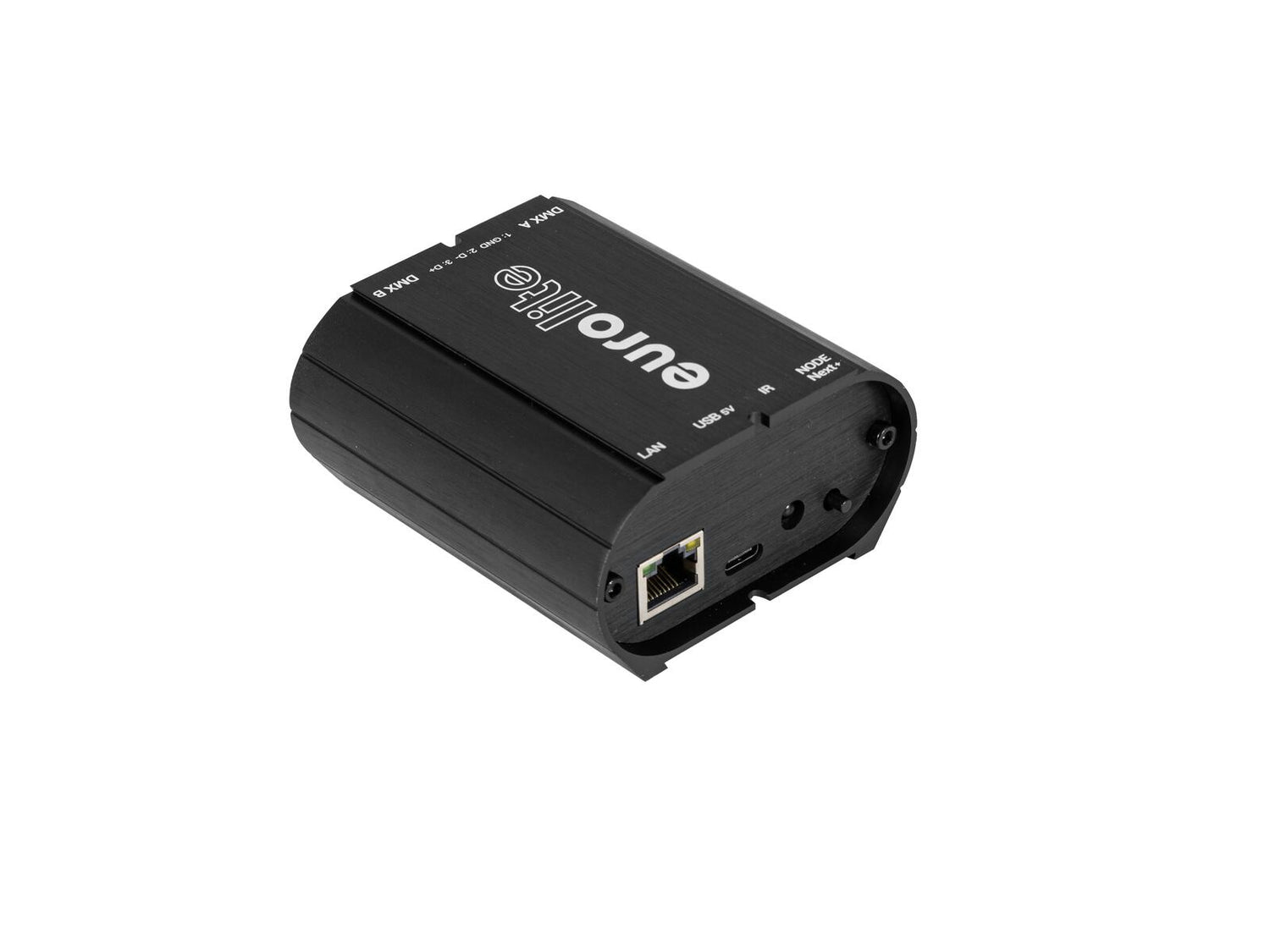

EUROLITE USB/LAN-DMX 2x512ch Interface
1
of
5
Loading...
€283,95
Unit price
/
Not available
Secure checkout
Description
Description
DMX/Art-Net interface via USB and Ethernet LAN with software bundle, 1024 channels
- DMX Control (show lighting)
- LED PC Control (architectural lighting)
- Pixel Control (pixel mapping and video mixing)
- Can transmit up to 1024 DMX channels
- 64 Art-Net universes with 512 channels each on Ethernet
- Push-button to select the next scene
- Control via DMX; Art-Net; Wi-light 2 App; RDM; sACN; master/slave function
- In connection with Pro DMX 2
- In connection with LED PC-Control 512
firmware can be updated - Compatible with Win 7, Win 10, Linux, OS X 10.13 or better
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer

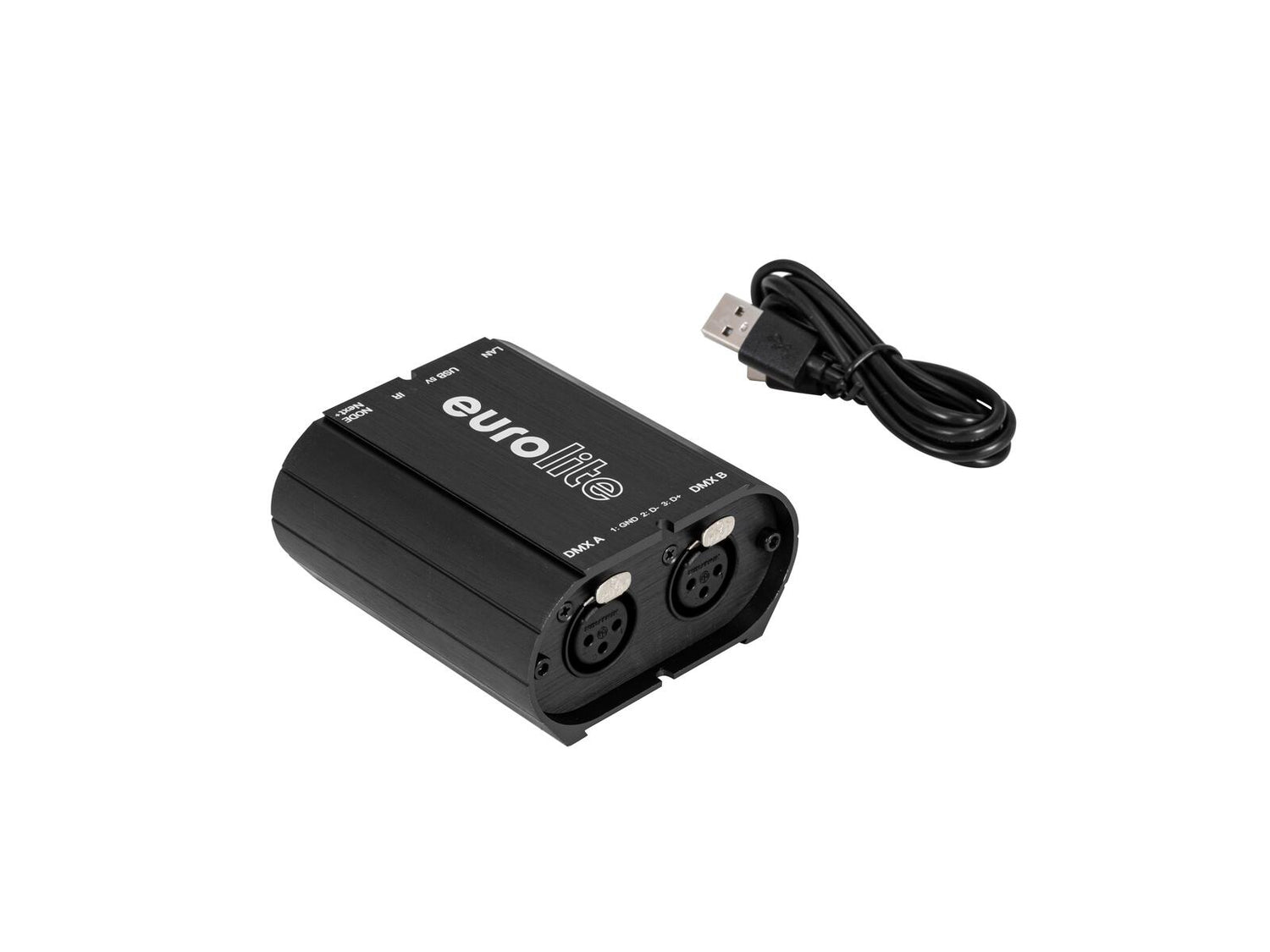

Scope of delivery
- 1 x device
- 1 x USB cable
| Power supply: | 5V DC 200 mA |
| Protection class: | Protection class III |
| Power connection: | Mains input via USB C (W) mounting version |
| DMX channels: | Output 1024 |

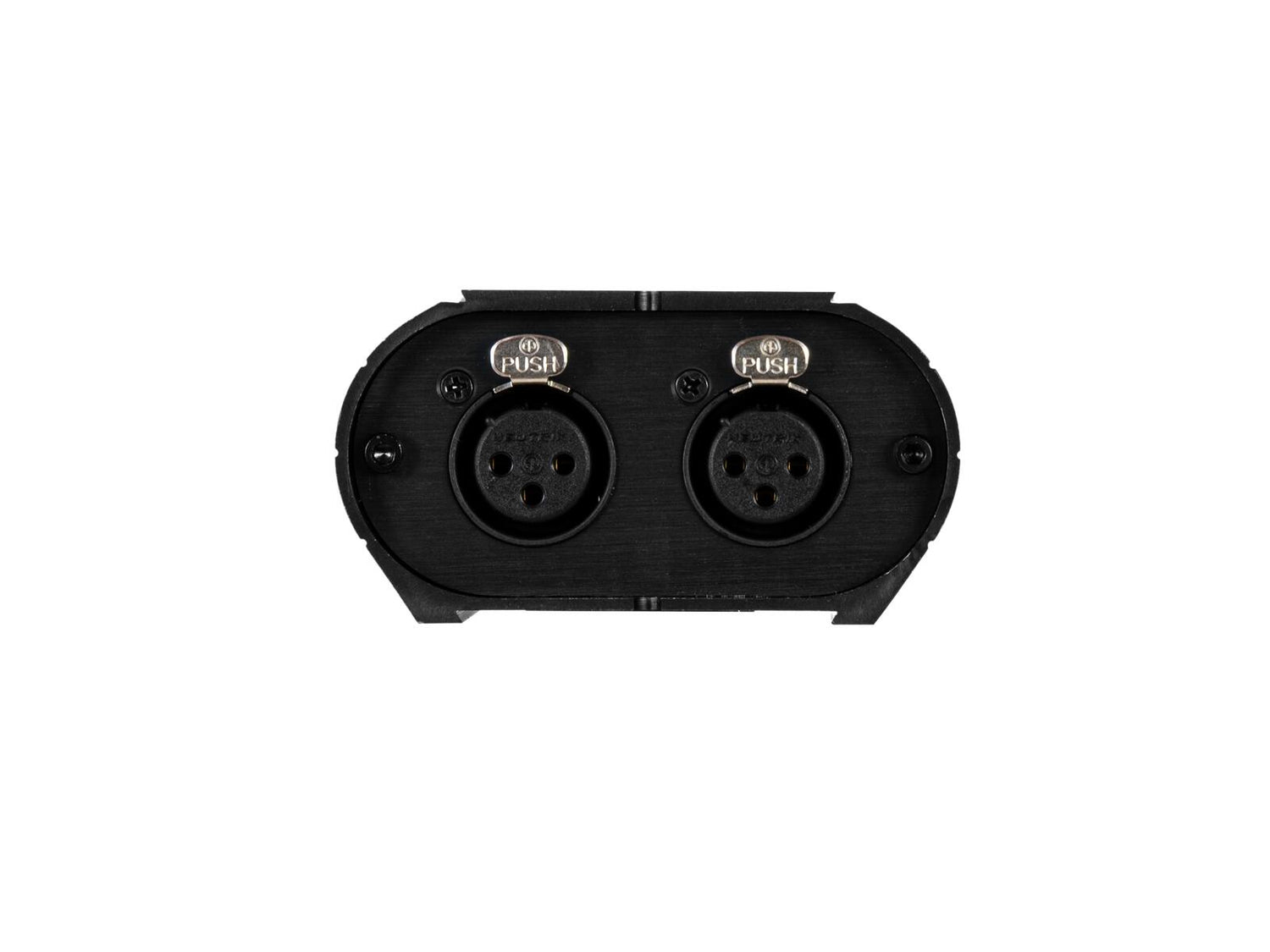

| DMX output: | 2 x 3-pin XLR (F) mounting version |

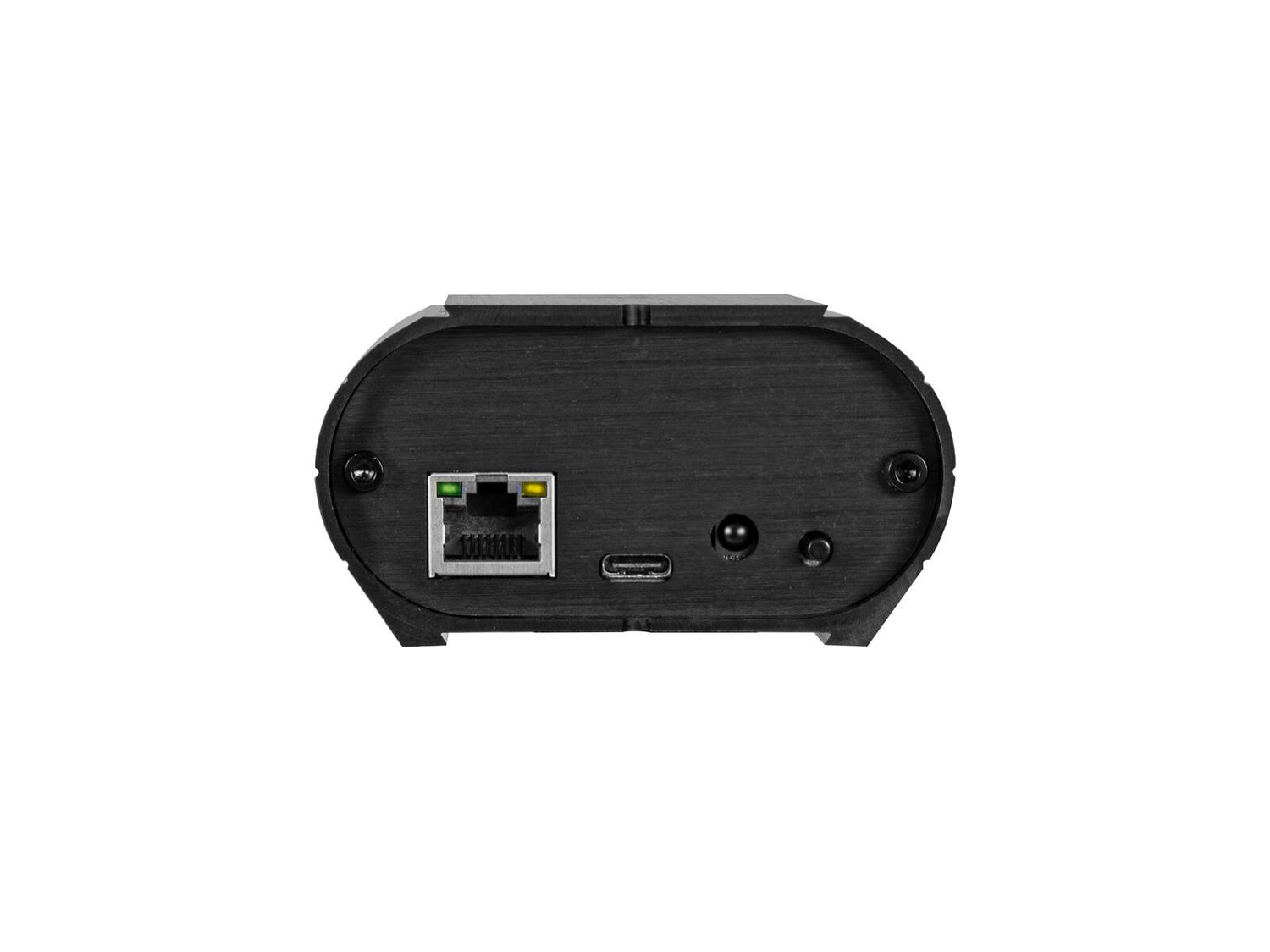

| Network connection: | Protocol: Ethernet TCP/IP via RJ-45 (F) mounting version |
| Control: | DMX; Art-Net; Wi-light 2 App; RDM; sACN; master/slave function |
| USB port: | Type C |
| Material: | Aluminum |
| Color: | Anthracite |
| PC connect: | Pro DMX 2 LED PC-Control 512, firmware can be updated |
| Dimensions: | Length: 8.7 cm Width: 8.0 cm Height: 4.4 cm |
| Weight: | 0.22 kg |
| Operating system: | Win 7, Win 10, Linux, OS X 10.13 or better |
