Description
Description

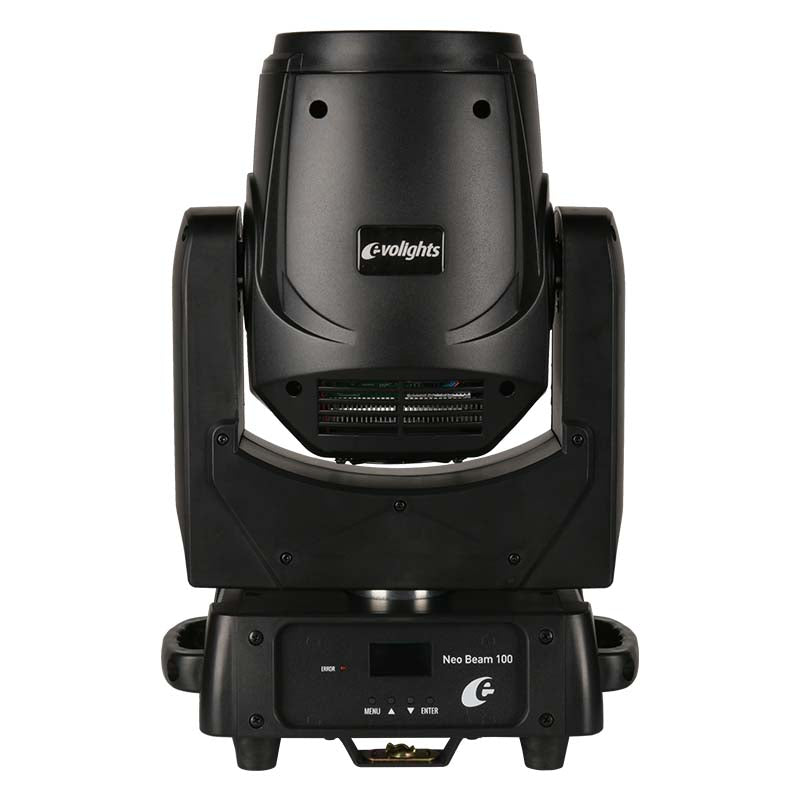

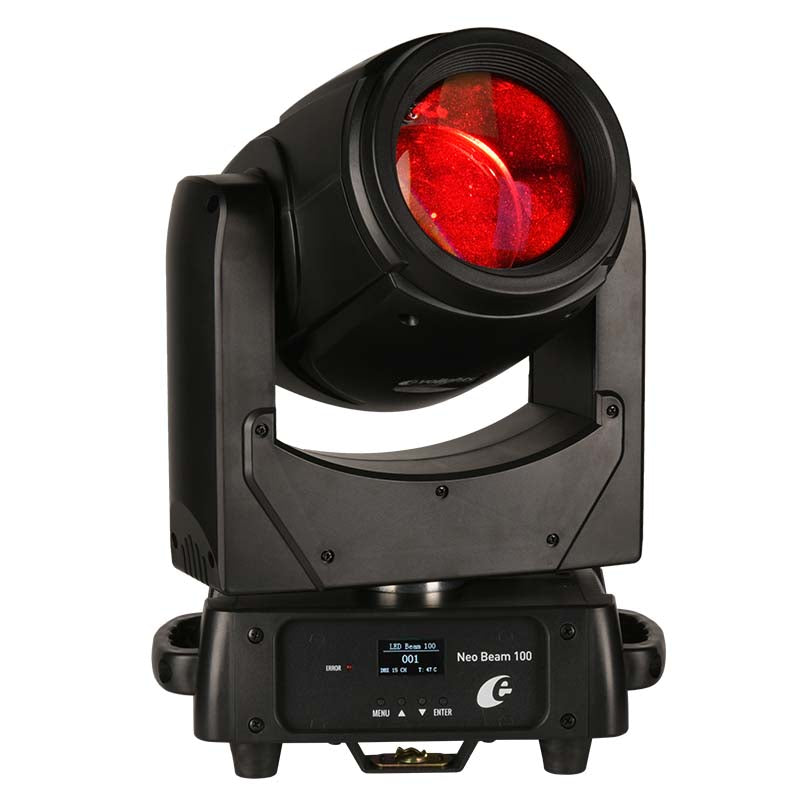

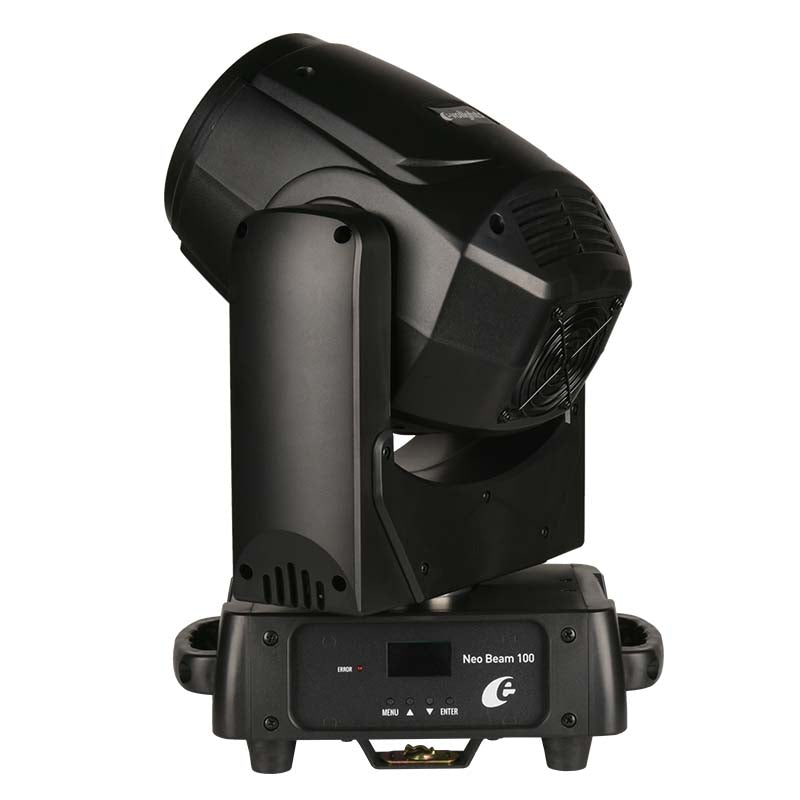

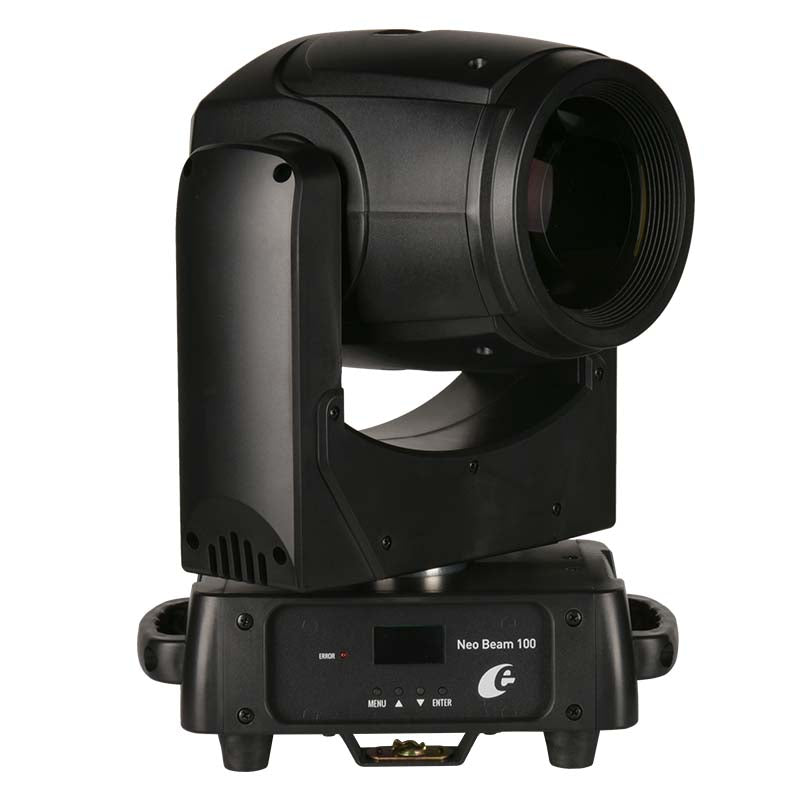

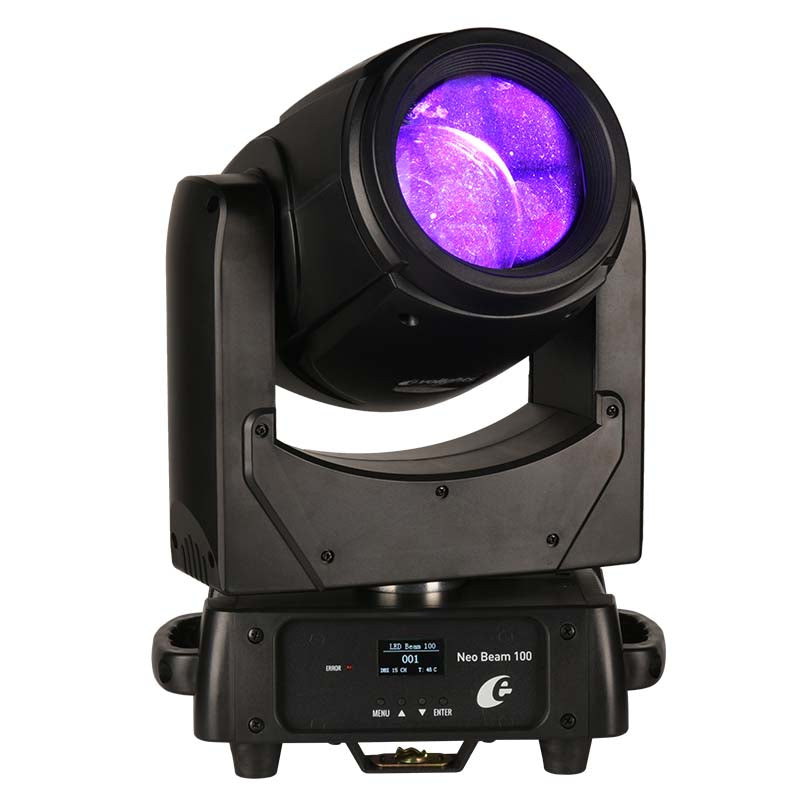

EVOLIGHTS NEO BEAM 100W is a professional LED moving head that is ideal as stage lighting for concerts, performances, galas, shows, and presentations, in dance clubs and discos as well as a lighting fixture for DJs, bands, and event companies. The beam head is equipped with a powerful 100 watt white LED. The narrow beam angle creates a concentrated and light-saturated beam with a white color temperature of 9000 Kelvin. EVOLIGHTS NEO BEAM 100W has a color wheel with thirteen light coloring filters and a gobo wheel with 11 beam shaping patterns. An interesting effect is created by a rotational prism with six and twelve facets to create striking rosettes as well as a frost filter to disperse the concentrated light beam. Electronic focus, a full-range dimmer, and a strobe function with flash frequency adjustment are also a great advantage of the LED beam light. The LED head base is equipped with a power input and output. This makes it possible to transfer voltage directly from one unit to another and reduce the cabling required to a minimum. Control via DMX protocol is enabled by 3-pin XLR connectors. On the front, there is a control panel consisting of a color OLED display and 4 buttons for menu navigation. Using these, we can set the basic operating parameters of the light as well as indicate one of the unit’s four modes of operation: auto – the stage head uses built-in programs and lighting styles; sound – the light uses a sensitive microphone installed in the body of the enclosure to synchronize its operation with the sounds and rhythm of the music coming from the environment; master/slave – devices are combined to form groups and the first LED head in the line controls the synchronous operation of the entire group; DMX – external lighting controllers are used to control a single light or a group of connected devices. EVOLIGHTS NEO BEAM 100W LED moving head is an excellent choice for anyone involved in stage lighting design. The beam light offers quite a few interesting functions while being versatile and relatively inexpensive. It can be used at various types of events: weddings, 18th birthday parties, proms, New Year’s Eve parties, concerts, pubs, discos, and cultural centers. It is the ideal lighting for a DJ, event band, music club, or stage company, available at a great price! Technical specification: Light source: 100W white LED; Color temperature: 9000K; Beam angle: 3°; Color wheel: 13 colors + open; Gobo wheel: 11 patterns + open, Gobo Shake; Prisms: 6/12-facet, rotational; Frost filter: yes; Focus: electronic; Dimmer: 0-100%; Strobe: 1-25 flashes/sec.; Operation modes: auto, sound, master/slave, DMX; DMX channels: 8, 15; Display: OLED; Power connector: PowerCon input/output; DMX connector: XLR 3-pin input/output; Input voltage: AC 100-240V, 50/60 Hz; Max power consumption: 120W; Dimensions: 246 x 229 x 353 mm; Weight: 6.4 kg; Included: mounting brackets, power cable, manual; Original packaging and filling.
Technical specifications
Technical specifications
- Model: EVOLIGHTS NEO BEAM 100W
- Type: LED Moving Head Beam
- Lyskilde: 100W hvid LED
- Farvetemperatur: 9000K
- Beam angle: 3°
- Farvehjul: 13 farver + open
- Gobo-hjul: 11 mønstre + open, Gobo Shake
- Prismer: 6-facet + 12-facet roterende
- Frost filter: Ja
- Fokus: Elektronisk
- Dimmer: 0-100%
- Strobe: 1-25 flashes/sek.
- Driftstilstande: Auto, Sound, Master/Slave, DMX
- DMX kanaler: 8 / 15
- Display: OLED

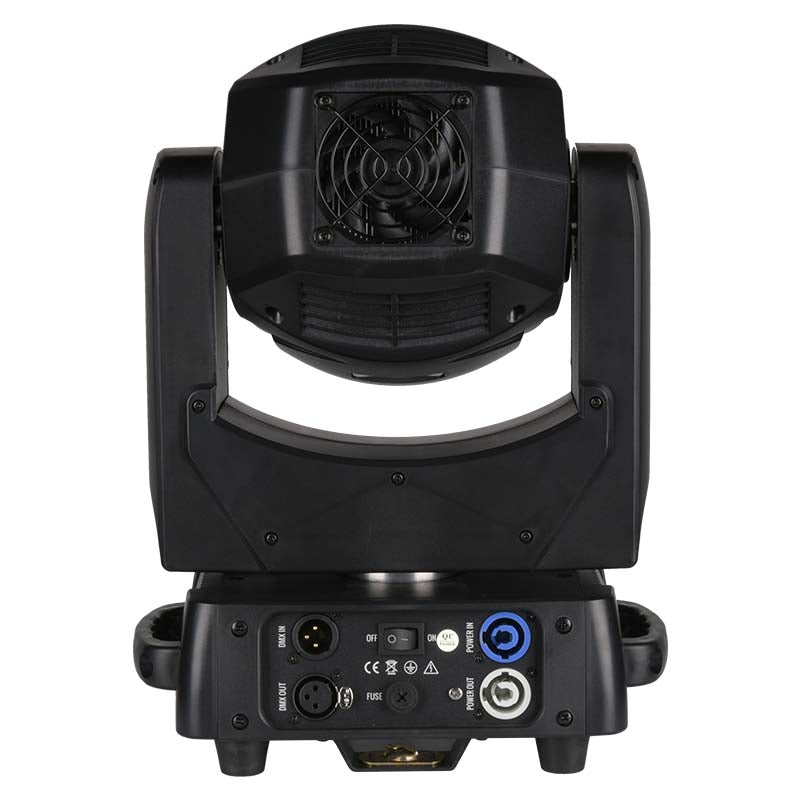

- Strømtilslutning: PowerCon ind/ud
- DMX tilslutning: 3-pin XLR ind/ud
- Strømforsyning: AC 100-240V, 50/60Hz
- Maks. strømforbrug: 120W
- Mål: 246 x 229 x 353 mm
- Vægt: 6,4 kg

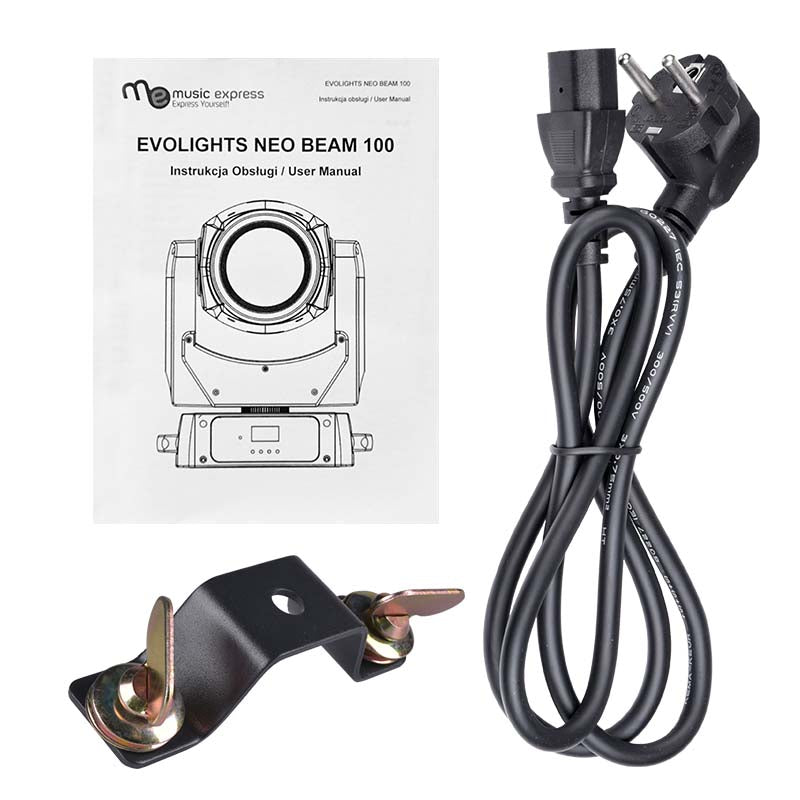

- Inkluderet: Moving head, PowerCon kabel, monteringsbøjle, eye bolt, manual
