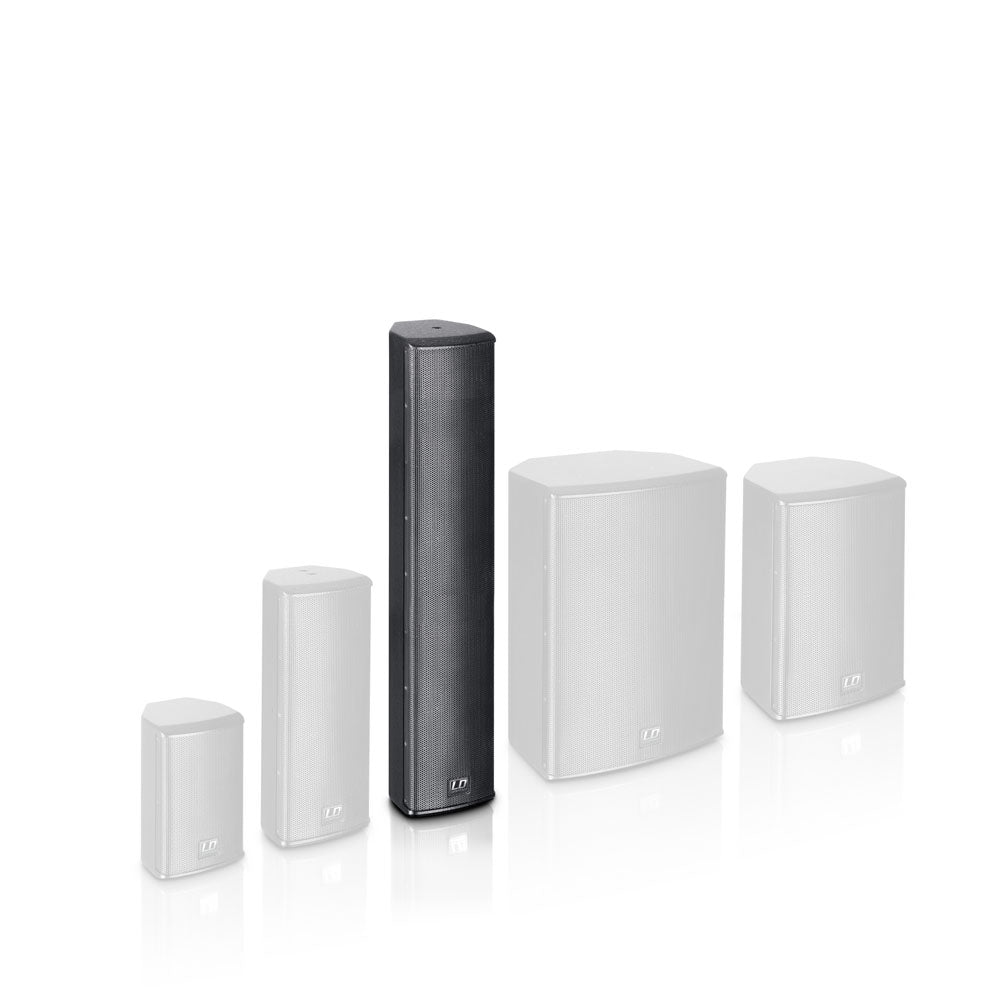

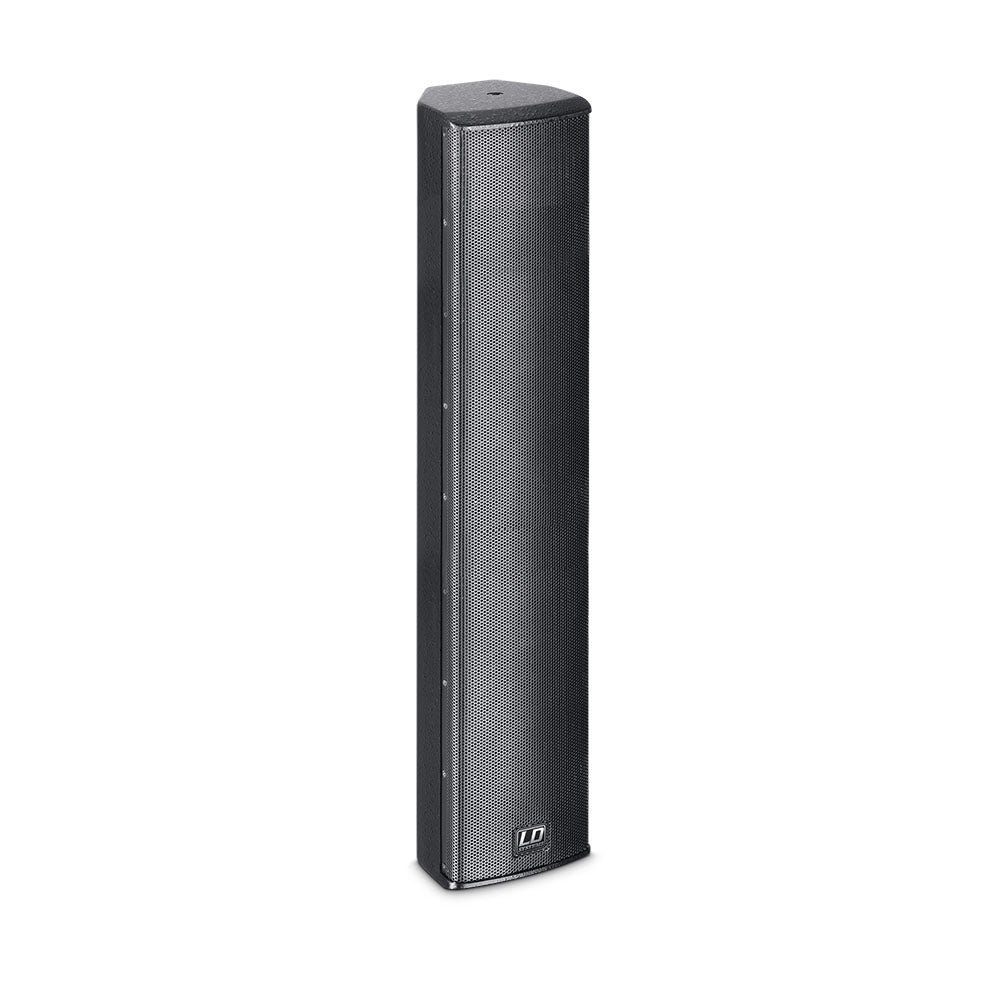

LD Systems SAT 442 G2 - 4 x 4" passive installation speaker, black
Description
Description
LD Systems SAT442G² is an extremely slim installation monitor that can be discreetly integrated into almost any environment.
The elegant column design of the SAT442G² delivers even, balanced horizontal dispersion of 120° with a focused vertical directivity of 30° and a maximum SPL of 114 dB. Four custom 4" woofers and a 1" Celestion compression driver ensure balanced reproduction with a frequency range from 75 Hz to 20 kHz; connection is via spring terminals. For powerful, deep bass extension, we recommend the LD Systems installation subwoofer series.

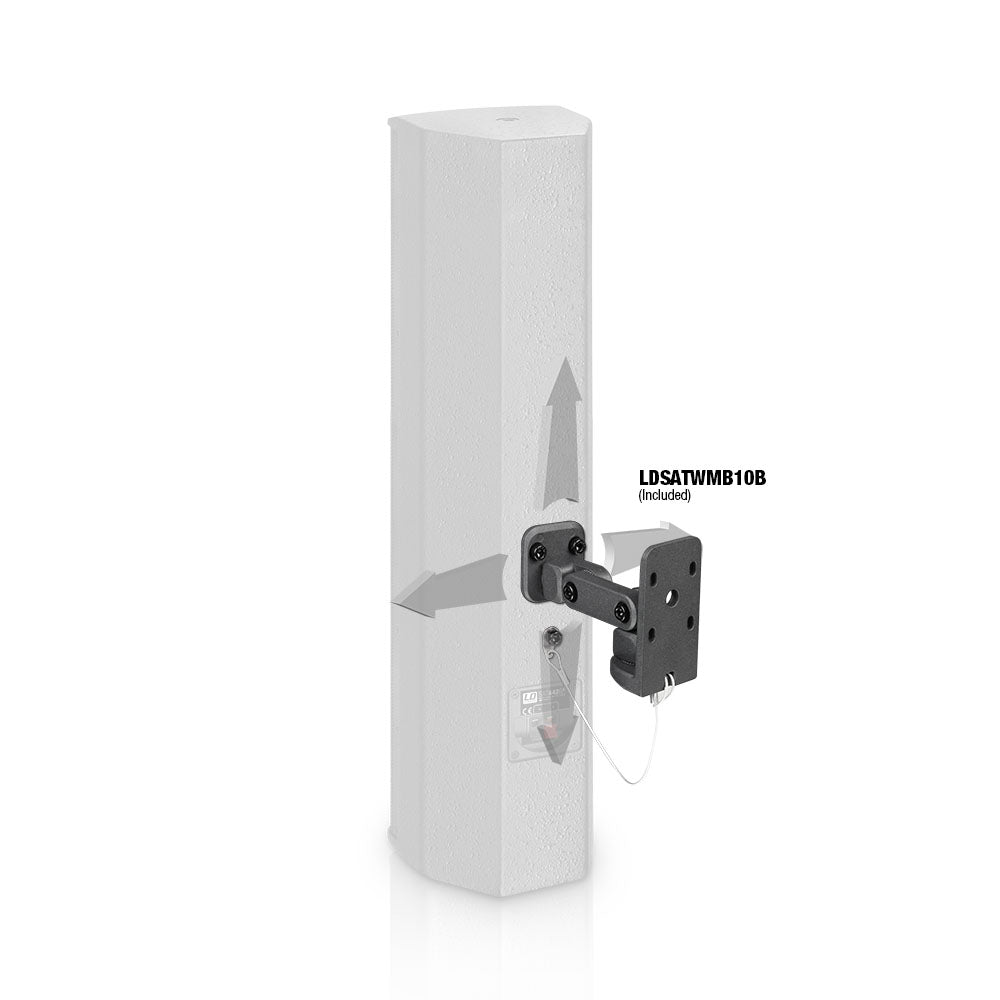

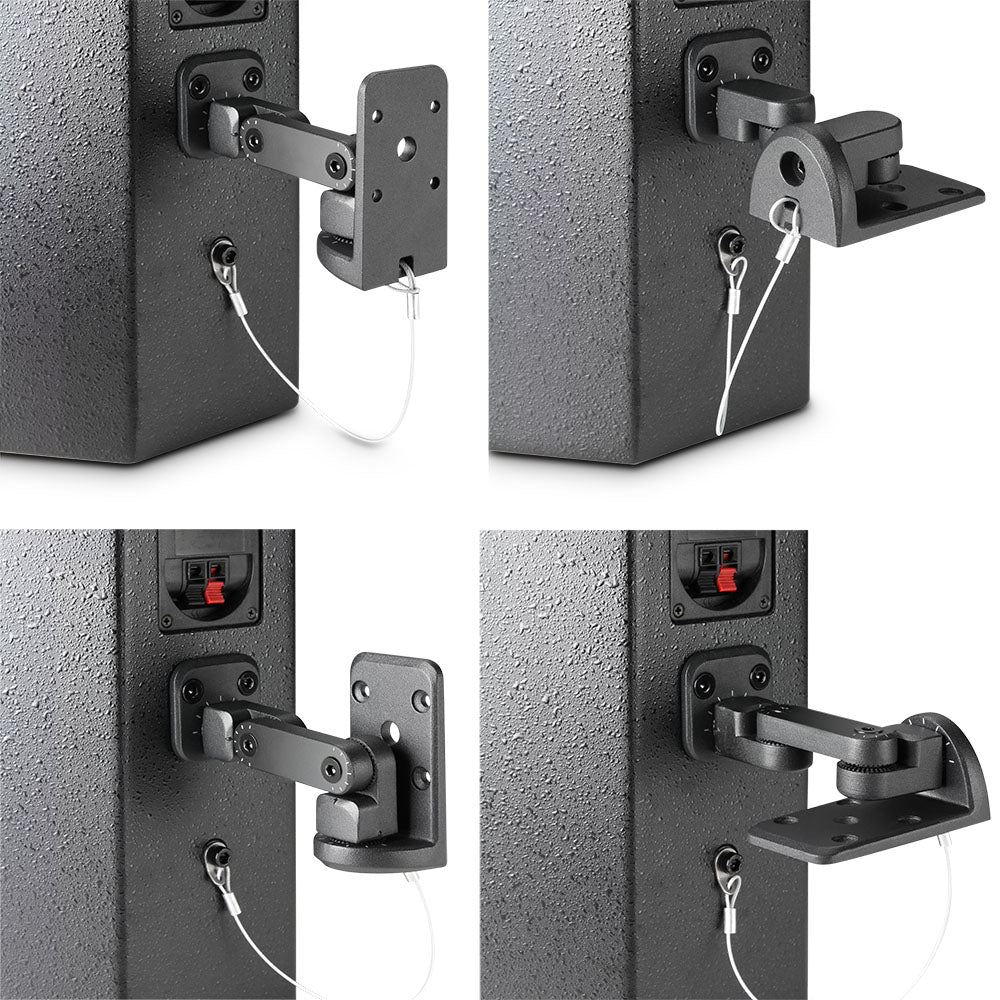

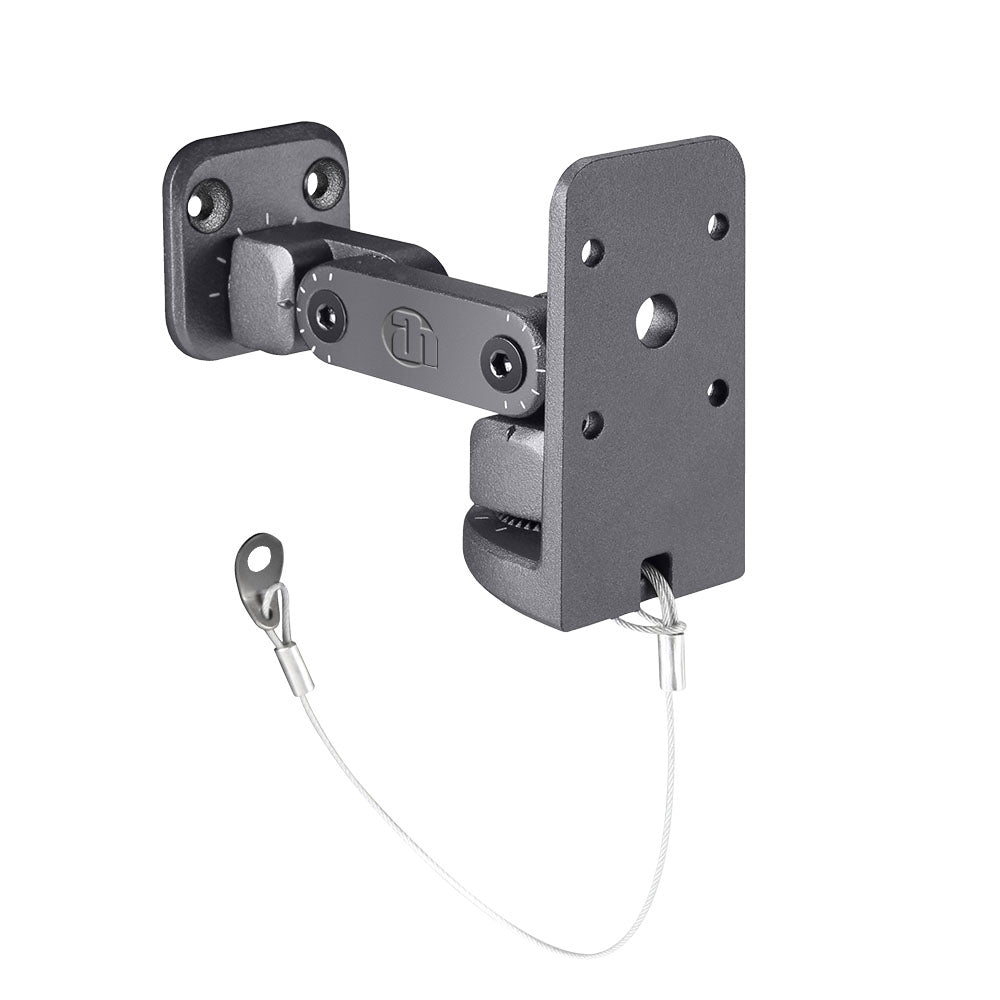

The robust SAT442G² enclosure with durable textured paint is made from 12 mm MDF and is available in black or white. M6 inserts and an included universal swivel bracket (LDSATWMB10B) provide many mounting options.
Technical specifications
Technical specifications
- Slim installation speaker for bars, restaurants, shops etc.
- 120° horizontal dispersion with a 30° vertical bundling
- Four 4" custom-made woofers
- 1" Celestion tweeter
- Maximum Power Output of 200 watts
- Universal joint mount and M6 fixing points for a wide variety of installation possibilities
General
| Type | Passive |
| RMS load capacity | 200 W |
| SPL (1 W/1 m) | 94 dB |
| Frequency response | 75 - 20,000 |
| Impedance | 8 Ω |
| Speaker system | 2-way system |
| Beam angle | 120° (hor.) / 30° (vert.) |
| Number of inputs | 1 |
| Input connector types | Terminal block 2 pin (Euroblock) / 3.5 mm pitch |
| Colour | Black |
Bass driver
| Size | 4 " |
| Quantity | 4 |
| Magnet | Ferrite |
Tweeter
| Driver size | 1 mm |
| Magnet | Ferrite |
Housing
| Design | Closed |
| Mounting type | Ceiling bracket |
| Mounting type | M6 |
| Chassis material | Medium-density fibreboard MDF |
| Material thickness | 12 mm |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 140 mm |
| Height | 670 mm |
| Depth | 155 mm |
| Weight | 8 kg |
Other properties
| Included accessories | Mounting bracket |
