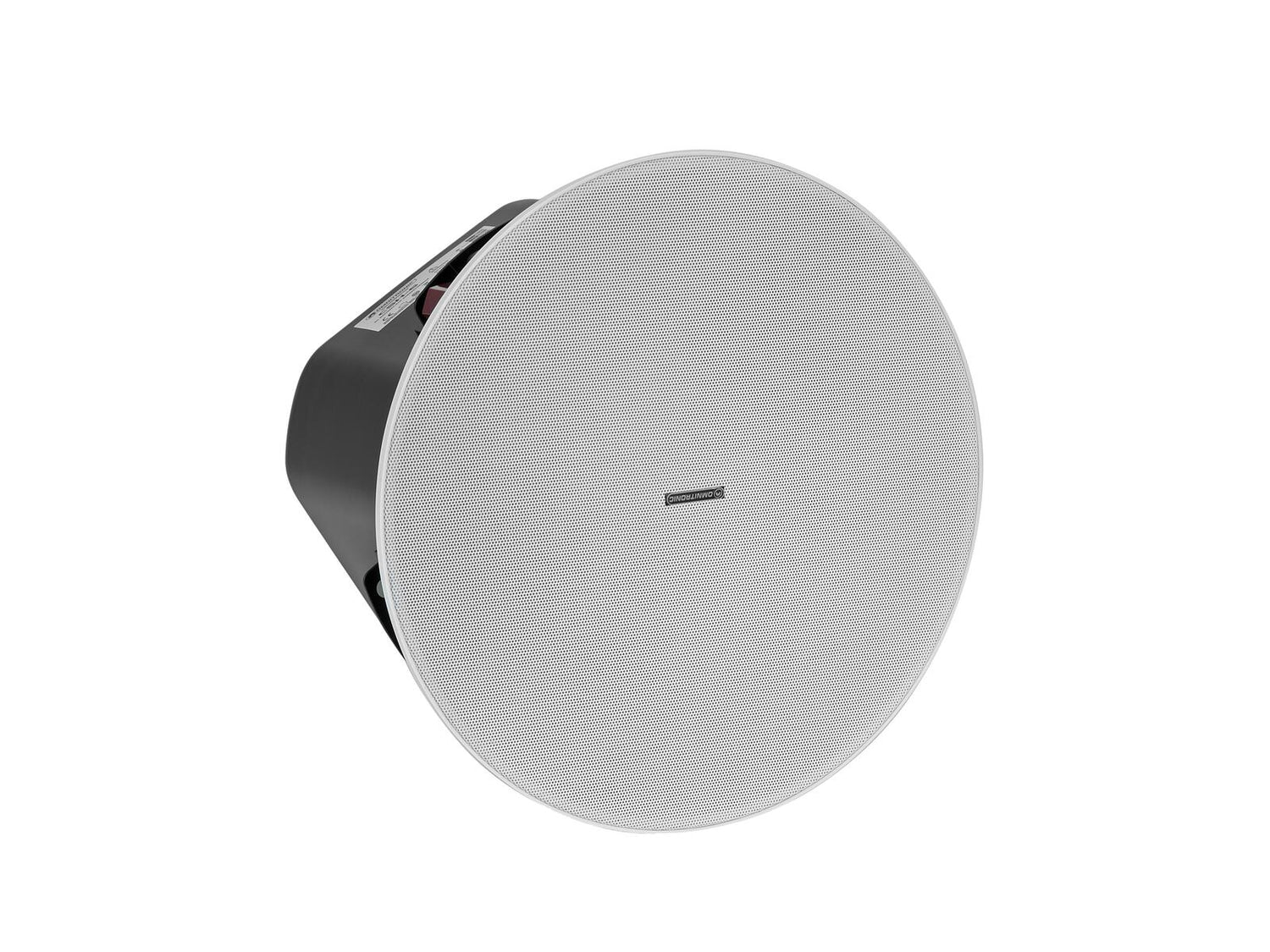

OMNITRONIC CSH-8 2-way Ceiling Speaker
1
of
4
Loading...
€201,95
Unit price
/
Not available
Secure checkout
Description
Description
2-way flush-mount coaxial speaker, LF: 8" HF: 1", public address systems 100V, 80 W RMS, Ø 29.2 cm
- 2-way coaxial system with crossover and PTC tweeter protection
- Durable plastic cabinet with metal grille
- Easy installation
- White metal grille
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x screw plug-in terminal
| Power: | Program: 160W (8 ohms) Rated: 80W RMS (8 ohms) Rated: 60W RMS (100V PA) |
| Frequency range: | 55 - 20000 Hz |
| Sensitivity: | 92 dB |
| Impedance: | Public address systems 100V; 8 ohms |
| Setup: | Easy installation |
| Power tapping: | 7.5W; 15W; 30W; 60W RMS via selector switch switchable |
| Connections: | Screw plug-in terminal |
| Speaker: | 1 x woofer 8" Voice coil lows 1.35" 1 x tweeter 1" |
| Type of speaker: | Flush-mount speaker |
| Type of construction: | Vented |
| Color: | White |
| Mounting dimensions: | Ø 29.2 cm |
| Dimensions: | Depth: 25.5 cm Diameter: Ø 32 cm |
| Weight: | 5.20 kg |
Technical specifications
Technical specifications
