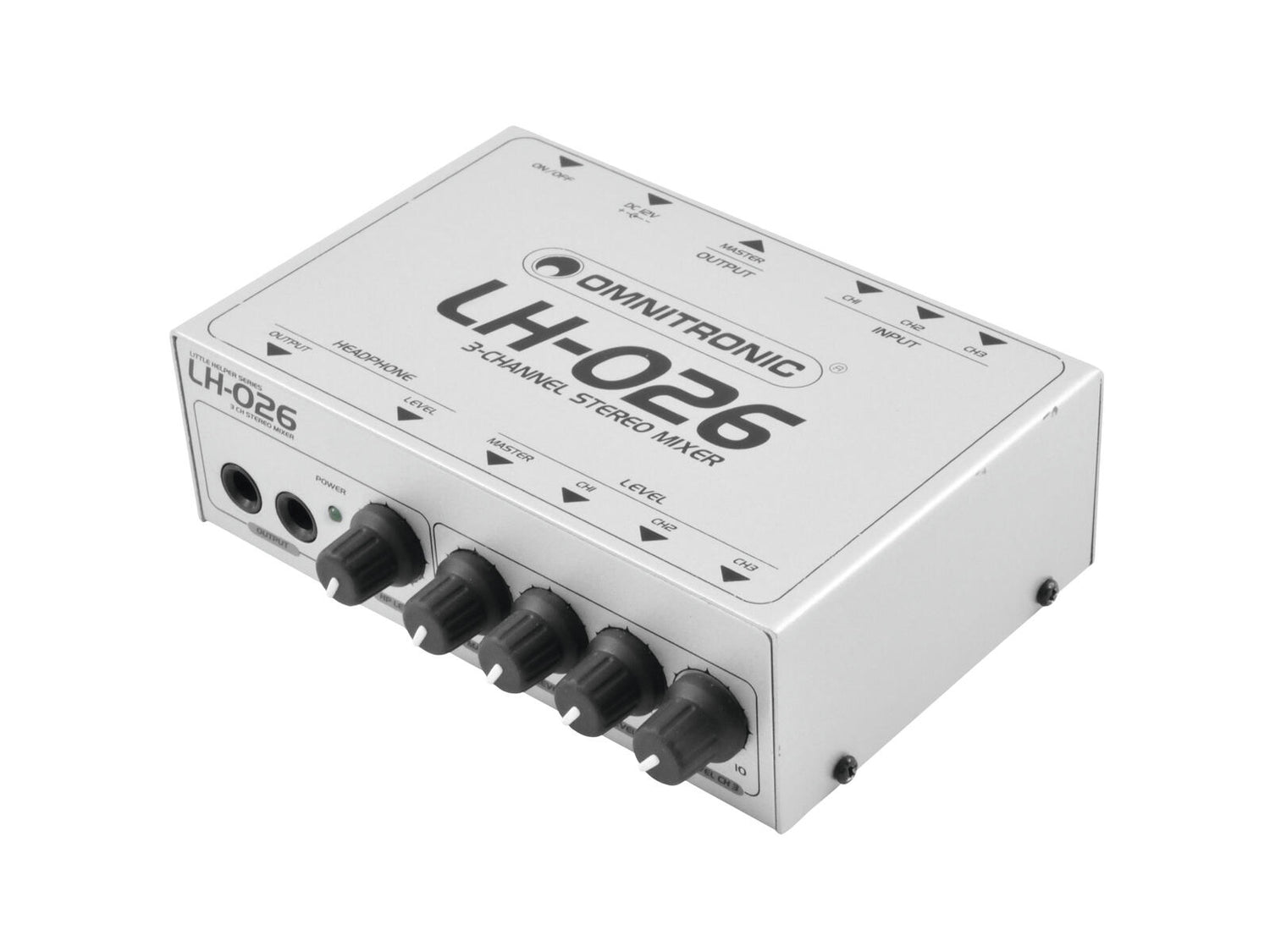

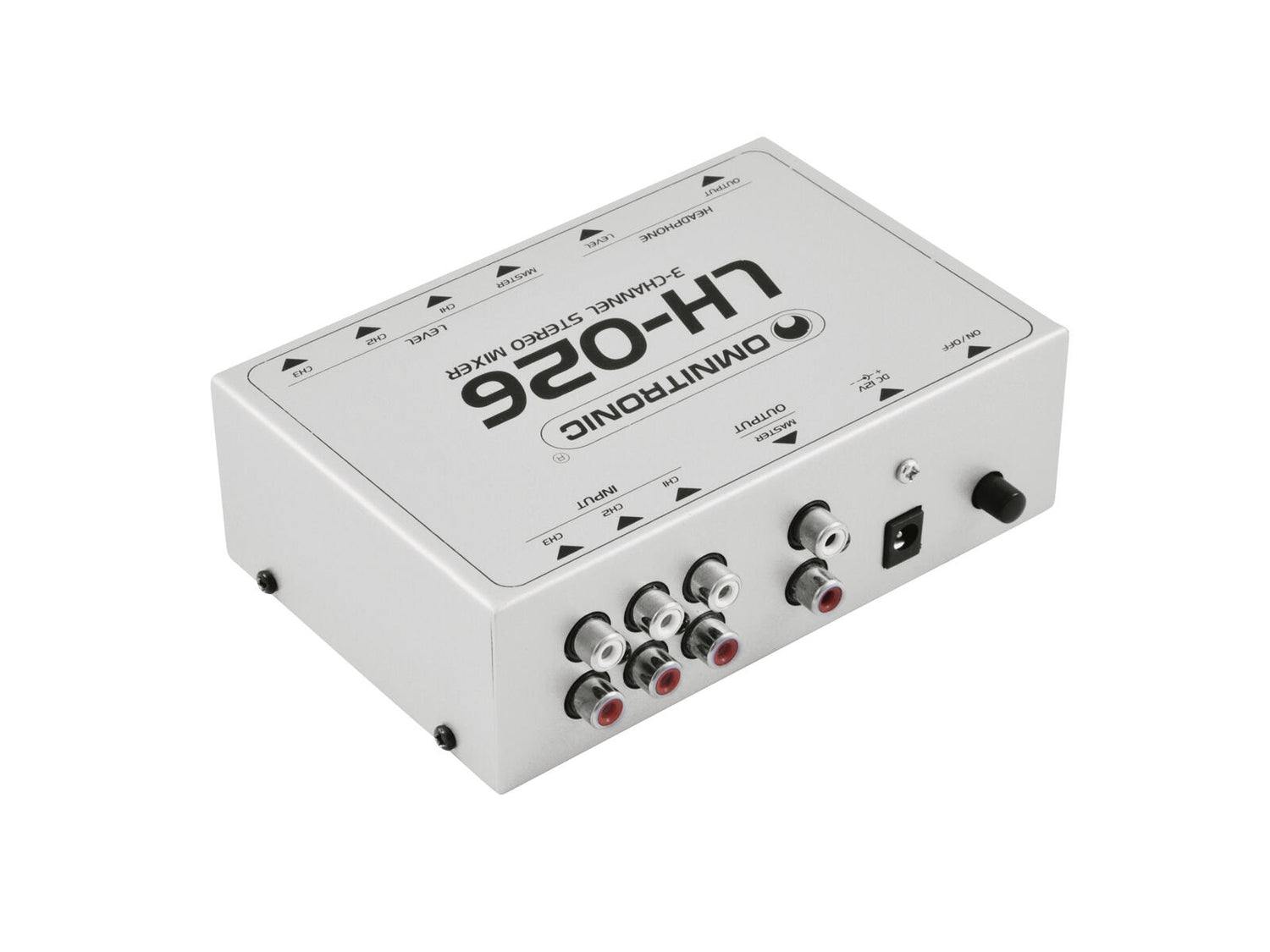

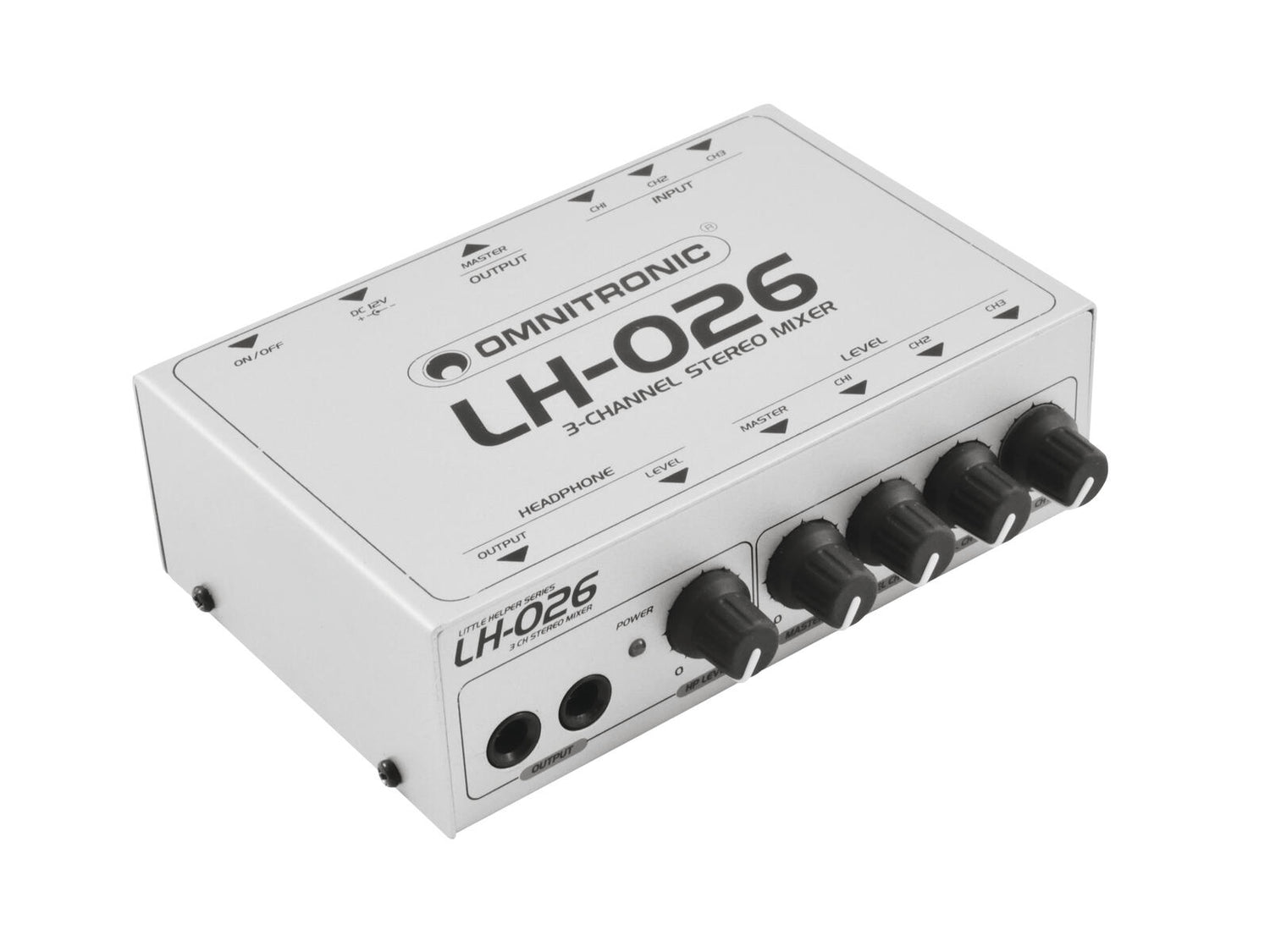

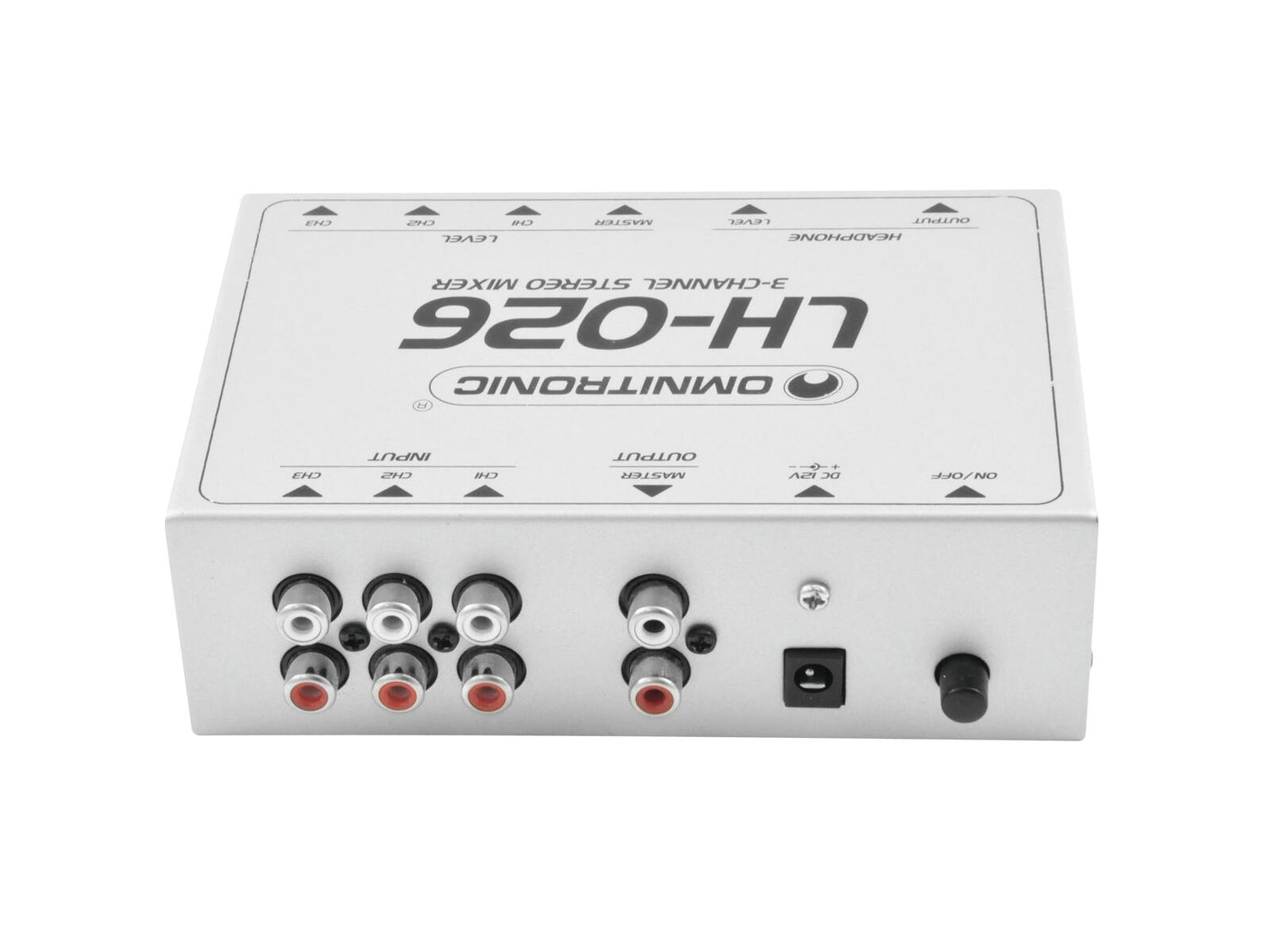

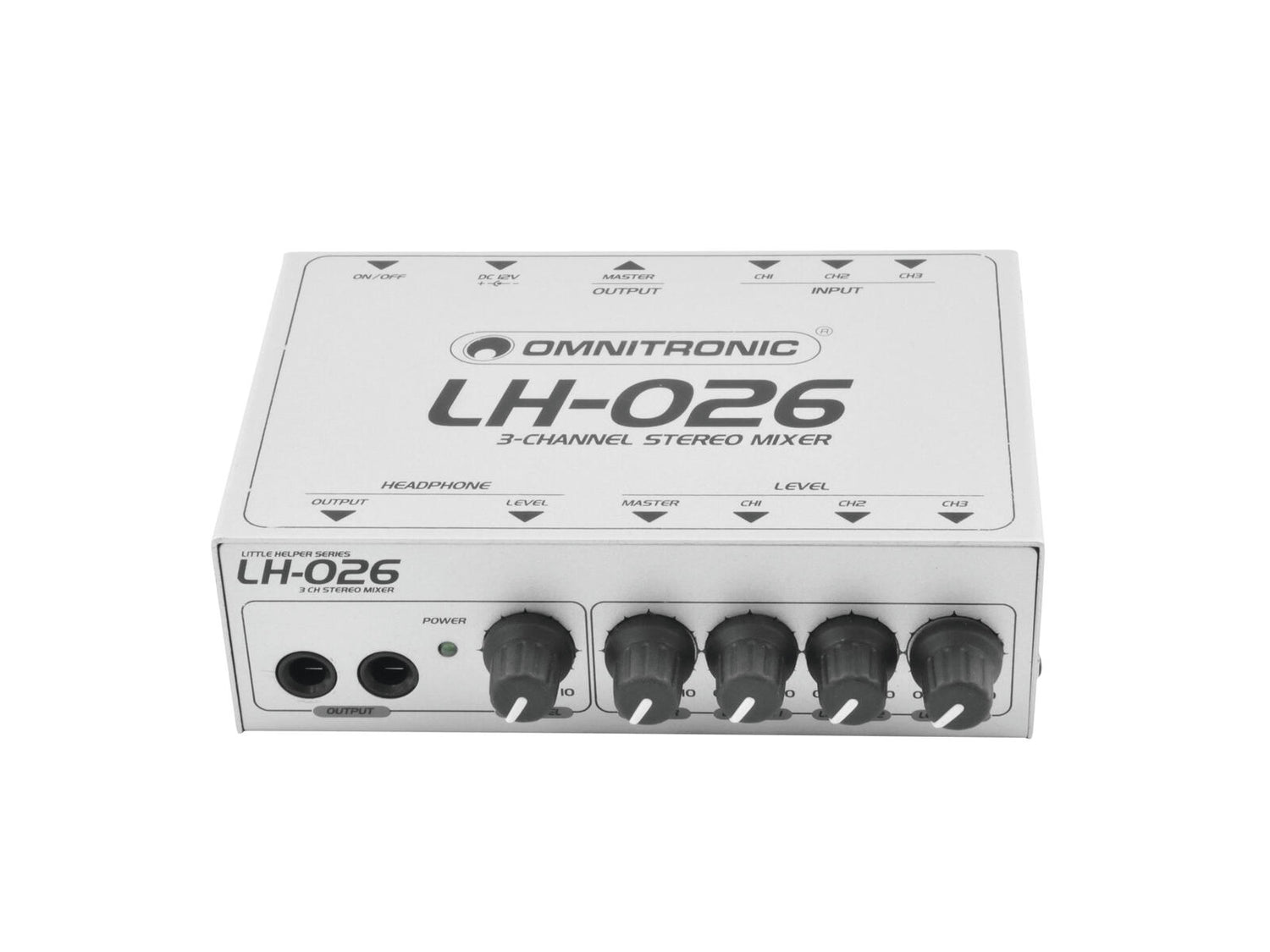

OMNITRONIC LH-026 3-channel Stereo Mixer
1
of
5
Loading...
€94,95
Unit price
/
Not available
Secure checkout
Description
Description
3-channel stereo mixer, RCA
- Mixes the signasl of 3 stereo audio sources to 1 stereo output
- 3 stereo RCA input channels with separate level adjustment
- 1 stereo RCA master output, adjustable
- 2 headphone outputs (6.3 mm jack), common level adjustment
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Scope of delivery
- 1 x user manual
- 1 x external mains adapter
- 4 x foot
- 1 x mixer
| Power supply: | 12V 150 mA |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >70 dB |
| THD: | <0.005 % at 1 kHz |
| Impedance: | Input: 10 kOhm Output: 100 kOhm |
| Gain: | 27 dB |
| Max. level: | Input: -30 dB Output: +13 dB |
| Dimensions: | Width: 14.7 cm Depth: 11.5 cm Height: 4.5 cm |
| Weight: | 0.74 kg |
