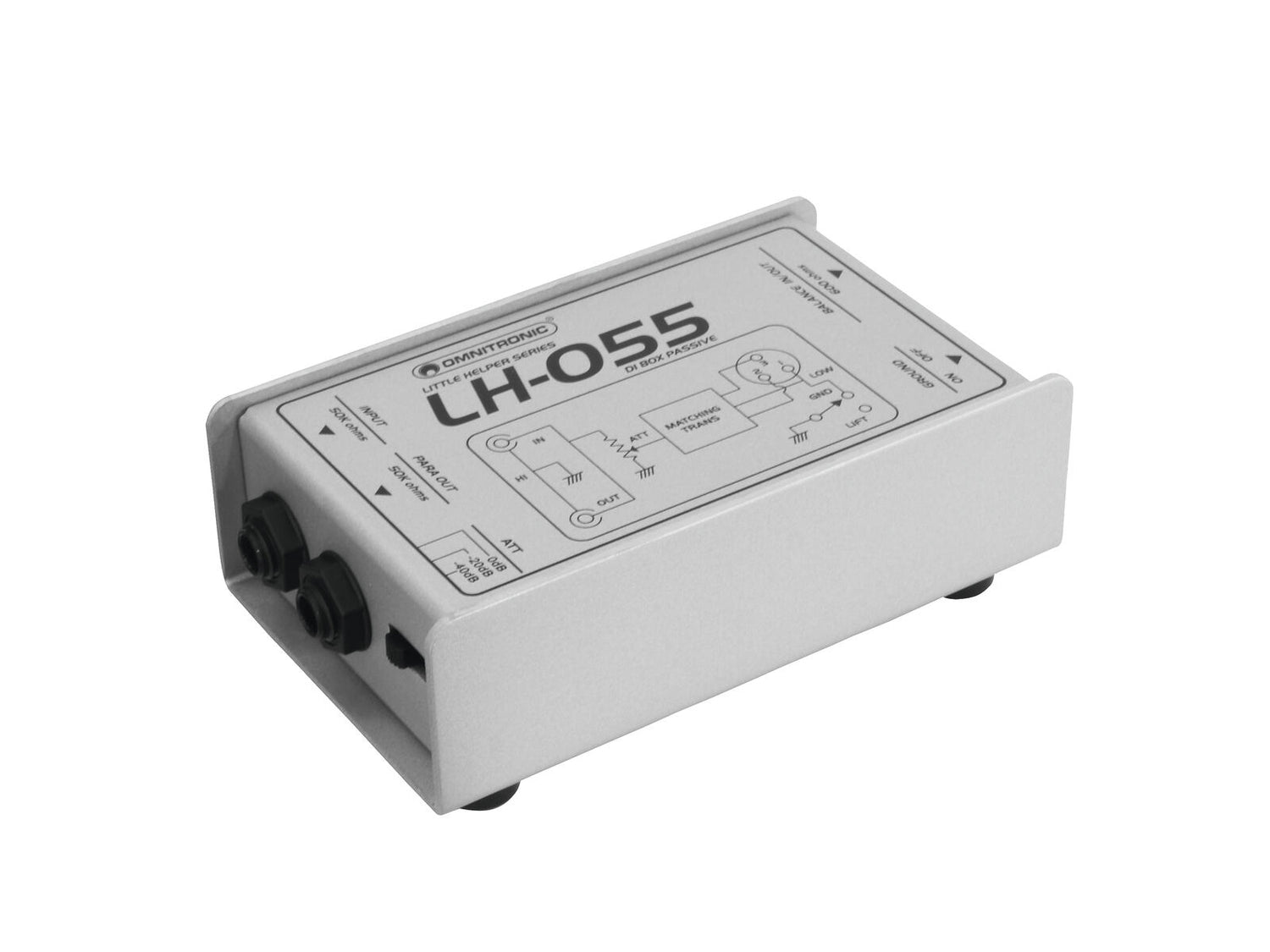

OMNITRONIC LH-055 PRO DI Box passive
1
of
2
Loading...
€34,95
Unit price
/
Not available
Secure checkout
Description
Description
Passive 1-channel DI box, silver
- 1 high-impedance signal input, 6.3 mm jack
- 1 low-impedance XLR output
- 6.35 mm jack input, and output
- Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Rugged metal housing
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Scope of delivery
- 1 x device
- 1 x user manual
| Frequency range: | 15 - 30000 Hz |
| S/N ratio: | >95 dB |
| Impedance: | Input: 50 kOhm Output: 600 Ohm |
| Input attenuation: | 0 dB, -20 dB, -40 dB; switchable |
| Housing color: | Silver |
| Control elements: | Groundlift selector |
| Connections: | Input: 1 x 6.3 mm plug (unbal.) Link: 1 x 6.3 mm plug (unbal.) Output: line via 1 x 3-pin XLR |
| Dimensions: | Width: 12.7 cm Depth: 7.4 cm Height: 4.5 cm |
| Weight: | 0.57 kg |
